EN ISO 11925-2 Building Material Ignitability Test Apparatus
Product Overview

The EN ISO 11925-2 Building Material Ignitability Test Apparatus is designed and manufactured according to ISO 11925-2 standards. This single-flame source test equipment is used to evaluate building materials under conditions without external radiation, testing vertically placed samples with a small flame to determine the flammability characteristics of building material products.

Key Features
  • Powder-coated box construction with attractive finish
  • Combustion chamber dimensions: 700mm (length) × 400mm (width) × 600mm (height)
  • Adjustable flame height with automatic ignition system
  • Programmable flame application and hold time from 0 to 99 minutes, 99 seconds
  • Combustion angle adjustment: 0° (vertical) and 45° positions
  • Horizontal burner movement capability
  • Glass observation door for clear test monitoring
  • All fixtures constructed from stainless steel for durability and corrosion resistance
  • Includes two types of stainless steel sample holders with flame height measurement
  • High degree of automation ensures accurate test data and easy operation
Technical Specifications
Product Name Single Flame Source Test / Ignitability Test Apparatus
Standards Compliance EN ISO 11925-2, DIN 53438, DIN 4102-1
Dimensions 400mm (W) × 700mm (D) × 600mm (H)
Power Requirements AC 220V, 50/60Hz, 10A
Weight Approximately 50kg
Compliance Standards
EN ISO 11925-2

Reaction to fire tests — Ignitability of products subjected to direct impingement of flame — Part 2: Single-flame source test

DIN 53438

Testing of combustible materials

DIN 4102-1

Fire behaviour of building materials and elements Part 1: Classification of building materials Requirements and testing

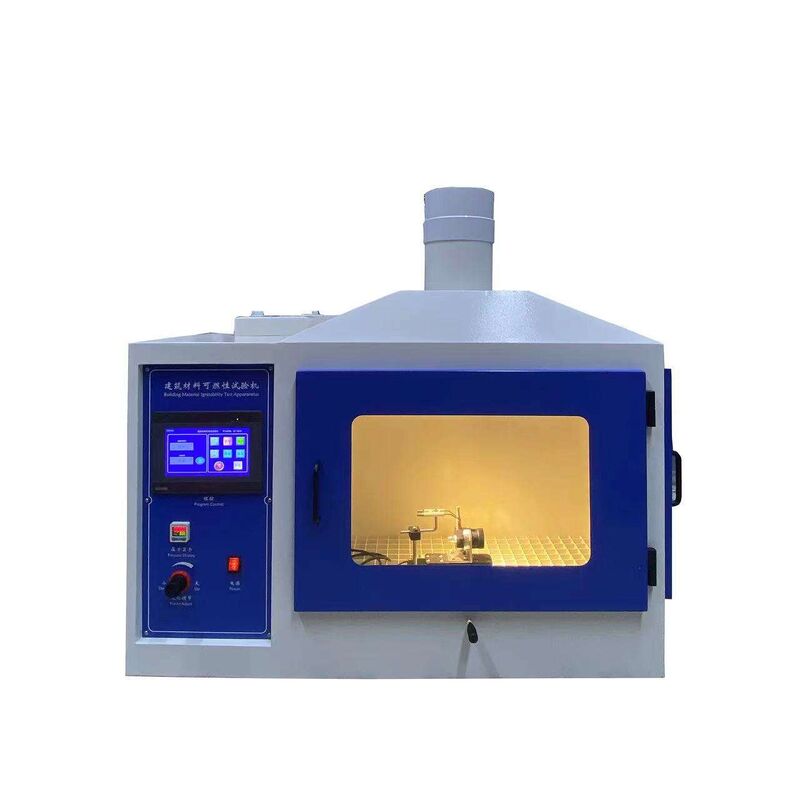

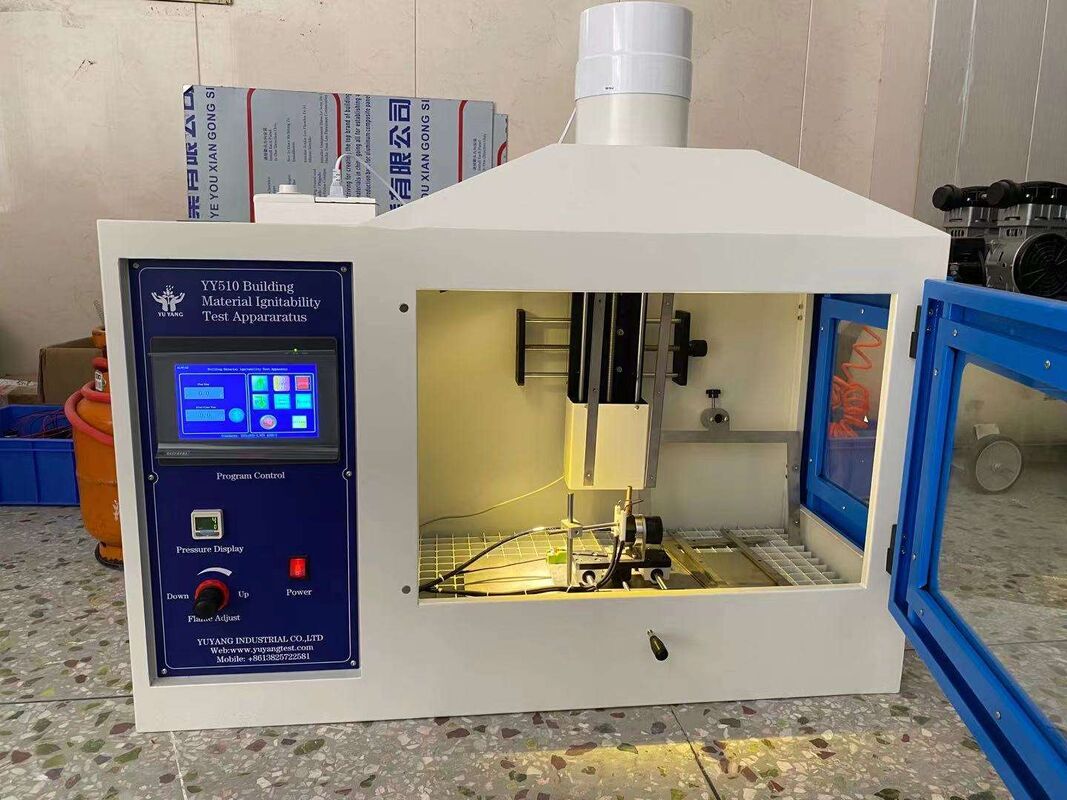

EN ISO 11925-2 Building Material Ignitability Test Apparatus showing the combustion chamber with glass observation door and control panel
