IEC 60332-3 Vertical Flammability Tester for Burning Behaviour of Bunched Cables
The IEC 60332-3 Vertical Flammability Tester evaluates the burning behavior of bunched cables and wires according to international standards. This advanced testing equipment measures vertical flame spread using a standardized ignition source within a controlled chamber environment.
Compliance Standards
- IEC 60332-3-10:2000
- IEC 60332-3-21 to 25:2000
- IEEE 383 (IEEE 1202) with burner adjustment
Key Features
- Test chamber dimensions: 1,000±100(W) × 2,000±100(D) × 4,000±100(H) mm
- Insulated rear panel with elevated bottom design
- Air supply opening: 800±20(W) × 400±10(D) mm at 150±10mm from front
- Exhaust opening: 300±30(W) × 1,000±100(D) mm at rear top corner
- Integrated flame trap for propane backfire prevention
- Computer-controlled test recording and condition monitoring
- Water spray extinguishing system for excessive combustion
- Programmable standards compliance and 70,000 Btu/h capability
- Stainless steel ladder options: 500(W) × 3,500(H) mm or 800(W) × 3,500(H) mm
- Dual standard propane burner and venturi mixture systems
- Programmable test category selection
Installation Requirements
| Electrical |
110V AC 60Hz, 230V AC 50Hz, 5A |
| Ambient Temperature |
Operating range: 10°C to 35°C |
| Size |
1120 mm (W) × 2200 mm (D) × 5070 mm (H) |
| Weight |
500 kg |
| Gas |
Air and propane |

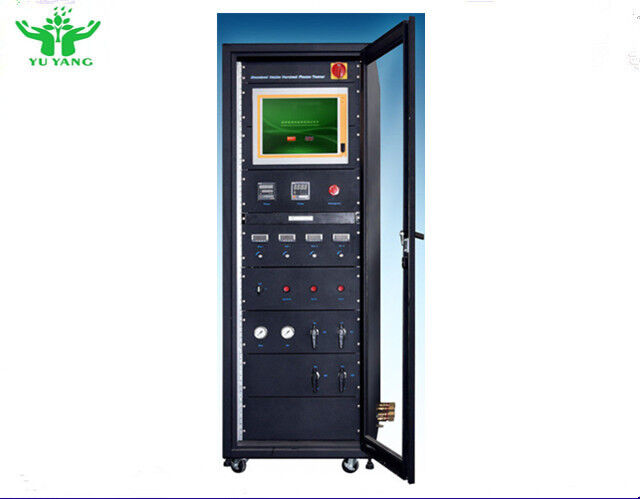

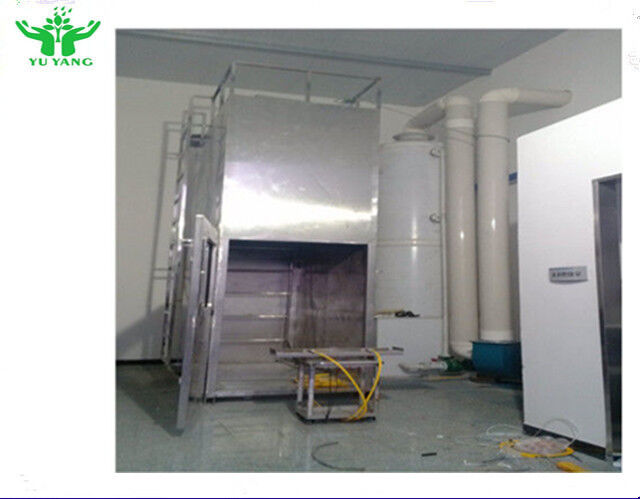

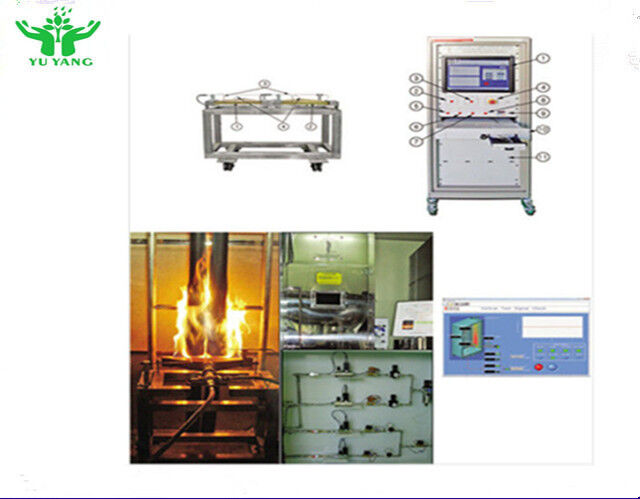

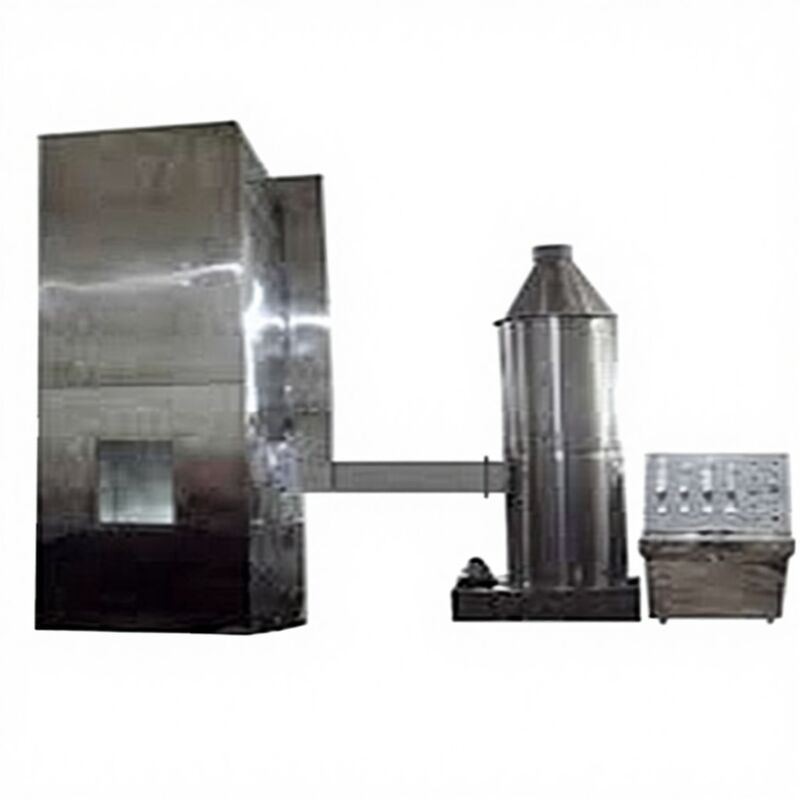

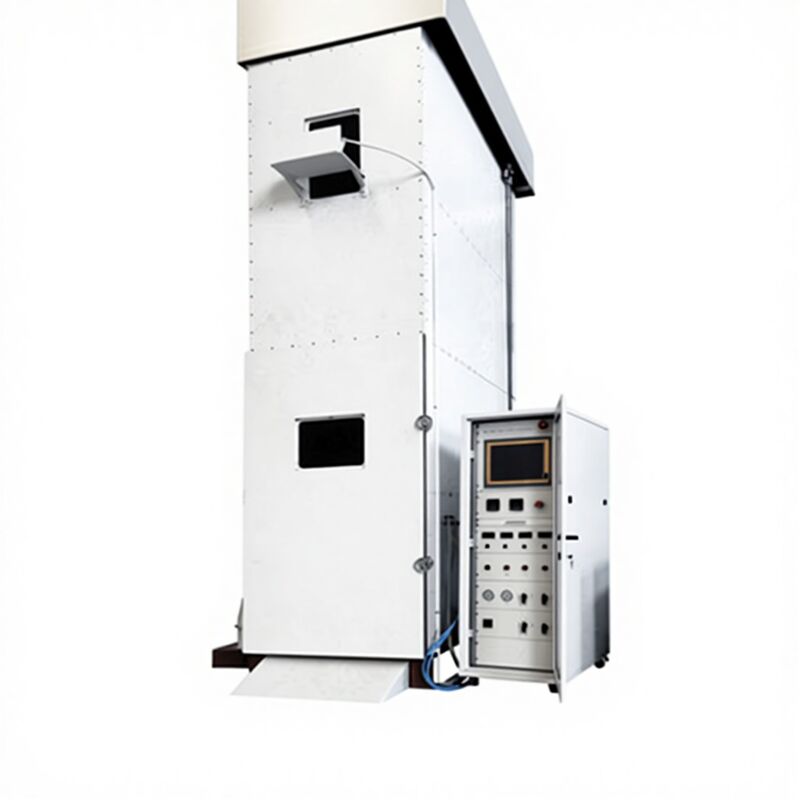

Product Images
Company Profile
DONGGUAN YUYANG INSTRUMENT CO., LTD is located in Wanjiang District, Dongguan City, Guangdong Province, China. We are a high-tech enterprise specializing in developing and manufacturing testing equipment including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.
With decades of research and development experience, YUYANG maintains a leading position in testing equipment innovation, focusing on high quality and cost-effective solutions. Our equipment serves various industries including scientific institutions, colleges, inspection agencies, automotive parts, electronics, electrical components, lithium batteries, LEDs, photoelectric devices, mobile devices, plastics and rubber, displays, telecommunications, chemicals, aerospace, building materials, wires and cables, toys, furniture, and textiles.
All YUYANG testing equipment are designed according to international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA, and CEN.
