IEC 60331, BS 6387, EN 50200 Electric Cables Circuit Integrity Burn Test Apparatus Fire Shock Water Spray Test

IEC 60331 electric cable test apparatus

BS 6387 fire shock test equipment

EN 50200 circuit integrity burn tester

Place of Origin:

Dongguan, China

Brand Name:

YUYANG

Request A Quote

IEC 60331, BS 6387, EN 50200 Electric Cables Circuit Integrity Burn Test Apparatus Fire Shock Water Spray Test

Product Details

Accuracy:

±1%

Power:

500W

Protection Class:

IP57

Voltage:

110 V, 220V

Input Voltage:

0 ~ 1000V

Breakdown Current:

Maximum Power:

5000VA

Flame Temperature:

0 ~ 1100 Degree

Burner Nozzle Length:

500mm

Burner Nozzle Width:

15mm

Holes Diameter:

1.32mm

Holes Center Distance:

3.2mm

Metal Rings Diameter:

150mm

Cross-sectional Diameter:

10 ± 2mm

Timer Range:

0 ~ 999min

Highlight:

IEC 60331 electric cable test apparatus

BS 6387 fire shock test equipment

EN 50200 circuit integrity burn tester

Payment & Shipping Terms

Minimum Order Quantity

Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine

Get Best Price

Wire Cable Bending Fatigue Testing Machine

Get Best Price

220V Cable Flex for Test Equipment Plug Wire Line Bending Tester

Get Best Price

High Frequency 15KW 25KW Spark Tester for Cable and Wire YUYANG Cable Testing Machine

Get Best Price

+86-13825722581

jackson.sun@yuyangtest.com

86-769-26622869

Contact Now

Product Description

IEC 60331, BS 6387, EN 50200 Electric Cables Circuit Integrity Burn Test Apparatus

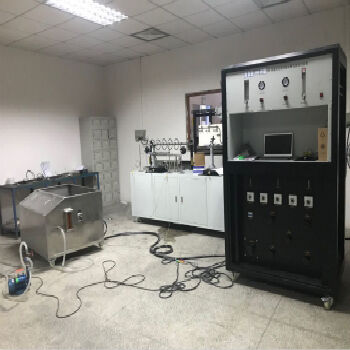

This fire-resistant cable testing apparatus evaluates circuit integrity under flame conditions, ensuring cables maintain safe operation during fire exposure. Designed for fire-resistant cables and optical cables, the system provides reliable testing according to international standards.

User Experience Benefits

Stainless steel construction provides excellent resistance to smoke and gas corrosion
Highly automated control system with automatic ignition, digital temperature and time displays for easy observation and recording
Stable and reliable performance for consistent test results

Compliance Standards

IEC 60331 - Tests for electric cables under fire conditions - Circuit Integrity
GB/T19216 - Test for electric or optical fibre cables under fire conditions - Circuit Integrity
BS 6387 - Test method for resistance to fire of cables required to maintain circuit integrity
EN 50200 - Method of test for resistance to fire of unprotected small cables for use in emergency circuits

Key Features

All fixtures constructed from durable stainless steel
Belt-type propane blowtorch with Venturi mixer, featuring 500mm length, 15mm width burner nozzle
Staggered three-row burning holes with 1.32mm diameter and 3.2mm center distance

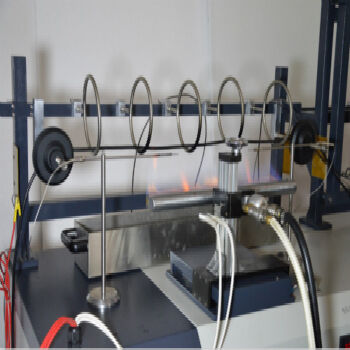

Specimen holder with clamping mechanism for secure sample fixation and longitudinal heat transfer
Cable samples supported by two metal rings with 150mm inner diameter and 300mm spacing
Optimal burner positioning: ≥200mm from burning bottom, ≥300mm from tank wall

Combustion System Specifications

Independent standard electrical control platform

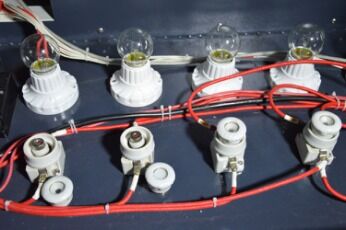

Intelligent detection system automatically alarms and extinguishes fire source upon sample short circuit
2A fuse current in experimental circuit
Adjustable sample power application: AC 100V ~ 1000V
Programmable fire duration with standard recommendation of 90 minutes

Technical Parameters

Voltage	AC 380V 3-phase, 50/60Hz, 30A
Input Voltage	0 ~ 1000V adjustable
Breakdown Current	2A
Maximum Power	5000VA
Timer	0 ~ 999 minutes
Flame Temperature	0 ~ 1100°C adjustable
Test Load Current	0.25A adjustable
