Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine

Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine

wire rod elongation tester

copper wire elongation test machine

cable elongation testing equipment

Place of Origin:

China

Brand Name:

YUYANG

Contact Us
Request A Quote
Product Details
Accuracy:
0.1
Power:
4kw
Protection Class:
IP55
Voltage:
220V
Sampling Length:
250mm
Drawing Speed:
250 ~ 300mm/min
Specimen Diameter:
0.03-1.2mm
Extended Range:
0-150mm (60%)
Starting Length:
250mm
Display Accuracy:
1%
Power Supply:
AC220V, 50Hz, 2A
Diameter Range:
0.08 ~ 0.8mm
Extended Range:
0 ~ 48%
Input Power:
AC220V 50/60Hz
Model Number:
YYW005
Highlight:

wire rod elongation tester

,

copper wire elongation test machine

,

cable elongation testing equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$200-450
Product Description

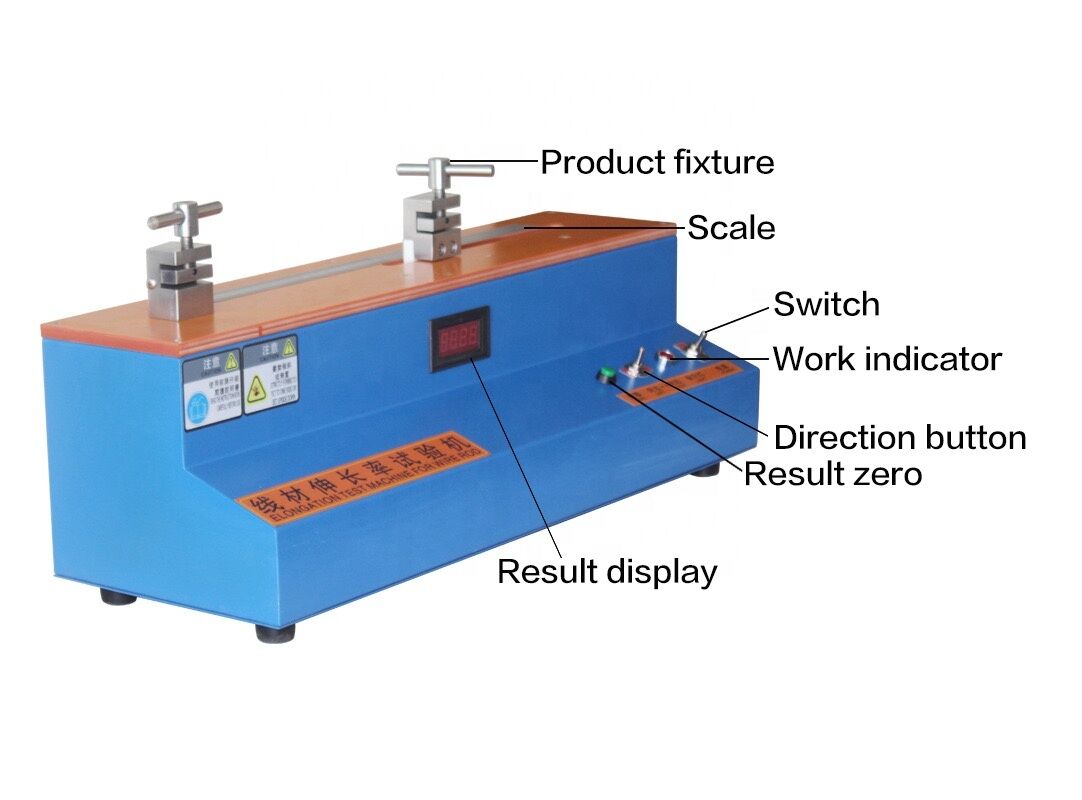

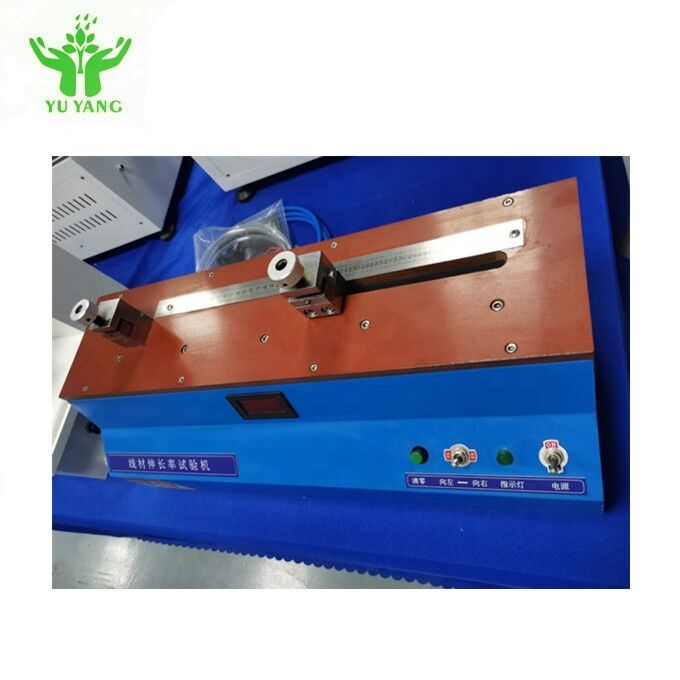

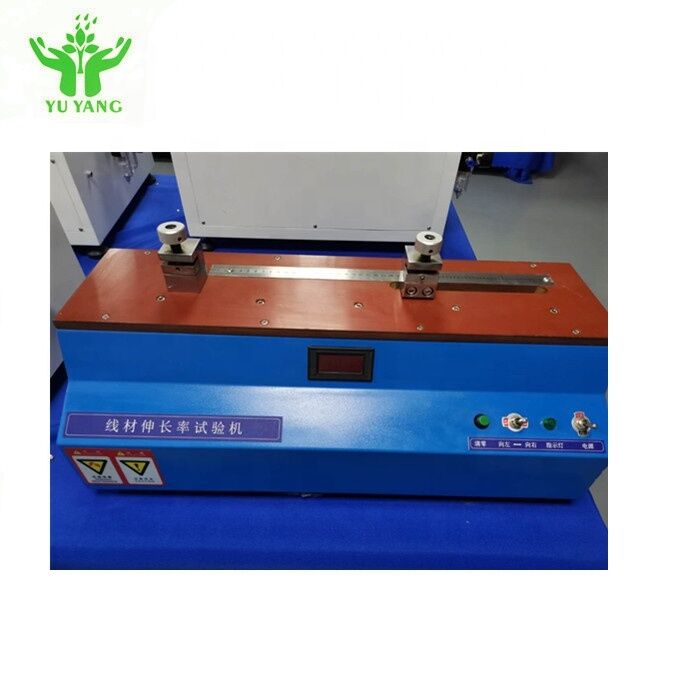

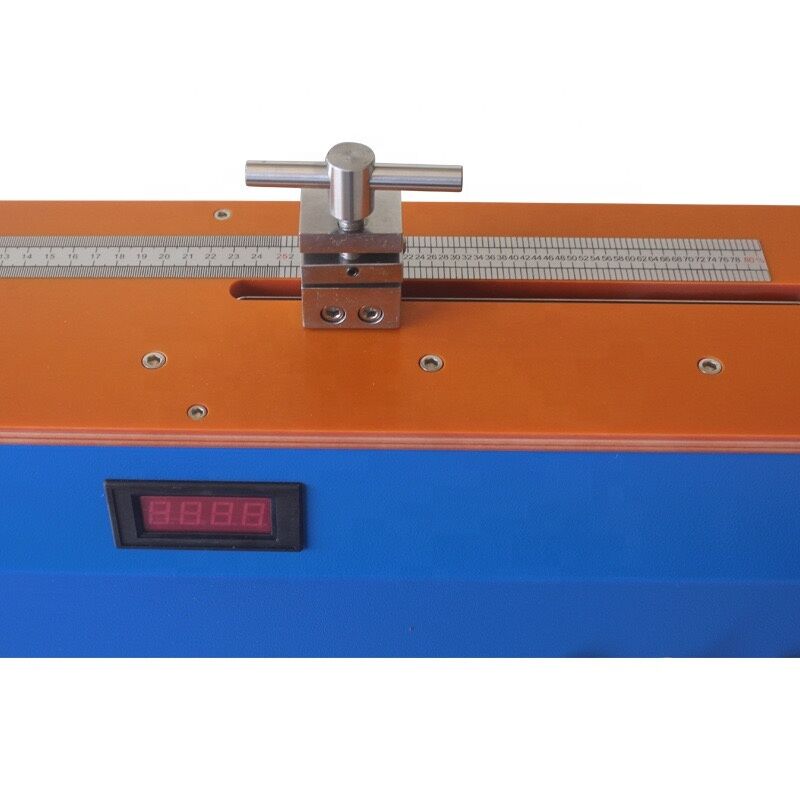

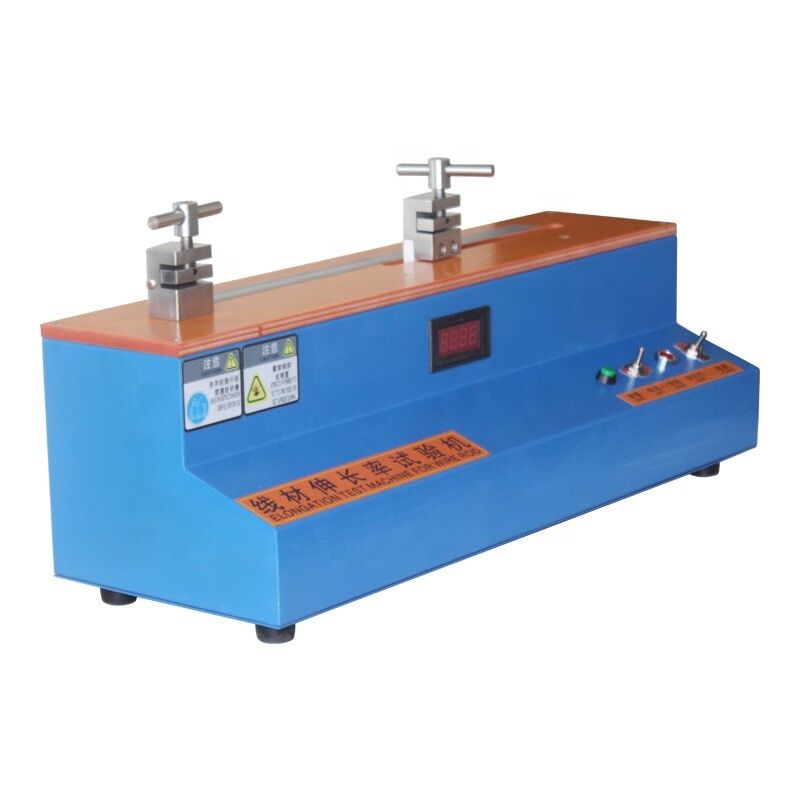

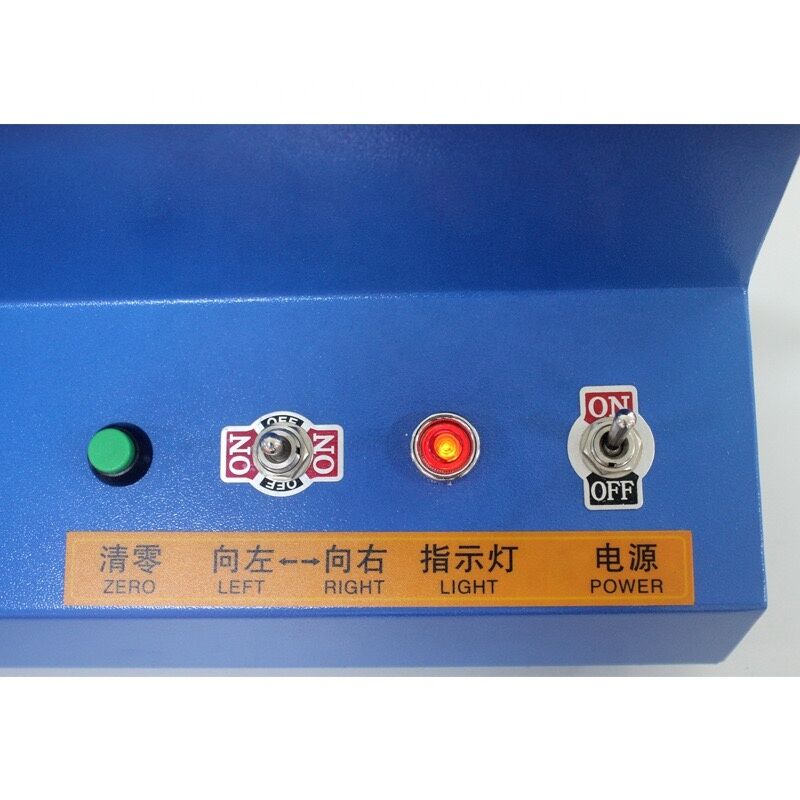

Elongation Test Machine for Wire Rod Copper Material
Professional elongation testing equipment designed for wire rod copper material, cables, and wires. This precision wire testing machine ensures accurate measurement of material elongation properties.
Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine 0 Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine 1 Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine 2 Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine 3
Technical Specifications
Parameter Value
Place of Origin China
Brand Name YUYANG
Model Number YYW005
Power Electronic
Drawing Speed 250 ~ 300mm/min
Diameter Range 0.08 ~ 0.8mm
Extended Range 0 ~ 48%
Starting Length 250mm
Display Accuracy 1%
Input Power AC220V 50/60Hz
Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine 4 Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine 5
Packaging & Transportation
Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine 6
Company Profile
DONGGUAN YUYANG INSTRUMENT CO., LTD is located in Wanjiang District, Dongguan City, Guangdong Province, China. We are a high-tech enterprise specializing in developing and manufacturing testing equipment including Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.
With decades of research and development experience, YUYANG maintains a leading position in the field and plays a crucial role in R&D for high-quality, cost-effective testing equipment. Our products are widely used across multiple industries including scientific institutions, colleges, inspection agencies, automotive parts, electronics, electrical components, lithium batteries, LED, photoelectric devices, mobile devices, plastics and rubber, display technology, telecommunications, chemicals, aerospace, building materials, wire and cable, toys, furniture, textiles, and fabrics.
All YUYANG testing equipment are designed according to international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA, and CEN.
Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine 7 Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine 8 Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine 9
Certifications
Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine 10 Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine 11
Customer Evaluation
Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine 12
Frequently Asked Questions
Who are we?
Based in Guangdong, China, established in 2018. We serve global markets including Southeast Asia (11.00%), Eastern Asia (10.00%), Southern Europe (10.00%), Domestic Market (10.00%), Northern Europe (9.00%), South Asia (9.00%), North America (7.00%), South America (7.00%), Western Europe (7.00%), Eastern Europe (6.00%), Mid East (6.00%), Oceania (5.00%), Central America (3.00%), and Africa (0.00%). Our team consists of 11-50 professionals.
How can we guarantee quality?
  • Always provide pre-production samples before mass production
  • Conduct final inspection before shipment
What can you buy from us?
Testing Equipment, Tensile Testing Machines, Environmental Test Chambers, Fire Testing Equipment, Induction Heating Machines
Why should you buy from us instead of other suppliers?
We are a high-tech enterprise specializing in developing and manufacturing comprehensive testing equipment including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Accepted Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY, CHF
Accepted Payment Type: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash, Escrow
Language Spoken: English, Chinese
