ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment

ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment

ISO 5660 Certified Cone Calorimeter

Heat Release Rate Measurement Fire Resistance Testing Equipment

Modular Design Flammability Testing Equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY501

Contact Us
Request A Quote
ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment
Product Details
Highlight:

ISO 5660 Certified Cone Calorimeter

,

Heat Release Rate Measurement Fire Resistance Testing Equipment

,

Modular Design Flammability Testing Equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Plywood Case
Delivery Time
30 Days
Payment Terms
L/C,T/T,Western Union
RELATED PRODUCTS
Good price EN ISO 1716 Compliant Bomb Calorimeter with High Precision PT100 Sensor for 0.01MJ/kg to 30MJ/kg Heat of Combustion Testing online

EN ISO 1716 Compliant Bomb Calorimeter with High Precision PT100 Sensor for 0.01MJ/kg to 30MJ/kg Heat of Combustion Testing

Get Best Price
Good price ISO 1133 ASTM D1238 Melt Flow Index Tester with High Temperature Accuracy ±0.2°C for Plastic Testing online

ISO 1133 ASTM D1238 Melt Flow Index Tester with High Temperature Accuracy ±0.2°C for Plastic Testing

Get Best Price
Good price Stainless Steel Fire Resistance Coating Testing Equipment ISO 834-1 Compliant with 180℃-220℃±2℃ Temperature Alarm online

Stainless Steel Fire Resistance Coating Testing Equipment ISO 834-1 Compliant with 180℃-220℃±2℃ Temperature Alarm

Get Best Price
Good price ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment online

ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment

Get Best Price
Contact Us
8618938576621
sales05@yuyangtest.com
86-769-26622869
Contact Now
Product Description

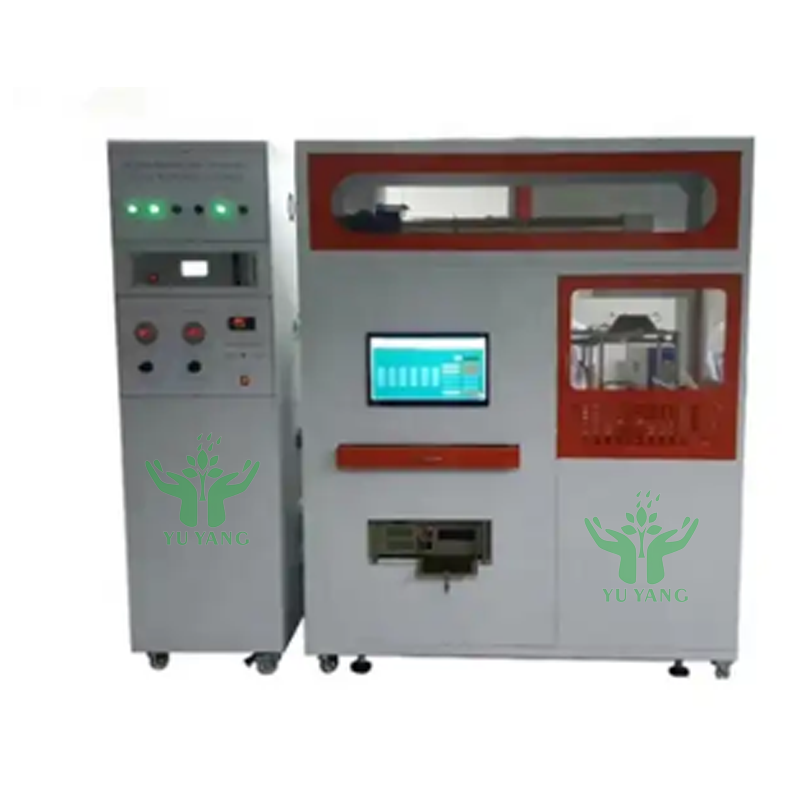

ISO 5660 Certified Cone Calorimeter Test Apparatus
The Cone Calorimeter represents the most significant bench-scale instrument in fire testing, designed to measure heat release rates and assess fire development characteristics of materials and products.
ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment 0 ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment 1 ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment 2 ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment 3 ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment 4 ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment 5
Product Overview
This ISO 5660 certified Cone Calorimeter measures heat release rate using oxygen consumption calorimetry, providing critical data for fire hazard assessment and fire-retardant material development.
Applications
The instrument calculates heat release rate by measuring oxygen concentration in combustion products, providing essential data for predicting fire hazards and evaluating fire-retardant treatments.
Compliance Standards
  • ISO 5660: Reaction-to-fire tests - Heat release, smoke production and mass loss rate
  • ASTM E1354: Standard Test Method for Heat and Visible Smoke Release Rates
  • BS 476: PART 15: Method for measuring the rate of heat release of products
  • GB/T 16172-2007: Test method for heat release rate of building materials
Complete System Components
  • Conical Heater: 5000 W rated power with 100 kW/m² heat output
  • Horizontal and vertical specimen testing capability
  • PID temperature control with 3 type K thermocouples
  • Split Shutter Mechanism for sample protection
  • Specimen Holders for 100mm x 100mm specimens up to 50mm thick
  • Load Cell with 0.01g accuracy and quick electronic tare
  • Spark Ignition with 10 kV generator and safety cut-out
  • Stainless Steel Exhaust System with adjustable flow controls
  • Gas Sampling System with filters, cold trap, and drying columns
  • Paramagnetic Oxygen Analyzer (0-25% range)
  • Smoke Obscuration Laser System
  • Heat Flux Meter for irradiance level setting
  • Calibration Burner for methane calibration
  • Agilent Data Acquisition System
  • ConeCalc Software with multi-language support
Technical Specifications
Measuring Range 0-25%
Signal Output 4-20mA
Response Time ≤2S
Ambient Temperature 0-45 ℃
Relative Humidity <90% (non-condensing)
Zero Drift 0.05% O2 (one week)
Optional Accessories
  • Carbon Dioxide and Carbon Monoxide NDIR gas analyzers
  • Hydrogen Chloride analysis with heated supply lines
  • Controlled Atmosphere Attachment for low oxygen analysis
  • Mass Loss Calorimeter
  • FTIR Toxicity Test System
  • Protection Doors for operator safety
Packaging and Transportation
ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment 6 ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment 7
Manufacturer Information
DONGGUAN YUYANG INSTRUMENT CO., LTD is located in Wanjiang District, Dongguan City, Guangdong Province, China. We are a high-tech enterprise specializing in developing and manufacturing fire testing equipment, environmental test chambers, and various testing instruments.
Our testing equipment is designed according to international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, IEC, VDE, and CSA. YUYANG equipment serves diverse industries including scientific institutions, colleges, inspection agencies, automotive, electronics, aerospace, building materials, and textiles.
We welcome cooperation with customers worldwide and invite inquiries about our products or custom orders.
ISO 5660 Certified Cone Calorimeter for Heat Release Rate Measurement and Modular Fire Resistance Testing Equipment 8
