Name: 6 Zones Waterproof Walk Through Metal Detecting Machine Security Metal Detector
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY200
Price: 448 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

6 Zones Waterproof Walk Through Metal Detecting Machine Security Metal Detector

6 zones waterproof metal detector

walk through security metal detector

flammability testing metal detecting machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YY200

Request A Quote

6 Zones Waterproof Walk Through Metal Detecting Machine Security Metal Detector

Product Details

Detection Program:

99-level Sensitivity Adjustment, Capable Of Meeting The Needs Of Different Scenarios

Personnel Throughput Rate:

More Than 40 People Per Minute

Power Supply:

220V AC, 50/Hz

Power Consumption:

35W

Working Environment:

-10℃ To 45℃, ≤ 95% RH

Channel Size:

200 (height) * 70 (width) * 50 (depth) CM

Overall Size:

222 (height) * 80 (width) * 70 (depth) CM

Packaging Size:

Door Panel: 230*72*25CM (2 Pieces Per Box)

Mainframe Box:

78*47*28CM (1 Unit Per Box)

Net Weight:

45kg Per Set; Gross Weight: 55kg Per Set

Highlight:

6 zones waterproof metal detector

walk through security metal detector

flammability testing metal detecting machine

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$448

Payment Terms

T/T

Supply Ability

100 Pcs Per Month

Original Factory Walk Through Metal Detector Gate

Get Best Price

Airport Bank Hotel Subway Safety Check Industry Walk Through Metal Detector

Get Best Price

6 Zones Waterproof Walk Through Metal Detector Gate

Get Best Price

Factory High Sensitivity Walkthrough Metal Detector Gate

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

6 Zones Waterproof Walk Through Metal Detecting Machine Security Metal Detector

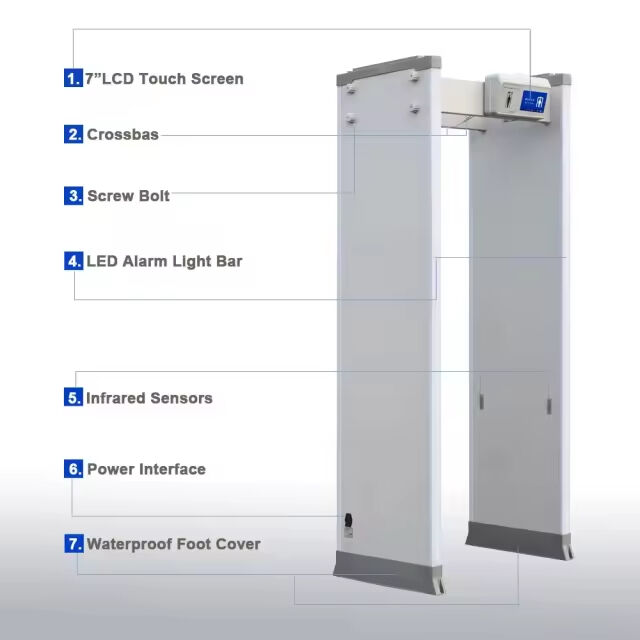

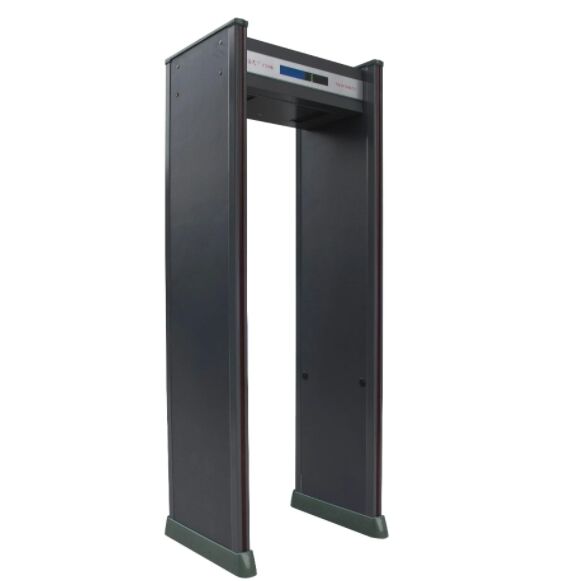

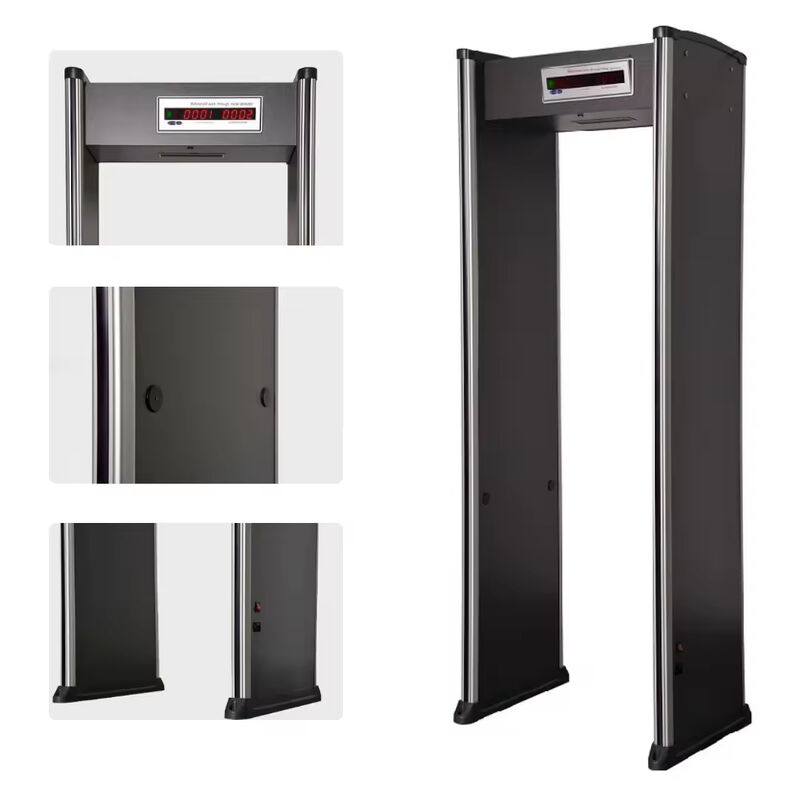

An economical and practical security detection door, the 200 model features a walk-through design with aluminum alloy columns fitted with high-brightness LED alarm indicator strips that directly show alarm locations. The device establishes an electromagnetic field and triggers alarms when detecting metal objects, accurately identifying hidden metals including controlled knives, weapons, electronics, and other metal-bearing items while precisely locating their position.

Key Functions and Features

Zone Positioning with Visual and Audio Alarms: Six overlapping detection areas with high-brightness LED indicators at human body height for precise metal object location identification
360-Degree All-Round Detection: Four corresponding infrared transmitters and receivers ensure complete coverage with no blind spots
Adjustable Sensitivity Control: Each area features 0 to 256 levels of sensitivity adjustment to eliminate interference from common objects like pocket items and zippers

Technical Standards and Certifications

EU Certification	CE Certified
National Standard Compliance	GB 15210-1994 General Technical Conditions for Through-Type Metal Detection Gates
Basic Safety	Meets GB4793 Requirements
Personal Safety	Complies with NILECJ-0601 Standard
Radiation Safety	EMC Electromagnetic Radiation Standard Compliant
Public Security Standards	Meets Ministry of Public Security Safety and Quality Standards for Electronic Products

As an effective security and theft prevention tool, the 200 model is primarily used for indoor inspections in factories, schools, exhibition halls, and manufacturing facilities for hardware and electronics to deter theft and ensure security.
