Name: Cheap Higher Sensitivity Walkthrough Metal Detector For Station
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY200
Price: 448 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

Cheap Higher Sensitivity Walkthrough Metal Detector For Station

high sensitivity walkthrough metal detector

station security metal detector

flammability testing walkthrough detector

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YY200

Request A Quote

Cheap Higher Sensitivity Walkthrough Metal Detector For Station

Product Details

Detection Program:

99-level Sensitivity Adjustment, Capable Of Meeting The Needs Of Different Scenarios

Personnel Throughput Rate:

More Than 40 People Per Minute

Power Supply:

220V AC, 50/Hz

Power Consumption:

35W

Working Environment:

-10℃ To 45℃, ≤ 95% RH

Channel Size:

200 (height) * 70 (width) * 50 (depth) CM

Overall Size:

222 (height) * 80 (width) * 70 (depth) CM

Packaging Size:

Door Panel: 230*72*25CM (2 Pieces Per Box)

Mainframe Box:

78*47*28CM (1 Unit Per Box)

Net Weight:

45kg Per Set; Gross Weight: 55kg Per Set

Highlight:

high sensitivity walkthrough metal detector

station security metal detector

flammability testing walkthrough detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$448

Payment Terms

T/T

Supply Ability

100 Pcs Per Month

Original Factory Walk Through Metal Detector Gate

Get Best Price

Airport Bank Hotel Subway Safety Check Industry Walk Through Metal Detector

Get Best Price

6 Zones Waterproof Walk Through Metal Detector Gate

Get Best Price

Factory High Sensitivity Walkthrough Metal Detector Gate

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

Cheap Higher Sensitivity Walkthrough Metal Detector For Station

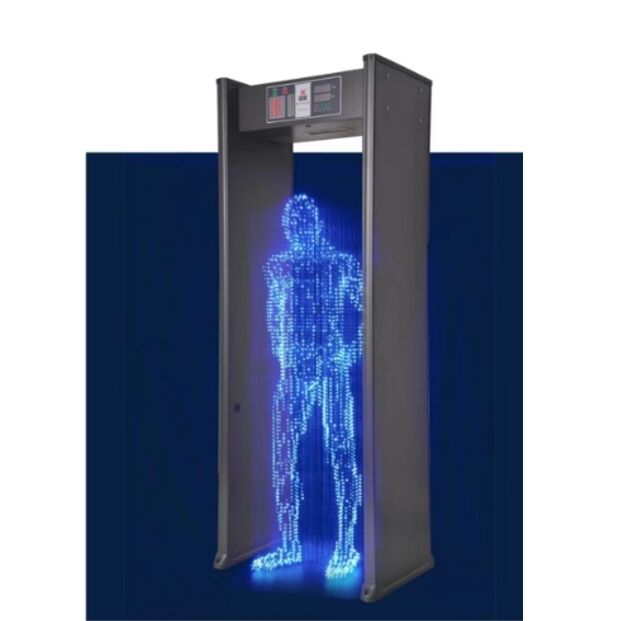

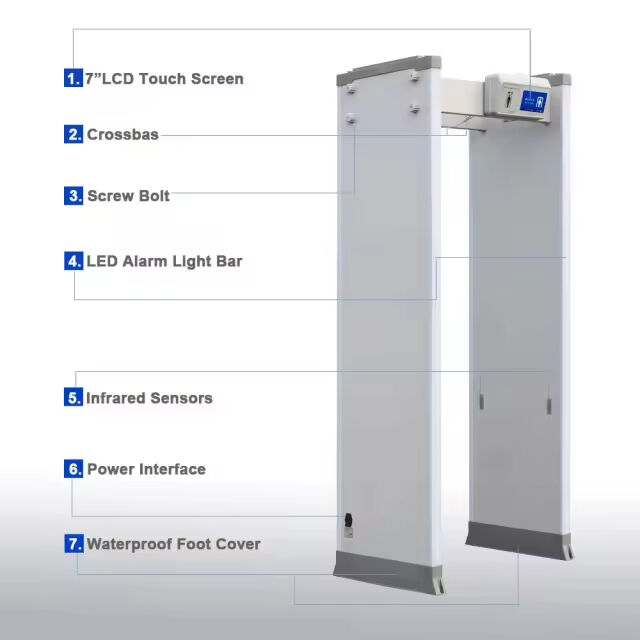

The Model 200 is an economical and practical walk-through security detection gate designed for comprehensive metal detection. Constructed with durable aluminum alloy side columns and high-brightness LED light strips that clearly indicate alarm positions, this unit combines elegant design with robust functionality.

Utilizing advanced electromagnetic field technology, the detector accurately identifies hidden metals and metal-containing objects on individuals or in bags—including knives, weapons, metal products, and electronics—while precisely locating the position of detected metals on the body. Ideal for security and anti-theft applications, this model is primarily used indoors in factories, schools, exhibition halls, and facilities such as hardware and electronics factories to prevent theft.

Key Features & Functions

EMC Compliant: Meets electromagnetic radiation standards and is safe for pacemaker wearers, pregnant women, and magnetic recording materials
360-Degree Detection: Four corresponding infrared transmitters and receivers ensure complete coverage with no blind spots
Adjustable Sensitivity: Each detection area offers 0 to 256 levels of sensitivity adjustment to eliminate interference from common objects

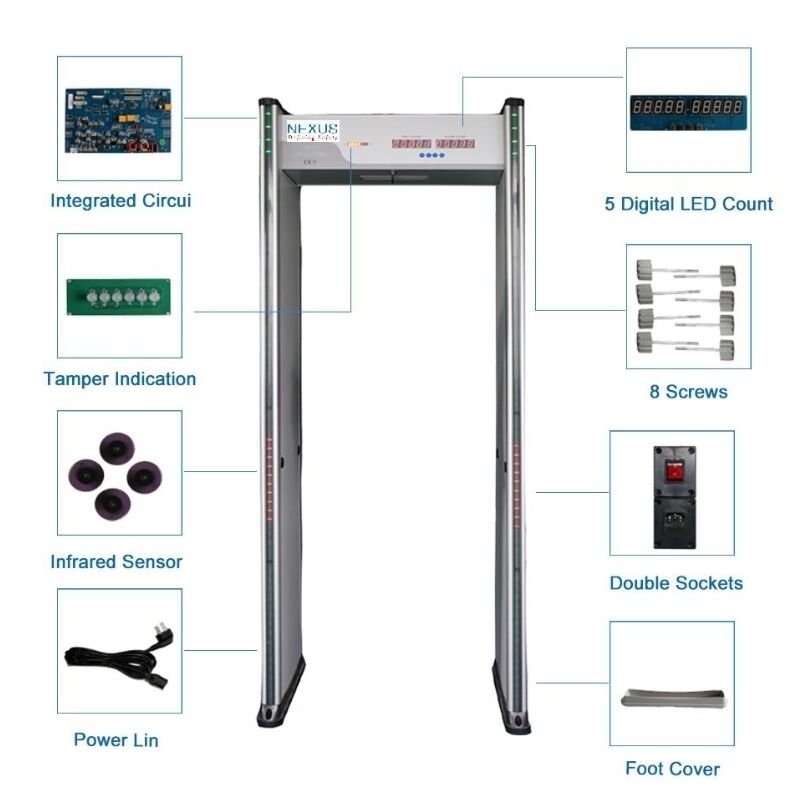

Digital Control Technology: Microprocessor-based system with strong anti-interference capabilities, automatic people counting, and alarm triggering
Scalable Deployment: Can be used independently or connected in parallel with multiple units (minimum spacing: 10cm) for high-traffic areas
Password Protection: Working parameters are secured with password protection to prevent unauthorized modifications
Practical Design: Economical, aesthetically pleasing assembly structure with easy installation

Technical Standards & Certifications

EU CE Certification: Fully certified for European market compliance

GB 15210-1994 Compliance: Strictly conforms to Chinese national standard "General Technical Conditions for Through-Type Metal Detection Gates"

Ministry of Public Security Standards: Meets safety and quality standards for electronic products used in public security and police applications

Personal Safety: Complies with NILECJ-0601 standard for personal safety

Radiation Safety: Meets EMC electromagnetic radiation standards for safe operation
