ISO 11925-2 Single Flame Source Ignitability Testing Equipment for Building Materials Fire Retardant Test

ISO 11925-2 Single Flame Source Ignitability Testing Equipment for Building Materials Fire Retardant Test

ISO 11925-2 single flame testing equipment

building materials fire retardant test equipment

flammability testing equipment with single flame

Place of Origin:

Guangdong, Dongguan

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YY510

Contact Us
Request A Quote
ISO 11925-2 Single Flame Source Ignitability Testing Equipment for Building Materials Fire Retardant Test
ISO 11925-2 Single Flame Source Ignitability Testing Equipment for Building Materials Fire Retardant Test ISO 11925-2 Single Flame Source Ignitability Testing Equipment for Building Materials Fire Retardant Test ISO 11925-2 Single Flame Source Ignitability Testing Equipment for Building Materials Fire Retardant Test
Product Details
Product Name:
Single Flame Source Test / Ignitability Test Apparatus
Standard:
EN ISO 11925-2, DIN 53438, DIN4102-1
Gas Source:
>95% Propane Gas
Gas Pressure:
10kpa~50kpa
Burner:
Diameter 0.17mm Burner With Regulator
Burner Angle:
45°
Usage:
Fire Testing Equipment For Building Material
Dimension:
400mm(W)*700mm(D)*600(H)
Power Supply:
AC220V±10%, 50Hz
Burning Plate:
Aluminum, Diameter 50mm
Air Source:
Methane, Air
Flame Height:
20mm To 200mm
Total Flame Height:
170~190 MM
Gas Flow Range:
100~1000 ML / MIN
Testing Time:
30s±1s
Xenon Lamp Power:
6.5kw
Temperature Testing Range:
0~1000 Degree
Certifications:
CE, ISO 9001
Highlight:

ISO 11925-2 single flame testing equipment

,

building materials fire retardant test equipment

,

flammability testing equipment with single flame

Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
Negotiable
Packaging Details
Standard Wooden Case
Delivery Time
10 days
Payment Terms
T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis online Video

Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis

Get Best Price
Good price Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation online Video

Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation

Get Best Price
Good price ISO 11925-2 Single Flame Source Ignitability Testing Equipment for Building Materials Fire Retardant Test online Video

ISO 11925-2 Single Flame Source Ignitability Testing Equipment for Building Materials Fire Retardant Test

Get Best Price
Good price YYF045 Multi-purpose Textile Flammability Tester online

YYF045 Multi-purpose Textile Flammability Tester

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description
ISO 11925-2 Single Flame Source Ignitability Testing Equipment
Building Materials Fire Retardant Test Equipment designed to evaluate combustibility of construction products by applying a small flame directly onto vertically positioned specimens.

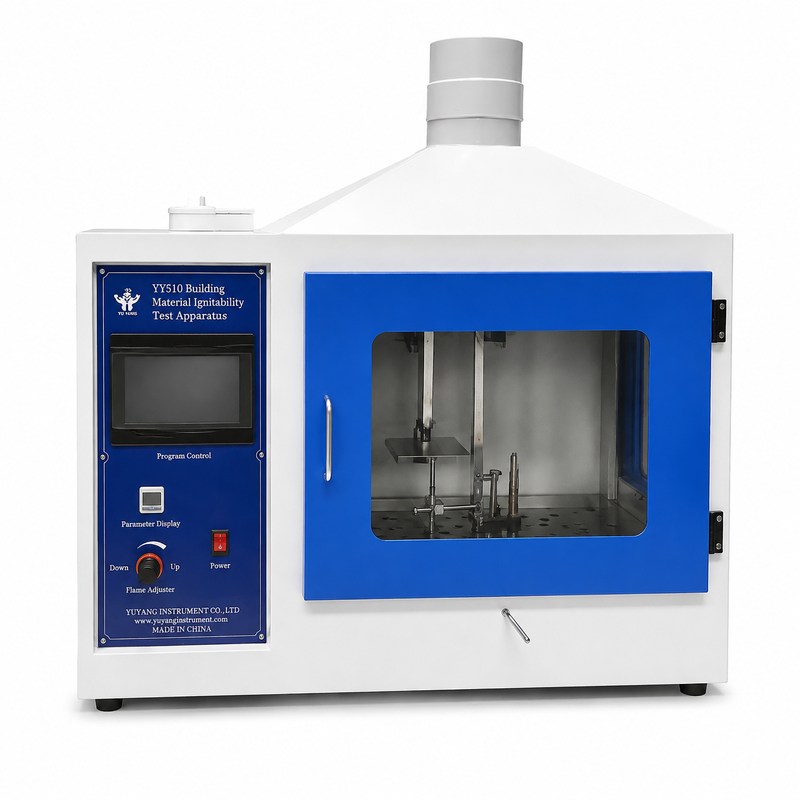

ISO 11925-2 Single Flame Source Ignitability Testing Equipment front view ISO 11925-2 Testing Equipment internal chamber view
Product Overview
The Building Material Ignitability Tester is engineered in compliance with GB/T8626 and ISO11925 standards. This equipment evaluates the combustibility of construction products by applying a small flame directly onto vertically positioned specimens, with no external irradiation applied. It meets the testing requirements specified in the latest edition of GB 8624-2014, the standard for fire classification of building materials, and supports fire performance testing for Class B1, Class B2 and other grades.
Compliance Standards
  • EN ISO 11925-2 - Reaction to fire tests - Ignitability of products subjected to direct impingement of flame - Part 2: Single-flame source test
  • DIN 53438 - Testing of combustible materials
  • DIN 4102-1 - Fire behaviour of building materials and elements Part 1: Classification of building materials Requirements and testing
Key Features
  • Spray-painted finish for elegant and attractive appearance
  • Combustion chamber internal dimensions: 700 mm (L) × 400 mm (W) × 600 mm (H)
  • Adjustable flame height, automatic timing, automatic flame monitoring, automatic ignition and protection against ignition faults
  • Flame impingement duration and combustion duration adjustable from 0 min 00 s to 99 min 99 s
  • Burning angle: 0° (vertical), 45°
  • External debugging handle for horizontal burner movement
  • Tempered glass door for convenient observation and testing
  • All internal tooling made of stainless steel for corrosion resistance
  • Equipped with two types of stainless steel sample holders and flame height gauge
  • High automation level with accurate experimental data and easy operation
  • American Humboldt imported burner with φ0.17mm hole diameter and 4 φ4 mm air conditioning holes
  • Real-time experimental data monitoring with query capability for 6 samples and alarm content
Control System Specifications
  • Programmable Logic Controller (PLC) Control
  • Automatic timing, automatic flame detection, automatic ignition, ignition abnormal protection
  • LCD touch screen display
  • Real-time monitoring of experimental data, queries for six samples of experimental data, query alarm content
ISO 11925-2 Testing Equipment control system interface
