Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation

Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation

ISO11925 flammability tester for building materials

fire testing furnace for ignition evaluation

flammability testing equipment with ISO11925 standard

Place of Origin:

Guangdong, Dongguan

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YY510

Contact Us
Request A Quote
Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation
Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation
Product Details
Product Name:
Single Flame Source Test / Ignitability Test Apparatus
Standard:
EN ISO 11925-2, DIN 53438, DIN4102-1
Gas Source:
>95% Propane Gas
Gas Pressure:
10kpa~50kpa
Burner:
Diameter 0.17mm Burner With Regulator
Burner Angle:
45°
Usage:
Fire Testing Equipment For Building Material
Dimension:
400mm(W)*700mm(D)*600(H)
Power Supply:
AC220V±10%, 50Hz
Burning Plate:
Aluminum, Diameter 50mm
Air Source:
Methane, Air
Flame Height:
20mm To 200mm
Total Flame Height:
170~190 MM
Gas Flow Range:
100~1000 ML / MIN
Testing Time:
30s±1s
Xenon Lamp Power:
6.5kw
Temperature Testing Range:
0~1000 Degree
Certifications:
CE, ISO 9001
Highlight:

ISO11925 flammability tester for building materials

,

fire testing furnace for ignition evaluation

,

flammability testing equipment with ISO11925 standard

Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
Negotiable
Packaging Details
Standard Wooden Case
Delivery Time
10 days
Payment Terms
T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis online Video

Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis

Get Best Price
Good price Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation online Video

Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation

Get Best Price
Good price ISO 11925-2 Single Flame Source Ignitability Testing Equipment for Building Materials Fire Retardant Test online Video

ISO 11925-2 Single Flame Source Ignitability Testing Equipment for Building Materials Fire Retardant Test

Get Best Price
Good price YYF045 Multi-purpose Textile Flammability Tester online

YYF045 Multi-purpose Textile Flammability Tester

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description

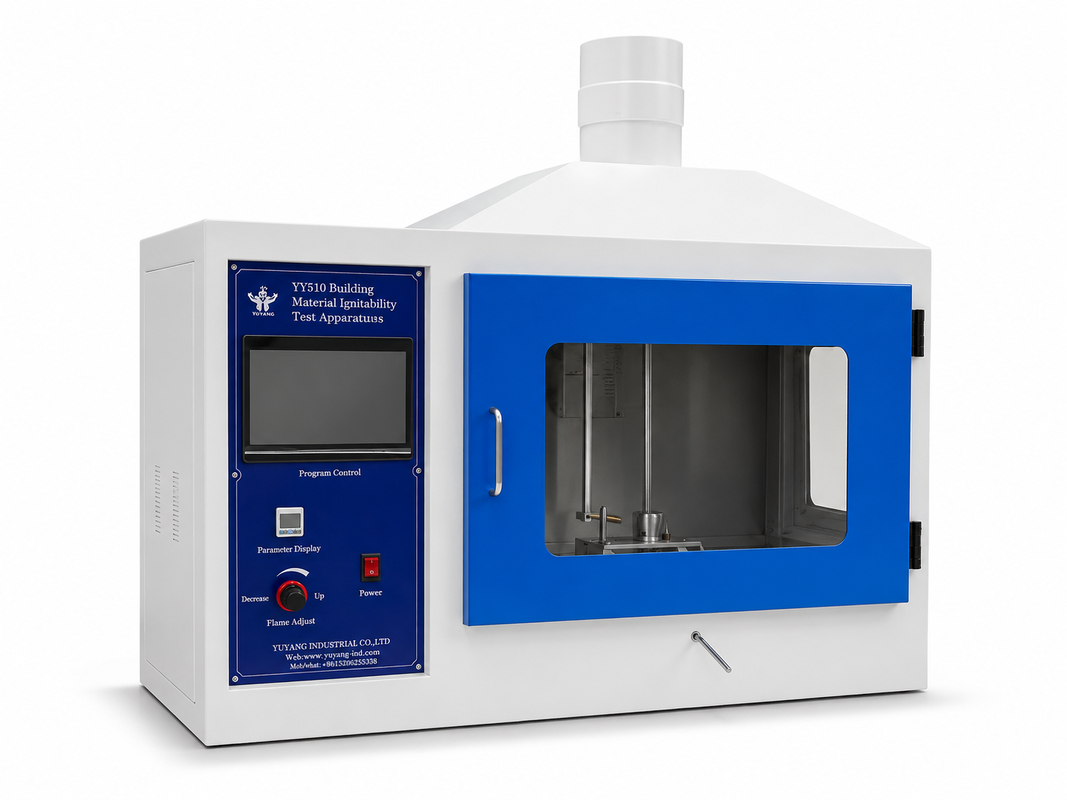

Building Material Flammability Tester ISO11925 Fire Testing Furnace
Professional equipment for ignition performance evaluation of building materials according to international standards.

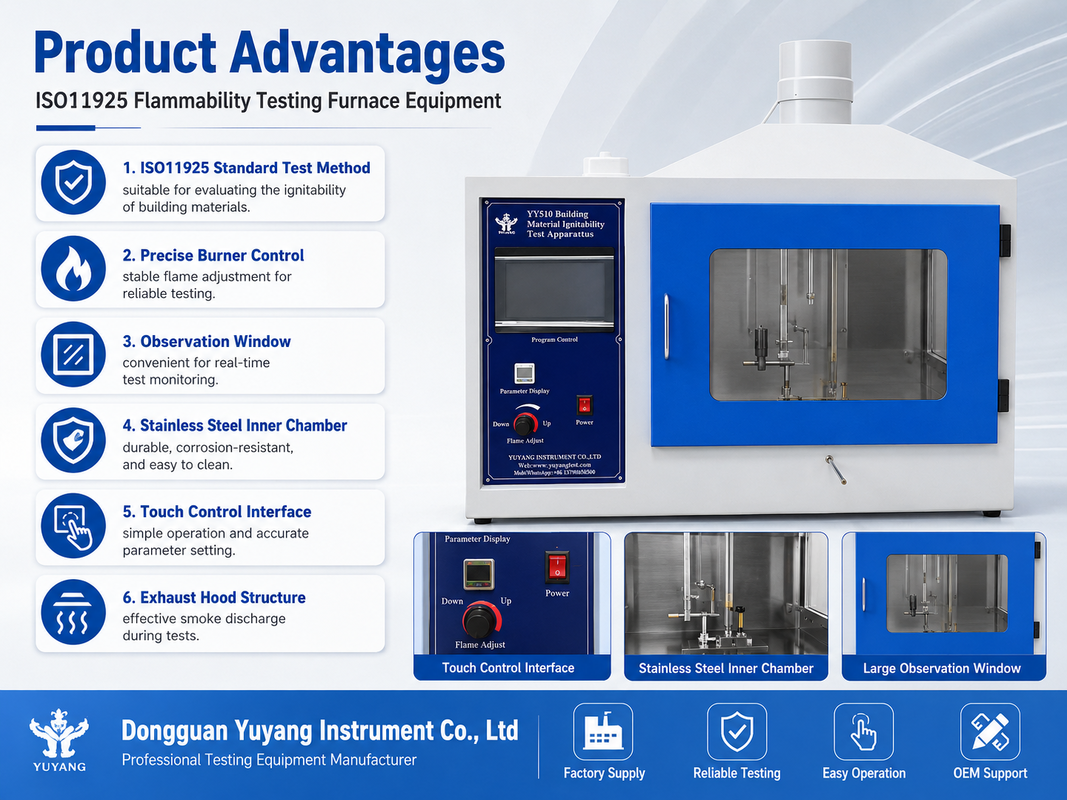

Building Material Flammability Tester ISO11925 Fire Testing Furnace Close-up view of Building Material Flammability Tester controls and components
Product Overview

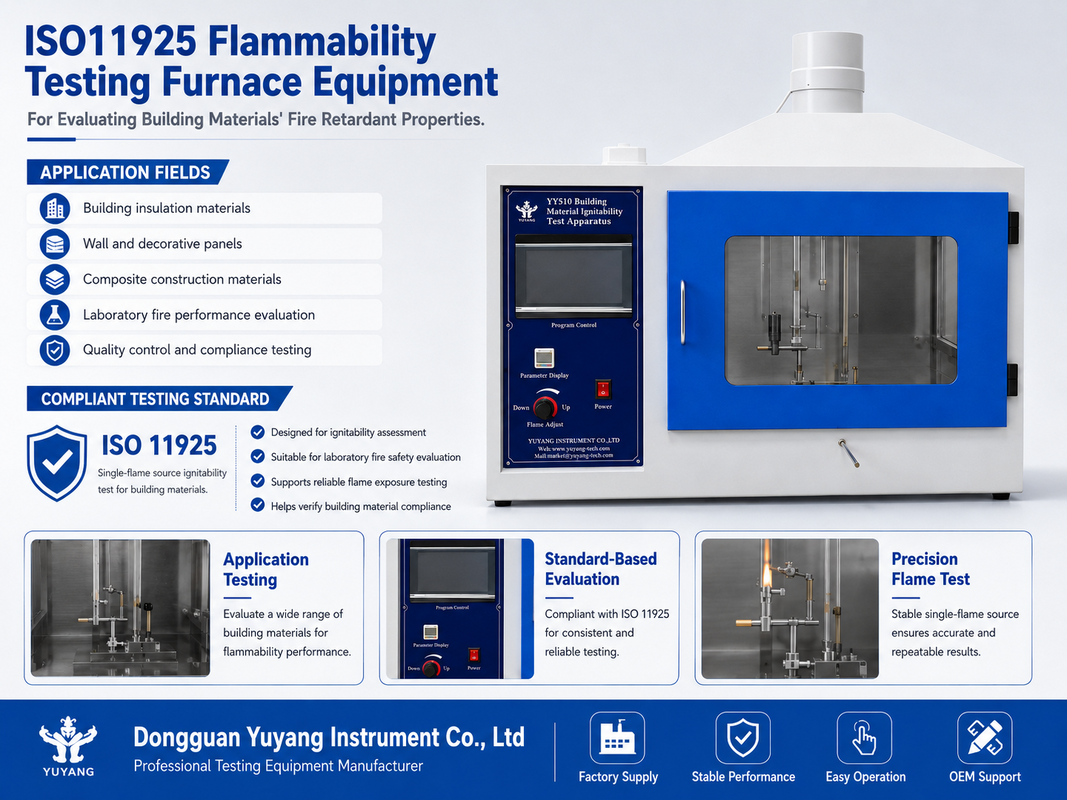

Developed in accordance with GB/T8626 and ISO11925 standards, this Building Material Ignitability Test Apparatus measures the flammability of building products. The test method uses a small flame to directly impinge vertical samples under conditions without external radiation. Conforming to GB 8624-2014 (latest version) for building material fire classification, the apparatus is capable of conducting tests for B1 and B2 fire resistance grades.
Compliance Standards
EN ISO 11925-2 - Reaction to fire tests - Ignitability of products subjected to direct impingement of flame - Part 2: Single-flame source test
DIN 53438 - Testing of combustible materials
DIN 4102-1 - Fire behaviour of building materials and elements Part 1: Classification of building materials Requirements and testing
Key Features
  • Elegant spray-painted finish cabinet with combustion chamber dimensions: 700 mm (L) × 400 mm (W) × 600 mm (H)
  • Adjustable flame height, automatic timing, flame monitoring, ignition, and protection against ignition faults
  • Adjustable flame impingement and combustion duration from 0 min 00 s to 99 min 99 s
  • Test burning angles: 0° (vertical) and 45° with horizontal burner adjustment
  • Tempered glass door for direct observation throughout testing
  • All internal fixtures manufactured from corrosion-resistant stainless steel
  • Equipped with stainless steel sample holders and flame height gauge
  • High automation level with accurate experimental data and easy operation
  • American Humboldt imported burner with φ0.17mm hole diameter and 4 φ4mm air conditioning holes
  • Real-time monitoring of experimental data with query capability for 6 samples and alarm content
Control System Specifications
  • Programmable Logic Controller (PLC) Control
  • Automatic timing, flame detection, ignition, and ignition abnormal protection
  • LCD touch screen display interface
  • Real-time monitoring of experimental data with query capability for 6 samples and alarm content
Building Material Flammability Tester control panel and internal components
