Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis

Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis

ISO11925 flame testing equipment

construction material fire safety analyzer

flammability testing equipment with warranty

Place of Origin:

Guangdong, Dongguan

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YY510

Contact Us
Request A Quote
Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis
Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis
Product Details
Product Name:
Single Flame Source Test / Ignitability Test Apparatus
Standard:
EN ISO 11925-2, DIN 53438, DIN4102-1
Gas Source:
>95% Propane Gas
Gas Pressure:
10kpa~50kpa
Burner:
Diameter 0.17mm Burner With Regulator
Burner Angle:
45°
Usage:
Fire Testing Equipment For Building Material
Dimension:
400mm(W)*700mm(D)*600(H)
Power Supply:
AC220V±10%, 50Hz
Burning Plate:
Aluminum, Diameter 50mm
Air Source:
Methane, Air
Flame Height:
20mm To 200mm
Total Flame Height:
170~190 MM
Gas Flow Range:
100~1000 ML / MIN
Testing Time:
30s±1s
Xenon Lamp Power:
6.5kw
Temperature Testing Range:
0~1000 Degree
Certifications:
CE, ISO 9001
Highlight:

ISO11925 flame testing equipment

,

construction material fire safety analyzer

,

flammability testing equipment with warranty

Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
Negotiable
Packaging Details
Standard Wooden Case
Delivery Time
10 days
Payment Terms
T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis online Video

Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis

Get Best Price
Good price Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation online Video

Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation

Get Best Price
Good price ISO 11925-2 Single Flame Source Ignitability Testing Equipment for Building Materials Fire Retardant Test online Video

ISO 11925-2 Single Flame Source Ignitability Testing Equipment for Building Materials Fire Retardant Test

Get Best Price
Good price YYF045 Multi-purpose Textile Flammability Tester online

YYF045 Multi-purpose Textile Flammability Tester

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis
This advanced flammability testing equipment is designed to evaluate the fire safety characteristics of construction materials through direct small-flame impingement testing.

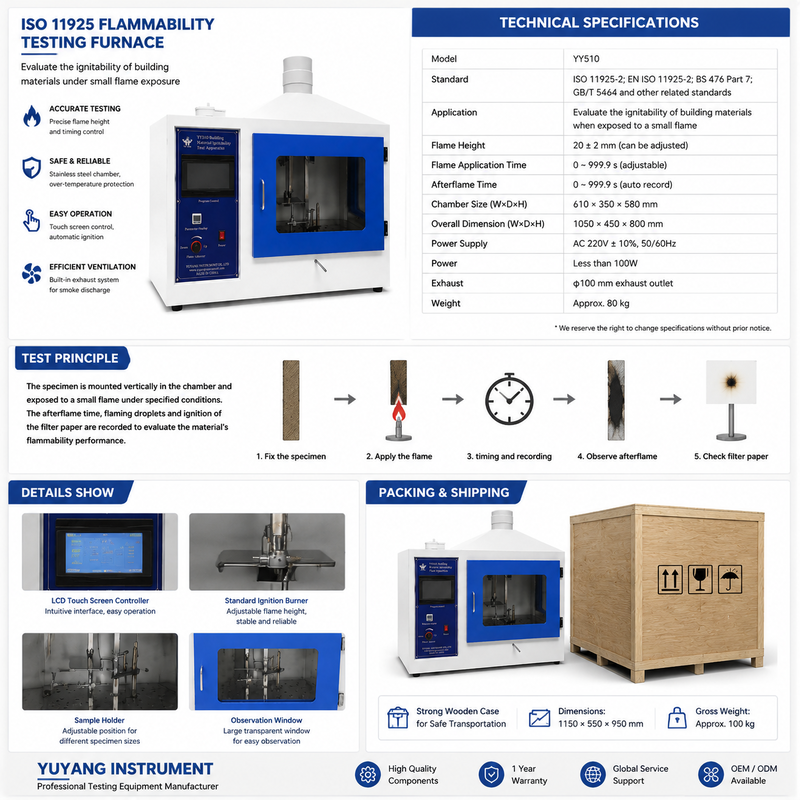

Laboratory ISO11925 Flame Testing Equipment - Front View Laboratory ISO11925 Flame Testing Equipment - Internal View
Product Overview
Designed to meet GB/T8626 and ISO11925 standards, this ignitability testing device determines the flammability characteristics of construction products. Testing is performed by direct small-flame impingement on vertically mounted test samples without external radiant heat. The unit fulfills test criteria for the current GB 8624-2014 fire classification standard for building materials, enabling testing for B1, B2 and equivalent fire grades.
Compliance Standards
  • EN ISO 11925-2 - Reaction to fire tests - Ignitability of products subjected to direct impingement of flame - Part 2: Single-flame source test
  • DIN 53438 - Testing of combustible materials
  • DIN 4102-1 - Fire behaviour of building materials and elements Part 1: Classification of building materials Requirements and testing
Key Features
  • Elegant spray-painted finish cabinet with combustion chamber dimensions: 700mm (L) × 400mm (W) × 600mm (H)
  • Adjustable flame height, automatic timing, flame monitoring, ignition, and ignition fault protection
  • Adjustable flame impingement and combustion duration from 0 min 00 s to 99 min 99 s
  • Burning angles: 0° (vertical) and 45°
  • External debugging handle for horizontal burner movement
  • Tempered glass door for convenient observation and testing
  • All internal tooling constructed from corrosion-resistant stainless steel
  • Includes two types of stainless steel sample holders and flame height gauge
  • High automation level ensures precise test results with simple operation
  • Imported Humboldt burner from USA: jet orifice diameter φ0.17 mm with four φ4 mm air regulating holes
  • Real-time test data monitoring with access to records for up to 6 specimens and historical alarm information
Control System
  • Programmable Logic Controller (PLC) Control
  • Automatic timing, flame detection, ignition, and ignition abnormal protection
  • LCD touch screen display
  • Real-time experimental data monitoring with query capability for six samples and alarm content
Applications
Building Material Testing
  • Fire performance evaluation of construction materials
Laboratory Testing
  • Universities
  • Research institutes
  • Certification laboratories
Industrial Quality Control
  • Building material manufacturers
  • Insulation material producers
  • Fire safety inspection organizations
Laboratory ISO11925 Flame Testing Equipment - Control Panel View
