YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace

YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace

YY510 flammability testing furnace

ISO11925 ignitability test apparatus

building material flammability testing equipment

Place of Origin:

Guangdong, Dongguan

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YY510

Contact Us
Request A Quote
YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace
YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace
Product Details
Product Name:
Single Flame Source Test / Ignitability Test Apparatus
Standard:
EN ISO 11925-2, DIN 53438, DIN4102-1
Gas Source:
>95% Propane Gas
Gas Pressure:
10kpa~50kpa
Burner:
Diameter 0.17mm Burner With Regulator
Burner Angle:
45°
Usage:
Fire Testing Equipment For Building Material
Dimension:
400mm(W)*700mm(D)*600(H)
Power Supply:
AC220V±10%, 50Hz
Burning Plate:
Aluminum, Diameter 50mm
Air Source:
Methane, Air
Flame Height:
20mm To 200mm
Total Flame Height:
170~190 MM
Gas Flow Range:
100~1000 ML / MIN
Testing Time:
30s±1s
Xenon Lamp Power:
6.5kw
Temperature Testing Range:
0~1000 Degree
Certifications:
CE, ISO 9001
Highlight:

YY510 flammability testing furnace

,

ISO11925 ignitability test apparatus

,

building material flammability testing equipment

Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
Negotiable
Packaging Details
Standard Wooden Case
Delivery Time
10 days
Payment Terms
T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis online Video

Laboratory ISO11925 Flame Testing Equipment for Construction Material Fire Safety Analysis

Get Best Price
Good price Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation online Video

Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation

Get Best Price
Good price ISO 11925-2 Single Flame Source Ignitability Testing Equipment for Building Materials Fire Retardant Test online Video

ISO 11925-2 Single Flame Source Ignitability Testing Equipment for Building Materials Fire Retardant Test

Get Best Price
Good price YYF045 Multi-purpose Textile Flammability Tester online

YYF045 Multi-purpose Textile Flammability Tester

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description
YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace

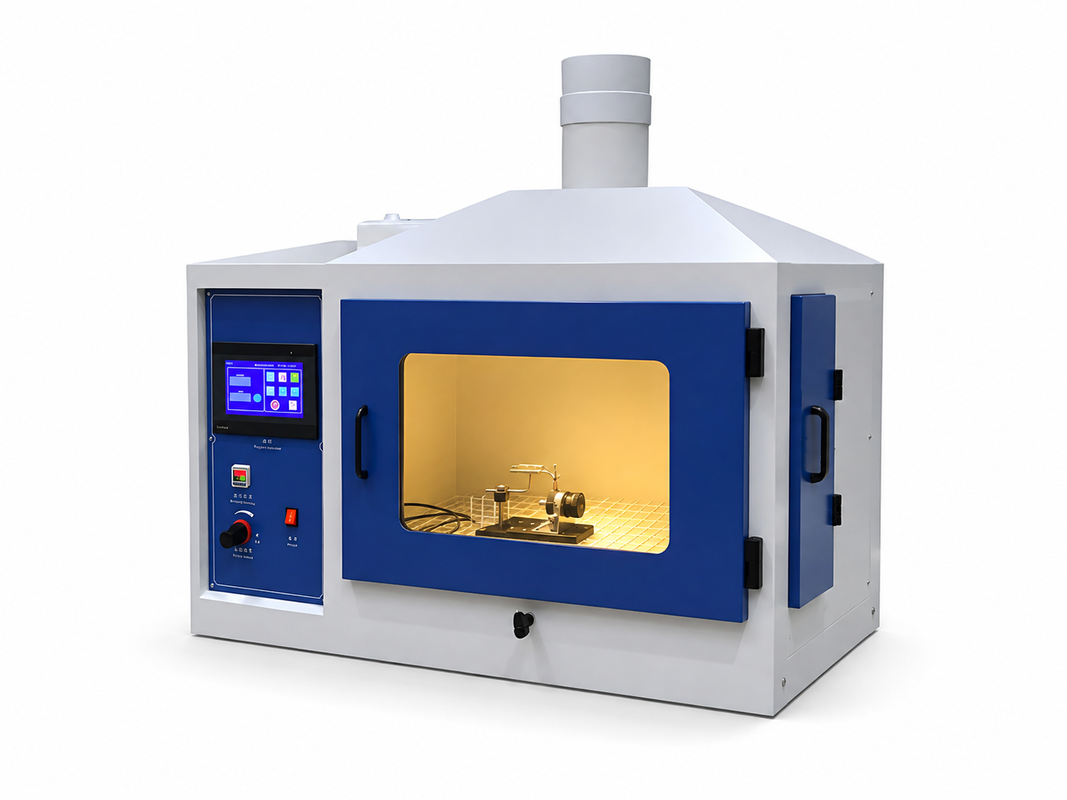

YY510 Building Material Ignitability Test Apparatus front view YY510 Building Material Ignitability Test Apparatus side view
Product Introduction
Developed to meet the requirements of GB/T8626 and ISO11925, the Building Material Ignitability Test Apparatus assesses the flammability performance of construction products. The test principle uses direct small-flame impingement on vertically arranged specimens without external radiant heat. The device complies with GB 8624-2014, the prevailing standard for fire classification of building materials, and supports testing for fire grades such as B1 and B2.
Compliance Standards
• EN ISO 11925-2 - Reaction to fire tests - Ignitability of products subjected to direct impingement of flame - Part 2: Single-flame source test
• DIN 53438 - Testing of combustible materials
• DIN 4102-1 - Fire behaviour of building materials and elements Part 1: Classification of building materials Requirements and testing
Key Features
  • Spray-coated equipment cabinet with elegant and professional appearance
  • Combustion chamber inner dimensions: 700mm (length) × 400mm (width) × 600mm (height)
  • Adjustable flame height, auto-timing, automatic flame detection, auto ignition and ignition failure protection
  • Flame application and combustion duration settings: 0 minute 0 second to 99 minutes 99 seconds
  • Available test angles: 0° (vertical) and 45°
  • External debugging handle for horizontal burner movement
  • Tempered glass door for convenient observation and testing
  • All internal tooling made of corrosion-resistant stainless steel
  • Includes two types of stainless steel sample holders and flame height gauge
  • High automation level ensures precise test results with simple operation
  • Imported Humboldt burner from United States: jet orifice diameter φ0.17 mm with four φ4 mm air regulating holes
  • Real-time test data monitoring with access to test records for up to 6 specimens and historical alarm information
Control System
• Programmable Logic Controller (PLC) Control
• Automatic timing, flame detection, ignition, and ignition abnormal protection
• LCD touch screen display
• Real-time monitoring of experimental data, queries for six samples of experimental data, and alarm content access
Applications
Construction Materials Testing
• Fire property assessment of building materials
Laboratory Testing
• Academic universities
• Scientific research institutions
• Certification test laboratories
Enterprise Quality Control
• Manufacturers of construction materials
• Insulation material manufacturers
• Fire safety audit institutions
YY510 Building Material Ignitability Test Apparatus control panel and display
