Name: BS 476 EN 1365 Building Construction and Materials Vertical Fire Resistance Test Furnace
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY407
Price: 25,000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

BS 476 EN 1365 Building Construction and Materials Vertical Fire Resistance Test Furnace

BS 476 fire resistance test furnace

EN 1365 vertical fire test equipment

building construction flammability testing furnace

Place of Origin:

China

Brand Name:

YUYANG

Certification:

BS 476 (20-23) – BS EN 1363 (1-2) – BS EN 1364 (1) – BS EN 1365 (1) BS EN 1366 (1-3) - BS EN 1634-1 – ASTM E 119 – ASTM E 814 - UL10 (B-C) - UL 263 – UL 1709 - UL10 (B-C) – UL 1479 – UL 2079 -- ISO 834 (1, 4, 8) - ISO 3008 – ISO 3009

Model Number:

YY407

Request A Quote

BS 476 EN 1365 Building Construction and Materials Vertical Fire Resistance Test Furnace

Product Details

Item Name:

Vertical Fire Resistance Testing Equipment

Standard:

En 1363-1 ISO 834 BS 476-20 ASTM E119

Connector:

4 Mm Round Socket (Per Channel 2)

Air Supply:

≥ 3200 M3/h

Exhaust Flow Rate:

≥ 8000 M3/h

Combustion Gas:

Propane & Petroleum Liquefied Gas

Material:

SUS 304 Stainless Steel

Application:

Flammability Analyzer For Building Materials

Highlight:

BS 476 fire resistance test furnace

EN 1365 vertical fire test equipment

building construction flammability testing furnace

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Plywood Box

Delivery Time

35~40 work days

Payment Terms

T/T

Supply Ability

2 sets per quarter

ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace

Get Best Price

YYF005 Building Materials and Products Single Burning Item Test Apparatus(SBI)

Get Best Price

YYF003 Building Material Heat Release Rate Flammability Testing Equipment (Cone Calorimeter)

Get Best Price

YYF004 Building Materials and Products Heat of Combustion Test Apparatus

Get Best Price

+86-13825723571

sales002@yuyangtest.com

86-769-26622869

Contact Now

Product Description

BS 476 EN 1365 Building Construction and Materials Vertical Fire Resistance Test Furnace

Product Overview

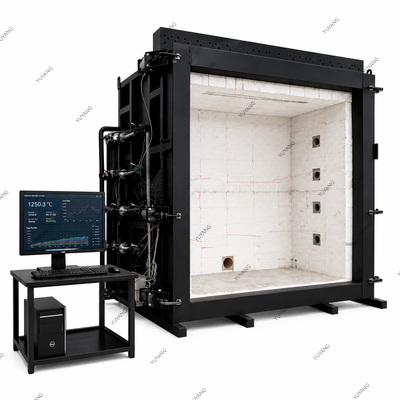

The ASTM E119 Laboratory Vertical Fire Resistance Test Furnace for Building Construction and Materials is a comprehensive testing system comprising a fire test furnace, control cabinet, gas system, purification system, sample test stand, gas flow measurement system, temperature measurement system, and pressure measurement and control system.

Applications

This fire resistance testing equipment is designed for evaluating sheet metal structural components and determining fire resistance characteristics under standard fire conditions. The system tests frame doors, non-frame doors, rolling shutter doors, fireproof glass, and similar building elements. The test methods apply to masonry unit assemblies and composite structural material assemblies for buildings, including loadbearing walls, partitions, columns, girders, beams, slabs, and composite floor/roof assemblies. The system features an intuitive LabView operation interface with real-time measurement display, dynamic curve plotting, permanent data storage, and direct report printing capabilities.

Compliance Standards

EN 1363-1
ISO 834
GB/T 9978

Key Features

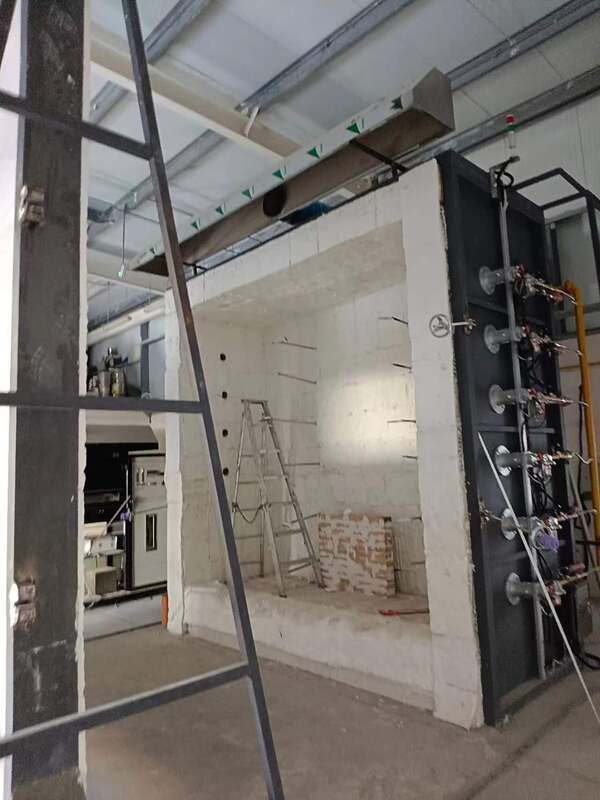

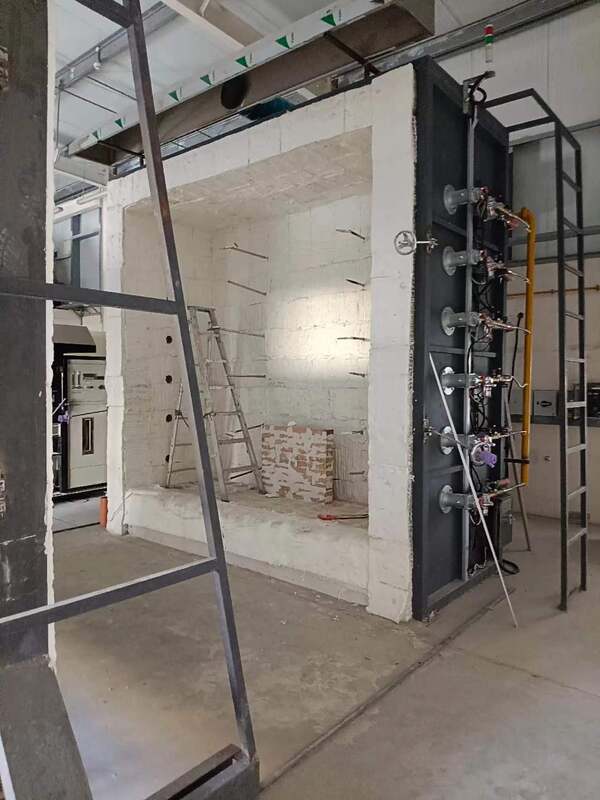

Combustion chamber dimensions: 3000mm (w) × 3000mm (h) × 1300mm (d)
1400-class insulation brick lining with refractory filling blocks and slag plate
Furnace top constructed with special-shaped bricks and in-situ refractory material lining
Diatomaceous earth insulation and super thermal insulation materials in specific regions
42% dense alumina refractory brick lining for 6-hour high-temperature testing insulation
Customizable vertical test sample fixation systems
Low carbon steel furnace construction reinforced with C-channel steel and H-beams
Sample fixed boxes mounted on furnace front with four door sets
Cold face insulation with inorganic fiber pads and heat-resistant insulated bricks
Four observation ports with heat-resistant quartz glass for full sample visibility
Air-cooled insulating frame with lightweight aluminum fiberboard sliding doors
