Name: ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY407
Price: 25,000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace

ASTM E119 fire resistance furnace

large scale vertical test furnace

laboratory flammability testing equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

BS 476 (20-23) – BS EN 1363 (1-2) – BS EN 1364 (1) – BS EN 1365 (1) BS EN 1366 (1-3) - BS EN 1634-1 – ASTM E 119 – ASTM E 814 - UL10 (B-C) - UL 263 – UL 1709 - UL10 (B-C) – UL 1479 – UL 2079 -- ISO 834 (1, 4, 8) - ISO 3008 – ISO 3009

Model Number:

YY407

Request A Quote

ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace

Product Details

Item Name:

Vertical Fire Resistance Testing Equipment

Standard:

En 1363-1 ISO 834 BS 476-20 ASTM E119

Furnace Dimensions:

3000mm (W) × 3000mm (H) × 1500mm (D)

Frame Material:

Grade A Structural Steel

Refractory Brick:

Max 1750°C; Long-term 1600°C

Combustion Gas:

Propane & Petroleum Liquefied Gas

Material:

SUS 304 Stainless Steel

Application:

Flammability Analyzer For Building Materials

Service Life:

≥15–20 Years

Required Space:

≥150 M², Ceiling Height ≥5.5 M

Highlight:

ASTM E119 fire resistance furnace

large scale vertical test furnace

laboratory flammability testing equipment

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Plywood Box

Delivery Time

35~40 work days

Payment Terms

T/T

Supply Ability

2 sets per quarter

ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace

Get Best Price

YYF005 Building Materials and Products Single Burning Item Test Apparatus(SBI)

Get Best Price

YYF003 Building Material Heat Release Rate Flammability Testing Equipment (Cone Calorimeter)

Get Best Price

YYF004 Building Materials and Products Heat of Combustion Test Apparatus

Get Best Price

+86-13825723571

sales002@yuyangtest.com

86-769-26622869

Contact Now

Product Description

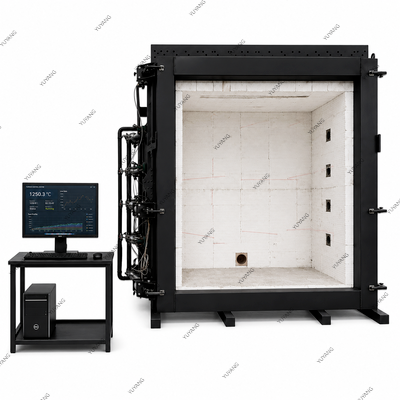

ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace

Product Overview

The ASTM E119 Laboratory Vertical Fire Resistance Test Furnace for Building Construction and Materials is a comprehensive testing system comprising fire test furnace, control cabinet, gas system, purification system, sample test stand, gas flow measurement system, temperature measurement system, and pressure measurement and control system.

Applications

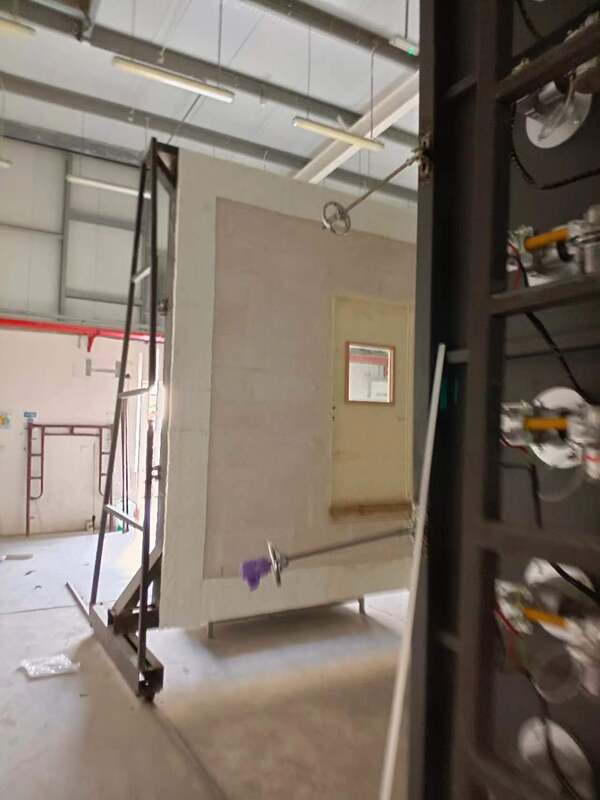

This furnace is designed for fire resistance testing of doors and shutter assemblies installed in vertical separating elements, including hinged doors, pivot doors, horizontal sliding doors, vertical sliding doors, rolling doors, folding doors, flap doors, movable wall panels, and building doors with or without shutters.

Compliance Standards

GB/T9978.1-2008 "Fire test method for building components, Part 1: General requirements"
GB/T9978.3-2008 and ISO834-3:1994 "Test methods for fire resistance of building components, Part 3: Test methods and test data application notes"
GB/T9978.4-2008 and ISO834-4:2000 "Test methods for fire resistance of building components, Part 4: Particular requirements for load-bearing vertical partition members"
GB/T 9978.8-2008 and ISO834-8:2000 "Building component fire test method, Part 8: Special requirements for non-load bearing vertical partition members"
GB/T 7633-2008 "Door and roller blind fire test method" standard requirements

Key Features

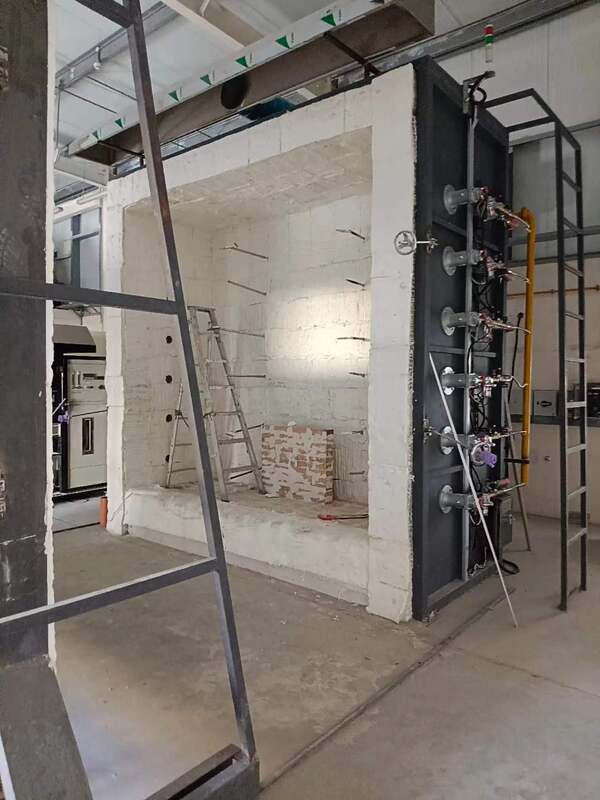

Combustion chamber dimensions: 3000mm (width) × 3000mm (height) × 1300mm (depth)
Lined with 1400-class insulation bricks, refractory filling blocks, and slag plates
Furnace top features special-shaped bricks with in-situ refractory lining
Strategic application of diatomaceous earth insulation and super thermal insulation materials
42% dense alumina refractory brick lining for 6-hour high-temperature testing

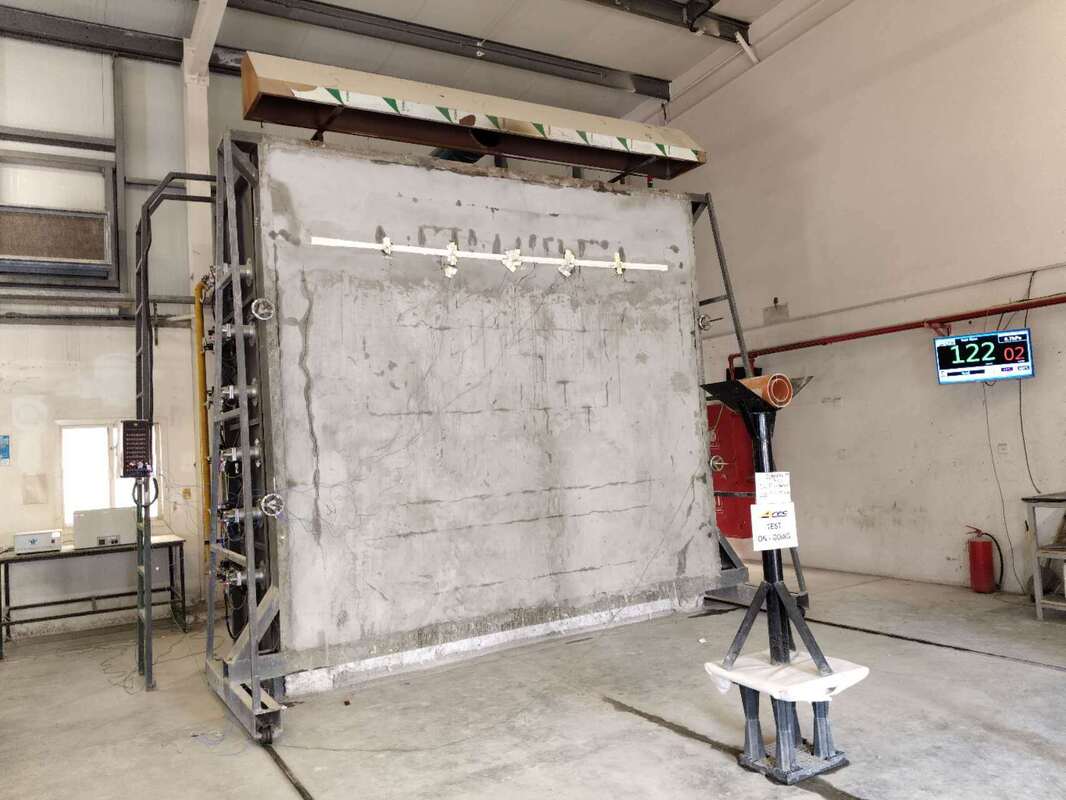

Customizable vertical test sample fixation systems
Low carbon steel construction reinforced with C-channel steel and H-beams
Four observation ports with heat-resistant quartz glass for complete sample monitoring
Air cooler insulating frame with lightweight aluminum fiberboard sliding doors

Technical Specifications

Air Supply	≥ 3200 m³/h
Supply Air Flow	≥ 7500 m³/h
Exhaust Flow Rate	≥ 8000 m³/h
Deformation Accuracy	±2mm
Environment and Backfire Surface	±2.5℃
Furnace Pressure	±3pa
Other Temperature	±10℃
Pressure Sensor Accuracy	±0.5pa
Axial Compression/Expansion Measurement	±0.5mm
Load Measurement	±2.5% of test load
Deformation Measurement	±2mm, Time: ±1s/h
Combustion Gas	Propane (95% purity) or petroleum liquefied gas
Furnace Size	3.0M (height) × 3.0M (width) × 1.5M (depth)
Power Requirements	AC380V±10%, three-phase five-wire system, 50Hz, 45kW

This advanced fire testing system represents cutting-edge technology in building material fire resistance evaluation, offering comprehensive testing capabilities with superior safety, reliability, and automation features.
