Name: YYF018 Spread of Flame Test Apparatus
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF018
Price: 4,000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

YYF018 Spread of Flame Test Apparatus

YYF018 flame test apparatus

spread of flame testing equipment

flammability test apparatus with warranty

Place of Origin:

China

Brand Name:

YYF018 Spread of Flame Test Apparatus

Certification:

CE/CO

Model Number:

YYF018

Request A Quote

Product Details

Flame Application Time:

Adjustable: 0–3200.0 Seconds

Blast Burner Standard:

ANSI/ASTM D 5025

Power:

220V 50HZ

Materials:

Stainless Steel

Color:

White

Water Discharge:

1-10L/min, Adjustable

Radiation Intensity:

0~100kw / M2

Required Gas:

Compressed Air

Total Flame Height:

170~190 MM

Test Volume:

>0.5m3

Burning Gas Supplied:

No, Customer Should Supply

Measuring Accuracy:

±3%;

Control Cabinet:

L405 X W360 X H180 Mm

Timing:

0-99.99 H/ M/ S

Equipment Usable Area:

Length× Width× Height (3.8*2.4*4.5) M

Highlight:

YYF018 flame test apparatus

spread of flame testing equipment

flammability test apparatus with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

3000~5000

Packaging Details

Plywood Box

Delivery Time

6-10 work days

Payment Terms

T/T

Supply Ability

20 sets per month

ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace

Get Best Price

YYF005 Building Materials and Products Single Burning Item Test Apparatus(SBI)

Get Best Price

YYF003 Building Material Heat Release Rate Flammability Testing Equipment (Cone Calorimeter)

Get Best Price

YYF004 Building Materials and Products Heat of Combustion Test Apparatus

Get Best Price

8613825721469

sales06@yuyangtest.com

86-769-26622869

Contact Now

Product Description

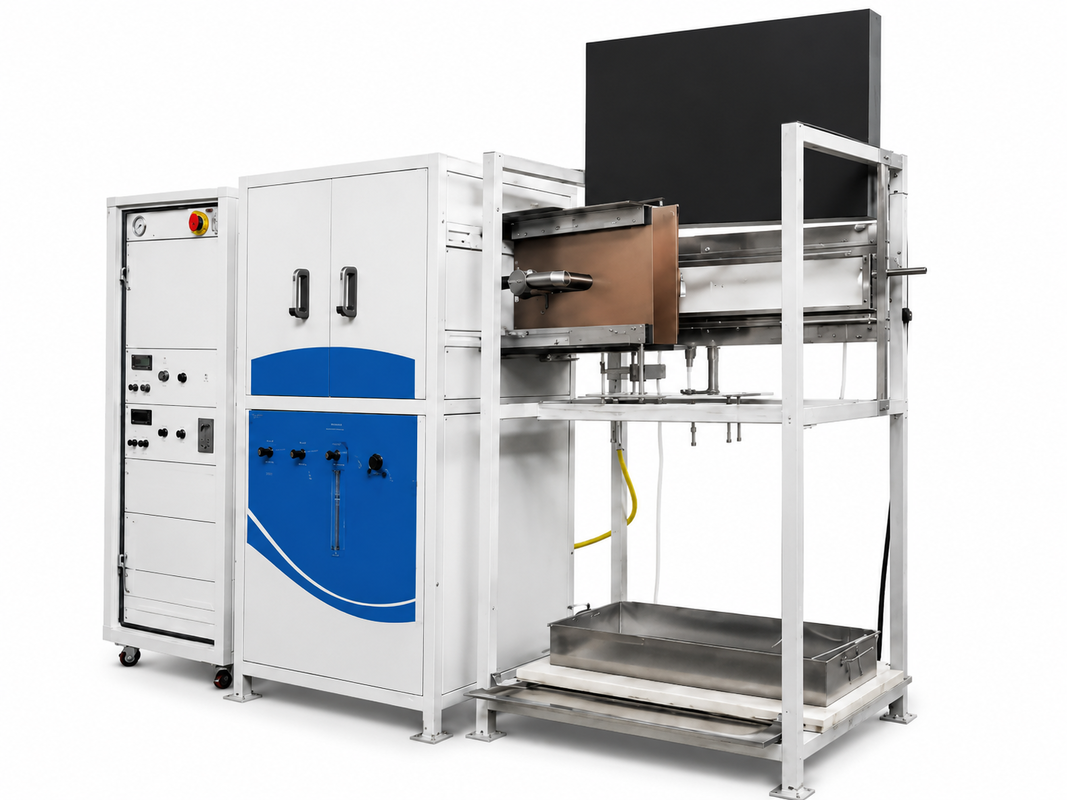

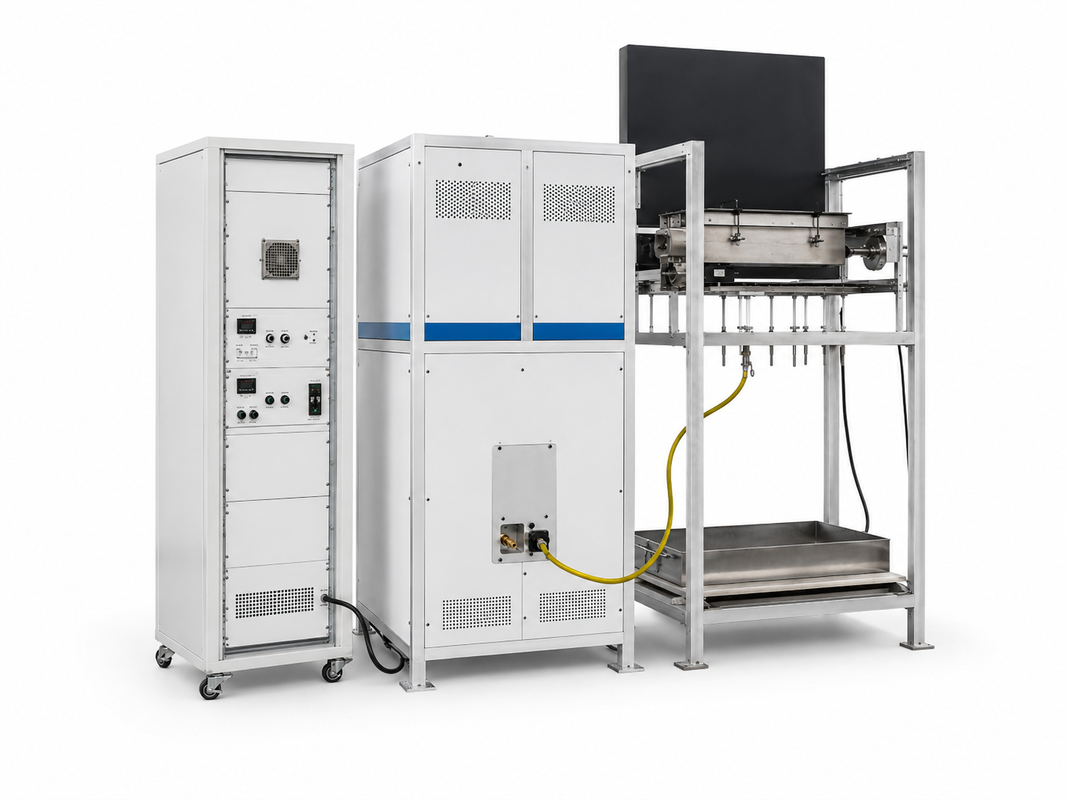

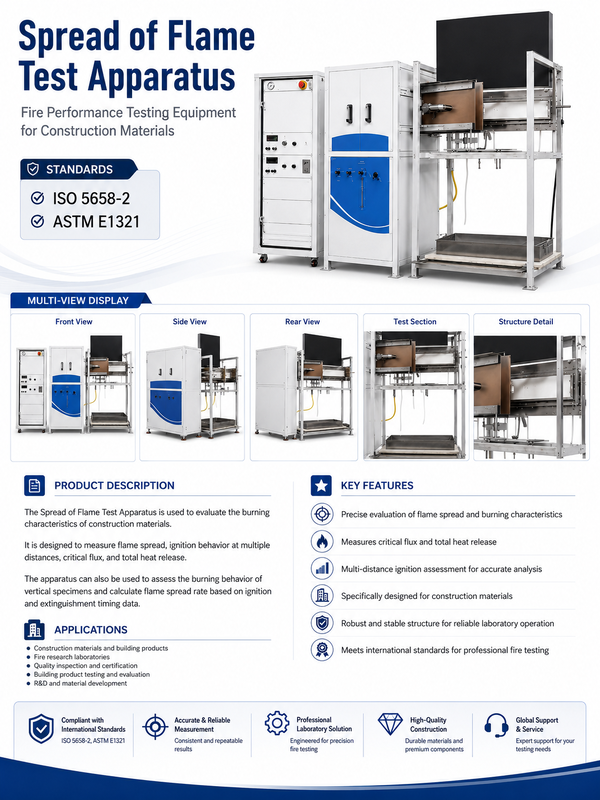

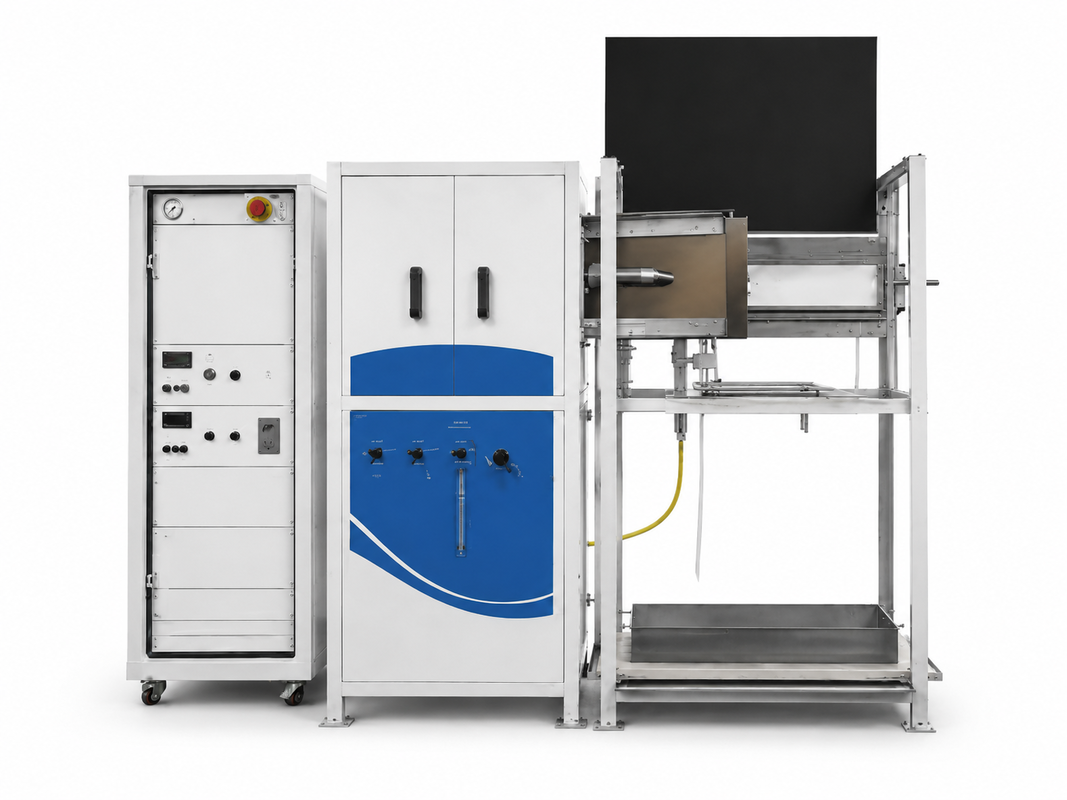

YYF018 Spread of Flame Test Apparatus

The YYF018 Spread of Flame Test Apparatus is designed for precise flammability testing of materials according to industry standards. This professional testing equipment features advanced safety controls, accurate measurement capabilities, and reliable performance for comprehensive fire safety assessments.

Tags：
