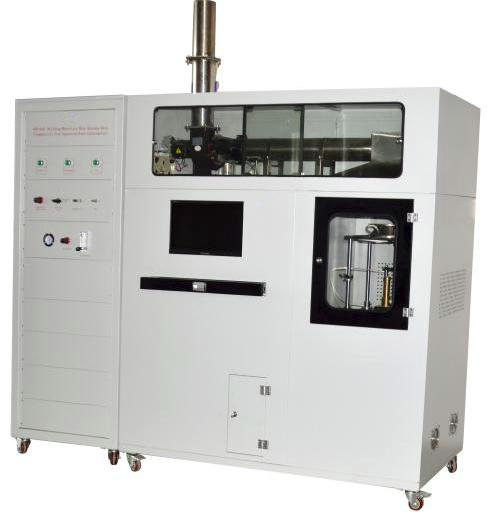

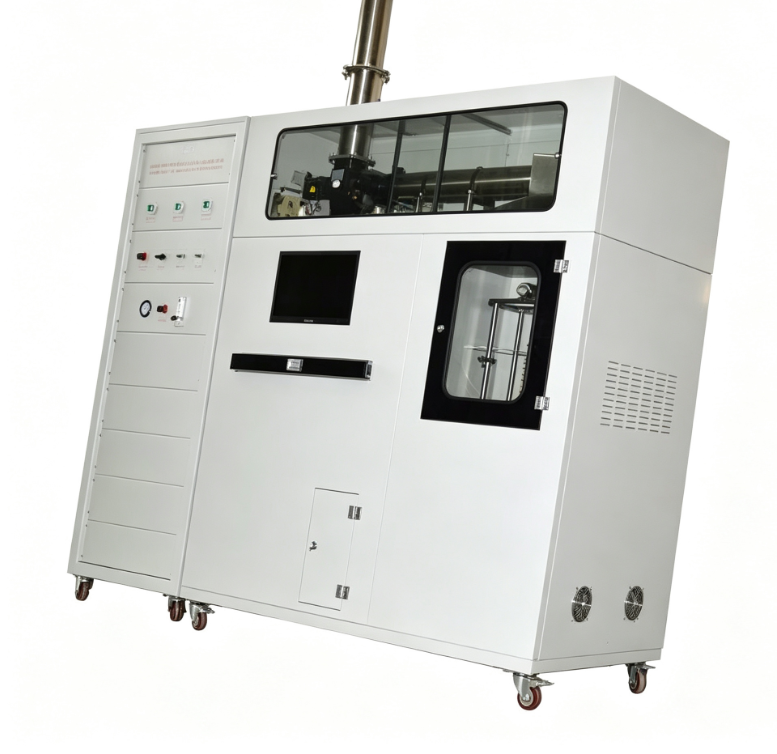

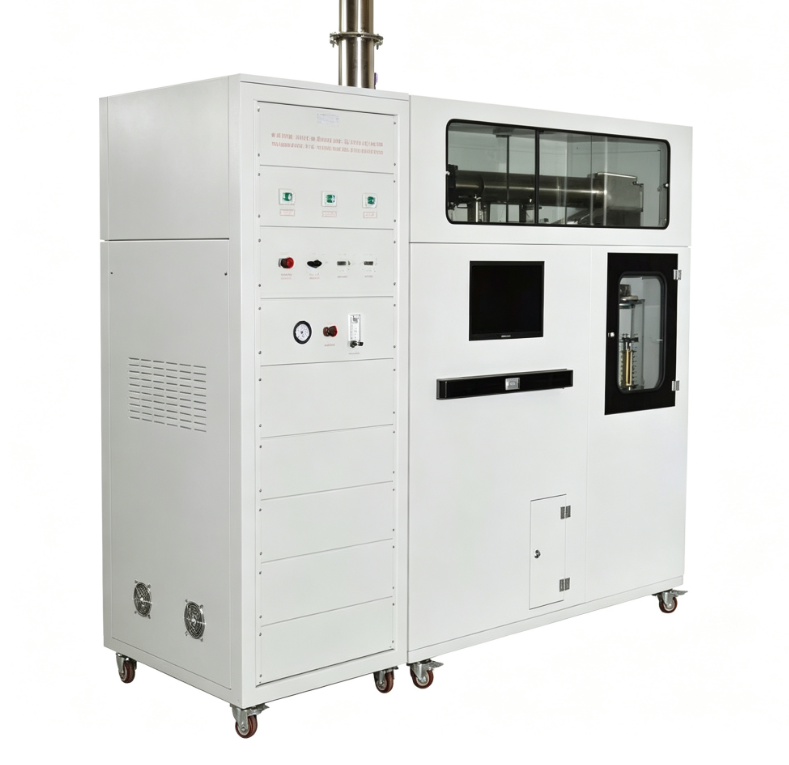

Name: ISO 5660 Standard Cone Calorimeter Flammability Tester with 100 kW/m² Radiation Intensity and High-Precision Electronic Scale
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF003
Price: 2255 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

ISO 5660 Standard Cone Calorimeter Flammability Tester with 100 kW/m² Radiation Intensity and High-Precision Electronic Scale

ISO 5660 Standard Cone Calorimeter

100 kW/m² Radiation Intensity Flammability Tester

High-Precision Electronic Scale Heat Release Rate Testing Equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF003

Request A Quote

Product Details

Radiation Cone:

Heating Power 5kW, Radiation Intensity 100 KW/m², Equipped With Three Thermocouples For Temperature Measurement

Weighing Equipment:

Imported High-precision Electronic Scale, Weighing Capacity 500g, Resolution 0.01g

Exhaust System:

Centrifugal Fan, Exhaust Hood, Air Intake & Exhaust Pipes, And Orifice Flow Meter

Gas Sampling Apparatus:

Sampling Pump, Particulate Filter, Dehumidification Cold Trap, Emptying Bypass, Water Filter, CO₂ Filter

Gas Analyzer:

Gas Analyzer And Key Components Are Imported

Control System:

Embedded Computer With 8.4-inch LCD, Optional TCP/IP And RS-232 Communication Interfaces

Highlight:

ISO 5660 Standard Cone Calorimeter

100 kW/m² Radiation Intensity Flammability Tester

High-Precision Electronic Scale Heat Release Rate Testing Equipment

Payment & Shipping Terms

Minimum Order Quantity

Price

2255

Packaging Details

Standard Wooden Case

Delivery Time

10 days

Supply Ability

15 sets per month

ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace

Get Best Price

YYF005 Building Materials and Products Single Burning Item Test Apparatus(SBI)

Get Best Price

YYF003 Building Material Heat Release Rate Flammability Testing Equipment (Cone Calorimeter)

Get Best Price

YYF004 Building Materials and Products Heat of Combustion Test Apparatus

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

YYF003 Cone Calorimeter Building Material Flammability Tester

Heat Release Rate Testing Equipment compliant with ISO 5660 Standard for evaluating building material flammability and combustion properties.

Technical Specifications

No.	Item	Specification
1	Radiation Cone	Heating power 5kW, radiation intensity 100 kW/m², equipped with three thermocouples for temperature measurement
2	Weighing Equipment	Imported high-precision electronic scale, weighing capacity 500g, resolution 0.01g
3	Exhaust System	Centrifugal fan, exhaust hood, air intake & exhaust pipes, and orifice flow meter
4	Gas Sampling Apparatus	Sampling pump, particulate filter, dehumidification cold trap, emptying bypass, water filter, CO₂ filter
5	Gas Analyzer	Gas analyzer and key components are imported
6	Control System	Embedded computer with 8.4-inch LCD, optional TCP/IP and RS-232 communication interfaces

Oxygen (O₂) Measurement

Measuring Range: 0-25%

Signal Output: 4-20mA

Response Time: ≤2s

Ambient Temperature: 0-45 ℃

Relative Humidity: <90% (non-condensing)

Linearity: <±0.1% O₂

Zero Drift: 0.05% O₂ (one week)

Repeatability: <±0.02% O₂

Carbon Dioxide (CO₂) Measurement

Measuring Range: 0-10%

Repeatability: <±1%

Zero Drift: ≤2% / week

Span Drift: ≤2% / week

Linearity Deviation: <±1%

Response Time: T90 ≤2 seconds

Data Acquisition System

Collects and records O₂ concentration, CO concentration, temperature, heat release rate, mass loss rate; data storage supported

Note: Analyzers are not included

Product Description

The cone calorimeter calculates heat release rate through oxygen concentration measurement in combustion product streams. Heat release rate is the most important parameter of material combustion properties, enabling accurate measurement of material heat release during combustion. This is extremely important for predicting fire hazards and implementing effective fire prevention and fire-retardant treatments.

Compliance Standards

GB/T 16172, ISO 5660-1 and -2, ASTM E 1354, ASTM E 1740, ASTM F 1550, ASTM D 5485, ASTM D 6113, NFPA 271, NFPA 264, CAN ULC 135, BS 47
