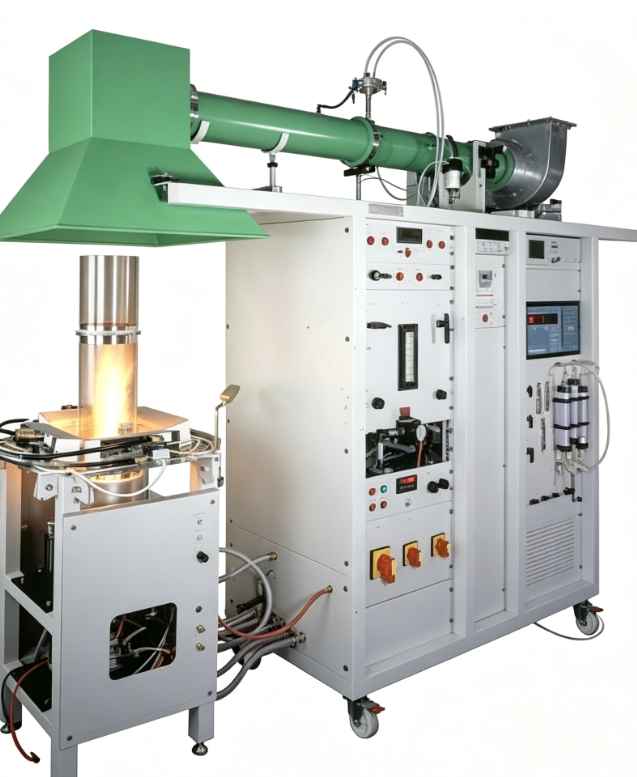

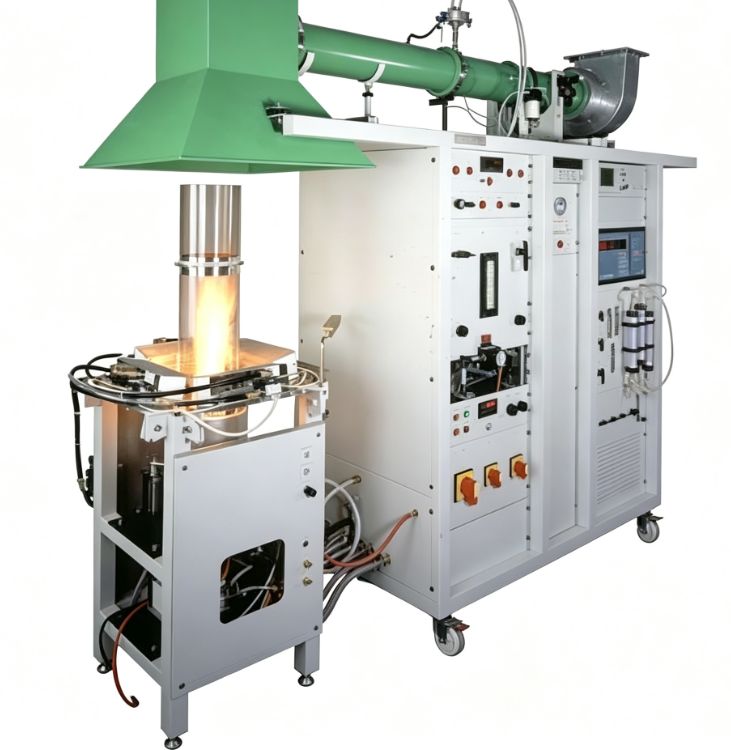

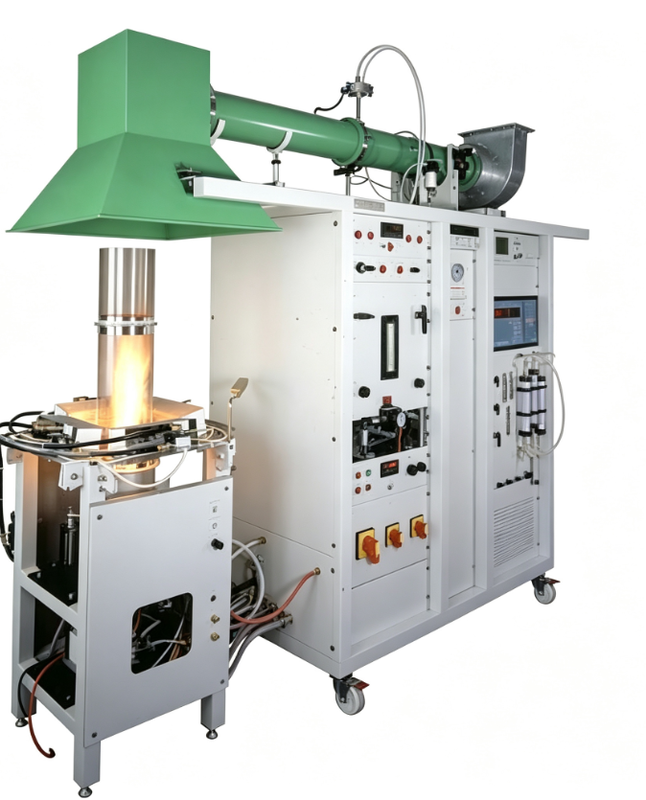

Name: ASTM E2058 Fire Propagation Apparatus with 31 kW Propane Sandbox Burners for Heat Release Rate Measurement
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF006
Price: 4999 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

ASTM E2058 Fire Propagation Apparatus with 31 kW Propane Sandbox Burners for Heat Release Rate Measurement

ASTM E2058 Fire Propagation Apparatus

31 kW Propane Sandbox Burners Flammability Testing Equipment

Heat Release Rate Measurement Fire Growth Rate Tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF006

Request A Quote

Product Details

System Composition:

Test Room, Control Room, Trolley, Exhaust Duct, Data Collection & Analysis Device, Gas Supply Control Device

Test Room:

L3000 × W3000 × H2400 Mm; Brick Building; Top Connecting Hood With Sampling Pipe And Exhaust Duct; Combustion Heat & Products Discharged Via Exhaust Duct

Ignition Source:

31 KW Propane Sandbox Burners, Two Equal Sides 250mm, Height 80mm; Placed On Vertical Rectangular Box At Trolley Corner

Exhaust Pipe:

Equipped With General Measurement Section For Sensors And Sampling Tubes

Exhaust Speed:

0.50 ~ 0.65 M³/s

Test Room Ambient Temperature:

K-type Sheathed Thermocouple, Diameter 2mm; Ambient Pressure Accuracy ±200Pa

Flue Temperature:

K-type Sheathed Thermocouple, Diameter 0.5mm

Highlight:

ASTM E2058 Fire Propagation Apparatus

31 kW Propane Sandbox Burners Flammability Testing Equipment

Heat Release Rate Measurement Fire Growth Rate Tester

Payment & Shipping Terms

Minimum Order Quantity

Price

4999

Packaging Details

Standard Wooden Case

Delivery Time

10 days

Payment Terms

L/C,D/A,D/P,T/T

Supply Ability

15 sets per month

ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace

Get Best Price

YYF005 Building Materials and Products Single Burning Item Test Apparatus(SBI)

Get Best Price

YYF003 Building Material Heat Release Rate Flammability Testing Equipment (Cone Calorimeter)

Get Best Price

YYF004 Building Materials and Products Heat of Combustion Test Apparatus

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

YYF006 Fire Propagation Apparatus (FPA) Building Material Fire Growth Rate Tester

This ASTM E2058 combustion flammability testing equipment determines and quantifies material flammability characteristics related to the propensity of materials to support fire propagation.

Product Overview

This fire-test-response standard determines and quantifies material flammability characteristics related to the propensity of materials to support fire propagation using a fire propagation apparatus (FPA). The main parameters measured include time to ignition, mass loss rate, heat release rate (chemical and convective), and smoke generation rate.

The testing scope covers various materials, components, final products, and many types of polymer materials, but is not suitable for explosive objects. Test results from the flame propagation calorimeter evaluate specific material flammability, providing necessary basis for flame propagation speed and fire growth modeling, risk assessment, architecture and product design, and materials research and development.

Technical Specifications

Item	Specification
System Composition	Test room, control room, trolley, exhaust duct, data collection & analysis device, gas supply control device
Test Room	L3000 × W3000 × H2400 mm; brick building; top connecting hood with sampling pipe and exhaust duct; combustion heat & products discharged via exhaust duct
Ignition Source	31 kW propane sandbox burners, two equal sides 250mm, height 80mm; placed on vertical rectangular box at trolley corner
Exhaust Pipe	Equipped with general measurement section for sensors and sampling tubes
Exhaust Speed	0.50 ~ 0.65 m³/s
Test Room Ambient Temperature	K-type sheathed thermocouple, diameter 2mm; ambient pressure accuracy ±200Pa
Flue Temperature	K-type sheathed thermocouple, diameter 0.5mm
Temperature Measurement Accuracy	0.5 ℃
Flue High-Precision Pressure Sensor Accuracy	±2Pa
Time Recording System Accuracy	0.1s
Test Time	1 ~ 30 minutes adjustable
Smoke Density Measurement	Built-in smoke density measurement system for in-test smoke density monitoring
Gas Analyzer	Imported key components
Control System	Embedded computer with 8.4-inch LCD; optional TCP/IP and RS-232 communication interfaces
Oxygen (O₂) Measurement Range	0-25%
Oxygen Signal Output	4-20mA
Oxygen Response Time (T90)	≤2s
Oxygen Ambient Temperature	0-45 ℃

Compliance Standards

ISO 12136
ASTM E 2058
FM 4910

Structural Characteristics

19-inch rack integrated design, elegant, easy to operate
Computer-controlled entire testing process; automatic ignition system, automatic measurement of burning time
Infrared heaters composed of six 500W quartz lamps
4-hole ceramic tube ignition
Stainless steel cold water tank with water flow rate 2.0L/min, inlet water temperature not exceeding 20℃
Weighing system: quality measured by strain gauge load cell tests, accuracy 0.1g. Equipped with swift electronic weighing parts, mechanical stop device prevents damage during movement, stable results, ensures instrument longevity, weighing range 0-3kg
