YYF007 Micro-computer Non-Combustibility Test Apparatus EN ISO 1182 Fire Reaction Tester with High-Precision Temperature Measurement

YYF007 Micro-computer Non-Combustibility Test Apparatus EN ISO 1182 Fire Reaction Tester with High-Precision Temperature Measurement

Micro-computer Control Non-Combustibility Test Apparatus

EN ISO 1182 Compliant Fire Reaction Tester

High-Precision Temperature Measurement Flammability Testing Equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF007

Contact Us
Request A Quote
YYF007 Micro-computer Non-Combustibility Test Apparatus EN ISO 1182 Fire Reaction Tester with High-Precision Temperature Measurement YYF007 Micro-computer Non-Combustibility Test Apparatus EN ISO 1182 Fire Reaction Tester with High-Precision Temperature Measurement YYF007 Micro-computer Non-Combustibility Test Apparatus EN ISO 1182 Fire Reaction Tester with High-Precision Temperature Measurement
Product Details
Test Apparatus:
Furnace, Specimen Holder, Draught Shield, Thermocouple, Voltage Stabilizer, Variable Transformer, Power Controller, Temperature Indicator
Furnace:
Φ95mm × Φ75mm × Φ150mm; 80/20 Nichrome Resistance Ribbon, Width 3mm, Thickness 0.2mm
Specimen Holder Mass:
15 ± 2g
Draught Shield:
Φ75mm × 50mm
Thermocouple:
Insulated Nichrome Sheathed, Φ0.3mm
Voltage Stabilizer:
1.5KVA, Output Voltage Accuracy Within ±1%
Variable Transformer:
0~100V
Thermometer:
0~1000 ℃, Accuracy ±5%
Highlight:

Micro-computer Control Non-Combustibility Test Apparatus

,

EN ISO 1182 Compliant Fire Reaction Tester

,

High-Precision Temperature Measurement Flammability Testing Equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
3999
Packaging Details
Standard Wooden Case
Delivery Time
10 days
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace online

ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace

Get Best Price
Good price YYF005 Building Materials and Products Single Burning Item Test Apparatus(SBI) online

YYF005 Building Materials and Products Single Burning Item Test Apparatus(SBI)

Get Best Price
Good price YYF003 Building Material Heat Release Rate Flammability Testing Equipment (Cone Calorimeter) online

YYF003 Building Material Heat Release Rate Flammability Testing Equipment (Cone Calorimeter)

Get Best Price
Good price YYF004 Building Materials and Products Heat of Combustion Test Apparatus online

YYF004 Building Materials and Products Heat of Combustion Test Apparatus

Get Best Price
Contact Us
8613825729462
sales03@yuyangtest.com
86-769-26622869
Contact Now
Product Description

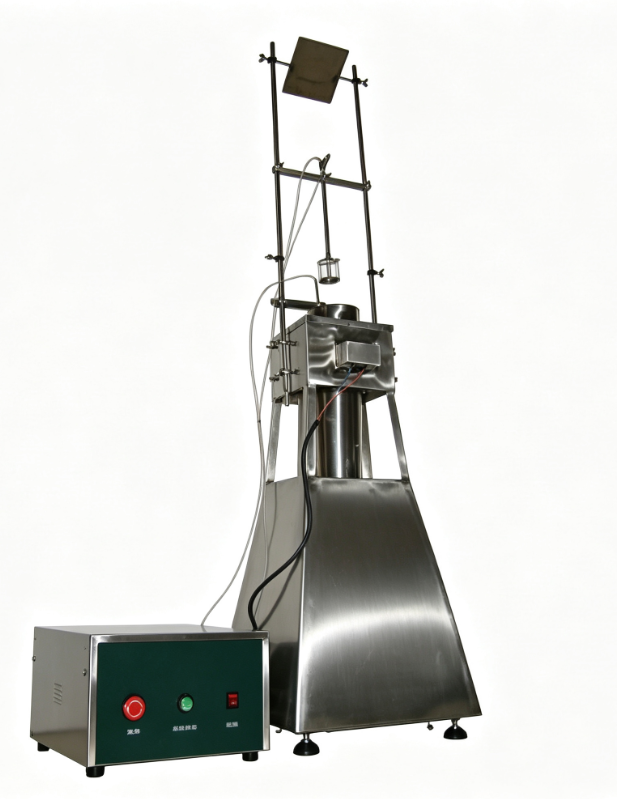

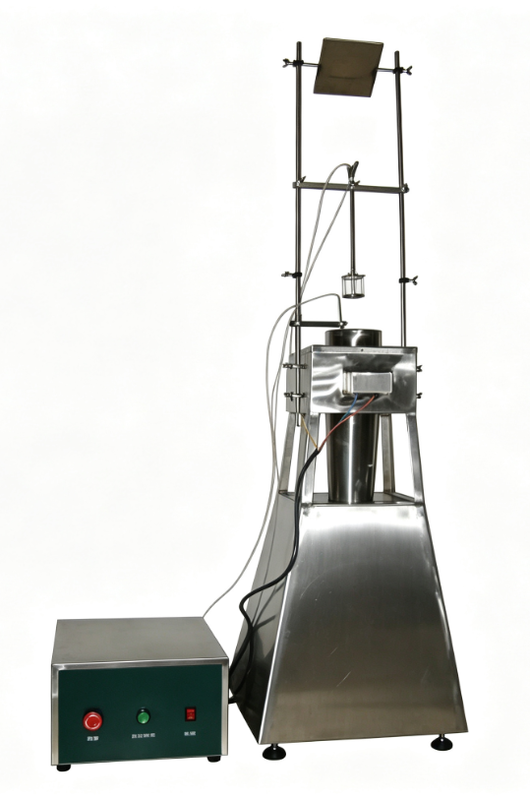

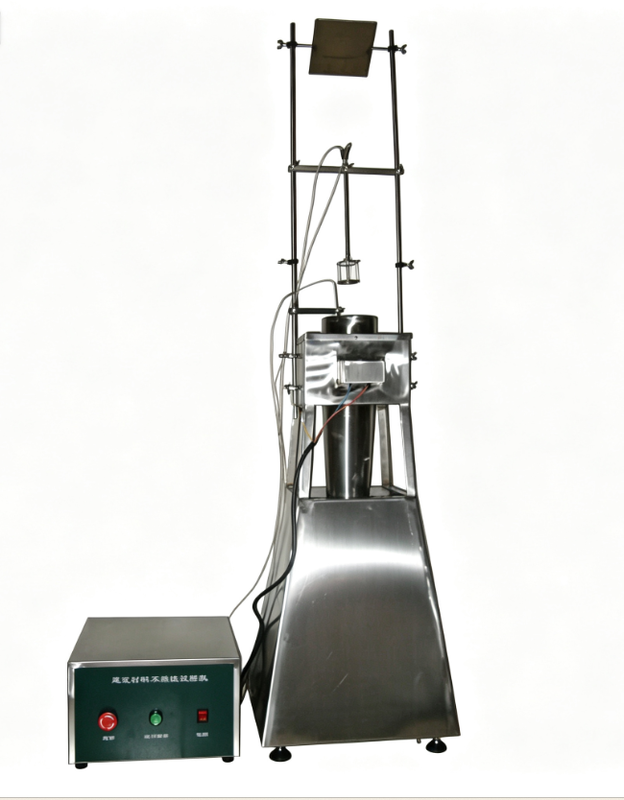

YYF007 Micro-computer Non-Combustibility Test Apparatus for Building Materials EN ISO1182 Fire Reaction Tester
Product Overview

The YYF007 Micro-computer Non-Combustibility Test Apparatus is designed for determining the flammability characteristics of building materials under specified conditions, in compliance with international fire testing standards.

Applications

Suitable for determining whether building materials meet flammability test requirements under specified conditions.

Compliance Standards
  • EN ISO 1182: Reaction to fire tests for building products - Non-combustibility test
  • GB/T 5464: Test Methods for building materials non-combustibility
  • BS 476-4: Fire tests on building materials and structures - Non-combustibility test
Key Features
  • 16-bit high-precision microcomputer control board with reasonable structure, stable performance, and easy operation
  • LabVIEW style interface with comprehensive security mechanisms
  • Real-time display of measurement results with dynamic curve plotting
  • Permanent data storage with read, print, and direct output capabilities
  • PC + LabVIEW software control system
  • Furnace constructed with steel-tube mold for uniform thickness and durability
  • Heat resistance temperature > 1600°C with excellent temperature uniformity
Structural Design
  • Comprises combustion chamber and control chamber
  • Combustion dimension: L700 × W400 × H850 (mm)
  • Constructed from high-quality static-electronic steel plate with plastic-spray surface treatment
  • Internal components made of high-quality stainless steel for rust resistance
Technical Specifications
No. Item Specification
1 Test Apparatus Furnace, specimen holder, draught shield, thermocouple, voltage stabilizer, variable transformer, power controller, temperature indicator
2 Furnace Φ95mm × Φ75mm × Φ150mm; 80/20 Nichrome resistance ribbon, width 3mm, thickness 0.2mm
3 Specimen Holder Mass 15 ± 2g
4 Draught Shield Φ75mm × 50mm
5 Thermocouple Insulated Nichrome sheathed, Φ0.3mm
6 Voltage Stabilizer 1.5KVA, output voltage accuracy within ±1%
7 Variable Transformer 0~100V
8 Thermometer 0~1000℃, accuracy ±5%
9 Timer 0~99h
10 Power AC 220V ±10%, 50Hz, current ≤10A
11 Furnace Temperature 750 ±5℃
12 Furnace Temperature Drift <2℃ / 10min
13 Heating Power 800~1000W, maximum power 1.5kW
14 Gas Source Gas or liquefied petroleum gas (LPG); higher-quality gas source recommended
15 Burner Inner diameter Φ0.17mm, four Φ4mm air-conditioning holes; flame height easily adjustable
YYF007 Micro-computer Non-Combustibility Test Apparatus for Building Materials
