Name: Plastic Ignition Temperature Test Apparatus with Stainless Steel Frame, Electronic Ignition, and Removable Exhaust Pipe for Laboratory Furnace
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF009
Price: 2999 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

Plastic Ignition Temperature Test Apparatus with Stainless Steel Frame, Electronic Ignition, and Removable Exhaust Pipe for Laboratory Furnace

Stainless Steel Frame Plastic Ignition Temperature Test Apparatus

Electronic Ignition Laboratory Furnace

Removable Exhaust Pipe Plastics Ignition Point Performance Testing Equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF009

Request A Quote

Product Details

Frame Structure:

Made Of Stainless Steel; Corrosion-resistant

Ignition & Safety:

Equipped With Ignition, Electronic Ignition, Automatic Flameout, And Safety Monitoring Device

Exhaust Pipe:

Stainless Steel Exhaust Pipe With Removable Parts For Easy Cleaning

Burner Tube:

Stainless Steel; Inner Diameter: 3.0 Mm; Outer Diameter: 6.4 Mm

Torch Position:

Torch Position Torch Is Positioned Above The Sample; Exposed Flame Length: 28 ± 2 Mm; Exposed Bottom Surface Of The Flame Applied At 6 Mm

Flame-to-Sample Height:

75–100 Mm

Sample Size:

885 × 270 Mm

Radiant Panel Position:

Installed On The Frame; 1250 Mm Above The Ground

Highlight:

Stainless Steel Frame Plastic Ignition Temperature Test Apparatus

Electronic Ignition Laboratory Furnace

Removable Exhaust Pipe Plastics Ignition Point Performance Testing Equipment

Payment & Shipping Terms

Minimum Order Quantity

Price

2999

Packaging Details

Standard Wooden Case

Delivery Time

10 days

Supply Ability

15 sets per month

ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace

Get Best Price

YYF005 Building Materials and Products Single Burning Item Test Apparatus(SBI)

Get Best Price

YYF003 Building Material Heat Release Rate Flammability Testing Equipment (Cone Calorimeter)

Get Best Price

YYF004 Building Materials and Products Heat of Combustion Test Apparatus

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

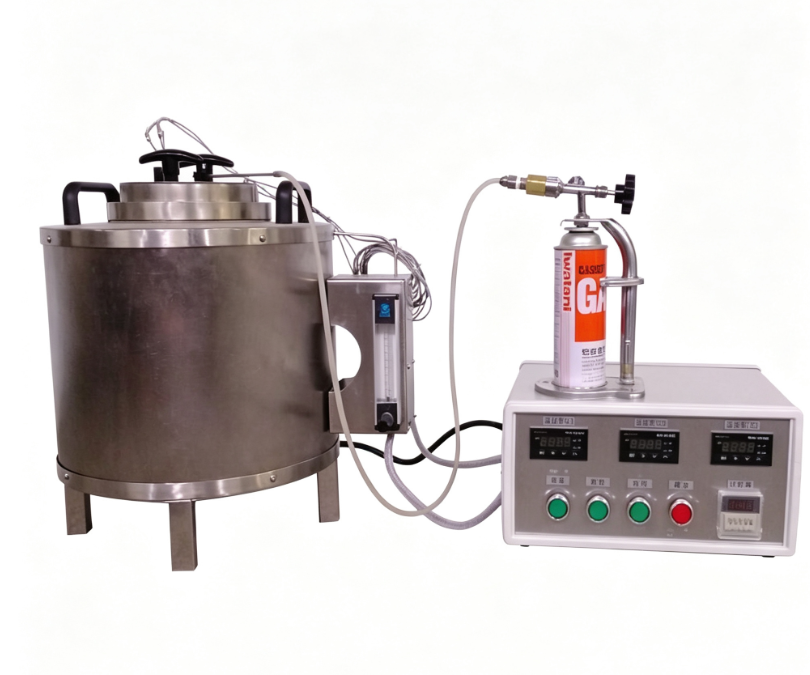

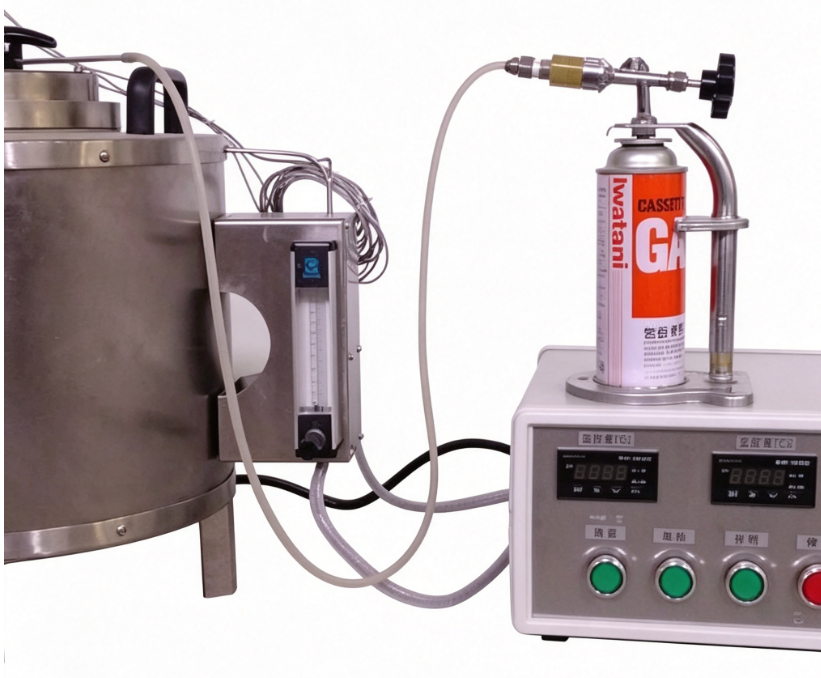

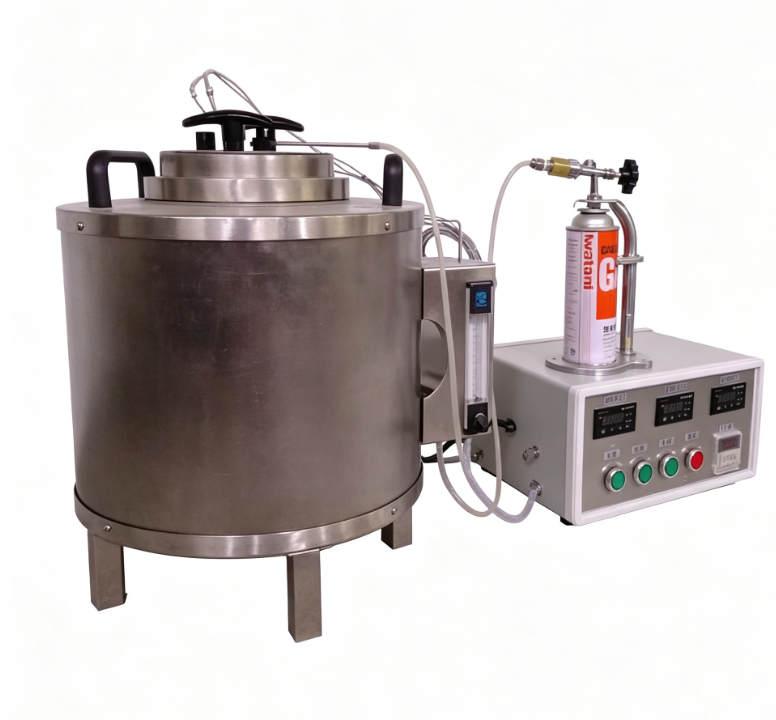

YYF009 Plastic Ignition Temperature Test Apparatus

This laboratory furnace is designed for testing plastic ignition point performance by decomposing and releasing combustible gas from plastic materials under regulated testing conditions. The material is ignited by an outer flame and burned for a specific duration to measure its minimum ignition temperature. Test results enable comparative analysis of material performance.

Compliance Standards

ASTM D 1929
GB/T 4610
GB/T 9343

Technical Specifications

Feature / Specification	Details
Frame Structure	Made of stainless steel; corrosion-resistant
Ignition & Safety	Equipped with ignition, electronic ignition, automatic flameout, and safety monitoring device
Exhaust Pipe	Stainless steel exhaust pipe with removable parts for easy cleaning
Burner Tube	Stainless steel; inner diameter: 3.0 mm; outer diameter: 6.4 mm
Torch Position	Torch is positioned above the sample; exposed flame length: 28 ± 2 mm; exposed bottom surface of the flame applied at 6 mm
Flame-to-Sample Height	75-100 mm
Sample Size	885 × 270 mm
Radiant Panel Position	Installed on the frame; 1250 mm above the ground
Standard	Designed according to BS476-7; radiation plate positioned at 90°
Radiation Device	Radiant panel size: 850 × 850 mm; porous refractory blocks; provides a uniform gas mixture for complete combustion and prevents surface burning
Sample Fixture	Made of cooled and water-cooled steel panel chuck; sample temperature at the fixture outlet must not exceed 35°C
Cooling Water Flow Rate	12 L/min
Gas Flow Rate	1500 ± 200 mL/min
Test Position Adjustment	Sample position can be adjusted according to the tooling center axis, allowing different angles between the test surface and radiation plate
Power Control	Power output is automatically controlled according to the test time and automatically adjusted
Data Processing	Computer automatically processes test data and generates/prints the test report
