Name: Plastic Horizontal Burning Rate Test Apparatus with Adjustable Burner Angle Stainless Steel Construction and Sealed Toughened Glass Observation Window
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF010
Price: 2999 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

Plastic Horizontal Burning Rate Test Apparatus with Adjustable Burner Angle Stainless Steel Construction and Sealed Toughened Glass Observation Window

Adjustable Burner Angle Horizontal Burning Rate Test Apparatus

Stainless Steel Construction Horizontal Combustion Speed Tester

Sealed Toughened Glass Observation Window Plastic Flammability Performance Tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF010

Request A Quote

Product Details

Highlight:

Adjustable Burner Angle Horizontal Burning Rate Test Apparatus

Stainless Steel Construction Horizontal Combustion Speed Tester

Sealed Toughened Glass Observation Window Plastic Flammability Performance Tester

Payment & Shipping Terms

Minimum Order Quantity

Price

2999

Packaging Details

Standard Wooden Case

Delivery Time

10 days

Supply Ability

15 sets per month

ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace

Get Best Price

YYF005 Building Materials and Products Single Burning Item Test Apparatus(SBI)

Get Best Price

YYF003 Building Material Heat Release Rate Flammability Testing Equipment (Cone Calorimeter)

Get Best Price

YYF004 Building Materials and Products Heat of Combustion Test Apparatus

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

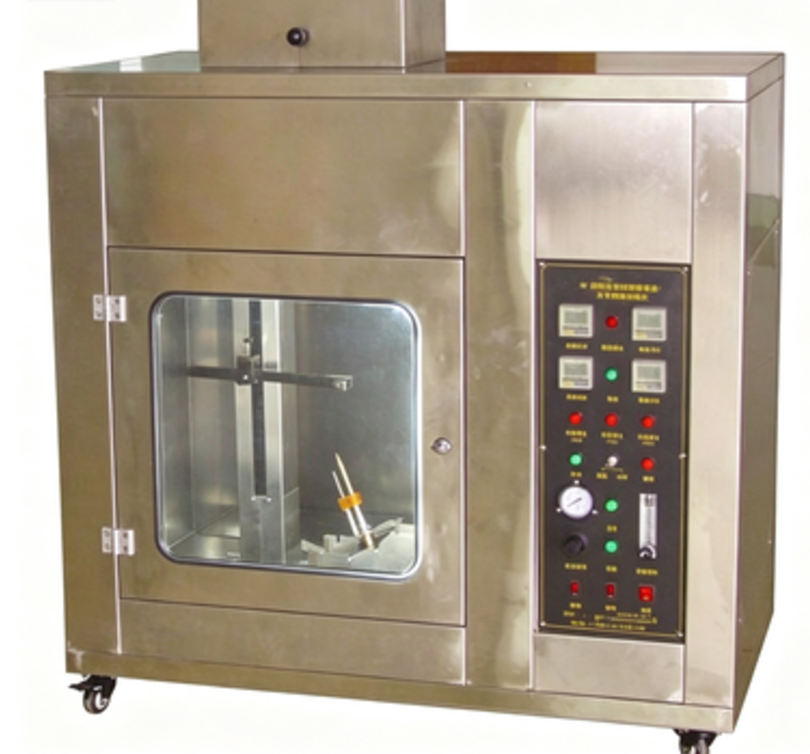

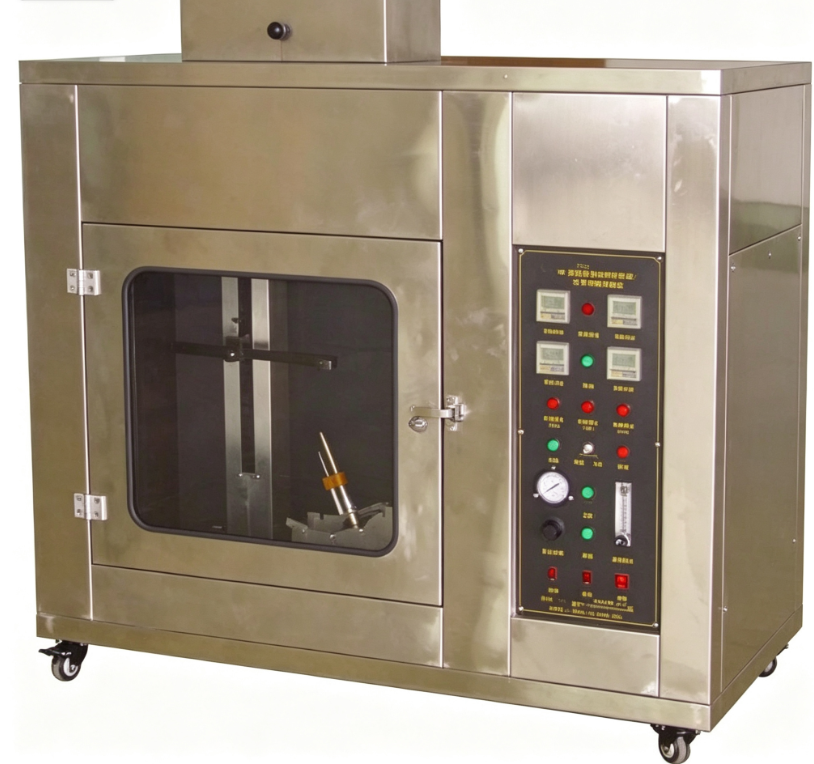

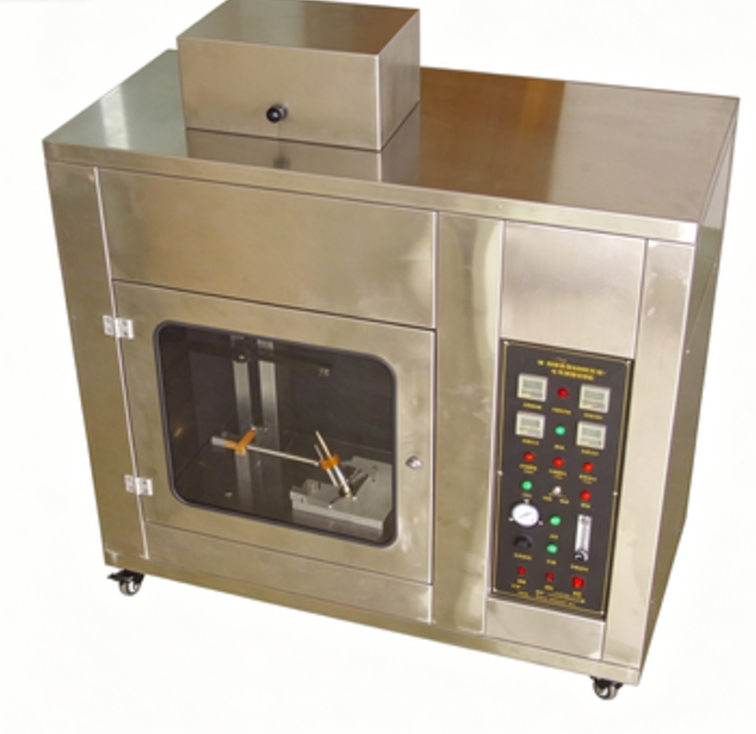

YYF010 Plastic Horizontal Burning Rate Test Apparatus

The YYF010 Horizontal Combustion Speed Tester is designed for comprehensive flammability performance testing of plastic materials and plastic parts under controlled 50W flame conditions.

Applications

This test apparatus is used for determining the combustion performance of plastic materials and plastic parts through horizontal or vertical burning tests under 50W flame conditions.

Compliance Standards

ASTM D 635
UL94 V-0, V-1, V-2
GB/T 2408

Technical Specifications

Item	Specification
Test Chamber Volume	>0.5 m³
Chamber Construction	Numerical control machine tool processing and molding, circular modeling
Chamber Material	High-quality stainless steel, beautiful and resistant to rust and corrosion
Observation Window	Sealed toughened glass observation window on the front of the test chamber
Burner	Manufactured according to ASTM D5025 specification
Burner Angle	Adjustable: 90° / 45°
Panel Timing Device	Available for recording test time
Rotor Flow Meter	Adjustable combustion gas flow
Pressure Regulating Valve	High-precision valve for regulating gas pressure
Test Support	Divided into horizontal and vertical supports; vertical support and blowtorch are parallel to the observation window
Flame Scale	Equipped with a scale for measuring horizontal and vertical flame combustion
Power Supply	220 V, 50 Hz
