Home > Products > Flammability Testing Equipment >
Micro-computer Control Smoke Density Tester ASTM D 2843 Compliant with 304 Steel Combustion Box

Micro-computer Control Smoke Density Tester ASTM D 2843 Compliant with 304 Steel Combustion Box

Micro-computer Control Smoke Density Tester

ASTM D 2843 Compliant Smoke Density Test Chamber

304 Steel Combustion Box NBS Smoke Density Tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF011

Contact Us
Request A Quote
Micro-computer Control Smoke Density Tester ASTM D 2843 Compliant with 304 Steel Combustion Box
Micro-computer Control Smoke Density Tester ASTM D 2843 Compliant with 304 Steel Combustion Box Micro-computer Control Smoke Density Tester ASTM D 2843 Compliant with 304 Steel Combustion Box Micro-computer Control Smoke Density Tester ASTM D 2843 Compliant with 304 Steel Combustion Box
Product Details
Gas Source:
95% Propane Gas Or Higher Purity, Or The Same Purity Of Gas (owned)
Photometric System:
Light Source For The Light Bulb 15 W, Working Voltage Of 6 V
Smoke Density Measurement Range:
0 ~ 100%
Smoke Density Measurement Accuracy:
±3%
Receive The Lens Focal Length:
60 ~ 65 Mm
Main Burner Work Pressure:
276 KPa (adjustable)
Auxiliary Combustion Chamber Pressure:
138 KPa (adjustable)
Supply Voltage:
AC 220V±10%, 50Hz
Using Power:
0.5 KW
Combustion Box Dimension:
L300 × W300 × H790 (mm)
Equipment Overall Dimensions:
800 × 500 × 500 Mm
Combustion Box Material:
304 Steel Plate, Thickness Of 1.2 Mm
Weight:
35 Kg
Highlight:

Micro-computer Control Smoke Density Tester

,

ASTM D 2843 Compliant Smoke Density Test Chamber

,

304 Steel Combustion Box NBS Smoke Density Tester

Payment & Shipping Terms
Minimum Order Quantity
1
Price
3999
Packaging Details
Standard Wooden Case
Delivery Time
10 days
Payment Terms
L/C,D/A,D/P,T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price YYF012 Flame Propagation Tester NFPA701 Standard Flammability Test Equipment with 304# Stainless Steel Structure and Transparent Observation Window online Video

YYF012 Flame Propagation Tester NFPA701 Standard Flammability Test Equipment with 304# Stainless Steel Structure and Transparent Observation Window

Get Best Price
Good price Laboratory Single Flame Flammability Testing Machine for Building Materials EN ISO 11925-2 online Video

Laboratory Single Flame Flammability Testing Machine for Building Materials EN ISO 11925-2

Get Best Price
Good price YYF008 Surface Flame Spread Test Apparatus Building Material Flame Spread Tester online Video

YYF008 Surface Flame Spread Test Apparatus Building Material Flame Spread Tester

Get Best Price
Good price ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace online

ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace

Get Best Price
Contact Us
8613825729462
sales03@yuyangtest.com
86-769-26622869
Contact Now
Product Description
YYF011 Micro-computer Plastic Smoke Density Tester Burning & Decomposition Smoke Density Test Chamber NBS
The YYF011 Micro-computer Plastic Smoke Density Tester is designed for measuring the smoke-producing characteristics of plastics under controlled conditions of combustion or decomposition. This equipment is also suitable for testing other building materials.
Applications

Measurement of smoke-producing characteristics of plastics and building materials under controlled combustion or decomposition conditions.

Compliance Standards

ASTM D 2843, DIN 4102, GB/T 8627

Technical Specifications
No. Item Specification
1 Gas source 95% propane gas or higher purity, or the same purity of gas (owned)
2 Photometric system Light source for the light bulb 15 W, working voltage of 6 V
3 Smoke density measurement range 0 ~ 100%
4 Smoke density measurement accuracy ±3%
5 Receive the lens focal length 60 ~ 65 mm
6 Main burner work pressure 276 kPa (adjustable)
7 Auxiliary combustion chamber pressure 138 kPa (adjustable)
8 Supply voltage AC 220V±10%, 50Hz
9 Using power 0.5 KW
10 Combustion box dimension L300 × W300 × H790 (mm)
11 Equipment overall dimensions 800 × 500 × 500 mm
12 Combustion box material 304 steel plate, thickness of 1.2 mm
13 Weight 35 Kg
Product Images

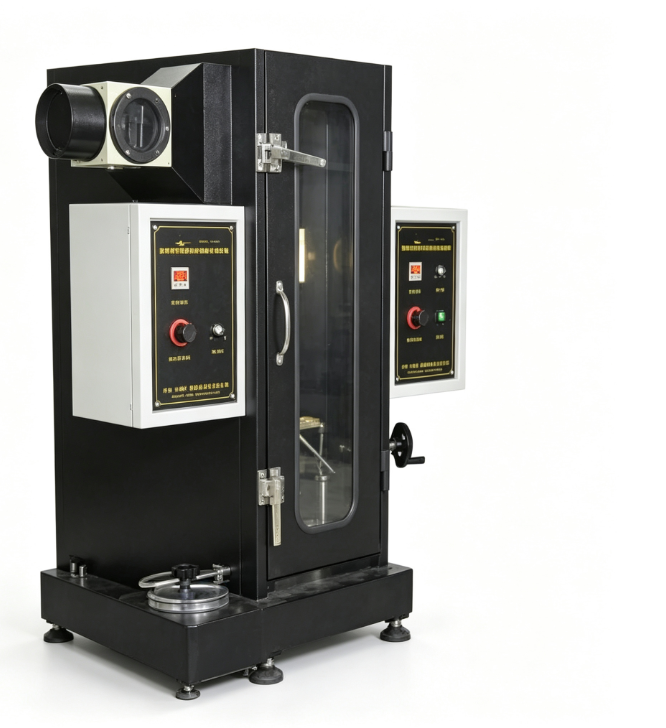

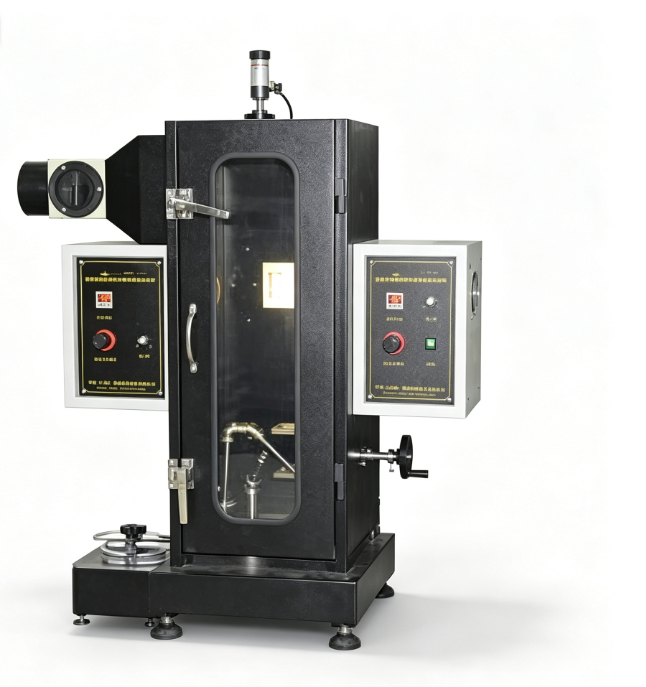

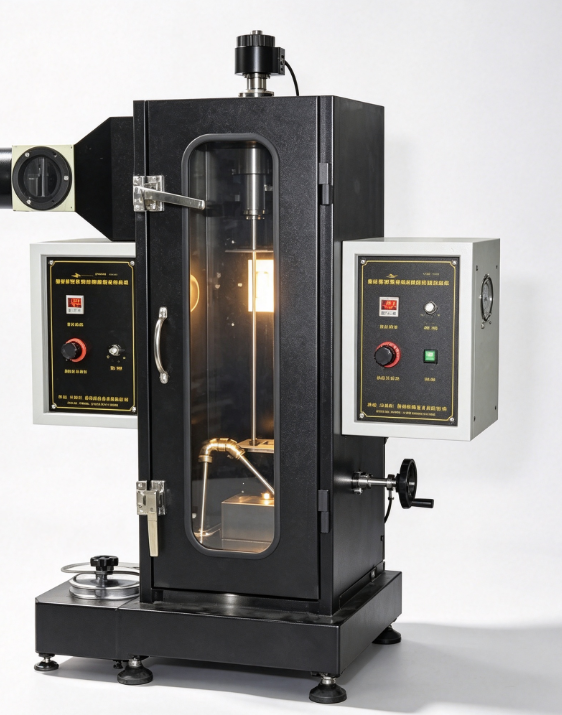

YYF011 Micro-computer Plastic Smoke Density Tester front view and control panel YYF011 Micro-computer Plastic Smoke Density Tester interior combustion chamber
