Building Material Cone Calorimeter Heat Release Rate Tester Flame Retardant Material Combustion Flammability Testing Instrument

Product Details

The Radiation Cone:

Heating Power 5kw, Radiation Intensity: 100kw / M2, Equipped With Three Thermocouples To Measure The Temperature.

Weighing Equipment:

Imported High-precision Electronic Scales, Weighing 500g, Resolution 0.01g

The Exhaust System:

Centrifugal Fans, Hoods, Air Intake And Exhaust Pipes As Well As The Composition Of The Orifice Flow Meter

The Gas Sampling Apparatus:

Sampling Pump, Particulate Filter, Dehumidification Cold Trap, Emptying Bypass Coefficient, Water Filters, CO2 Filter.

Oxygen Measurement Range:

0-25%

The Signal Output:

4-20mA

The Response Time:

≤2S

Ambient Temperature:

0-45 ℃

Relative Humidity:

<90% (non-condensing)

Linearity:

<± 0.1% O2

Highlight:

cone calorimeter heat release rate tester

flame retardant material flammability tester

building material combustion testing instrument

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiation

Payment Terms

T/T

Supply Ability

2 sets per month

Building Products Fire Reaction Non-Combustibility Test Equipment LabVIEW Control Non Combustibility Tester

Get Best Price

Construction Material Noncombustibility Testing Machine | EN ISO 1182 Non-combustibility Test Apparatus

Get Best Price

Microcomputer Controlled Non Combustibility Test Furnace For Building Material Fire Safety Performance Test

Get Best Price

Oxygen Consumption Cone Calorimeter Building Material Heat Release Rate Tester Combustion Flammability Fire Testing Machine

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

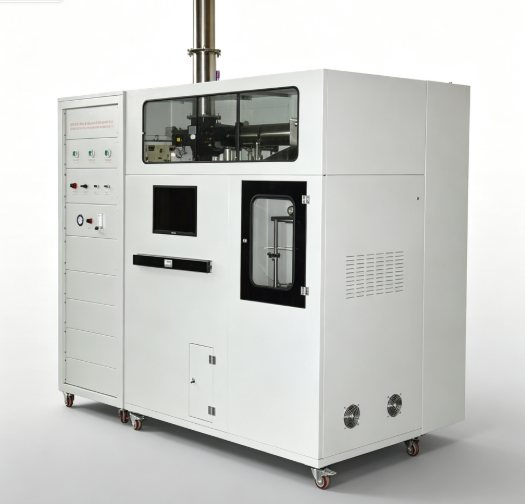

Building Material Cone Calorimeter Heat Release Rate Tester

Cone calorimeter is the most important fire testing instrument for combustion performance evaluation of building materials. It calculates heat release rate based on oxygen consumption of flue gas during sample burning. Accurate heat release rate measurement is critical for fire risk prediction, fire prevention design and flame retardant material development.

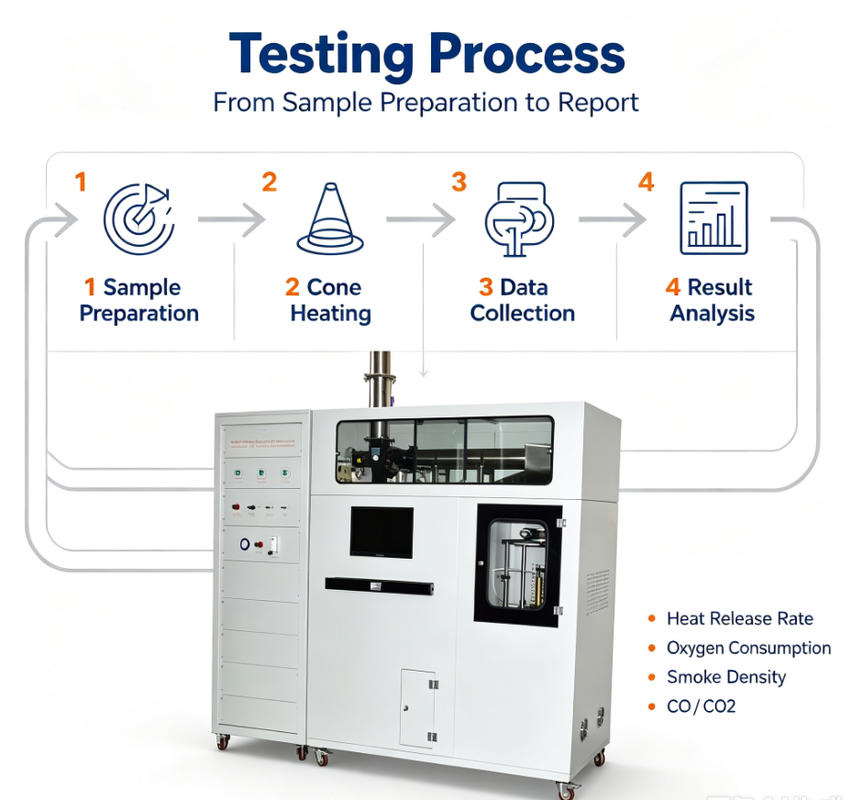

Working Principle

The equipment measures oxygen concentration in combustion flue gas stream, then calculates material heat release rate according to oxygen consumption theory. Heat release rate is the core parameter to evaluate combustion characteristics of burning materials. It can record multiple real-time test data to assess fire hazard level of samples.

Compliant Standards

GB/T16172, ISO 5660-1 and -2, ASTM E1354, ASTM E1740, ASTM F1550, ASTM D5485, ASTM D6113, NFPA 271, NFPA 264, CAN ULC 135, BS 476

Application & Testing Industry

Building materials / Construction panels
Flame retardant composite materials
Furniture & upholstery materials
Transportation interior materials (rail, ship)
Plastic, foam, textile fire performance test
Fire laboratory, third-party test institute, university research lab
Material factory flame retardant R&D and quality inspection

Key Advantages

Strictly follow global fire test standards, test reports can be recognized internationally
Imported core gas analysis components, stable signal and high test accuracy
High precision electronic weighing module, real-time mass loss monitoring
Integrated automatic data acquisition system, automatic curve generation & data saving
Closed test chamber with safety protection, stable cone radiation output
Humanized operation interface, simple operation, automatic test recording
Complete after-sales: installation guidance, operation training, calibration & maintenance service

Packing & Delivery

Packing: Standard export plywood fumigation-free wooden case, shockproof foam inside
Shipping: Sea freight / Air freight / Express available
Delivery time: 25~40 working days after receiving deposit
