Name: Cone Calorimeter Heat Release Rate Flammability Testing Equipment for Construction Material Fire Performance Test
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF003
Price: 25,000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

Cone Calorimeter Heat Release Rate Flammability Testing Equipment for Construction Material Fire Performance Test

Cone Calorimeter flammability testing equipment

Heat release rate testing equipment

Construction material fire performance tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF003

Request A Quote

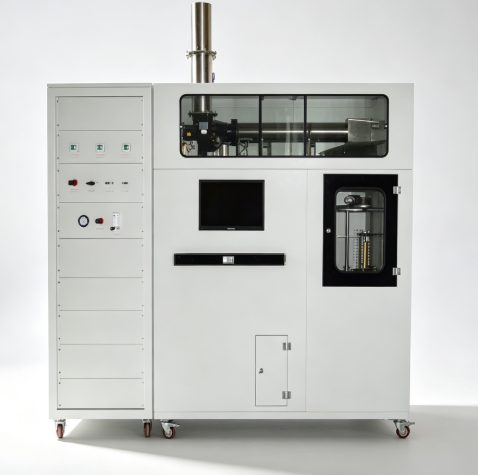

Cone Calorimeter Heat Release Rate Flammability Testing Equipment for Construction Material Fire Performance Test

Product Details

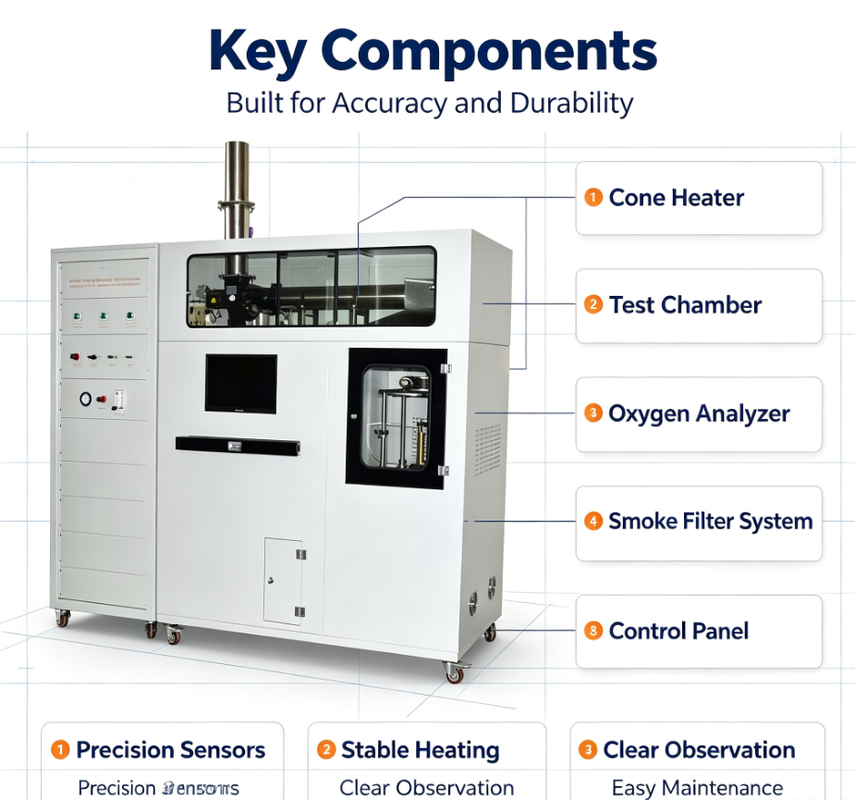

The Radiation Cone:

Heating Power 5kw, Radiation Intensity: 100kw / M2, Equipped With Three Thermocouples To Measure The Temperature.

Weighing Equipment:

Imported High-precision Electronic Scales, Weighing 500g, Resolution 0.01g

The Exhaust System:

Centrifugal Fans, Hoods, Air Intake And Exhaust Pipes As Well As The Composition Of The Orifice Flow Meter

The Gas Sampling Apparatus:

Sampling Pump, Particulate Filter, Dehumidification Cold Trap, Emptying Bypass Coefficient, Water Filters, CO2 Filter.

Oxygen Measurement Range:

0-25%

The Signal Output:

4-20mA

The Response Time:

≤2S

Ambient Temperature:

0-45 ℃

Relative Humidity:

<90% (non-condensing)

Linearity:

<± 0.1% O2

Highlight:

Cone Calorimeter flammability testing equipment

Heat release rate testing equipment

Construction material fire performance tester

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiation

Payment Terms

T/T

Supply Ability

2 sets per month

Building Products Fire Reaction Non-Combustibility Test Equipment LabVIEW Control Non Combustibility Tester

Get Best Price

Construction Material Noncombustibility Testing Machine | EN ISO 1182 Non-combustibility Test Apparatus

Get Best Price

Microcomputer Controlled Non Combustibility Test Furnace For Building Material Fire Safety Performance Test

Get Best Price

Oxygen Consumption Cone Calorimeter Building Material Heat Release Rate Tester Combustion Flammability Fire Testing Machine

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

Cone Calorimeter Heat Release Rate Flammability Testing Equipment

Professional construction material fire performance testing equipment for accurate assessment of combustion characteristics and heat release rate measurement.

Equipment Overview

The cone calorimeter serves as a core fire testing apparatus for assessing the combustion characteristics of construction materials. It computes the heat release rate by measuring oxygen consumption from flue gases generated while specimens burn. Precise measurement of heat release rate plays a vital role in fire hazard forecasting, fire safety design and the development of flame-retardant materials.

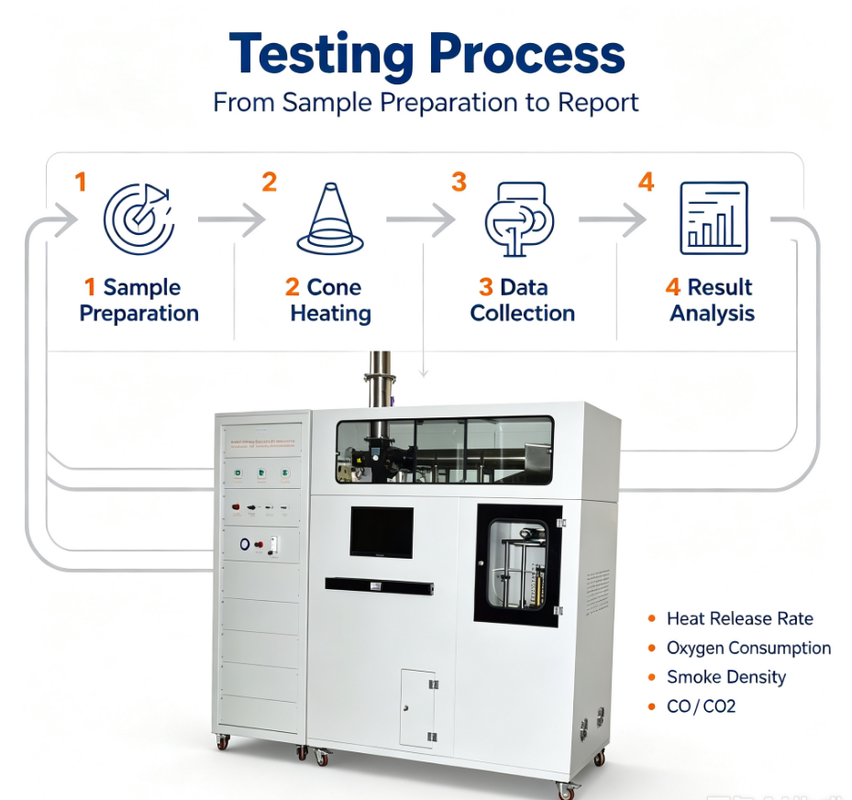

Working Principle

The equipment measures oxygen concentration in combustion flue gas stream, then calculates material heat release rate according to oxygen consumption theory. Heat release rate is the core parameter to evaluate combustion characteristics of burning materials. It can record multiple real-time test data to assess fire hazard level of samples.

Compliant Standards

GB/T16172, ISO 5660-1 and -2, ASTM E1354, ASTM E1740, ASTM F1550, ASTM D5485, ASTM D6113, NFPA 271, NFPA 264, CAN ULC 135, BS 476

Applications & Testing Industries

Building materials and construction panels
Flame-retardant composite materials
Furniture and upholstery fabrics & materials
Interior materials for transportation (railway, marine vessels)
Fire property testing for plastics, foams and textiles
Fire testing laboratories, third-party certification institutions and university research laboratories
R&D and quality inspection of flame retardant materials for manufacturers

Key Advantages

Strictly follow global fire test standards, test reports can be recognized internationally

Imported core gas analysis components, stable signal and high test accuracy

High precision electronic weighing module, real-time mass loss monitoring

Integrated automatic data acquisition system, automatic curve generation & data saving

Closed test chamber with safety protection, stable cone radiation output

Humanized operation interface, simple operation, automatic test recording

Complete after-sales: installation guidance, operation training, calibration & maintenance service

Our Service Commitment

Pre-sales: Technical consultation, standard matching, customized scheme discussion
Onsite support: Remote installation guidance, operation training
After-sales: 12-month warranty for main machine, lifetime technical support
Calibration support: Provide calibration suggestion & spare parts supply
