Name: Oxygen Consumption Cone Calorimeter Building Material Heat Release Rate Tester Combustion Flammability Fire Testing Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF003
Price: 25,000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

Oxygen Consumption Cone Calorimeter Building Material Heat Release Rate Tester Combustion Flammability Fire Testing Machine

oxygen consumption cone calorimeter fire testing machine

building material heat release rate tester

combustion flammability testing equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF003

Request A Quote

Oxygen Consumption Cone Calorimeter Building Material Heat Release Rate Tester Combustion Flammability Fire Testing Machine

Product Details

The Radiation Cone:

Heating Power 5kw, Radiation Intensity: 100kw / M2, Equipped With Three Thermocouples To Measure The Temperature.

Weighing Equipment:

Imported High-precision Electronic Scales, Weighing 500g, Resolution 0.01g

The Exhaust System:

Centrifugal Fans, Hoods, Air Intake And Exhaust Pipes As Well As The Composition Of The Orifice Flow Meter

The Gas Sampling Apparatus:

Sampling Pump, Particulate Filter, Dehumidification Cold Trap, Emptying Bypass Coefficient, Water Filters, CO2 Filter.

Oxygen Measurement Range:

0-25%

The Signal Output:

4-20mA

The Response Time:

≤2S

Ambient Temperature:

0-45 ℃

Relative Humidity:

<90% (non-condensing)

Linearity:

<± 0.1% O2

Highlight:

oxygen consumption cone calorimeter fire testing machine

building material heat release rate tester

combustion flammability testing equipment

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiation

Payment Terms

T/T

Supply Ability

2 sets per month

Building Products Fire Reaction Non-Combustibility Test Equipment LabVIEW Control Non Combustibility Tester

Get Best Price

Construction Material Noncombustibility Testing Machine | EN ISO 1182 Non-combustibility Test Apparatus

Get Best Price

Microcomputer Controlled Non Combustibility Test Furnace For Building Material Fire Safety Performance Test

Get Best Price

Oxygen Consumption Cone Calorimeter Building Material Heat Release Rate Tester Combustion Flammability Fire Testing Machine

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

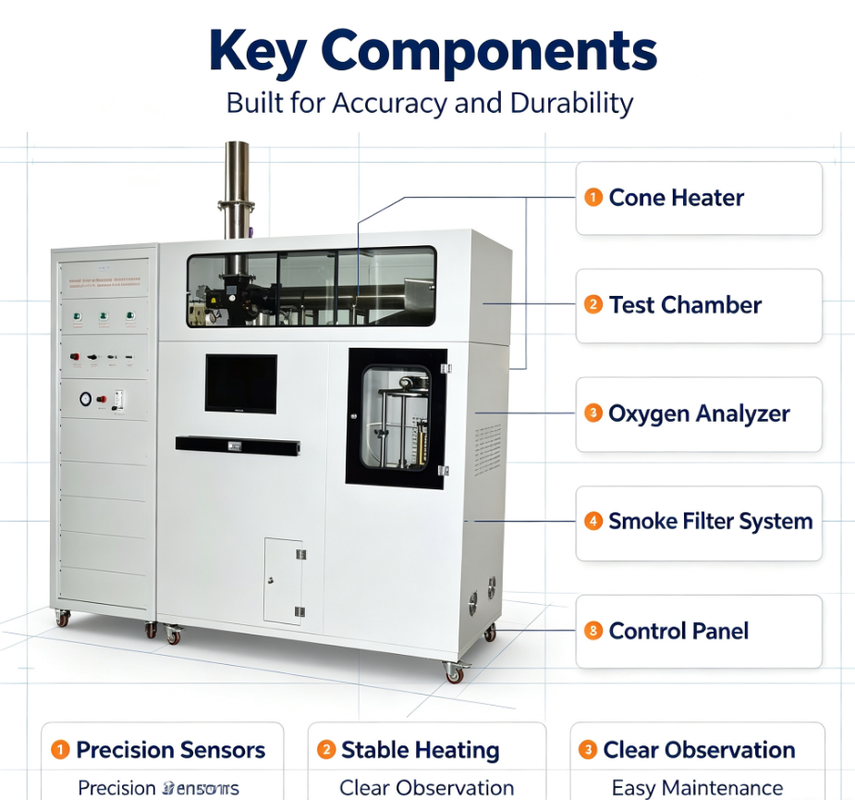

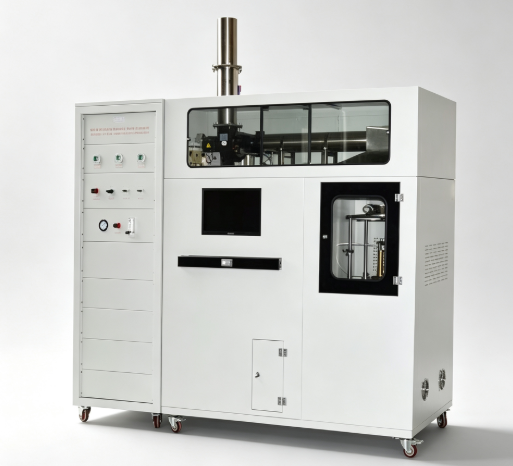

Oxygen Consumption Cone Calorimeter

The cone calorimeter is a primary fire test instrument used to evaluate the combustion performance of building materials. Utilizing the oxygen consumption principle, it calculates heat release rate from flue gas emitted during specimen combustion. Accurate heat release rate measurement is essential for fire hazard prediction, fire safety engineering design, and flame retardant material research.

Compliant Standards

GB/T16172, ISO 5660-1 and -2, ASTM E1354, ASTM E1740, ASTM F1550, ASTM D5485, ASTM D6113, NFPA 271, NFPA 264, CAN ULC 135, BS 476

Applications & Testing Industries

Construction & building panel materials
FR composite materials
Furniture upholstery substrates
Rail & ship interior components
Plastic, foam, textile flammability testing
Fire labs, third-party testing bodies, university research centers
Flame retardant material R&D and QC for manufacturers

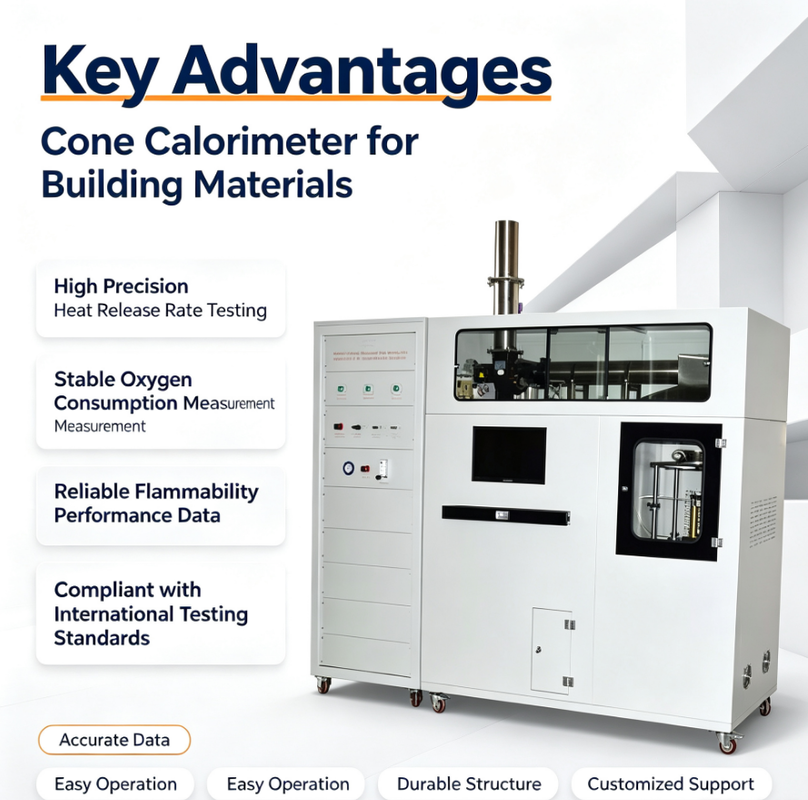

Key Advantages

Compliant with global fire testing standards for internationally recognized test reports
Imported core gas analysis parts for stable signals and superior testing precision
High-precision electronic weighing module for real-time mass loss monitoring
Built-in automatic data acquisition system for curve generation and test data storage
Sealed test chamber with safety guarding ensures stable radiation output
User-friendly operation interface for easy operation and automatic test recording
Complete after-sales package including installation, training, calibration and maintenance

Our Service Package

Pre-sales Support

Technical consultation, standard matching, customized scheme discussion

Onsite Support

Remote installation guidance, operation training

After-sales Service

12-month warranty for main machine, lifetime technical support

Calibration Support

Provide calibration suggestions & spare parts supply
