Home > Products > Flammability Testing Equipment >
Building Products Fire Reaction Non-Combustibility Test Equipment LabVIEW Control Non Combustibility Tester

Building Products Fire Reaction Non-Combustibility Test Equipment LabVIEW Control Non Combustibility Tester

Non-Combustibility Test Equipment LabVIEW Control

Fire Reaction Testing Equipment Non-Combustibility

Flammability Testing Equipment with LabVIEW

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF007

Contact Us
Request A Quote
Building Products Fire Reaction Non-Combustibility Test Equipment LabVIEW Control Non Combustibility Tester Building Products Fire Reaction Non-Combustibility Test Equipment LabVIEW Control Non Combustibility Tester Building Products Fire Reaction Non-Combustibility Test Equipment LabVIEW Control Non Combustibility Tester Building Products Fire Reaction Non-Combustibility Test Equipment LabVIEW Control Non Combustibility Tester
Product Details
Furnace:
Φ95mm×Φ75mm×Φ150mm,80/20 Nickel/chromium Electrical Resistance Tape 3mm Wide And 0.2mm Thick
Specimen Holder Mass:
15±2 G
Draught Shield:
Φ75mm×50mm
Thermocouple:
Insulated Nickel-chromium Sheathed Φ0.3mm
Voltage Stabilizer:
1.5KVA,accuracy Of Output Voltage Within ±1%
Variable Transformer:
0~100V
Thermometer:
0~1000±5%
Timer:
0~99h
Power:
AC220V ± 10%, 50Hz, Current ≤10A
Furnace Temperature:
750±5℃
Highlight:

Non-Combustibility Test Equipment LabVIEW Control

,

Fire Reaction Testing Equipment Non-Combustibility

,

Flammability Testing Equipment with LabVIEW

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiation
Payment Terms
T/T
RELATED PRODUCTS
Good price Building Products Fire Reaction Non-Combustibility Test Equipment LabVIEW Control Non Combustibility Tester online

Building Products Fire Reaction Non-Combustibility Test Equipment LabVIEW Control Non Combustibility Tester

Get Best Price
Good price Construction Material Noncombustibility Testing Machine | EN ISO 1182 Non-combustibility Test Apparatus online

Construction Material Noncombustibility Testing Machine | EN ISO 1182 Non-combustibility Test Apparatus

Get Best Price
Good price Microcomputer Controlled Non Combustibility Test Furnace For Building Material Fire Safety Performance Test online

Microcomputer Controlled Non Combustibility Test Furnace For Building Material Fire Safety Performance Test

Get Best Price
Good price Oxygen Consumption Cone Calorimeter Building Material Heat Release Rate Tester Combustion Flammability Fire Testing Machine online

Oxygen Consumption Cone Calorimeter Building Material Heat Release Rate Tester Combustion Flammability Fire Testing Machine

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Building Products Fire Reaction Non-Combustibility Test Equipment LabVIEW Control Non Combustibility Tester
Building Products Non-Combustibility Test Equipment with LabVIEW Control System
Product Overview

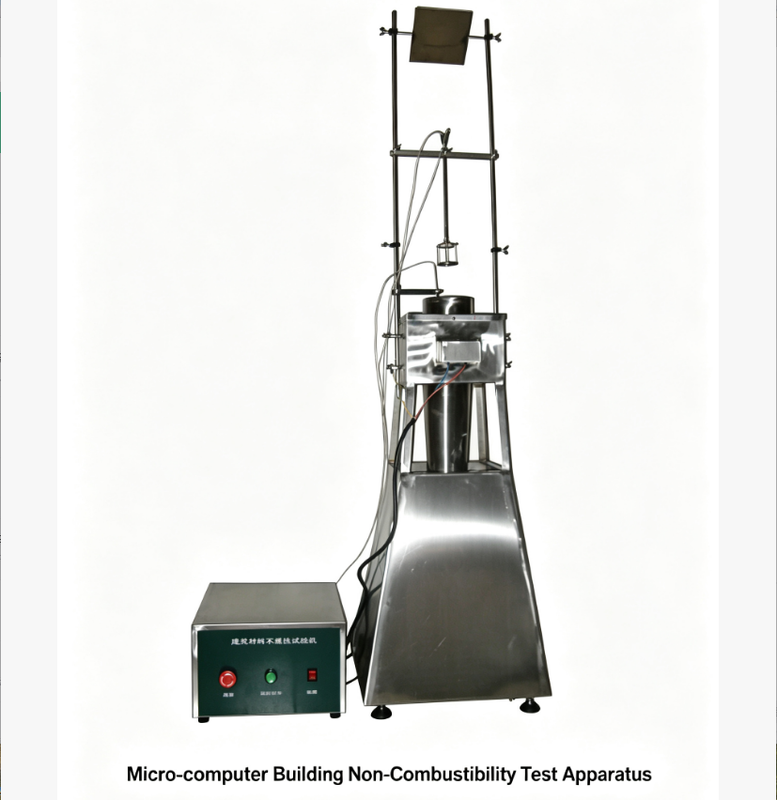

The Micro-computer Building Non-Combustibility Test Apparatus is engineered to inspect the non-flammable performance of construction materials under standardized fire exposure conditions. Adopting microcomputer control architecture, high-precision temperature regulation module and a calibrated furnace assembly, this testing instrument generates credible test data to evaluate the fire safety performance of various building materials.
Key Features
  • Precision microcomputer control delivers consistent, repeatable test readings
  • Built with high-temperature resistant combustion chamber and high accuracy temperature sensing probes
  • Real-time temperature monitoring paired with automatic operation reduces human operational errors
  • Well-designed compact framework for quick setup and straightforward routine maintenance
  • Fully conforms to international fire performance testing criteria for construction materials
Application Fields
  • Fire resistance characteristic inspection for construction raw materials
  • Non-combustion property assessment of finished building products
  • Laboratory quality inspection and material development research
  • Fire safety certification authorities and third-party testing laboratories
  • Universities, research institutes and building material manufacturers
Testing Standards Compliance
EN ISO 1182 Reaction to fire tests for building products
GB/T 5464 Test methods for non-combustibility of building materials
BS 476-4 Fire tests on building materials and structures
Why Choose Our Equipment
Professional manufacturer specializing in fire testing instruments with extensive global export experience
Each instrument passes multi-stage quality audits prior to shipment to guarantee stable running performance
In-house R&D team provides flexible OEM & ODM customization to satisfy your unique testing requirements
Comprehensive after-sales system delivers remote technical tutoring and professional consultation services
Heavy-duty seaworthy plywood export packaging and diversified logistics solutions for clients worldwide
Skilled pre-sales technical team assists you in selecting the most suitable testing equipment
After-Sales Service & Support
  • Custom OEM & ODM services available
  • Multi-procedure quality inspection before delivery
  • Seaworthy plywood export packaging
  • Online technical guidance and operational training
  • Operation manuals and instructional videos provided
  • Professional technical consultation for equipment installation, commissioning and maintenance
