Fire Testing Equipment with Glow Wire Tester for Comprehensive Fire Safety Testing of Lighting and Electrical Appliances

Fire Testing Equipment with Glow Wire Tester for Comprehensive Fire Safety Testing of Lighting and Electrical Appliances

Fire Testing Equipment with glow wire tester

Fire safety testing equipment for lighting

Electrical appliances fire testing equipment

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

CE, ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A

Model Number:

YYF052

Contact Us
Request A Quote
Product Details
Standard:
IEC 60695-2-10, ASTM D6194, UL746A, GB/T 5169.10~13
Output Voltage Mode:
AC/DC (switchable)
Wrapping Tissue:
12–30g/m³
Flame Length:
30 ± 5mm
Temperature Error:
± 0.5 °C
Product Type:
Testing Equipment
Ambient Temperature:
Operating 10°C To 35°C
Test Samle:
Aviation Materials
Instructions:
Supplied
Gas Flow:
0-50m3/min
Power Supply:
AC 220V 50HZ;
Test Environment:
25±5°C
Size:
500mm(W)X 700mm(H)X 500mm(D)
Voltage:
110V/220V
Highlight:

Fire Testing Equipment with glow wire tester

,

Fire safety testing equipment for lighting

,

Electrical appliances fire testing equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiate
Packaging Details
export wooden caton
Delivery Time
10-18 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,
Supply Ability
30 Set/Sets per Month
Product Description
Glow Wire Fire Testing Equipment
Professional fire safety testing equipment designed for comprehensive flammability assessment of lighting equipment, electrical appliances, and electronic products in accordance with international safety standards.
Product Overview

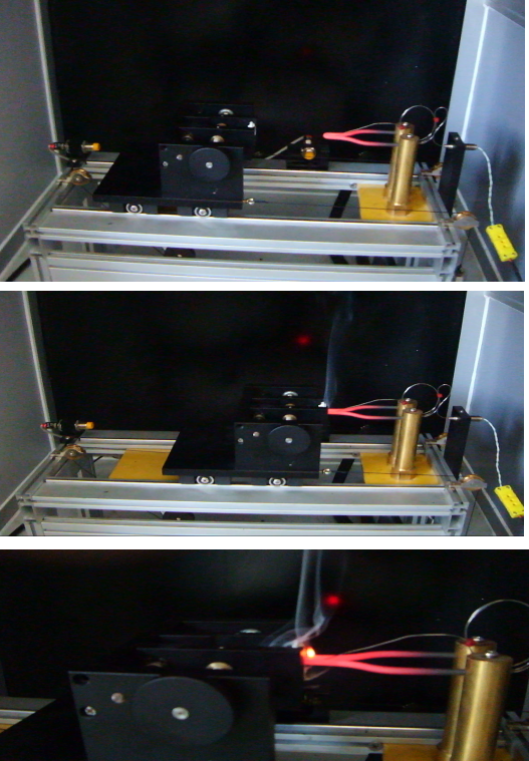

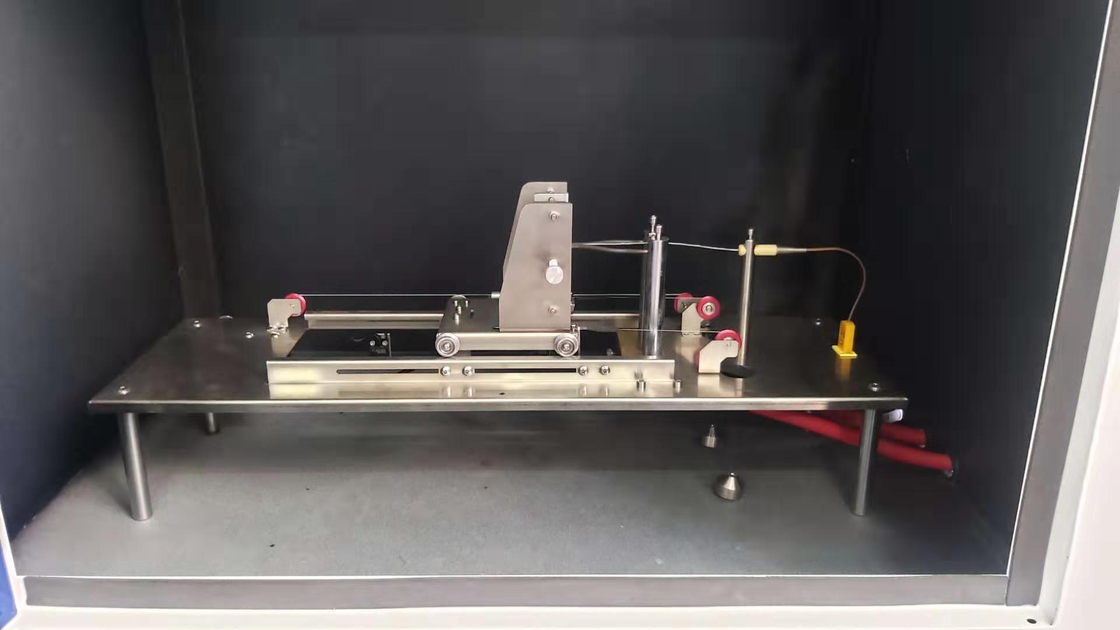

This glow wire tester evaluates fire risk by measuring ignition characteristics, burning duration, glow wire ignition temperature (GWIT), and flammability index (GWFI) for electrical and electronic products.
  • Compliant with IEC 60695-2-11, UL 746A, GB/T 5169.10, GB 4706.1 standards
  • Uses electricity heating regulation material (Ni80/Cr20) resistance wire
  • Heats from 0°C to 1000°C within 1 minute
  • Applies 1.0N vertical burn pressure for 30 seconds
  • Ideal for lighting equipment, low voltage electric appliances, and electrical instruments
Technical Features
  • Thermocouple: K Type imported insulating thermal stabilized sheathed thermocouple, heat resistance 1100°C
  • Glow wire temperature: 500°C-960°C with data display, temperature fluctuation <3°C
  • Test pressure: 1.0N±0.1N on specimen
  • Maximum thermal depth: 7mm±0.5mm (adjustable)
  • Movement velocity: 10mm/s-25mm/s
  • Test time: 30s+0.1s with data display (1-999.9s range)
System Advantages
  • Supports multiple test methods and standards (GB, ISO, ASTM)
  • LCD touch screen displays test results, data, and curves
  • Wrapping connector driving system for stable and precise operation
  • Microcomputer control with full keyboard operation
  • Automatic judgment of material slide adhesive state and sample test results
  • Flexible static and dynamic friction coefficient testing
  • Stores 6 test results with data and curve display, plus query functionality
Technical Specifications
Parameter Specification
Glow-wire Temperature 550°C ~ 1000°C adjustable (±2°C at 500-750°C, ±5°C at 750-1000°C)
Test Time 30s±0.1s
Layer Configuration 10mm wooden board with 12g/m² ~ 30g/m² wrapping tissue, positioned 200mm±5mm below specimen
Thermocouple K type thermocouples Φ0.5mm
Glow-wire Φ4mm±0.04mm Ni/Cr(80/120) nickel chromium wire
Hot Depth 7mm±0.5mm (1N±0.2N maintaining pressure)
Test Speed 10mm/s~25mm/s
Studio Volume ≥0.5 m³
Dimensions 1150mm wide × 650mm deep × 1300mm high, exhaust vent 100mm
Power Supply 1kVA 220V 50/60HZ
Compliance Standards
IEC 60695-2-11, IEC 60695-11-2, GB/T 5169.10, IEC 60695-2, UL 746A
Product Images

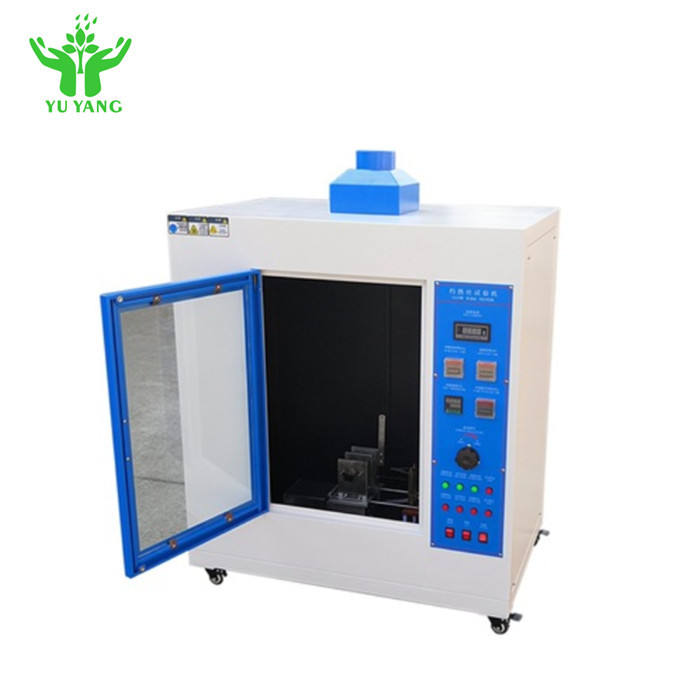

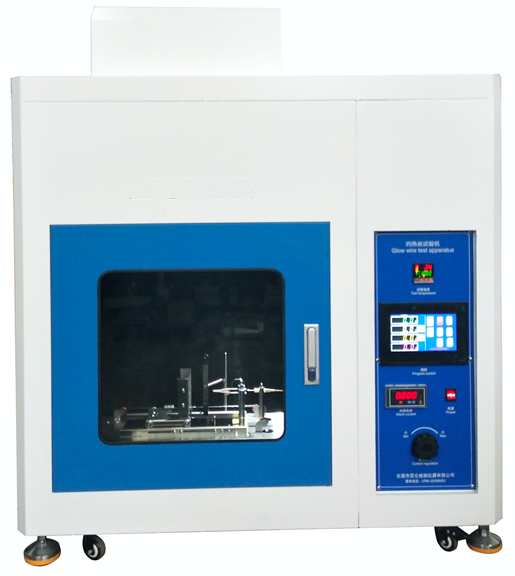

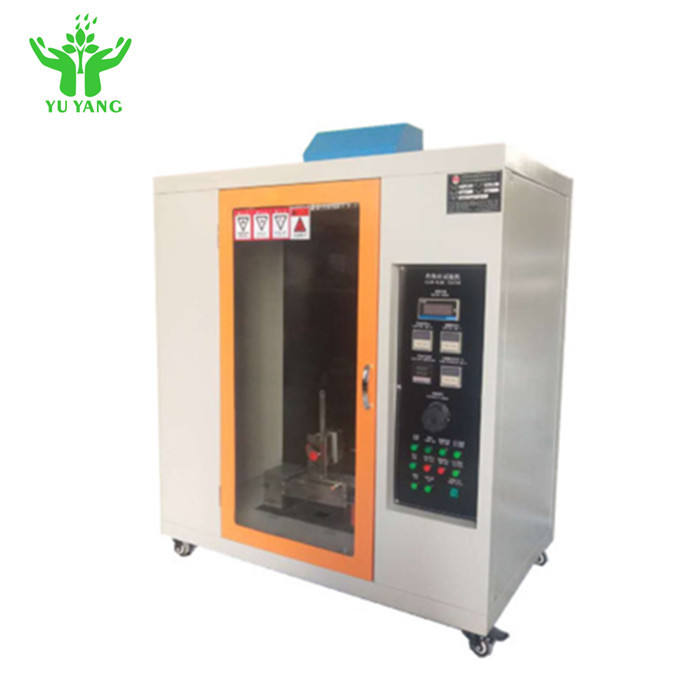

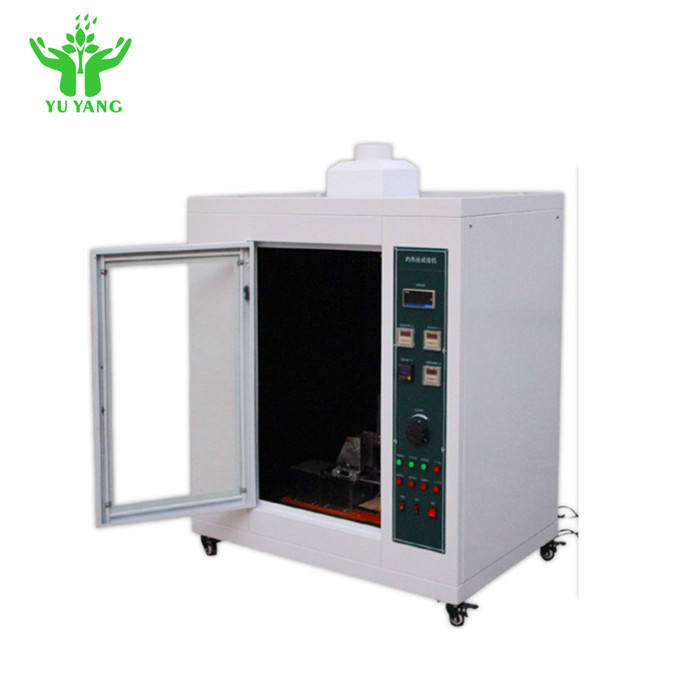

Glow Wire Fire Testing Equipment showing main unit and control panel Packaging and transportation setup for fire testing equipment Manufacturing facility and company overview
