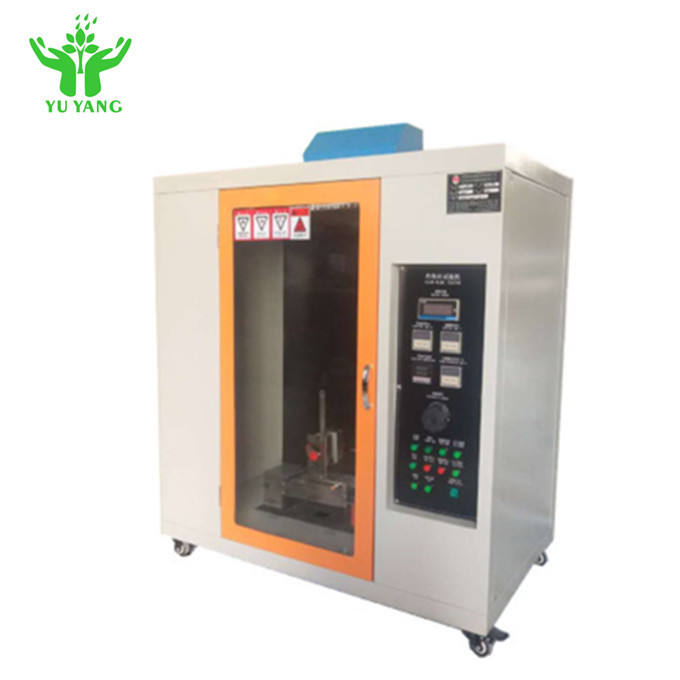

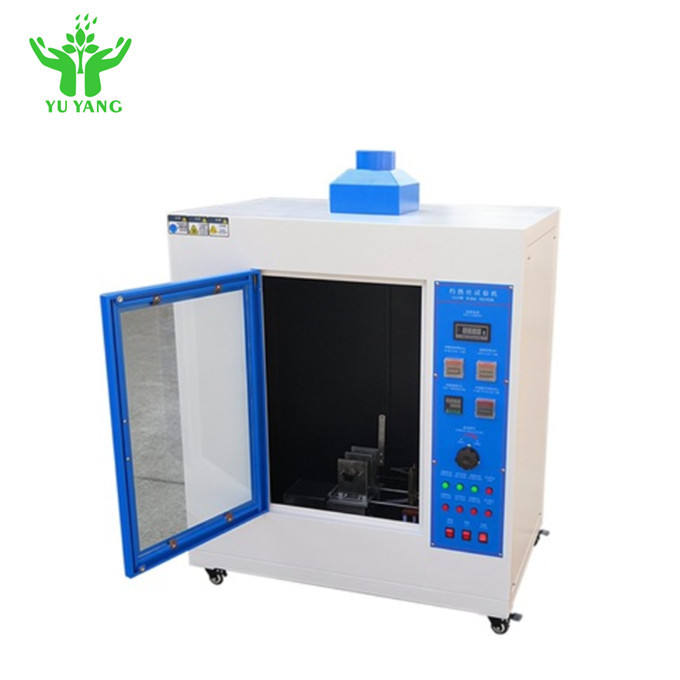

Fire Testing Equipment Designed for Measuring Fire Hazard and Flammability in Lighting and Low Voltage Electrical Devices

Professional fire testing equipment designed for measuring fire hazard and flammability in lighting equipment and low voltage electrical devices. Complies with international safety standards including IEC 60695-2-11, UL 746A, GB/T 5169.10, and GB 4706.1.

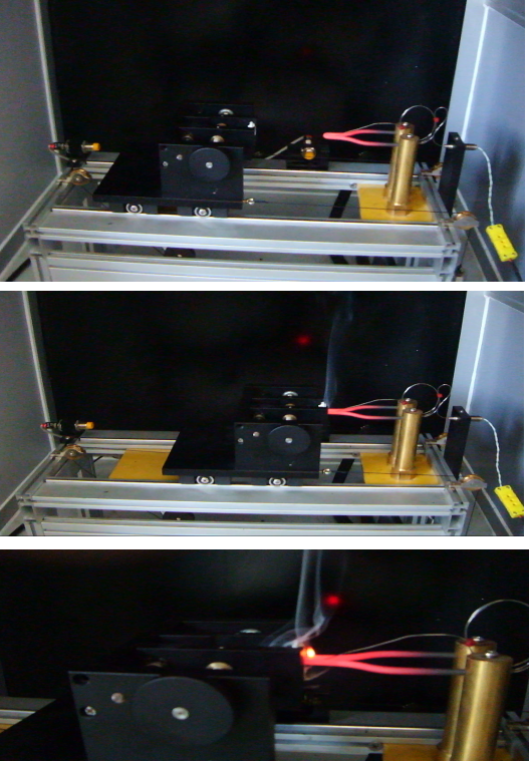

This glow wire tester uses electricity to heat a regulation material (Ni80/Cr20 resistance wire, Φ4mm Ni-Cr alloy wire) from 0°C to 1000°C within 1 minute. It applies 1.0N vertical pressure for 30 seconds to measure fire risk through product ignition, hold burning time, ignition degree, glow-wire ignition temperature (GWIT), flammability, and glow-wire flammability index (GWFI).

Ideal for flammability testing of lighting equipment, low voltage electric appliances, electrical instruments, and materials used in electrical and electronic products.

• Compliant with IEC 60695-2-11, UL 746A, GB/T 5169.10, GB 4706.1
• Model K Type imported insulating thermal stabilized sheathed thermocouple, heat resistance 1100°C
• Glow wire temperature: 500°C-960°C (digital display), temperature fluctuation <3°C
• Test pressure on specimen: 1.0N±0.1N
• Maximum thermal depth: 7mm±0.5mm (adjustable)
• Movement velocity of specimen: 10mm/s-25mm/s
• Test time: 30s+0.1s (1-999.9s data display available)

• Supports multiple test methods and standards (GB, ISO, ASTM) with flexible configuration
• LCD touch screen displays all test results, data, and curves
• Wrapping connector driving system for stable and precise operation
• Microcomputer controlled with full keyboard operation
• Automatic judgment of material slide adhesive state and quantitative discrete analysis of sample test results
• Flexible selection of static and dynamic friction coefficients
• Stores 6 test results with data and curve display, plus query functionality

IEC 60695-2-11, IEC 60695-11-2
