Building Material Fire Performance Test Equipment Cone Calorimeter for HRR THR Smoke and Gas Analysis

Building Material Fire Performance Test Equipment Cone Calorimeter for HRR THR Smoke and Gas Analysis

Cone Calorimeter fire performance tester

Building material HRR THR analyzer

Flammability testing equipment smoke gas analysis

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF003

Contact Us
Request A Quote
Building Material Fire Performance Test Equipment Cone Calorimeter for HRR THR Smoke and Gas Analysis Building Material Fire Performance Test Equipment Cone Calorimeter for HRR THR Smoke and Gas Analysis Building Material Fire Performance Test Equipment Cone Calorimeter for HRR THR Smoke and Gas Analysis Building Material Fire Performance Test Equipment Cone Calorimeter for HRR THR Smoke and Gas Analysis
Product Details
The Radiation Cone::
Heating Power 5kw
Radiation Intensity:
100kw / M2, Equipped With Three Thermocouples To Measure The Temperature
Weighing Equipment:
Imported High-precision Electronic Scales, Weighing 500g, Resolution 0.01g
The Exhaust System:
Centrifugal Fans, Hoods, Air Intake And Exhaust Pipes As Well As The Composition Of The Orifice Flow Meter
The Gas Sampling Apparatus:
Ampling Pump, Particulate Filter, Dehumidification Cold Trap, Emptying Bypass Coefficient, Water Filters, CO2 Filter
Measuring Range:
0-25%
The Signal Output:
4-20mA
The Response Time:
≤2S
Ambient Temperature:
0-45 ℃
Relative Humidity:
<90% (non-condensing)
Highlight:

Cone Calorimeter fire performance tester

,

Building material HRR THR analyzer

,

Flammability testing equipment smoke gas analysis

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiation
Delivery Time
15-20 work days
Payment Terms
T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Cone Calorimeter Building Material Heat Release Rate Flammability Testing Equipment for Fire Performance Analysis online

Cone Calorimeter Building Material Heat Release Rate Flammability Testing Equipment for Fire Performance Analysis

Get Best Price
Good price Building Material Fire Performance Test Equipment Cone Calorimeter for HRR THR Smoke and Gas Analysis online

Building Material Fire Performance Test Equipment Cone Calorimeter for HRR THR Smoke and Gas Analysis

Get Best Price
Good price Laboratory Cone Calorimeter Flammability Tester for Plastics Insulation Panels and Composite Materials online

Laboratory Cone Calorimeter Flammability Tester for Plastics Insulation Panels and Composite Materials

Get Best Price
Good price ISO 5660 Cone Calorimeter Fire Testing Machine for Heat Release Smoke and Mass Loss Measurement online

ISO 5660 Cone Calorimeter Fire Testing Machine for Heat Release Smoke and Mass Loss Measurement

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description

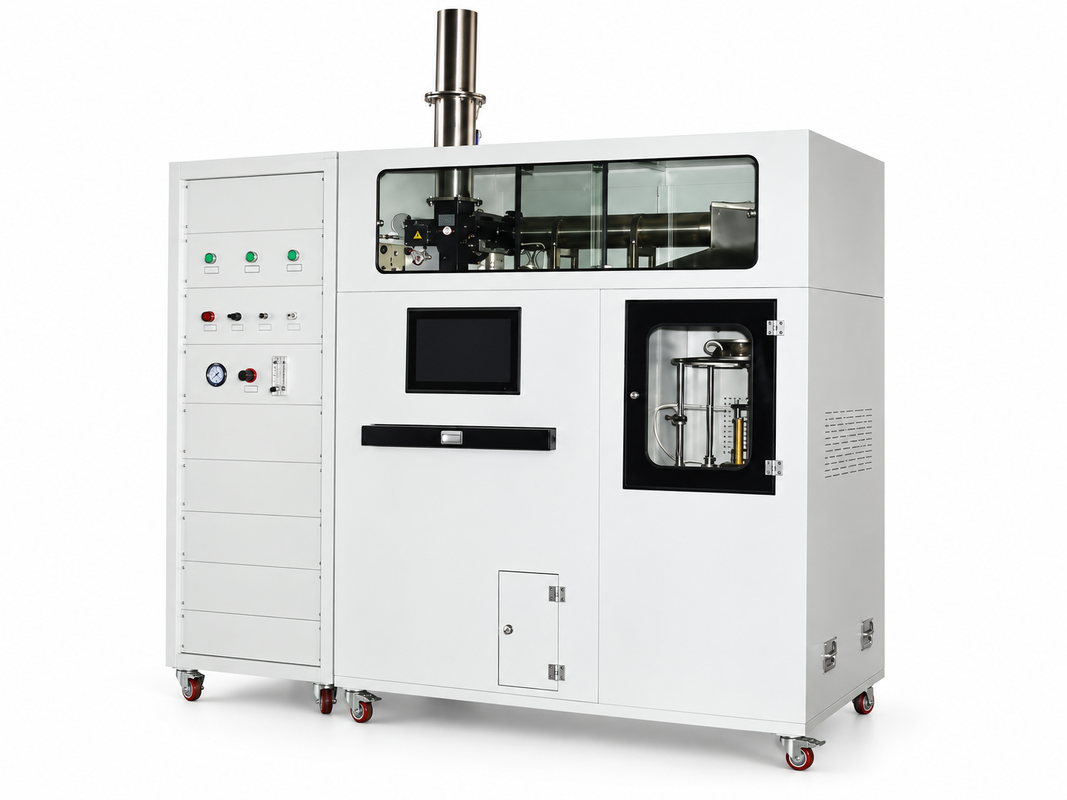

Building Material Fire Performance Test Equipment Cone Calorimeter
This advanced cone calorimeter system provides comprehensive fire-performance evaluation for building materials, plastics, insulation materials, composite panels, flooring, cables, textiles and other materials. The integrated system combines radiant heating, precision weighing, gas analysis and automatic data acquisition to help users compare material combustion characteristics and optimize fire-retardant product design.
Building Material Fire Performance Test Equipment Cone Calorimeter
Key Advantages
  • Comprehensive Fire Performance Analysis – Measures heat release, smoke generation, mass loss and combustion gas concentration in one integrated system
  • Controlled Radiant Heating – Equipped with 5 kW radiation cone providing heat flux up to 100 kW/m²
  • High-Precision Mass Measurement – Electronic weighing system with 500 g capacity and 0.01 g resolution for accurate mass-loss monitoring
  • Real-Time Gas Monitoring – Supports oxygen and carbon dioxide concentration measurement during combustion process
  • Automatic Data Acquisition – Records oxygen concentration, gas concentration, temperature, heat release rate and mass loss data automatically
  • Integrated Computer Control – Embedded computer and LCD display simplify parameter setting, monitoring and test-result management
  • Stable Exhaust and Sampling System – Designed with centrifugal fan, exhaust hood, sampling pump, filters and gas-conditioning components for stable testing
Main Test Parameters
The system evaluates critical fire performance metrics including:
  • Heat Release Rate (HRR)
  • Total Heat Release (THR)
  • Mass Loss Rate (MLR)
  • Smoke Production
  • Oxygen Concentration
  • Carbon Dioxide Concentration
  • Combustion Gas Characteristics
  • Sample Temperature
  • Combustion Behavior Under Controlled Heat Flux
Application Fields
This cone calorimeter is widely applicable to various materials and industries:
  • Building boards and panels
  • Thermal insulation materials
  • Flooring materials
  • Plastics and polymers
  • Composite materials
  • Foams and sponge materials
  • Textiles and leather
  • Wire and cable materials
  • Electrical and electronic components
  • Automotive interior materials
Technical Specifications
Radiation Cone
Heating Power5 kW
Radiation IntensityUp to 100 kW/m²
Temperature MonitoringThermocouples
Weighing System
Capacity500 g
Resolution0.01 g
Oxygen Measurement
Measuring Range0-25%
Signal Output4-20 mA
Response Time≤2 s
Ambient Temperature0-45°C
Relative Humidity<90%, non-condensing
Linearity≤±0.1% O₂
Zero Drift0.05% O₂/week
Repeatability≤±0.02% O₂
CO₂ Measurement
Measuring Range0-10%
Repeatability≤±1%
Zero Drift≤2%/week
Span Drift≤2%/week
Linearity Deviation≤±1%
Response TimeT90 ≤2 s
After-Sales Service
We provide comprehensive technical support throughout the equipment life cycle:
  • 1-Year Warranty
  • Lifetime After-Sales Service
  • Online installation and operation guidance
  • User manual and operation video
  • Remote troubleshooting assistance
  • Spare parts supply
  • Technical consultation
