Laboratory Cone Calorimeter Flammability Tester for Plastics Insulation Panels and Composite Materials

Laboratory Cone Calorimeter Flammability Tester for Plastics Insulation Panels and Composite Materials

Laboratory cone calorimeter flammability tester

Flammability tester for plastics insulation

Cone calorimeter for composite materials

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF003

Contact Us
Request A Quote
Laboratory Cone Calorimeter Flammability Tester for Plastics Insulation Panels and Composite Materials Laboratory Cone Calorimeter Flammability Tester for Plastics Insulation Panels and Composite Materials Laboratory Cone Calorimeter Flammability Tester for Plastics Insulation Panels and Composite Materials Laboratory Cone Calorimeter Flammability Tester for Plastics Insulation Panels and Composite Materials
Product Details
The Radiation Cone::
Heating Power 5kw
Radiation Intensity:
100kw / M2, Equipped With Three Thermocouples To Measure The Temperature
Weighing Equipment:
Imported High-precision Electronic Scales, Weighing 500g, Resolution 0.01g
The Exhaust System:
Centrifugal Fans, Hoods, Air Intake And Exhaust Pipes As Well As The Composition Of The Orifice Flow Meter
The Gas Sampling Apparatus:
Ampling Pump, Particulate Filter, Dehumidification Cold Trap, Emptying Bypass Coefficient, Water Filters, CO2 Filter
Measuring Range:
0-25%
The Signal Output:
4-20mA
The Response Time:
≤2S
Ambient Temperature:
0-45 ℃
Relative Humidity:
<90% (non-condensing)
Highlight:

Laboratory cone calorimeter flammability tester

,

Flammability tester for plastics insulation

,

Cone calorimeter for composite materials

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiation
Delivery Time
15-20 work days
Payment Terms
T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Cone Calorimeter Building Material Heat Release Rate Flammability Testing Equipment for Fire Performance Analysis online

Cone Calorimeter Building Material Heat Release Rate Flammability Testing Equipment for Fire Performance Analysis

Get Best Price
Good price Building Material Fire Performance Test Equipment Cone Calorimeter for HRR THR Smoke and Gas Analysis online

Building Material Fire Performance Test Equipment Cone Calorimeter for HRR THR Smoke and Gas Analysis

Get Best Price
Good price Laboratory Cone Calorimeter Flammability Tester for Plastics Insulation Panels and Composite Materials online

Laboratory Cone Calorimeter Flammability Tester for Plastics Insulation Panels and Composite Materials

Get Best Price
Good price ISO 5660 Cone Calorimeter Fire Testing Machine for Heat Release Smoke and Mass Loss Measurement online

ISO 5660 Cone Calorimeter Fire Testing Machine for Heat Release Smoke and Mass Loss Measurement

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description

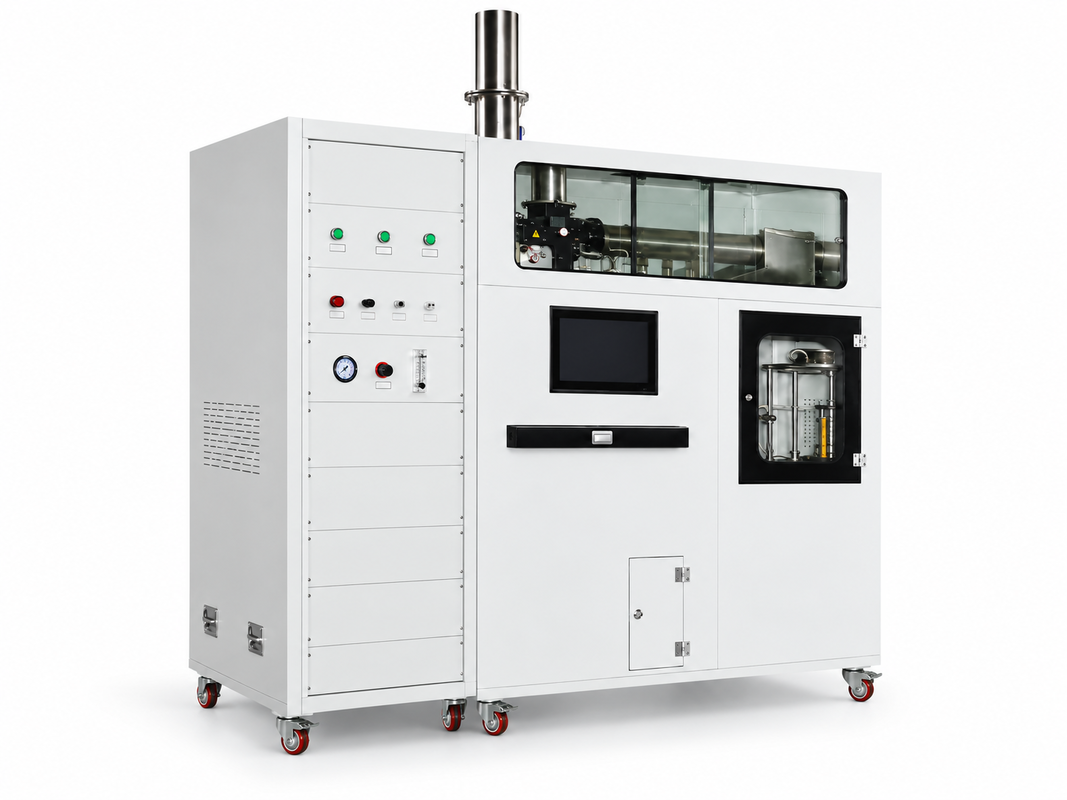

Laboratory Cone Calorimeter Flammability Tester
Advanced laboratory instrument for studying material combustion behavior and fire hazards in plastics, insulation panels, and composite materials.
Laboratory Cone Calorimeter Flammability Testing Equipment

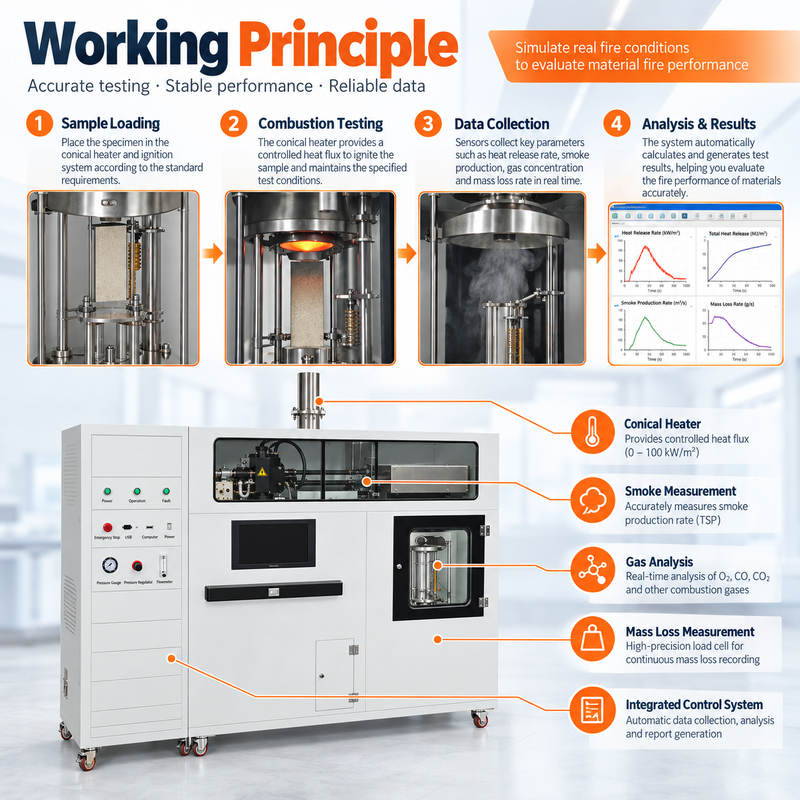

The Cone Calorimeter supports real-time measurement and recording of heat release rate, oxygen concentration, carbon dioxide concentration, smoke production, and mass loss. Ideal for R&D laboratories, universities, quality-control departments, and certification-related testing applications.
Key Advantages
  • High precision oxygen consumption measurement system with stable, reliable test data that fully meets international standards
  • Humanized integrated cabinet design with industrial touch screen and automatic data acquisition system
  • Direct export of test curves and reports
  • Independent sealed combustion chamber with high temperature resistant observation window
  • Safe and convenient specimen loading and inspection
Main Test Parameters
The system evaluates critical combustion characteristics including:
  • Heat Release Rate (HRR)
  • Total Heat Release (THR)
  • Mass Loss Rate (MLR)
  • Smoke Production
  • Oxygen Concentration
  • Carbon Dioxide Concentration
  • Combustion Gas Characteristics
  • Sample Temperature
  • Combustion Behavior Under Controlled Heat Flux
Application Fields
  • Building boards and panels
  • Thermal insulation materials
  • Flooring materials
  • Plastics and polymers
  • Composite materials
  • Foams and sponge materials
  • Textiles and leather
  • Wire and cable materials
  • Electrical and electronic components
  • Automotive interior materials
  • Railway and aerospace interior materials
  • Furniture materials
  • Fire-retardant product development

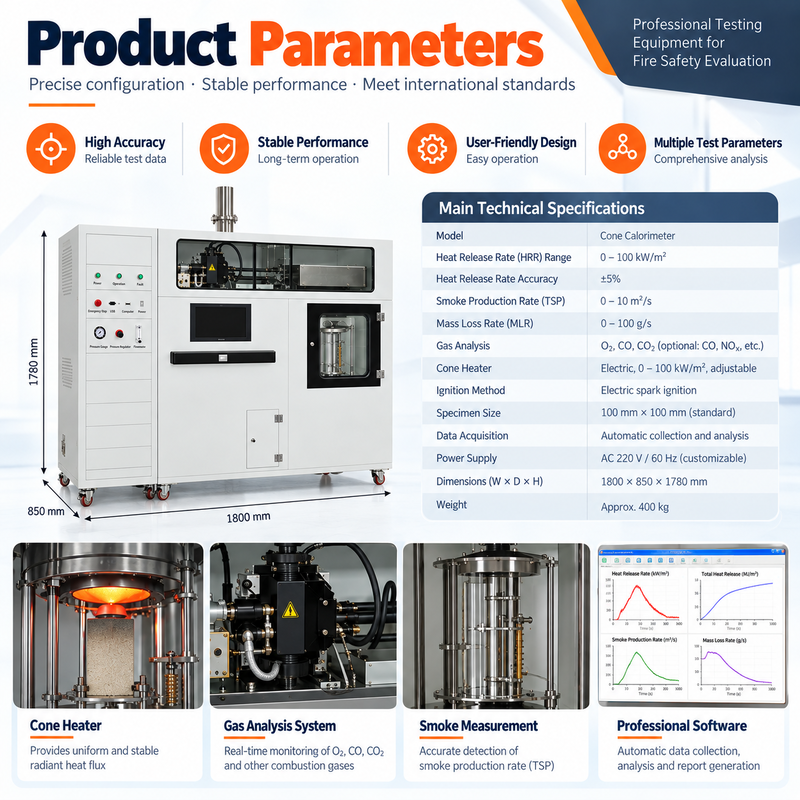

Technical Specifications
Radiation Cone
Heating Power5 kW
Radiation IntensityUp to 100 kW/m²
Temperature MonitoringBy thermocouples
Weighing System
Capacity500 g
Resolution0.01 g
Oxygen Measurement
Measuring Range0-25%
Signal Output4-20 mA
Response Time≤2 s
Ambient Temperature0-45°C
Relative Humidity<90%, non-condensing
Linearity≤±0.1% O₂
Zero Drift0.05% O₂/week
Repeatability≤±0.02% O₂
CO₂ Measurement
Measuring Range0-10%
Repeatability≤±1%
Zero Drift≤2%/week
Span Drift≤2%/week
Linearity Deviation≤±1%
Response TimeT90 ≤2 s
Reference Standards
The equipment can be configured according to relevant test requirements, including: GB/T 16172, ISO 5660-1, ISO 5660-2, ASTM E1354, ASTM E1740, ASTM F1550, ASTM D5485, ASTM D6113, NFPA 271, NFPA 264, CAN/ULC 135 and BS 476.
After-Sales Service
  • 12 months warranty for the whole machine (consumable parts excluded)
  • Overseas technical support: online remote debugging, operation training and troubleshooting
  • Standard operation manual, calibration guide and test report template provided
  • Comprehensive technical support throughout the equipment life cycle
