Name: Automatic Cone Calorimeter Fire Testing System for Heat Release Rate Oxygen Consumption and Smoke Measurement
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF003
Price: 25000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

Automatic Cone Calorimeter Fire Testing System for Heat Release Rate Oxygen Consumption and Smoke Measurement

Automatic cone calorimeter fire testing system

Heat release rate measurement equipment

Oxygen consumption smoke testing system

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF003

Request A Quote

Automatic Cone Calorimeter Fire Testing System for Heat Release Rate Oxygen Consumption and Smoke Measurement

Product Details

The Radiation Cone::

Heating Power 5kw

Radiation Intensity:

100kw / M2, Equipped With Three Thermocouples To Measure The Temperature

Weighing Equipment:

Imported High-precision Electronic Scales, Weighing 500g, Resolution 0.01g

The Exhaust System:

Centrifugal Fans, Hoods, Air Intake And Exhaust Pipes As Well As The Composition Of The Orifice Flow Meter

The Gas Sampling Apparatus:

Ampling Pump, Particulate Filter, Dehumidification Cold Trap, Emptying Bypass Coefficient, Water Filters, CO2 Filter

Measuring Range:

0-25%

The Signal Output:

4-20mA

The Response Time:

≤2S

Ambient Temperature:

0-45 ℃

Relative Humidity:

<90% (non-condensing)

Highlight:

Automatic cone calorimeter fire testing system

Heat release rate measurement equipment

Oxygen consumption smoke testing system

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiation

Delivery Time

15-20 work days

Payment Terms

T/T

Supply Ability

15 sets per month

Cone Calorimeter Building Material Heat Release Rate Flammability Testing Equipment for Fire Performance Analysis

Get Best Price

Building Material Fire Performance Test Equipment Cone Calorimeter for HRR THR Smoke and Gas Analysis

Get Best Price

Laboratory Cone Calorimeter Flammability Tester for Plastics Insulation Panels and Composite Materials

Get Best Price

ISO 5660 Cone Calorimeter Fire Testing Machine for Heat Release Smoke and Mass Loss Measurement

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

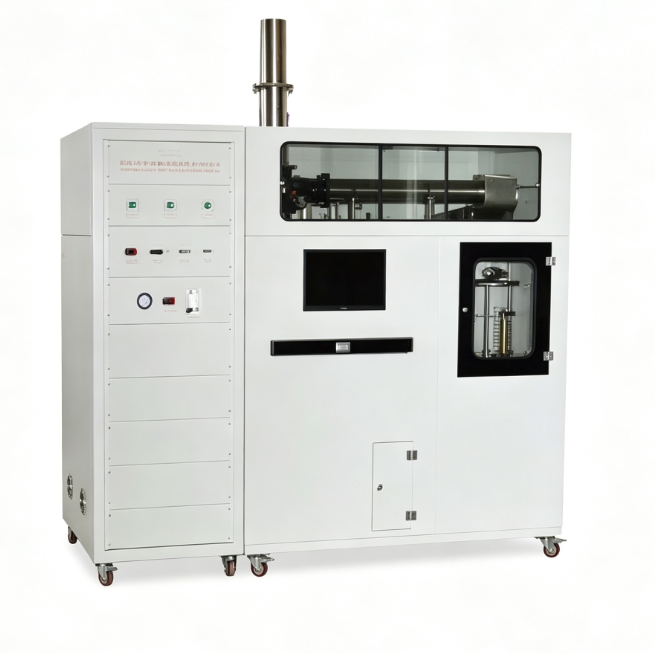

Automatic Cone Calorimeter Fire Testing System

This advanced Cone Calorimeter integrates multiple fire-performance test functions into one comprehensive system, including heat release rate measurement, smoke analysis, gas monitoring, and mass-loss recording. Engineered for stable performance, automatic data collection, and convenient operation, it is ideal for fire-safety testing applications across various materials and industries.

System Advantages

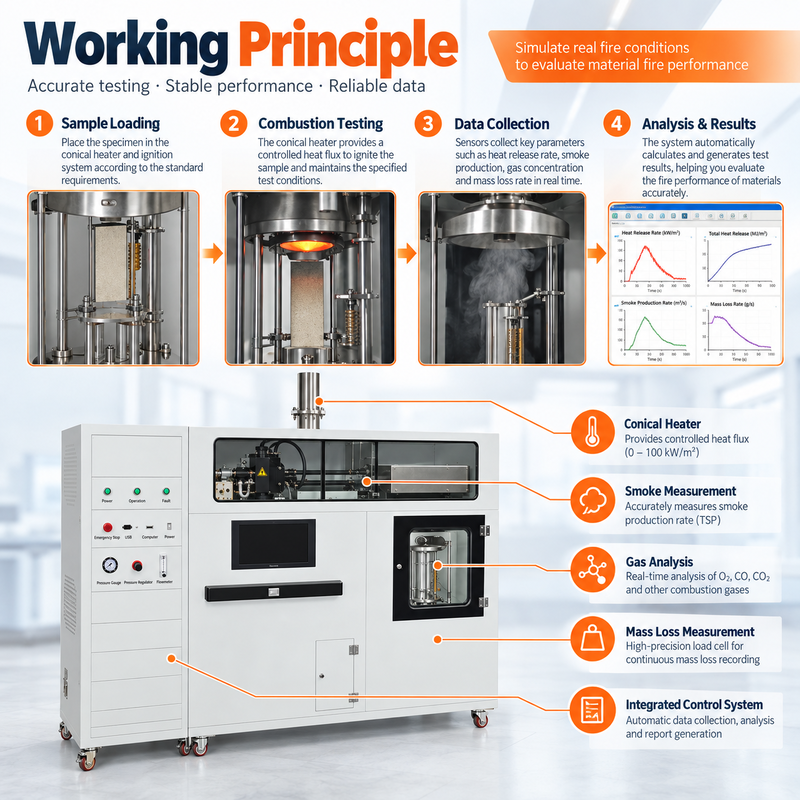

High-precision oxygen consumption measurement system delivering stable, reliable test data that fully meets international standards
User-friendly integrated cabinet design with industrial touch screen and automatic data acquisition system
Direct export capability for test curves and comprehensive reports
Independent sealed combustion chamber with high-temperature resistant observation window
Safe and convenient specimen loading and inspection process
Standard cone radiant heater with accurate, stable heat flux control
Built-in gas analysis module for real-time flue gas composition monitoring
Mobile casters with brake design for flexible laboratory layout adjustments
Complete safety interlock and over-temperature protection functions

Primary Test Parameters

Heat Release Rate (HRR)
Total Heat Release (THR)
Mass Loss Rate (MLR)
Smoke Production Analysis
Oxygen Concentration Monitoring
Carbon Dioxide Concentration
Combustion Gas Characteristics
Sample Temperature Measurement
Combustion Behavior Under Controlled Heat Flux

Application Fields

Construction Industry: Fire performance testing of wall panels, insulation materials, decorative boards, flooring, and other building materials
New Material R&D: Flammability evaluation of polymers, plastics, rubber, and composite materials
Inspection & Certification Institutions, Fire Research Laboratories, and University Material Research Labs
Rail Transit, Ship Interior Materials, Furniture, and Textile Fire Safety Testing

Technical Specifications

Radiation Cone

Heating Power	5 kW
Radiation Intensity	Up to 100 kW/m²
Temperature Monitoring	Thermocouple-based

Weighing System

Capacity	500 g
Resolution	0.01 g

Oxygen Measurement

Measuring Range	0-25%
Signal Output	4-20 mA
Response Time	≤2 s
Ambient Temperature	0-45°C
Relative Humidity	<90%, non-condensing
Linearity	≤±0.1% O₂
Zero Drift	0.05% O₂/week
Repeatability	≤±0.02% O₂

CO₂ Measurement

Measuring Range	0-10%
Repeatability	≤±1%
Zero Drift	≤2%/week
Span Drift	≤2%/week
Linearity Deviation	≤±1%
Response Time	T90 ≤2 s

Compliance Standards

The equipment can be configured according to relevant test requirements, including:

GB/T 16172, ISO 5660-1, ISO 5660-2, ASTM E1354, ASTM E1740, ASTM F1550, ASTM D5485, ASTM D6113, NFPA 271, NFPA 264, CAN/ULC 135 and BS 476.

Manufacturing Excellence

Professional R&D & Manufacturing

Specializing in fire testing instruments for many years, all cone calorimeters are manufactured in-house with strict quality control throughout every production procedure. Each unit undergoes full FAT testing before shipment to guarantee stable performance and compliance with ISO 5660 and ASTM E1354 standards.

Complete Customization Support

Custom configuration available according to your test requirements, including gas analysis modules, extended smoke measuring systems, special fixtures, and software language options. OEM & ODM services supported for your brand.

Comprehensive Technical Service

Our experienced fire test engineers provide full service including equipment installation guidance, on-site or remote operation training, calibration guidance, and long-term technical consultation. Timely response guaranteed for all technical problems.

Cost-Effective Solution

Direct factory supply eliminates middleman markup. Competitive factory pricing maintained while ensuring high quality. Lifelong preferential pricing for spare parts and consumables to minimize operational costs.

Global Export Experience

Our fire test equipment has been exported to numerous countries and regions. We are experienced with international trade documentation, inspection requirements, and overseas logistics. All required certification and shipping paperwork prepared efficiently.
