Fire Propagation Apparatus FPA Flammability Testing Equipment for Heat Release Smoke and Mass Loss Analysis

Fire Propagation Apparatus FPA Flammability Testing Equipment for Heat Release Smoke and Mass Loss Analysis

Fire Propagation Apparatus flammability testing equipment

FPA heat release smoke analysis equipment

flammability testing equipment mass loss analysis

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF006

Contact Us
Request A Quote
Fire Propagation Apparatus FPA Flammability Testing Equipment for Heat Release Smoke and Mass Loss Analysis Fire Propagation Apparatus FPA Flammability Testing Equipment for Heat Release Smoke and Mass Loss Analysis Fire Propagation Apparatus FPA Flammability Testing Equipment for Heat Release Smoke and Mass Loss Analysis Fire Propagation Apparatus FPA Flammability Testing Equipment for Heat Release Smoke and Mass Loss Analysis
Product Details
Thermopile-type Heat Flow Heat Flux Meter:
Range 0~100k W/m²,accuracy ±3%, Repeatability ± 0.5%
Sample Weighing Range:
0~2000g, Accuracy: 0.1g
Paramagnetic Oxygen Analyzer, Concentration Range:
:0～25％
Infrared CO2 Analyzer CO2 Range:
0 To 10%
Compressor Principle:
Cold Trap: 0 To 5 Degrees
Imported Diaphragm Pump, Flow Rate:
33 L / Min
Standards:
ISO 12136, ASTM E 2058, FM 4910
Highlight:

Fire Propagation Apparatus flammability testing equipment

,

FPA heat release smoke analysis equipment

,

flammability testing equipment mass loss analysis

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiation
Delivery Time
15-20 work days
Payment Terms
T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Professional Fire Propagation Apparatus FPA Combustion Test System for Automotive Cable Composite and Insulation Materials online

Professional Fire Propagation Apparatus FPA Combustion Test System for Automotive Cable Composite and Insulation Materials

Get Best Price
Good price Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation online

Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation

Get Best Price
Good price Laboratory Fire Propagation Apparatus FPA for Critical Heat Flux Thermal Response Parameter and Smoke Testing online

Laboratory Fire Propagation Apparatus FPA for Critical Heat Flux Thermal Response Parameter and Smoke Testing

Get Best Price
Good price Fire Propagation Apparatus FPA Flammability Testing Equipment for Heat Release Smoke and Mass Loss Analysis online

Fire Propagation Apparatus FPA Flammability Testing Equipment for Heat Release Smoke and Mass Loss Analysis

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Fire Propagation Apparatus FPA Flammability Testing Equipment
Fire Propagation Apparatus FPA Flammability Testing Equipment for laboratory fire research

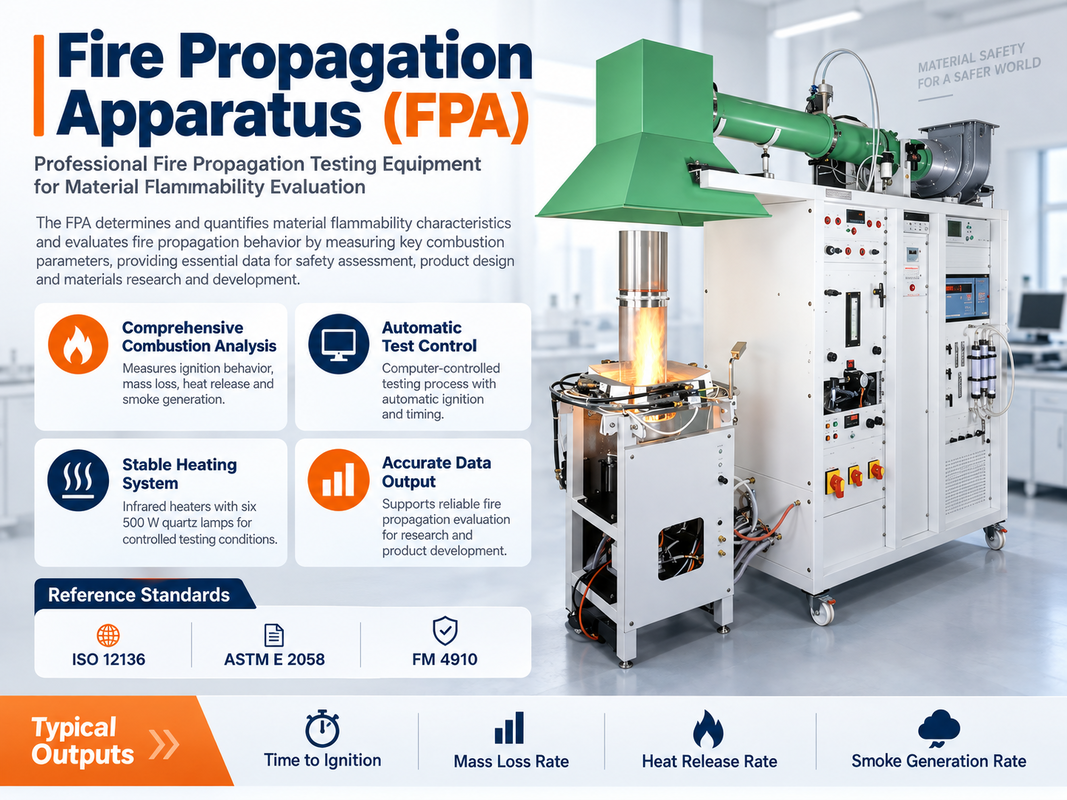

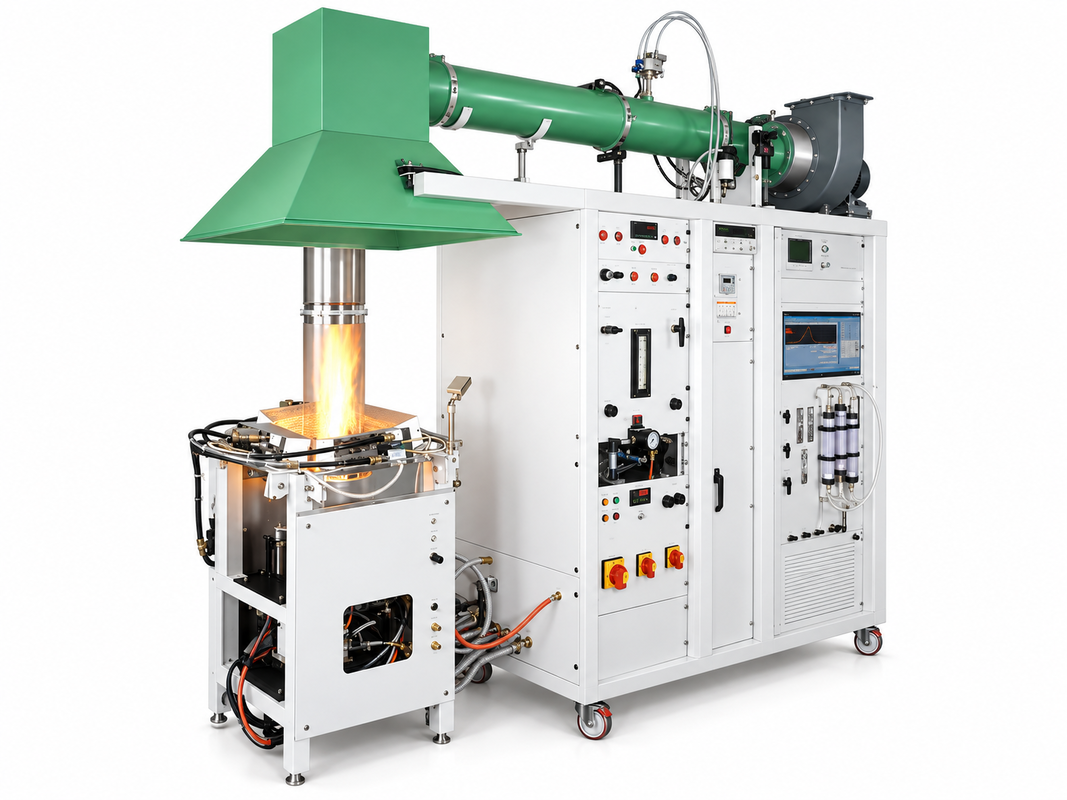

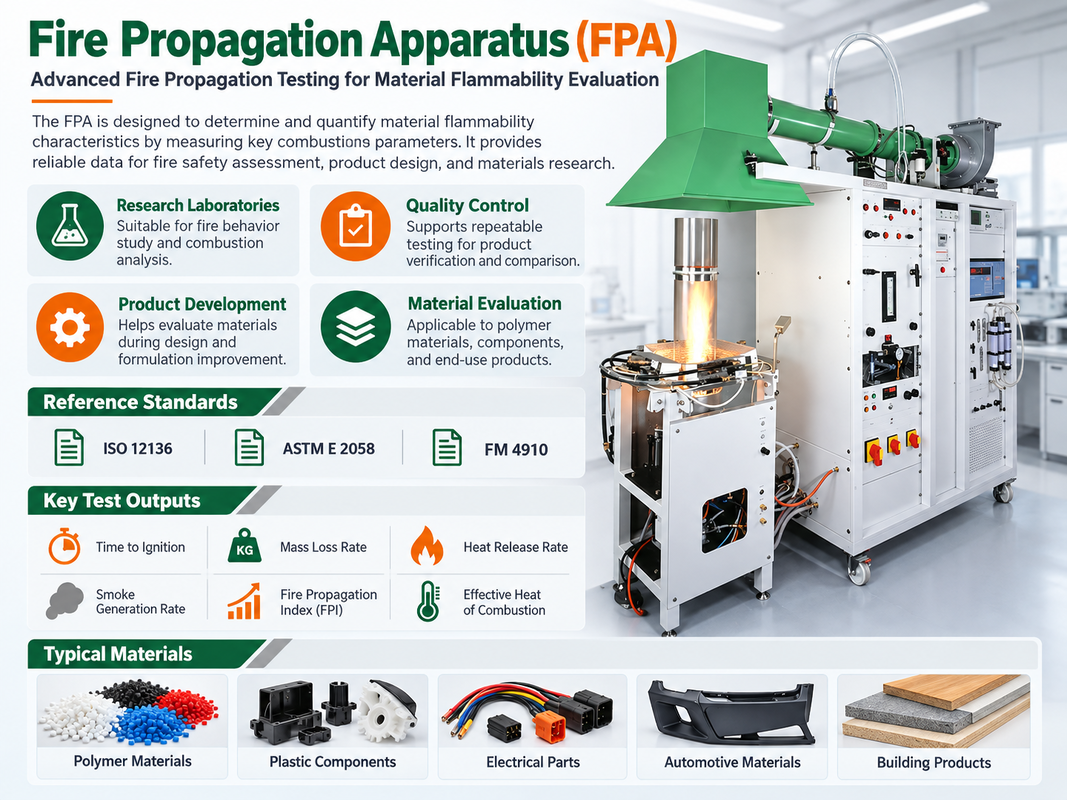

The Fire Propagation Apparatus (FPA) is designed for evaluating the ignition, combustion and flame propagation behavior of materials under controlled thermal exposure. It integrates heat release measurement, mass loss monitoring, smoke analysis and combustion gas detection to provide comprehensive fire-performance data for laboratory research and product evaluation.
Key Advantages
  • Comprehensive Fire Performance Evaluation - Measures multiple combustion and flame-propagation parameters in one integrated system
  • Automatic Test Control - Computer-controlled test process with automatic ignition, timing, data collection, and result recording
  • Stable Radiant Heating - Equipped with infrared heating elements to provide controlled and repeatable thermal exposure
  • High-Precision Weighing System - Real-time mass-loss monitoring helps evaluate material decomposition and combustion behavior
Primary Test Parameters
The FPA can be used to determine:
  • Time to Ignition
  • Critical Heat Flux
  • Thermal Response Parameter (TRP)
  • Mass Loss Rate
  • Effective Heat of Combustion
Typical Applications
The Fire Propagation Apparatus is suitable for testing and research on:
  • Polymer materials
  • Plastic components
  • Electrical and electronic materials
  • Cable materials
  • Automotive materials
Application Fields
This equipment is suitable for:
  • Fire research laboratories
  • Universities and research institutes
  • Material manufacturers
  • Quality control departments
Why Choose FPA
The Fire Propagation Apparatus provides more than basic flammability testing. It helps users study how materials ignite, burn, lose mass, release heat, generate smoke, and support flame propagation. This makes it suitable for deeper fire-behavior analysis, material comparison, product development, and fire-risk research.
