Name: ASTM E2058 ISO 12136 Fire Propagation Apparatus FPA Material Flammability and Fire Growth Test Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF006
Price: 25000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

ASTM E2058 ISO 12136 Fire Propagation Apparatus FPA Material Flammability and Fire Growth Test Machine

ASTM E2058 fire propagation apparatus

ISO 12136 flammability test machine

fire growth testing equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF006

Request A Quote

ASTM E2058 ISO 12136 Fire Propagation Apparatus FPA Material Flammability and Fire Growth Test Machine

Product Details

Thermopile-type Heat Flow Heat Flux Meter:

Range 0~100k W/m²,accuracy ±3%, Repeatability ± 0.5%

Sample Weighing Range:

0~2000g, Accuracy: 0.1g

Paramagnetic Oxygen Analyzer, Concentration Range:

:0～25％

Infrared CO2 Analyzer CO2 Range:

0 To 10%

Compressor Principle:

Cold Trap: 0 To 5 Degrees

Imported Diaphragm Pump, Flow Rate:

33 L / Min

Standards:

ISO 12136, ASTM E 2058, FM 4910

Highlight:

ASTM E2058 fire propagation apparatus

ISO 12136 flammability test machine

fire growth testing equipment

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiation

Delivery Time

15-20 work days

Payment Terms

T/T

Supply Ability

15 sets per month

Professional Fire Propagation Apparatus FPA Combustion Test System for Automotive Cable Composite and Insulation Materials

Get Best Price

Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation

Get Best Price

Laboratory Fire Propagation Apparatus FPA for Critical Heat Flux Thermal Response Parameter and Smoke Testing

Get Best Price

Fire Propagation Apparatus FPA Flammability Testing Equipment for Heat Release Smoke and Mass Loss Analysis

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

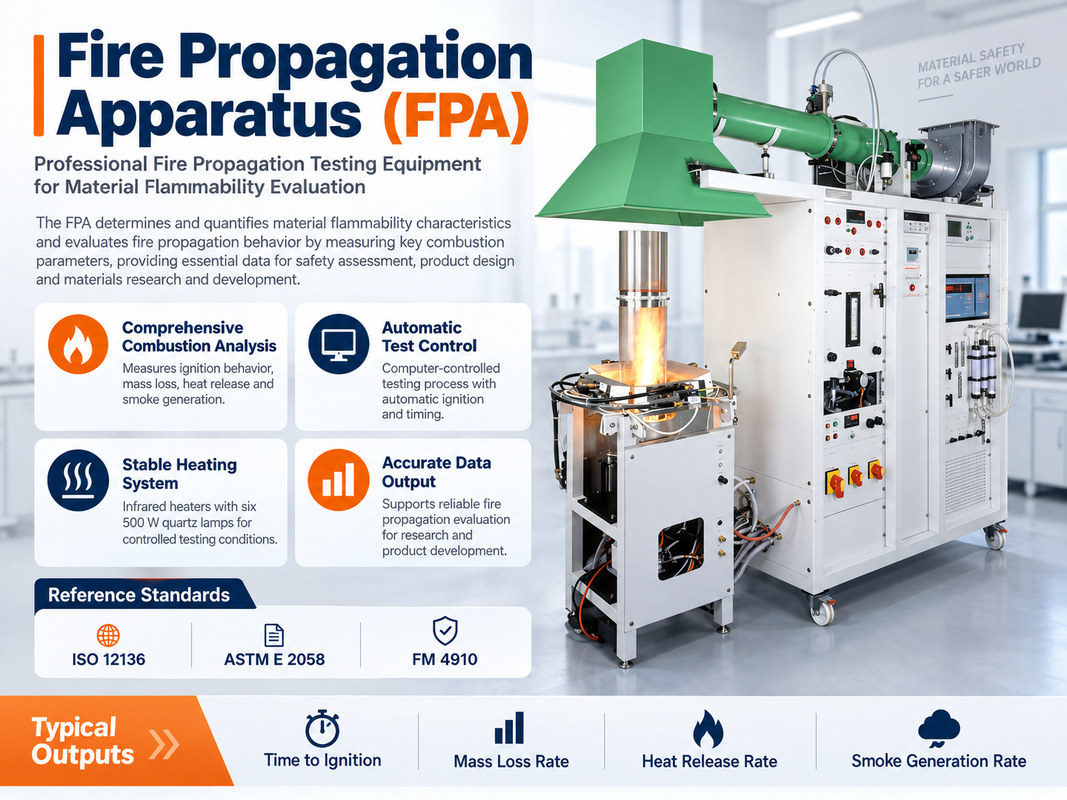

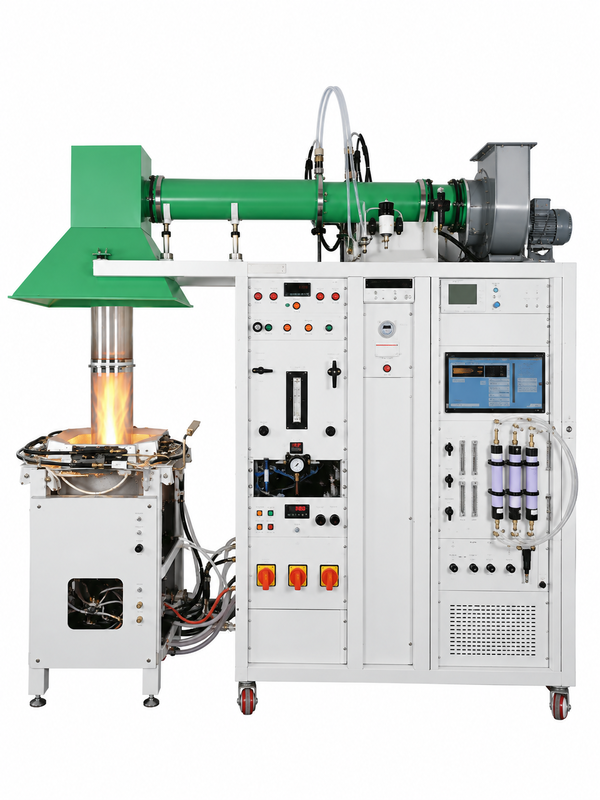

ASTM E2058 ISO 12136 Fire Propagation Apparatus FPA Material Flammability and Fire Growth Test Machine

This FPA testing system is developed for studying material flammability and fire growth characteristics in accordance with relevant fire-test methods. The equipment provides controlled heat exposure and continuously records key parameters such as ignition time, heat release, mass loss and smoke generation, making it suitable for professional fire-safety laboratories and research institutions.

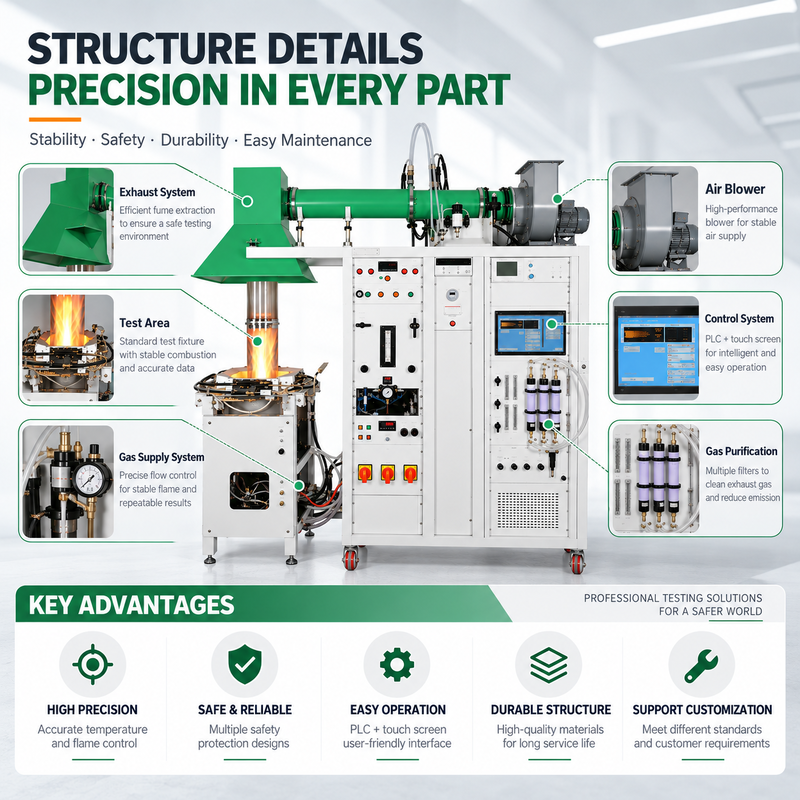

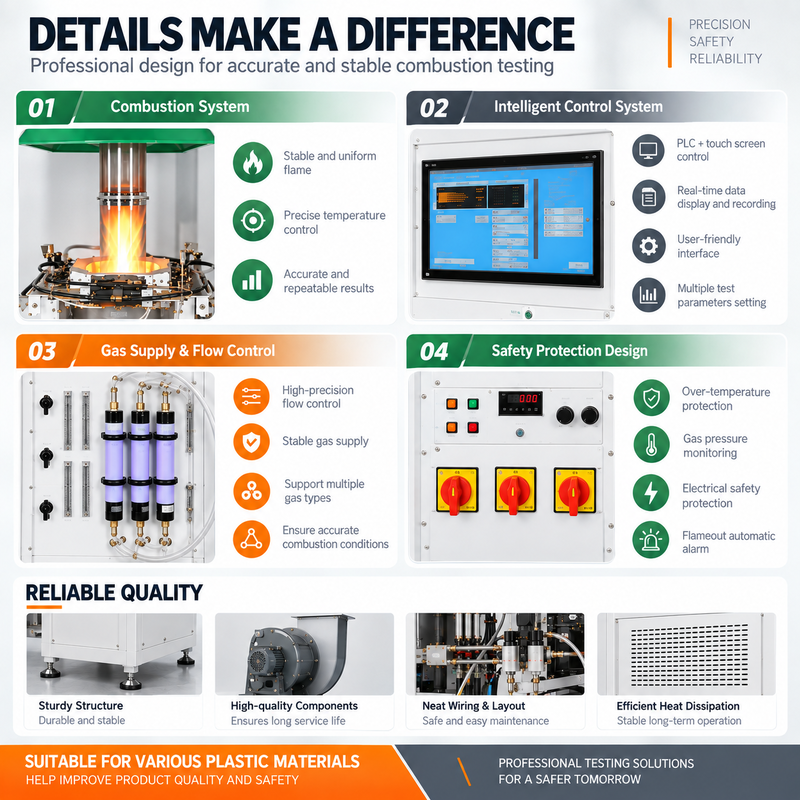

Main Advantages

Comprehensive Fire Performance Evaluation - Measures multiple combustion and flame-propagation parameters in one integrated system
Automatic Test Control - Computer-controlled test process with automatic ignition, timing, data collection, and result recording
Stable Radiant Heating - Equipped with infrared heating elements to provide controlled and repeatable thermal exposure
High-Precision Weighing System - Real-time mass-loss monitoring helps evaluate material decomposition and combustion behavior
Gas Analysis Capability - Supports oxygen and carbon dioxide concentration measurement during testing
Smoke Measurement - Optical smoke detection system enables evaluation of smoke generation characteristics
Reliable Exhaust System - Provides stable exhaust flow for controlled test conditions and combustion gas handling
Safety-Oriented Design - Integrated ignition control, monitoring devices, and protection functions improve operational safety

Main Test Parameters

The FPA can be used to determine:

Time to Ignition	Critical Heat Flux
Thermal Response Parameter (TRP)	Mass Loss Rate
Effective Heat of Combustion	Chemical Heat Release Rate
Convective Heat Release Rate	Fire Propagation Index (FPI)

Typical Applications

The Fire Propagation Apparatus is suitable for testing and research on:

Polymer materials	Plastic components
Electrical and electronic materials	Cable materials
Automotive materials	Building products
Composite materials	Insulation materials

Application Fields

This equipment is suitable for:

Fire research laboratories
Universities and research institutes
Material manufacturers
Quality control departments
Product development centers
Testing laboratories
Certification-related testing
Fire-safety engineering research

Reference Standards

The equipment can be configured according to relevant requirements of:

ISO 12136
ASTM E2058
FM 4910
