Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation

Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation

Automatic FPA fire testing equipment

Polymer plastic flame propagation tester

Building material flammability testing equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF006

Contact Us
Request A Quote
Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation
Product Details
Thermopile-type Heat Flow Heat Flux Meter:
Range 0~100k W/m²,accuracy ±3%, Repeatability ± 0.5%
Sample Weighing Range:
0~2000g, Accuracy: 0.1g
Paramagnetic Oxygen Analyzer, Concentration Range:
:0～25％
Infrared CO2 Analyzer CO2 Range:
0 To 10%
Compressor Principle:
Cold Trap: 0 To 5 Degrees
Imported Diaphragm Pump, Flow Rate:
33 L / Min
Standards:
ISO 12136, ASTM E 2058, FM 4910
Highlight:

Automatic FPA fire testing equipment

,

Polymer plastic flame propagation tester

,

Building material flammability testing equipment

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiation
Delivery Time
15-20 work days
Payment Terms
T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Professional Fire Propagation Apparatus FPA Combustion Test System for Automotive Cable Composite and Insulation Materials online

Professional Fire Propagation Apparatus FPA Combustion Test System for Automotive Cable Composite and Insulation Materials

Get Best Price
Good price Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation online

Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation

Get Best Price
Good price Laboratory Fire Propagation Apparatus FPA for Critical Heat Flux Thermal Response Parameter and Smoke Testing online

Laboratory Fire Propagation Apparatus FPA for Critical Heat Flux Thermal Response Parameter and Smoke Testing

Get Best Price
Good price Fire Propagation Apparatus FPA Flammability Testing Equipment for Heat Release Smoke and Mass Loss Analysis online

Fire Propagation Apparatus FPA Flammability Testing Equipment for Heat Release Smoke and Mass Loss Analysis

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation

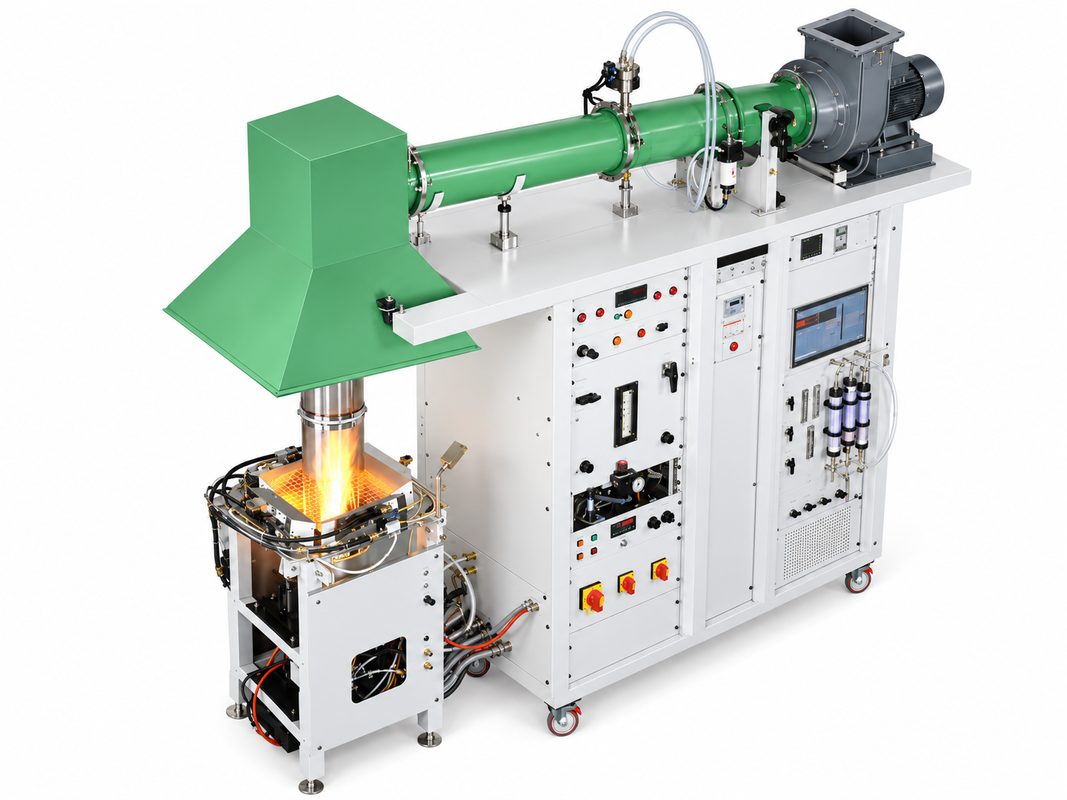

Automatic Fire Propagation Apparatus for material flammability testing
The Automatic Fire Propagation Apparatus is designed for comprehensive fire testing of polymers, plastics, building products, electrical materials, and other combustible materials. By integrating radiant heating, automatic ignition, weighing, gas analysis, and smoke measurement capabilities, this system provides complete data on how materials ignite, burn, and contribute to fire propagation.
Key Advantages
  • Wide material compatibility
  • Fully automated test process
  • Precise flame and ignition control
  • Integrated oxygen and CO₂ analysis
  • Stable exhaust and airflow management
  • Ideal for product development and material comparison
Main Test Parameters
Time to Ignition
Critical Heat Flux
Thermal Response Parameter (TRP)
Mass Loss Rate
Effective Heat of Combustion
Chemical Heat Release Rate
Convective Heat Release Rate
Fire Propagation Index (FPI)
Smoke Yield
Smoke Generation Rate
Oxygen Concentration
Carbon Dioxide Concentration
Material Applications
Polymer materials
Plastic components
Electrical and electronic materials
Cable materials
Automotive materials
Building products
Composite materials
Insulation materials
Industrial components
Flame-retardant materials
End-use products and assemblies
Ideal For
  • Fire testing and research laboratories
  • Universities, colleges, and technical institutes
  • Material production and manufacturing companies
  • Quality assurance and inspection departments
  • R&D and product engineering centers
  • Independent testing organizations
  • Compliance and certification testing facilities
  • Fire protection and safety engineering projects

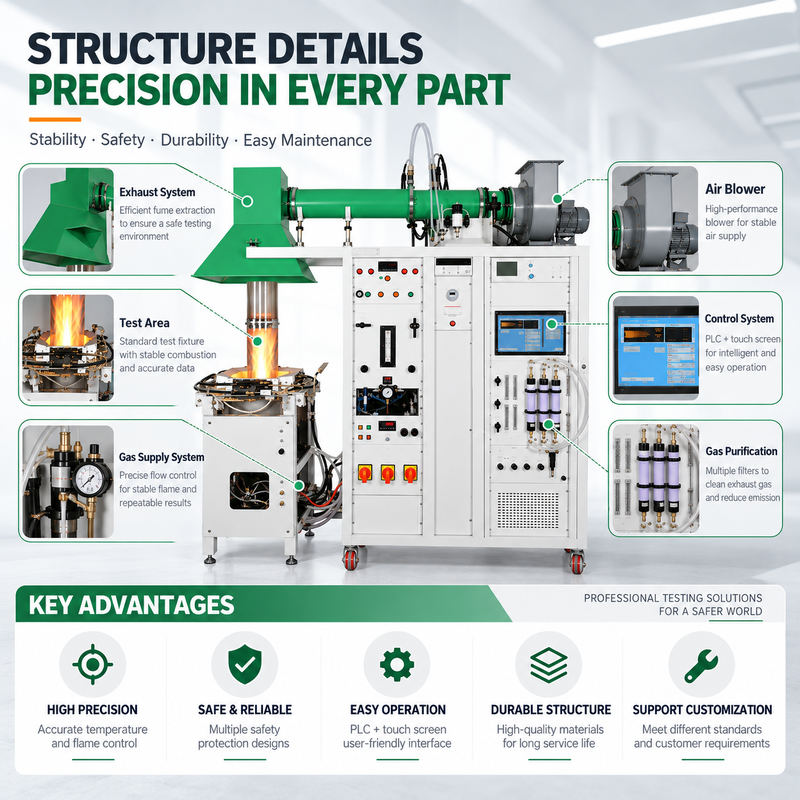

Structural Features
  • Integrated rack-type structure
  • Computer-controlled testing process
  • Automatic ignition and timing
  • Infrared heating system
  • High-precision load cell weighing
  • Controlled exhaust and airflow system
