Laboratory Fire Propagation Apparatus FPA for Critical Heat Flux Thermal Response Parameter and Smoke Testing

Laboratory Fire Propagation Apparatus FPA for Critical Heat Flux Thermal Response Parameter and Smoke Testing

Laboratory fire propagation apparatus

FPA heat flux testing equipment

Smoke testing flammability equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF006

Contact Us
Request A Quote
Laboratory Fire Propagation Apparatus FPA for Critical Heat Flux Thermal Response Parameter and Smoke Testing Laboratory Fire Propagation Apparatus FPA for Critical Heat Flux Thermal Response Parameter and Smoke Testing Laboratory Fire Propagation Apparatus FPA for Critical Heat Flux Thermal Response Parameter and Smoke Testing Laboratory Fire Propagation Apparatus FPA for Critical Heat Flux Thermal Response Parameter and Smoke Testing
Product Details
Thermopile-type Heat Flow Heat Flux Meter:
Range 0~100k W/m²,accuracy ±3%, Repeatability ± 0.5%
Sample Weighing Range:
0~2000g, Accuracy: 0.1g
Paramagnetic Oxygen Analyzer, Concentration Range:
:0～25％
Infrared CO2 Analyzer CO2 Range:
0 To 10%
Compressor Principle:
Cold Trap: 0 To 5 Degrees
Imported Diaphragm Pump, Flow Rate:
33 L / Min
Standards:
ISO 12136, ASTM E 2058, FM 4910
Highlight:

Laboratory fire propagation apparatus

,

FPA heat flux testing equipment

,

Smoke testing flammability equipment

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiation
Delivery Time
15-20 work days
Payment Terms
T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Professional Fire Propagation Apparatus FPA Combustion Test System for Automotive Cable Composite and Insulation Materials online

Professional Fire Propagation Apparatus FPA Combustion Test System for Automotive Cable Composite and Insulation Materials

Get Best Price
Good price Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation online

Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation

Get Best Price
Good price Laboratory Fire Propagation Apparatus FPA for Critical Heat Flux Thermal Response Parameter and Smoke Testing online

Laboratory Fire Propagation Apparatus FPA for Critical Heat Flux Thermal Response Parameter and Smoke Testing

Get Best Price
Good price Fire Propagation Apparatus FPA Flammability Testing Equipment for Heat Release Smoke and Mass Loss Analysis online

Fire Propagation Apparatus FPA Flammability Testing Equipment for Heat Release Smoke and Mass Loss Analysis

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Laboratory Fire Propagation Apparatus (FPA)
Advanced fire testing system for critical heat flux, thermal response parameter, and smoke analysis in material fire behavior research.

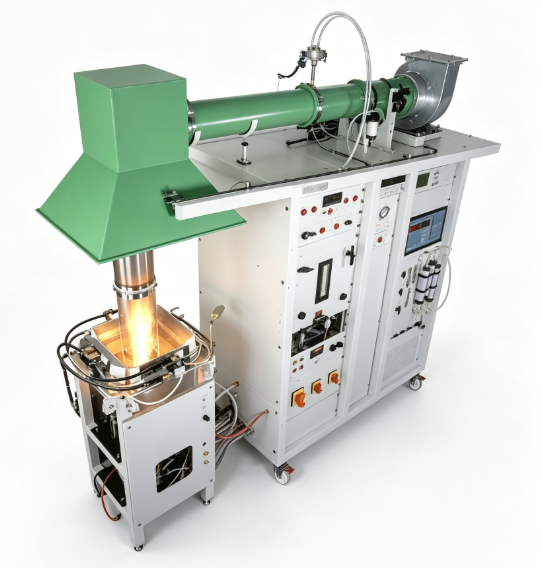

Laboratory Fire Propagation Apparatus FPA system for fire testing
This laboratory FPA system enables detailed fire-behavior research, determining critical heat flux, thermal response parameter, effective heat of combustion, fire propagation index, and smoke characteristics. It provides essential data for evaluating material fire hazards, formulation development, and engineering research.
System Advantages
  • Measures multiple advanced fire parameters
  • Supports critical heat flux evaluation
  • Suitable for TRP and FPI analysis
  • Accurate smoke and gas monitoring
  • High-repeatability test platform
  • Ideal for universities and fire research laboratories
Main Test Parameters
  • Time to Ignition
  • Critical Heat Flux
  • Thermal Response Parameter (TRP)
  • Mass Loss Rate
  • Effective Heat of Combustion
  • Chemical Heat Release Rate
  • Convective Heat Release Rate
  • Fire Propagation Index (FPI)
  • Smoke Yield
  • Smoke Generation Rate
  • Oxygen Concentration
  • Carbon Dioxide Concentration
Recommended Applications
  • Laboratories specializing in fire behavior analysis
  • Academic institutions and scientific research centers
  • Manufacturers of plastics, composites, cables, and building materials
  • Internal quality control teams
  • Product design and development departments
  • Third-party testing laboratories
  • Certification and regulatory evaluation centers
  • Fire risk assessment and safety research organizations

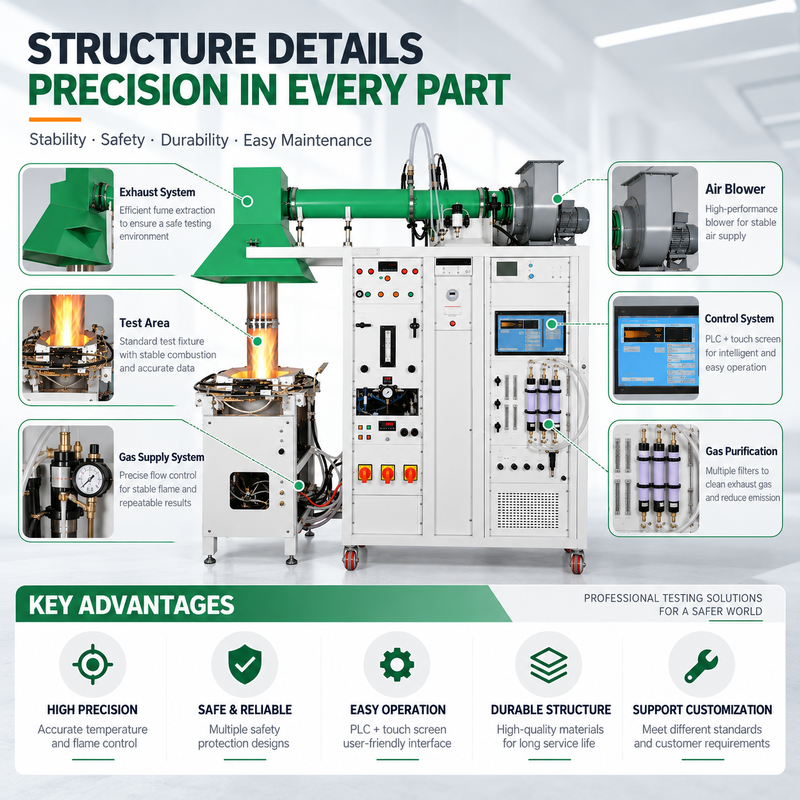

Structural Features
  • Integrated rack-type structure
  • Computer-controlled testing process
  • Automatic ignition and timing
  • Infrared heating system
  • High-precision load cell weighing
  • Controlled exhaust and airflow system
After-Sales Service & Support
  • 1-Year Comprehensive Warranty
  • Lifetime Technical Support
  • Online installation guidance
  • Comprehensive operation training
  • Detailed user manual
  • Professional technical support throughout equipment service life
