Plastic Ignition Temperature Test Apparatus | ASTM D1929 ISO871 GB/T4610 Plastic Minimum Ignition Temperature Tester for Polymer Flammability Test

Plastic Ignition Temperature Test Apparatus | ASTM D1929 ISO871 GB/T4610 Plastic Minimum Ignition Temperature Tester for Polymer Flammability Test

Plastic ignition temperature tester

ASTM D1929 flammability test equipment

Polymer minimum ignition temperature apparatus

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF009

Contact Us
Request A Quote
Plastic Ignition Temperature Test Apparatus | ASTM D1929 ISO871 GB/T4610 Plastic Minimum Ignition Temperature Tester for Polymer Flammability Test Plastic Ignition Temperature Test Apparatus | ASTM D1929 ISO871 GB/T4610 Plastic Minimum Ignition Temperature Tester for Polymer Flammability Test Plastic Ignition Temperature Test Apparatus | ASTM D1929 ISO871 GB/T4610 Plastic Minimum Ignition Temperature Tester for Polymer Flammability Test Plastic Ignition Temperature Test Apparatus | ASTM D1929 ISO871 GB/T4610 Plastic Minimum Ignition Temperature Tester for Polymer Flammability Test
Product Details
Butane Lighter Inside Diameter:
0.8 ± 0.1mm Nozzle
The Flame Height:
10 ~ 20mm (adjustable)
Temperature Of Copper Furnace:
Can Be Constant Between 150~450 ℃
Nsulating Layer:
Is Made Larger Than 60mm Thick Mineral Wool Insulation Composed Of External Stainless Steel Package
The Sample Container:
Made Of Stainless Steel
Timer Accuracy:
0.1s
Ambient Temperature:
Room Temperature ~ 40 ℃
Humidity:
≤75%
Voltage::
AC 220 V ± 10V 50HZ
Temperature Control Accuracy:
± 2 ℃, Can Be Adjusted Between 150 ℃ ~ 450 ℃
Highlight:

Plastic ignition temperature tester

,

ASTM D1929 flammability test equipment

,

Polymer minimum ignition temperature apparatus

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Delivery Time
15-20 work days
Payment Terms
T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Vertical Fire Resistance Test Furnace with Vertical Closed Furnace Multi-Point Gas Burner and Up to 1200℃ Temperature Range online

Vertical Fire Resistance Test Furnace with Vertical Closed Furnace Multi-Point Gas Burner and Up to 1200℃ Temperature Range

Get Best Price
Good price SUB304 Stainless Steel Vertical Fire Test Furnace with ±1% Accuracy and Automatic Shutoff for Fire Resistance Evaluation online

SUB304 Stainless Steel Vertical Fire Test Furnace with ±1% Accuracy and Automatic Shutoff for Fire Resistance Evaluation

Get Best Price
Good price SUB304 Stainless Steel Vertical Fire Resistance Test Furnace with Automatic Shutoff Compliant with International Standards online

SUB304 Stainless Steel Vertical Fire Resistance Test Furnace with Automatic Shutoff Compliant with International Standards

Get Best Price
Good price Large Scale Vertical Fire Resistance Test Furnace with SUB304 Stainless Steel and Automatic Shutoff for Building Element Fire Testing online

Large Scale Vertical Fire Resistance Test Furnace with SUB304 Stainless Steel and Automatic Shutoff for Building Element Fire Testing

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description

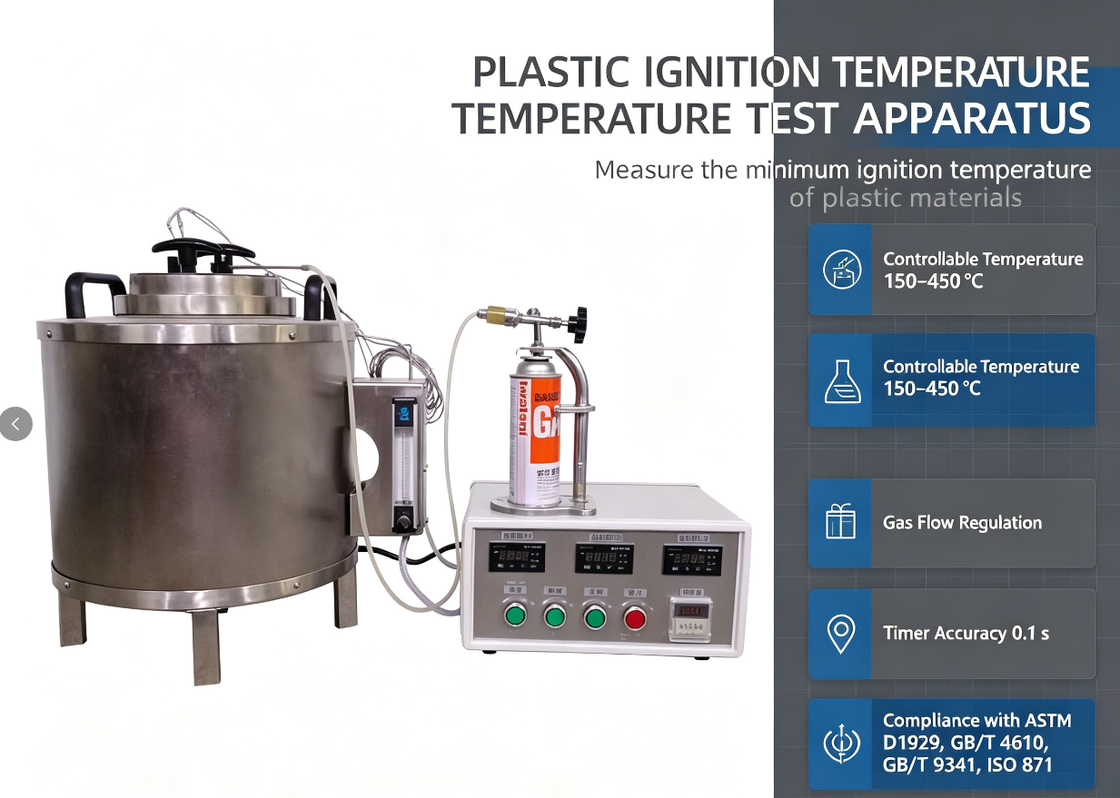

Plastic Ignition Temperature Test Apparatus
ASTM D1929 ISO871 GB/T4610 Plastic Minimum Ignition Temperature Tester for Polymer Flammability Test

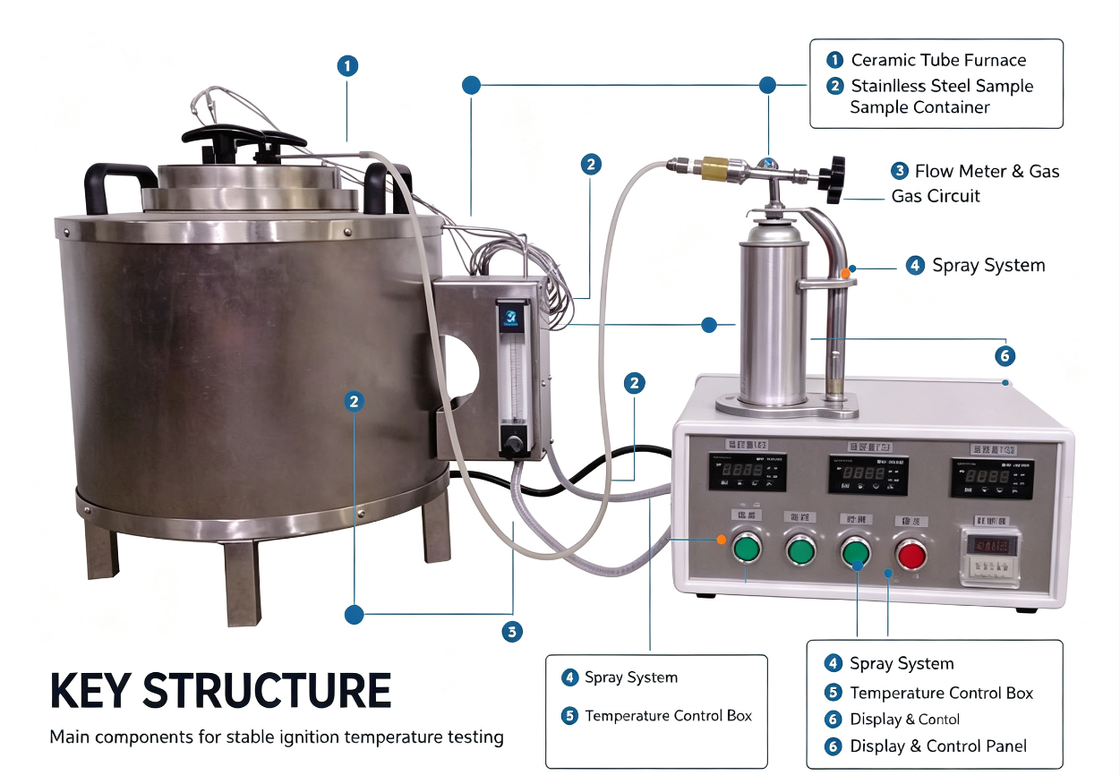

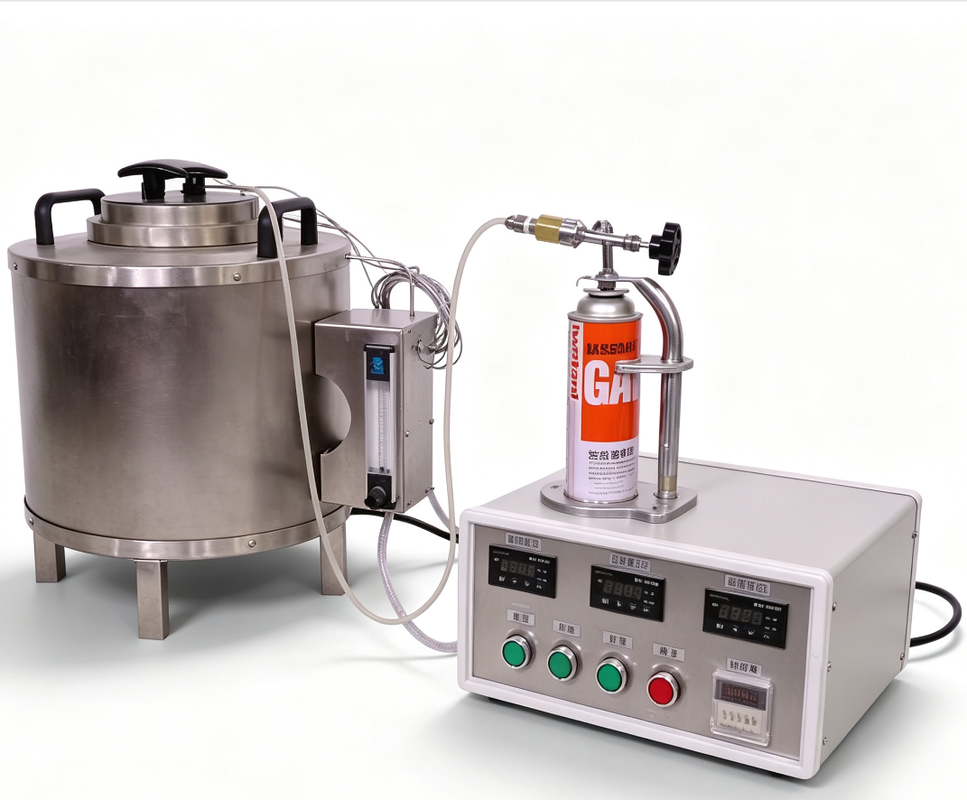

Plastic Ignition Temperature Test Apparatus showing furnace and control panel
The Plastic Ignition Temperature Test Apparatus determines the minimum ignition temperature of plastic materials. Under controlled test environments, plastic samples are heated to decompose and release combustible gas. An external pilot flame ignites the gas, and the system maintains combustion for a specified duration. The recorded threshold temperature allows users to compare the flammability performance of different polymer materials. This tester fully complies with ASTM D1929, GB/T 4610, GB/T 9343 and ISO 871 standards.
Technical Specifications
Furnace tubeInner diameter 100±5mm, length 240±20mm, high-temperature ceramic tube resistant to ≥750℃
Inner tubeDiameter 75mm±2mm, length 240mm±20mm, max working temperature ≥750℃
Sample containerStainless steel, diameter 9mm, height 48mm
Butane nozzleInner diameter 0.8±0.1mm, adjustable flame height 10~20mm
Temperature range150℃ ~ 450℃
Air supplyBuilt-in fan with imported precision gas flowmeter
InsulationMineral wool ≥60mm thick, outer stainless steel shell
Thermocouples3 imported thermocouples to monitor furnace and sample temperature
TimerAccuracy: 0.1s, automatic temperature programming function
Operating conditionsRoom temperature ~40℃, humidity ≤75%
Power supplyAC220V±10V, 50Hz, rated power: 600W
Temperature controlControl accuracy: ±2℃, display accuracy: ±0.5℃
Dimensions & weightTest furnace: 0.4m × 0.4m × 0.5m, net weight: 20kg
Key Advantages
  • Thick mineral wool insulation layer reduces heat loss and guarantees stable furnace temperature
  • Three independent imported thermocouples for real-time multi-point temperature monitoring
  • Imported flowmeter enables fine adjustment of airflow
  • Programmable temperature control system and high-precision timer deliver reliable, repeatable test data
  • Stainless steel construction for high-temperature components, resisting corrosion and long-term aging
  • Adjustable butane flame height to meet standard ignition requirements
  • Compact structure, easy installation and simple operation

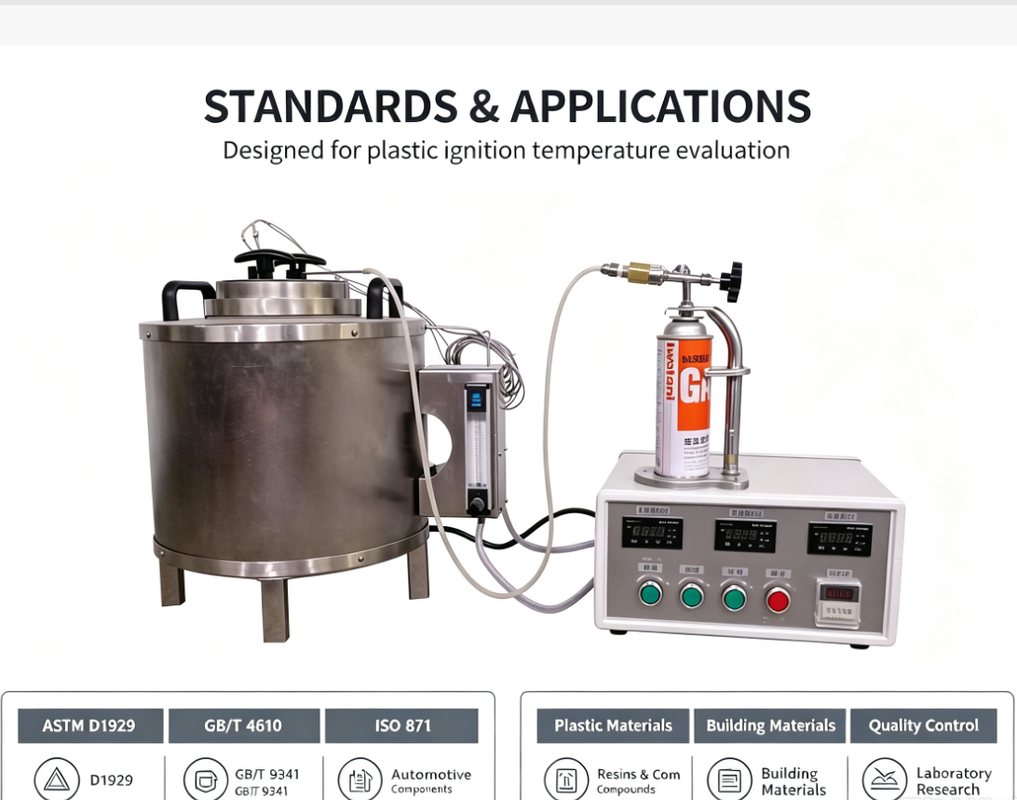

Application Fields
Widely applied in plastic raw material factories, polymer R&D laboratories, composite material manufacturers, third-party fire safety testing institutes, quality inspection departments, universities and research centers. Used for incoming material inspection, new material development, flammability performance comparison and fire hazard assessment of plastics and polymeric products.
After-Sales Service
  • Complete English operation manual and operation video guidance
  • 12 months warranty for the whole machine (excluding consumable parts)
  • Remote online troubleshooting and technical support available anytime
  • Lifelong technical consultation and favorable spare parts supply after warranty expires
Why Choose Our Testing Equipment
We are a professional manufacturer focusing on fire testing instruments. All our equipment strictly follows international test standards. Every machine is fully calibrated and inspected before delivery. We support customized requirements for instrument configuration. Our engineering team has rich experience in fire test equipment and can provide professional technical suggestions for your test projects. We offer fast response and stable after-sales support.
