Name: Plastic Ignition Temperature Tester, ASTM D1929 ISO 871, Plastic Material Ignition Temperature Testing Machine for Fire Safety Lab
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF009
Price: 25000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

Plastic Ignition Temperature Tester, ASTM D1929 ISO 871, Plastic Material Ignition Temperature Testing Machine for Fire Safety Lab

Plastic ignition temperature tester ASTM D1929

Plastic material ignition testing machine

Fire safety lab flammability tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF009

Request A Quote

Plastic Ignition Temperature Tester, ASTM D1929 ISO 871, Plastic Material Ignition Temperature Testing Machine for Fire Safety Lab

Product Details

Butane Lighter Inside Diameter:

0.8 ± 0.1mm Nozzle

The Flame Height:

10 ~ 20mm (adjustable)

Temperature Of Copper Furnace:

Can Be Constant Between 150~450 ℃

Nsulating Layer:

Is Made Larger Than 60mm Thick Mineral Wool Insulation Composed Of External Stainless Steel Package

The Sample Container:

Made Of Stainless Steel

Timer Accuracy:

0.1s

Ambient Temperature:

Room Temperature ~ 40 ℃

Humidity:

≤75%

Voltage::

AC 220 V ± 10V 50HZ

Temperature Control Accuracy:

± 2 ℃, Can Be Adjusted Between 150 ℃ ~ 450 ℃

Highlight:

Plastic ignition temperature tester ASTM D1929

Plastic material ignition testing machine

Fire safety lab flammability tester

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Delivery Time

15-20 work days

Payment Terms

T/T

Supply Ability

15 sets per month

Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus

Get Best Price

UL94 Horizontal & Vertical Flame Test Machine, 50W Burner Plastic Combustion Tester

Get Best Price

Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester

Get Best Price

Plastic Ignition Temperature Tester, ASTM D1929 ISO 871, Plastic Material Ignition Temperature Testing Machine for Fire Safety Lab

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

Plastic Ignition Temperature Tester

ASTM D1929 ISO 871 Compliant Plastic Material Ignition Temperature Testing Machine for Fire Safety Laboratories

Our Plastic Ignition Temperature Test Apparatus precisely measures the minimum ignition temperature of plastic specimens. The equipment heats samples under controlled conditions to release combustible decomposition gases, which are then ignited by an external flame and maintained for specified durations. This enables determination of critical ignition temperatures and comparative fire performance analysis of various plastic materials.

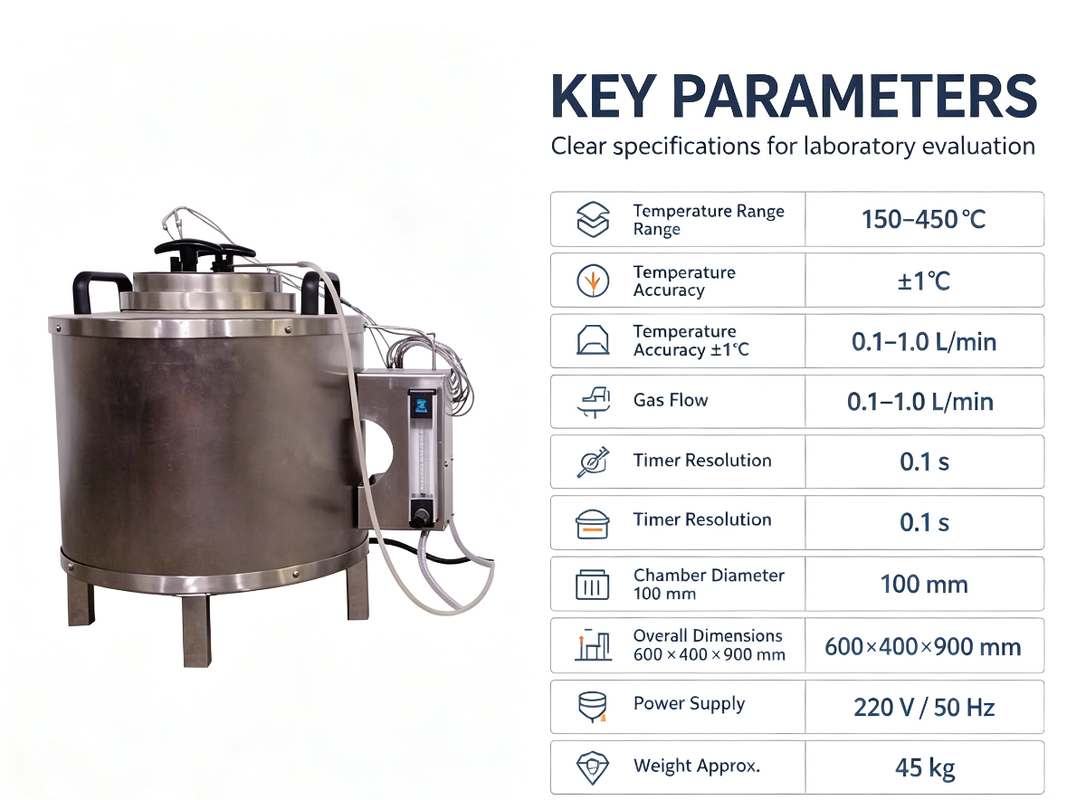

Technical Specifications

Furnace Ceramic Tube	ID 100±5mm, length 240±20mm, withstand temperature ≥750℃
Inner Tube Size	Φ75±2mm × 240±20mm, maximum temperature ≥750℃
Sample Cup	Stainless steel, Φ9mm, height 48mm
Gas Nozzle	Inner diameter 0.8±0.1mm; adjustable flame height 10-20mm
Heating Range	150℃ to 450℃
Air Supply System	Built-in fan with imported precision flow meter
Insulation & Housing	≥60mm mineral wool insulation, stainless steel outer housing
Temperature Monitoring	Three imported thermocouples for furnace and sample temperature tracking
Timer & Control	Precision: 0.1s, supports automatic temperature programming
Operating Conditions	Ambient temperature up to 40℃, humidity ≤75%
Power Requirements	AC220V±10V, 50Hz, power consumption 600W
Temperature Accuracy	Control accuracy ±2℃, display accuracy ±0.5℃
Dimensions & Weight	Furnace: 0.4×0.4×0.5m, net weight 20kg

Key Advantages

Stable heating performance with thick thermal insulation minimizes temperature fluctuations during testing
Multi-point temperature sensing provides accurate temperature readings
Precise airflow regulation via imported flow meter
High precision timer ensures consistent burning duration
Stainless steel construction for heat and corrosion resistance in critical contact areas
Adjustable ignition flame with easy calibration
Compact design saves laboratory space with simple operation

Application Fields

Ideal for plastic and polymer production facilities, material research and development laboratories, composite manufacturing plants, third-party fire testing laboratories, quality control departments, and educational institutions. Suitable for raw material incoming inspection, new formula development, flammability comparison studies, and comprehensive fire safety evaluation of plastic materials.

After-Sales Service

Comprehensive English user manual and operation tutorial videos provided. 12-month warranty period for main unit (consumables excluded). Rapid remote technical support for troubleshooting. Lifelong technical consultation and affordable spare parts availability after warranty period.

Why Choose Our Testing Equipment

We specialize in manufacturing fire safety test equipment. Each instrument undergoes comprehensive testing and calibration before shipment to ensure compliance with international standards. Our technical team possesses extensive expertise in material flammability testing and can customize machine configurations according to specific testing requirements. We provide prompt response to inquiries and continuous after-sales support for customers worldwide.
