Plastic Ignition Temperature Test Apparatus, High Precision Polymer Ignition Temperature Tester Comply ASTM D1929 GB/T4610 ISO871

Plastic Ignition Temperature Test Apparatus, High Precision Polymer Ignition Temperature Tester Comply ASTM D1929 GB/T4610 ISO871

Plastic ignition temperature tester ASTM D1929

High precision polymer ignition tester

Flammability testing equipment ISO871

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF009

Contact Us
Request A Quote
Plastic Ignition Temperature Test Apparatus, High Precision Polymer Ignition Temperature Tester Comply ASTM D1929 GB/T4610 ISO871 Plastic Ignition Temperature Test Apparatus, High Precision Polymer Ignition Temperature Tester Comply ASTM D1929 GB/T4610 ISO871 Plastic Ignition Temperature Test Apparatus, High Precision Polymer Ignition Temperature Tester Comply ASTM D1929 GB/T4610 ISO871 Plastic Ignition Temperature Test Apparatus, High Precision Polymer Ignition Temperature Tester Comply ASTM D1929 GB/T4610 ISO871
Product Details
Butane Lighter Inside Diameter:
0.8 ± 0.1mm Nozzle
The Flame Height:
10 ~ 20mm (adjustable)
Temperature Of Copper Furnace:
Can Be Constant Between 150~450 ℃
Nsulating Layer:
Is Made Larger Than 60mm Thick Mineral Wool Insulation Composed Of External Stainless Steel Package
The Sample Container:
Made Of Stainless Steel
Timer Accuracy:
0.1s
Ambient Temperature:
Room Temperature ~ 40 ℃
Humidity:
≤75%
Voltage::
AC 220 V ± 10V 50HZ
Temperature Control Accuracy:
± 2 ℃, Can Be Adjusted Between 150 ℃ ~ 450 ℃
Highlight:

Plastic ignition temperature tester ASTM D1929

,

High precision polymer ignition tester

,

Flammability testing equipment ISO871

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Delivery Time
15-20 work days
Payment Terms
T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus online

Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus

Get Best Price
Good price UL94 Horizontal & Vertical Flame Test Machine, 50W Burner Plastic Combustion Tester online

UL94 Horizontal & Vertical Flame Test Machine, 50W Burner Plastic Combustion Tester

Get Best Price
Good price Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester online

Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester

Get Best Price
Good price Plastic Ignition Temperature Tester, ASTM D1929 ISO 871, Plastic Material Ignition Temperature Testing Machine for Fire Safety Lab online

Plastic Ignition Temperature Tester, ASTM D1929 ISO 871, Plastic Material Ignition Temperature Testing Machine for Fire Safety Lab

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Plastic Ignition Temperature Test Apparatus
High Precision Polymer Ignition Temperature Tester Compliant with ASTM D1929, GB/T4610, and ISO871 Standards

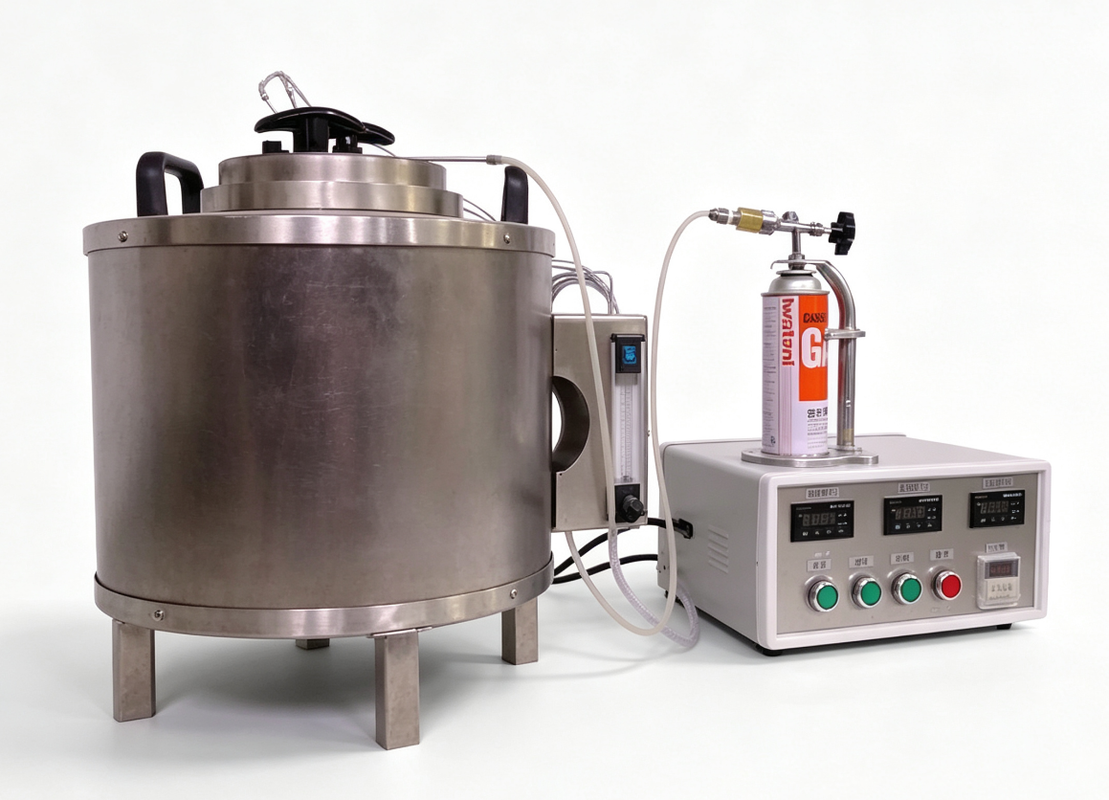

Plastic Ignition Temperature Test Apparatus showing high-temperature furnace and control panel
This Plastic Ignition Temperature Test Apparatus determines the minimum temperature at which plastics generate ignitable gases and sustain combustion. Samples undergo controlled heating in the furnace, decomposing to release combustible vapors that are ignited by an external flame for specified durations. The recorded ignition temperature enables accurate fire risk assessment and ranking of various polymer materials. Compliant with ASTM D1929, GB/T 4610, GB/T 9343, and ISO 871 standards.
Technical Specifications
High temperature ceramic furnace tubeInner diameter 100±5 mm, length 240±20 mm, ≥750℃ resistance
Inner tubeDiameter 75mm ±2mm, length 240mm ±20mm, maximum temperature ≥750℃
Stainless steel sample vesselDiameter 9mm, height 48mm
Butane nozzleInner diameter 0.8±0.1mm, adjustable flame height 10mm to 20mm
Copper furnace temperature range150℃ to 450℃ adjustable
Air supply systemBuilt-in fan with imported precision gas flowmeter
Thermal insulationMineral wool thicker than 60mm, stainless steel shell
Temperature monitoringThree imported thermocouples for furnace and sample temperature
Timer and programming0.1s resolution, automatic temperature programming
Working environmentAmbient temperature ~40℃, relative humidity ≤75%
Power requirementsAC220V±10V, 50Hz, rated power: 600W
Temperature controlPrecision ±2℃; display precision ±0.5℃
Dimensions and weightFurnace: 0.4m × 0.4m × 0.5m, net weight 20 kg
Key Advantages
  • Ultra-thick mineral wool insulation minimizes heat leakage for stable furnace temperature and repeatable results
  • Three separate imported thermocouples accurately monitor furnace and sample temperature changes
  • Imported flowmeter enables precise airflow adjustment, eliminating unstable air interference
  • Programmable temperature curves and 0.1s high-accuracy timer ensure standardized test timing
  • High-temperature stainless steel components extend service life and durability
  • Adjustable ignition flame with simple setup for user-friendly operation
Application Fields
Suitable for plastic manufacturers, polymer R&D centers, composite material factories, independent fire testing laboratories, quality control departments, and university laboratories. Used for new material research, incoming raw material inspection, fire performance comparison, and flammability certification testing for plastic and polymer materials.
After-Sales Service
  • Comprehensive English operation manual and training videos included
  • 12-month warranty for main machine (consumable accessories excluded)
  • Remote online guidance for operation and troubleshooting
  • Permanent technical consultation service
  • Competitive spare parts pricing with stocked inventory available after warranty
Why Choose Our Testing Equipment
We are professional manufacturers dedicated to fire hazard test instruments. All products undergo strict factory calibration before delivery to ensure test data meets international standards. We support customized options to match your laboratory requirements. Our engineers possess years of flammability testing experience. Benefit from fast email and online responses with reliable after-sales service for worldwide buyers.
