Name: ISO871 ASTM D1929 Plastic Ignition Temperature Test Apparatus Polymer Fire Ignition Temperature Tester
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF009
Price: 25000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

ISO871 ASTM D1929 Plastic Ignition Temperature Test Apparatus Polymer Fire Ignition Temperature Tester

Plastic ignition temperature tester

Polymer fire ignition apparatus

ASTM D1929 flammability tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF009

Request A Quote

ISO871 ASTM D1929 Plastic Ignition Temperature Test Apparatus Polymer Fire Ignition Temperature Tester

Product Details

Butane Lighter Inside Diameter:

0.8 ± 0.1mm Nozzle

The Flame Height:

10 ~ 20mm (adjustable)

Temperature Of Copper Furnace:

Can Be Constant Between 150~450 ℃

Nsulating Layer:

Is Made Larger Than 60mm Thick Mineral Wool Insulation Composed Of External Stainless Steel Package

The Sample Container:

Made Of Stainless Steel

Timer Accuracy:

0.1s

Ambient Temperature:

Room Temperature ~ 40 ℃

Humidity:

≤75%

Voltage::

AC 220 V ± 10V 50HZ

Temperature Control Accuracy:

± 2 ℃, Can Be Adjusted Between 150 ℃ ~ 450 ℃

Highlight:

Plastic ignition temperature tester

Polymer fire ignition apparatus

ASTM D1929 flammability tester

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Delivery Time

15-20 work days

Payment Terms

T/T

Supply Ability

15 sets per month

Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus

Get Best Price

UL94 Horizontal & Vertical Flame Test Machine, 50W Burner Plastic Combustion Tester

Get Best Price

Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester

Get Best Price

Plastic Ignition Temperature Tester, ASTM D1929 ISO 871, Plastic Material Ignition Temperature Testing Machine for Fire Safety Lab

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

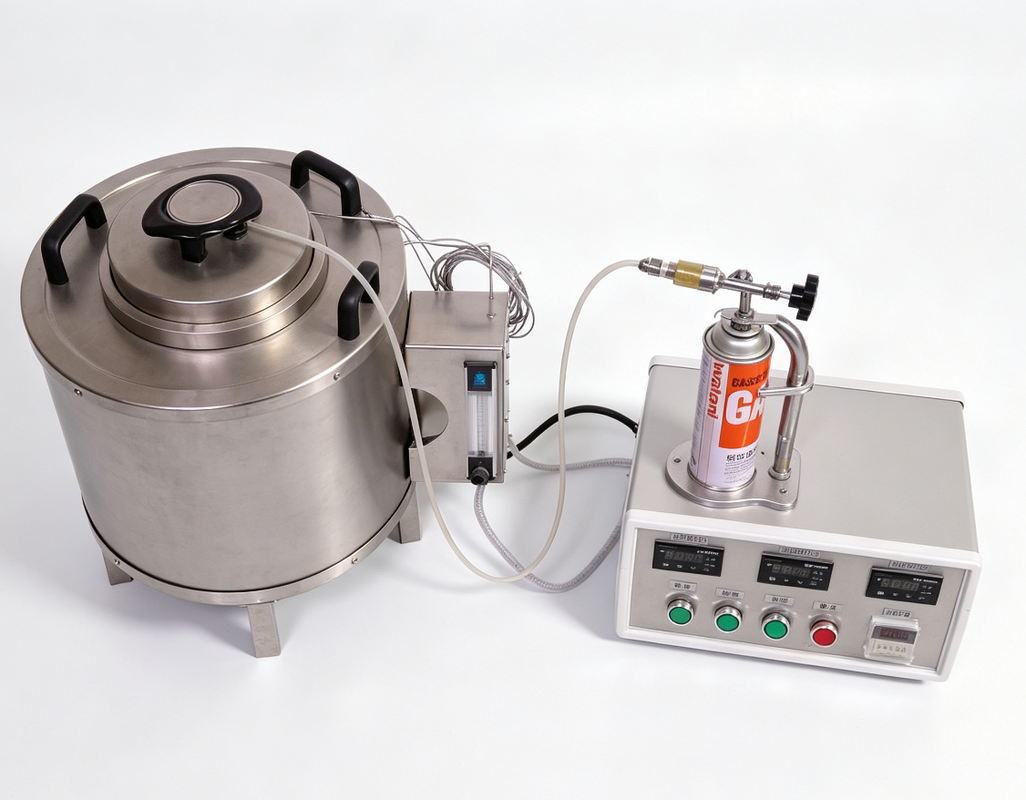

Plastic Ignition Temperature Test Apparatus

ISO871 ASTM D1929 Polymer Fire Ignition Temperature Tester

Product Overview

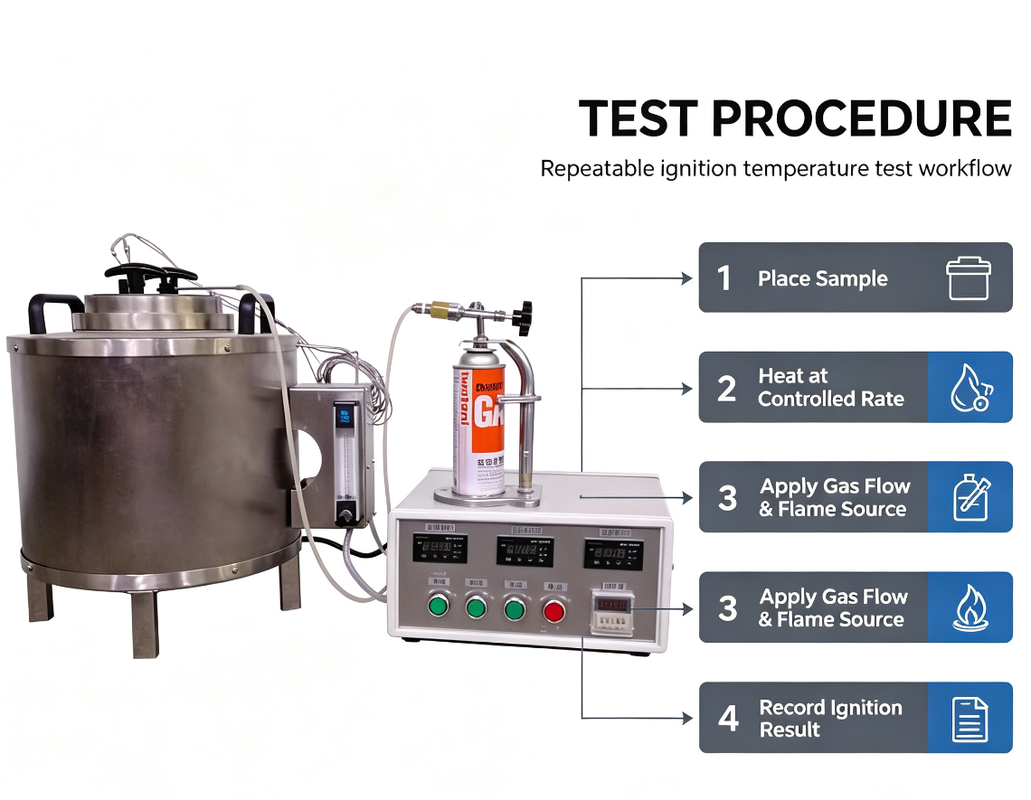

This precision instrument measures the minimum ignition temperature of plastic materials. Samples are heated in a controlled furnace to decompose and release combustible gases, which are then ignited by an external flame. The apparatus determines critical ignition temperatures for comparing flammability characteristics of various plastics.

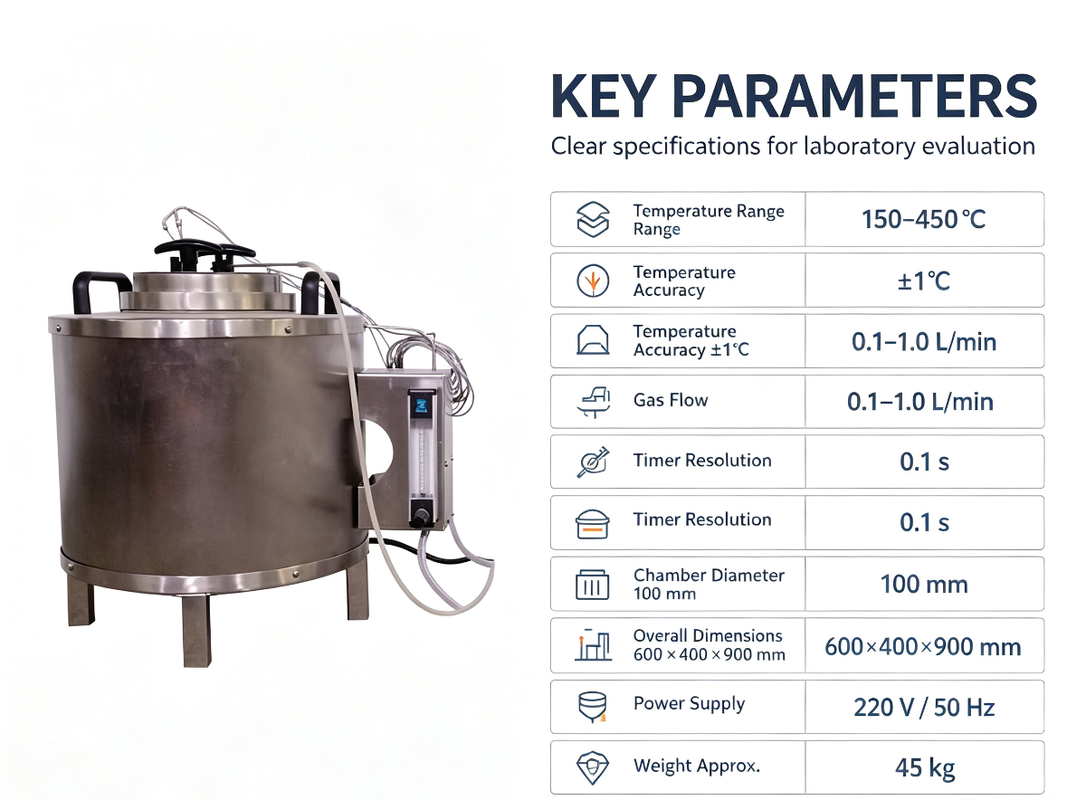

Technical Specifications

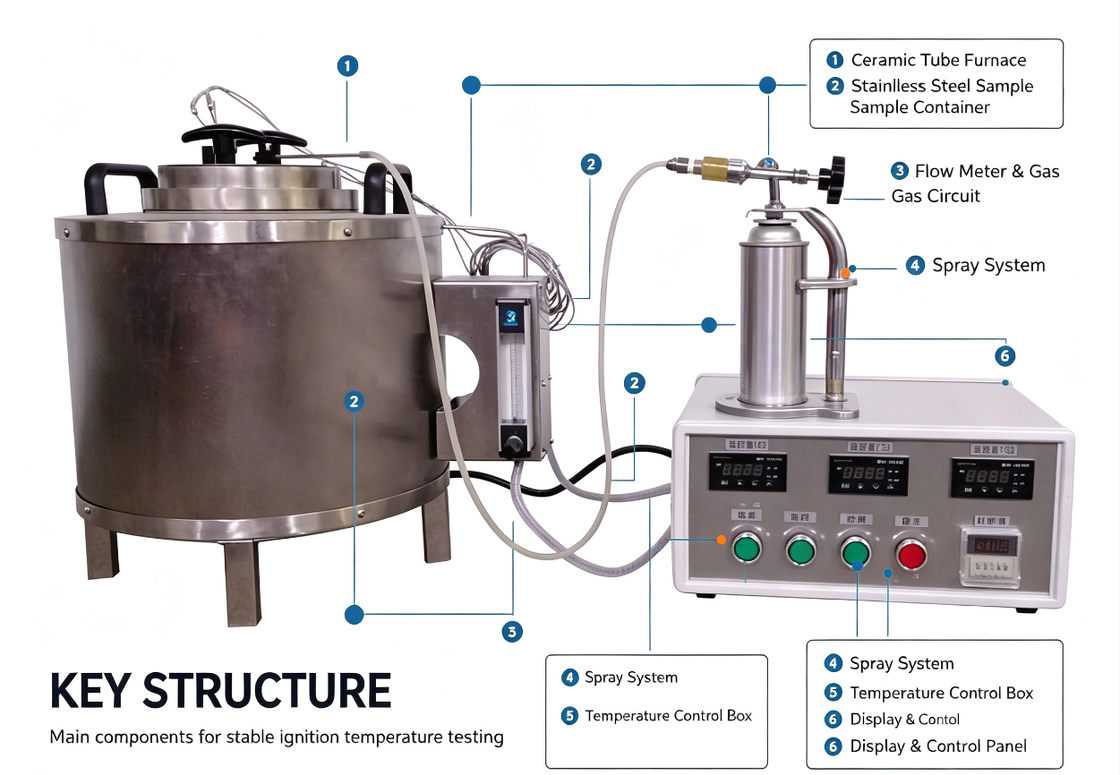

Furnace Construction	Ceramic furnace tube: ID 100±5mm, length 240±20mm, ≥750°C; Inner tube Φ75±2mm, length 240±20mm, ≥750°C
Sample Cup	Stainless steel, Φ9mm, height 48mm
Ignition System	Gas nozzle ID 0.8±0.1mm; Flame 10-20mm adjustable
Heating Range	150-450°C
Air Supply	Built-in air blower + imported precision flowmeter
Insulation & Housing	≥60mm mineral wool insulation, stainless steel shell
Temperature Monitoring	3 imported thermocouples
Timer & Control	Accuracy: 0.1s, automatic temperature programming
Operating Environment	≤40°C, humidity ≤75%
Power Requirements	AC220V±10V, 50Hz, 600W
Temperature Accuracy	Control ±2°C, display ±0.5°C
Dimensions & Weight	Furnace: 0.4×0.4×0.5m, Weight: 20kg

Key Features

Thick insulation ensures stable furnace temperature and repeatable test data
Three thermocouples provide real-time temperature monitoring
Precisely controlled airflow system
Programmable heating curves and high-precision timing
Stainless steel high-temperature components for extended service life
Adjustable ignition flame for optimal testing conditions
Compact design with easy setup and simple operation

Compliance Standards

ASTM D1929, GB/T 4610, GB/T 9343, ISO 871

Application Fields

Plastic manufacturing facilities, polymer R&D laboratories, composite material manufacturers, third-party fire testing laboratories, quality control departments, and university research laboratories. Ideal for raw material inspection, new material development, and fire safety assessment of plastic and polymer products.

After-Sales Service

Includes English manual and operation videos. 12-month warranty for main machine (consumables excluded). Online remote support for troubleshooting. Lifelong technical consultation and affordable spare parts supply.

Why Choose Our Equipment

We are professional manufacturers of fire test instruments. All machines undergo comprehensive inspection and calibration before delivery. Custom configurations available. Our technical team has extensive knowledge of global flammability test standards. We provide fast response times and reliable after-sales support for customers worldwide.
