Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus

Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus

UL94 plastic flammability tester

ASTM D635 burning test apparatus

horizontal vertical flammability tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ASTM D 635,UL94 V-0 V-1 V-2,GB/T 2408

Model Number:

YYF010

Contact Us
Request A Quote
Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus
Product Details
Test Chamber:
>0.5m³
Burner Angle:
Adjustable.(90℃,45℃)
E Panel Timing Device:
Can Be Used For Record Test Time
Rotor Flow Meter:
Can Adjust Combustion Gas Flow
Test Support:
Is Divided Into Horizontal And Vertical
Equipped With:
Scale For Measure The Flame Of Horizontal And Vertical Combustion
Power::
220V 50HZ
Highlight:

UL94 plastic flammability tester

,

ASTM D635 burning test apparatus

,

horizontal vertical flammability tester

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiation
Delivery Time
15-20 work days
Payment Terms
T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus online

Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus

Get Best Price
Good price UL94 Horizontal & Vertical Flame Test Machine, 50W Burner Plastic Combustion Tester online

UL94 Horizontal & Vertical Flame Test Machine, 50W Burner Plastic Combustion Tester

Get Best Price
Good price Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester online

Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester

Get Best Price
Good price Plastic Ignition Temperature Tester, ASTM D1929 ISO 871, Plastic Material Ignition Temperature Testing Machine for Fire Safety Lab online

Plastic Ignition Temperature Tester, ASTM D1929 ISO 871, Plastic Material Ignition Temperature Testing Machine for Fire Safety Lab

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description

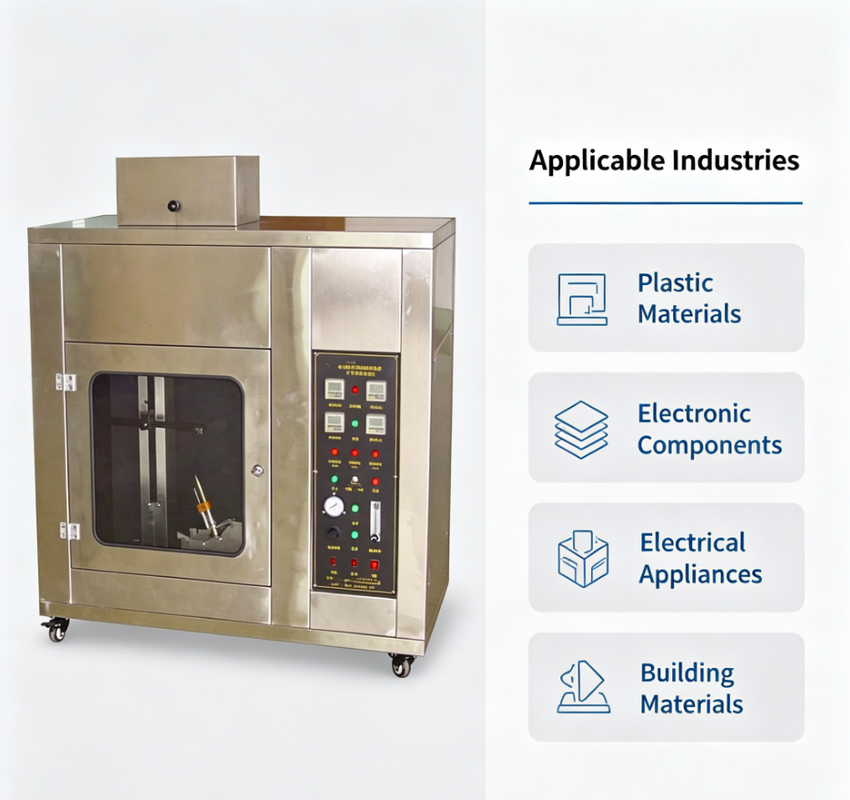

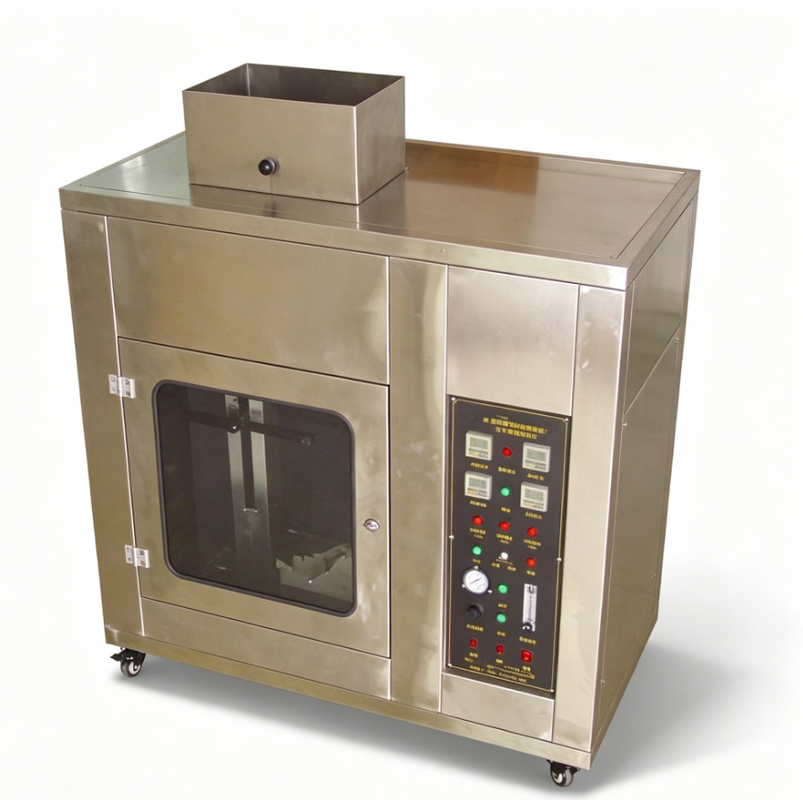

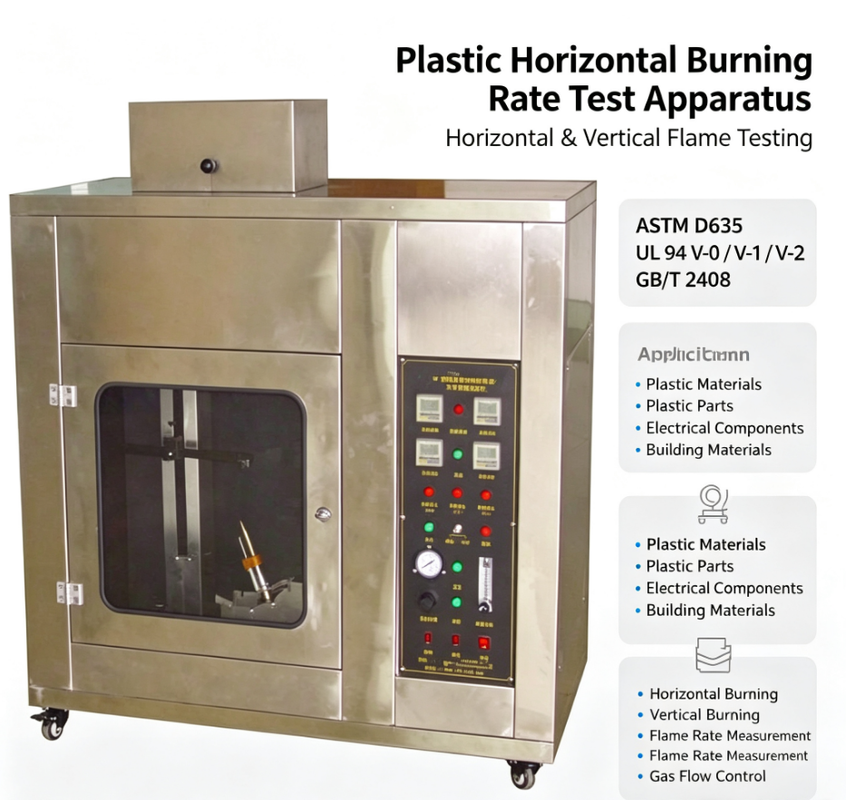

Plastic Horizontal Vertical Flammability Tester
This UL94 ASTM D635 Plastic Burning Test Apparatus evaluates the combustion performance of plastic materials and components under a 50W standard flame source, supporting both horizontal and vertical burning test modes.
Plastic Horizontal Vertical Flammability Tester - UL94 ASTM D635 Testing Equipment
The testing chamber features a volume greater than 0.5 cubic meters, constructed from premium stainless steel using CNC machining. A sealed toughened glass observation window enables clear recording of combustion phenomena without opening the chamber. The built-in burner complies with ASTM D5025 specifications with adjustable angles of 45° and 90°.

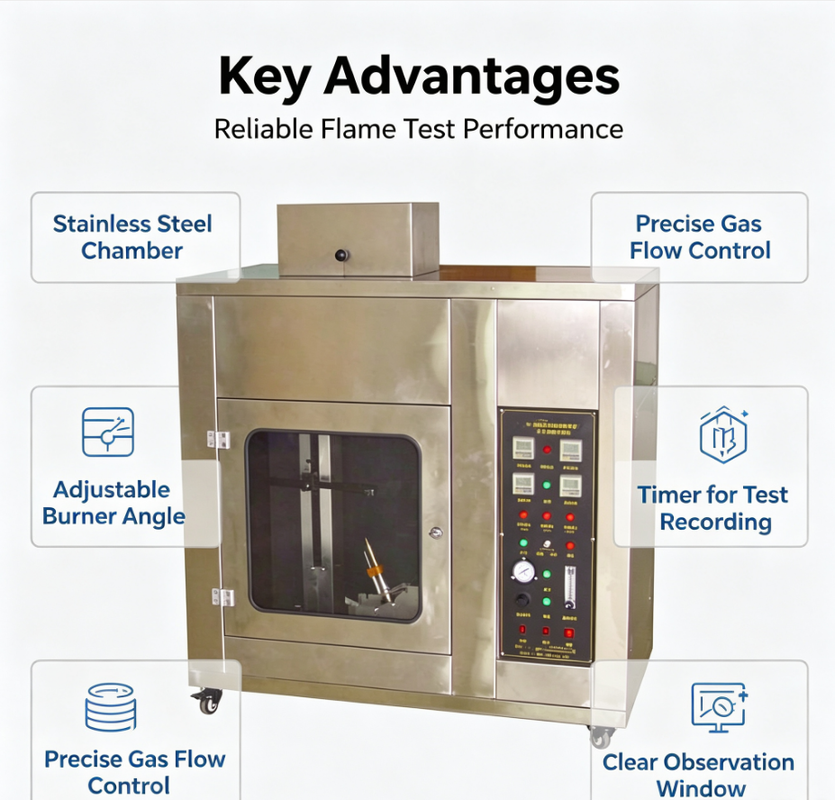

Key Features & Advantages
  • Full stainless steel chamber with anti-rust and corrosion resistance for long service life
  • Standard 50W burner compliant with ASTM D5025, adjustable flame angle for horizontal and vertical testing
  • High-precision gas pressure regulator and rotor flowmeter for stable, repeatable flame power
  • Independent timing system for recording ignition time, afterflame time, and afterglow time
  • Transparent toughened glass viewing window for real-time combustion observation
  • Dual specimen brackets for both horizontal and vertical flammability tests
  • Universal casters for easy movement and positioning
Technical Specifications
Test Standards UL94 (V-0, V-1, V-2), ASTM D635, GB/T 2408
Chamber Material Premium Stainless Steel
Chamber Volume > 0.5 cubic meters
Burner Power 50W Standard Flame
Burner Angles 45° and 90°
Power Supply 220V 50Hz
Application Fields
This testing instrument applies to solid plastic materials, rigid polymer parts, and plastic molded components used in:
  • Electrical & Electronic Products
  • Automotive Industry Components
  • Construction Materials
  • Wire and Cable Accessories
Ideal for plastic raw material factories, electronic component manufacturers, auto parts suppliers, building material producers, and independent testing laboratories for flammability screening and certification testing.
After-Sales Service
1-Year Warranty: Full machine coverage from delivery date
Lifetime Support: Ongoing technical assistance and consultation
Engineering Support: Remote troubleshooting, operation guidance, calibration consultation, and spare parts quotation
Online Assistance: Technical support via email or video call
Documentation: Operation manual, calibration guide, and training documents included with shipment
