Name: UL94 Horizontal & Vertical Flame Test Machine, 50W Burner Plastic Combustion Tester
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF010
Price: 25000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

UL94 Horizontal & Vertical Flame Test Machine, 50W Burner Plastic Combustion Tester

UL94 flame test machine

50W burner plastic combustion tester

horizontal vertical flammability testing equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ASTM D 635,UL94 V-0 V-1 V-2,GB/T 2408

Model Number:

YYF010

Request A Quote

UL94 Horizontal & Vertical Flame Test Machine, 50W Burner Plastic Combustion Tester

Product Details

Test Chamber:

>0.5m³

Burner Angle:

Adjustable.(90℃,45℃)

E Panel Timing Device:

Can Be Used For Record Test Time

Rotor Flow Meter:

Can Adjust Combustion Gas Flow

Test Support:

Is Divided Into Horizontal And Vertical

Equipped With:

Scale For Measure The Flame Of Horizontal And Vertical Combustion

Power::

220V 50HZ

Highlight:

UL94 flame test machine

50W burner plastic combustion tester

horizontal vertical flammability testing equipment

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiation

Delivery Time

15-20 work days

Payment Terms

T/T

Supply Ability

15 sets per month

Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus

Get Best Price

UL94 Horizontal & Vertical Flame Test Machine, 50W Burner Plastic Combustion Tester

Get Best Price

Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester

Get Best Price

Plastic Ignition Temperature Tester, ASTM D1929 ISO 871, Plastic Material Ignition Temperature Testing Machine for Fire Safety Lab

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

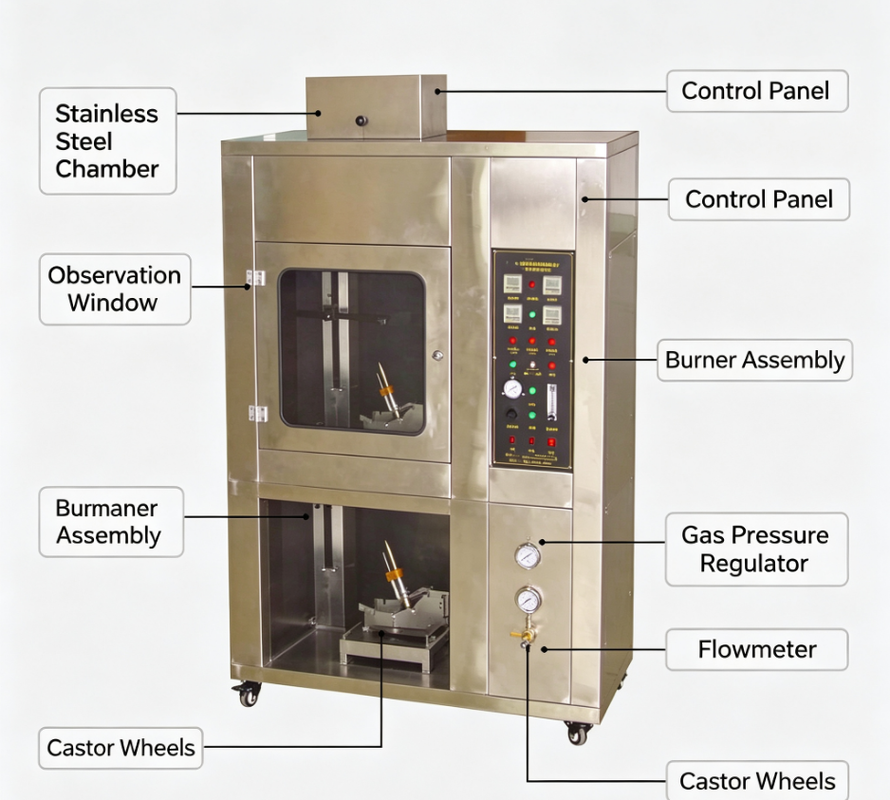

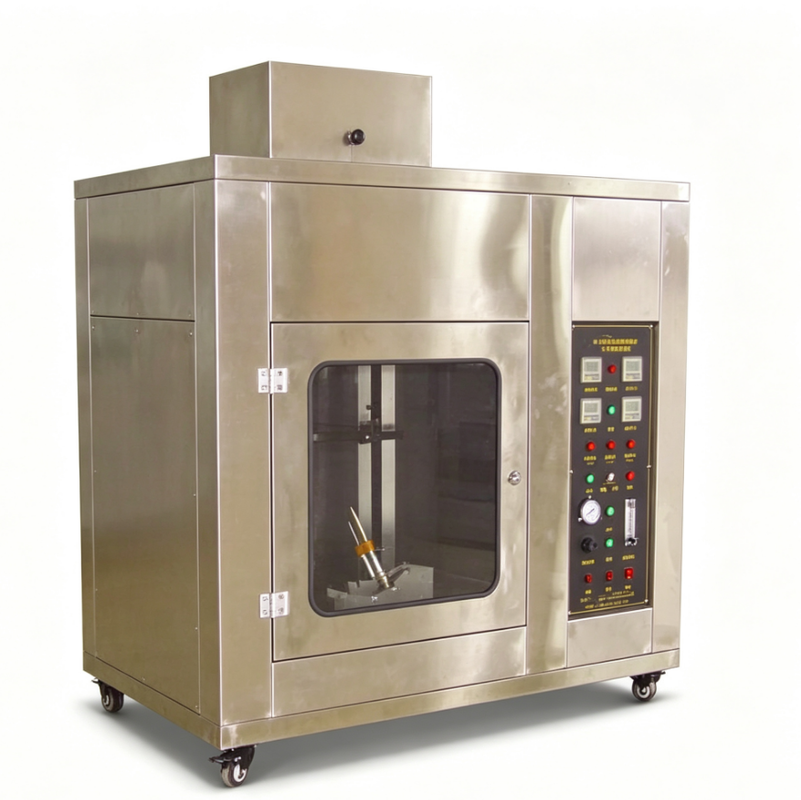

UL94 Horizontal & Vertical Flame Test Machine

Our Plastic Horizontal & Vertical Burning Tester determines flammability and burning characteristics of plastics and plastic components under 50W flame exposure. This professional testing equipment performs both horizontal and vertical burning tests in compliance with global standards.

Product Specifications

Test Standards	UL94 V0/V1/V2, ASTM D635, GB/T 2408
Burner Type	50W Standard Burner (ASTM D5025 compliant)
Burner Angles	45° and 90° adjustable
Chamber Construction	High-quality stainless steel, volume >0.5m³
Observation Window	Front toughened glass for safe viewing
Power Supply	220V, 50Hz
Included Accessories	Sample fixtures, flame measuring scale, flow meter, precision pressure valve

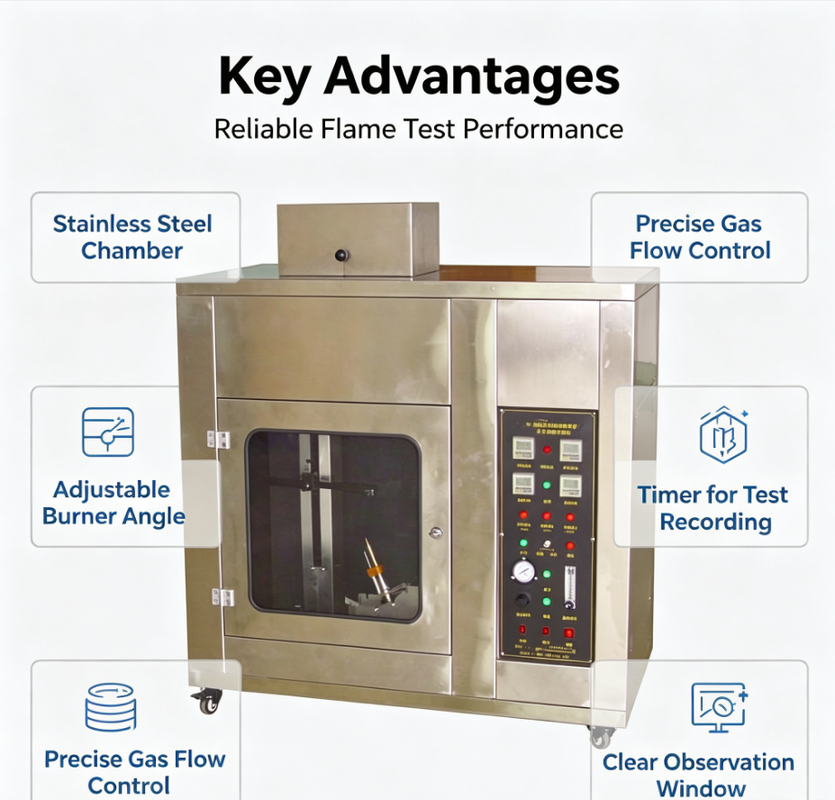

Key Advantages

Compliant with internationally recognized flammability standards including UL94 vertical burn and ASTM D635 horizontal burn
Robust stainless steel cabinet with anti-corrosion properties, easy to clean after testing
Stable flame control system with accurate gas flow and pressure adjustment for excellent test data repeatability
Integrated timing function for convenient burning time data capture
Dual test fixtures included for quick switching between horizontal and vertical testing
Safe enclosed test chamber prevents flame splashing during operation
Mobile casters for flexible laboratory positioning

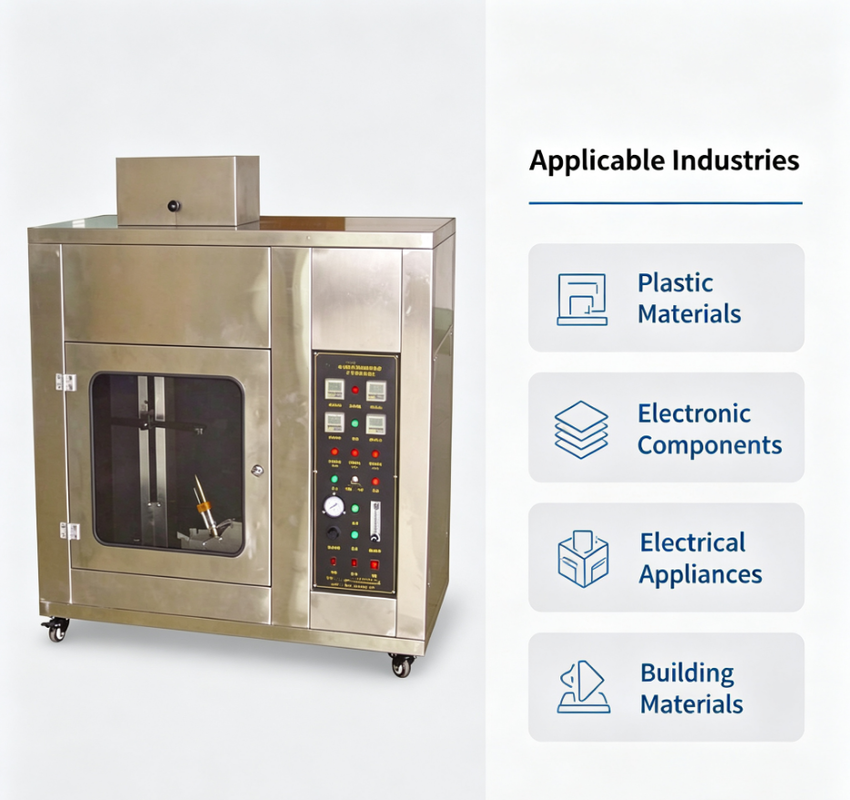

Application Fields

This flame test machine is suitable for testing thermoplastics, thermosetting plastics, and plastic finished parts across multiple industries including electronics, home appliances, automotive components, building decorative materials, and plastic insulating parts. Manufacturers utilize this equipment for incoming raw material inspection, finished product quality checks, R&D new material flammability evaluation, and pre-certification testing before submitting samples to third-party laboratories.

After-Sales Service

Comprehensive Support Package

1-year warranty for all machine parts
Lifetime after-sales service commitment
Technical team provides remote guidance for installation, operation, and fault diagnosis
Complete documentation including operation manual and video tutorials
Spare parts available at favorable cost pricing even after warranty expiration
