Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester

Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester

Plastic flammability testing chamber

Vertical horizontal burning tester

Flammability testing equipment with warranty

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ASTM D 635,UL94 V-0 V-1 V-2,GB/T 2408

Model Number:

YYF010

Contact Us
Request A Quote
Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester
Product Details
Test Chamber:
>0.5m³
Burner Angle:
Adjustable.(90℃,45℃)
E Panel Timing Device:
Can Be Used For Record Test Time
Rotor Flow Meter:
Can Adjust Combustion Gas Flow
Test Support:
Is Divided Into Horizontal And Vertical
Equipped With:
Scale For Measure The Flame Of Horizontal And Vertical Combustion
Power::
220V 50HZ
Highlight:

Plastic flammability testing chamber

,

Vertical horizontal burning tester

,

Flammability testing equipment with warranty

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiation
Delivery Time
15-20 work days
Payment Terms
T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus online

Plastic Horizontal Vertical Flammability Tester | UL94 ASTM D635 Plastic Burning Test Apparatus

Get Best Price
Good price UL94 Horizontal & Vertical Flame Test Machine, 50W Burner Plastic Combustion Tester online

UL94 Horizontal & Vertical Flame Test Machine, 50W Burner Plastic Combustion Tester

Get Best Price
Good price Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester online

Plastic Parts Flammability Testing Chamber, Vertical Horizontal Burning Performance Tester

Get Best Price
Good price Plastic Ignition Temperature Tester, ASTM D1929 ISO 871, Plastic Material Ignition Temperature Testing Machine for Fire Safety Lab online

Plastic Ignition Temperature Tester, ASTM D1929 ISO 871, Plastic Material Ignition Temperature Testing Machine for Fire Safety Lab

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description

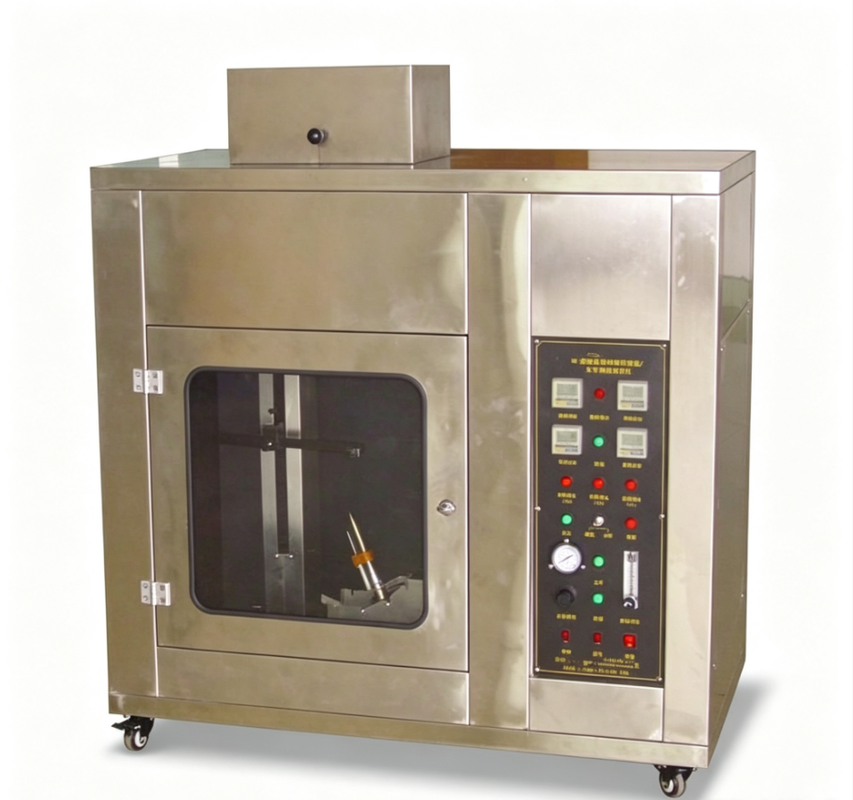

Plastic Parts Flammability Testing Chamber
Vertical Horizontal Burning Performance Tester
Plastic Horizontal & Vertical Burning Tester for flammability testing of plastic materials
This Plastic Horizontal & Vertical Burning Tester is specialized flammability test equipment designed for plastic materials and plastic components. The equipment performs both horizontal and vertical burning tests using a 50W flame source, conforming to UL94 V-0, V-1, V-2, ASTM D635 and GB/T 2408 standards.

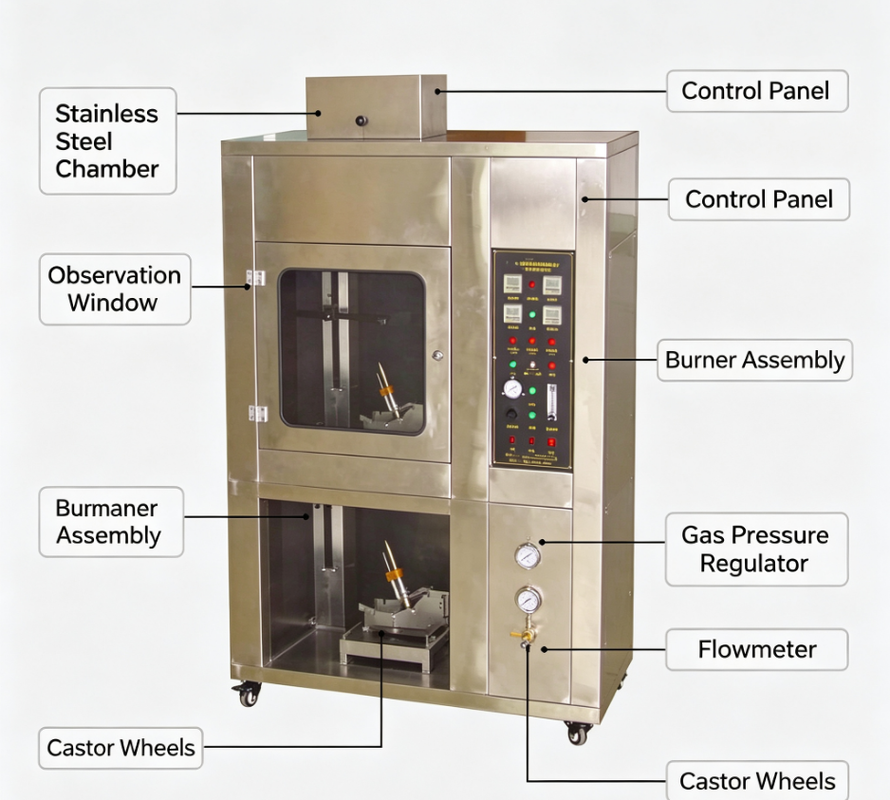

The testing chamber features a spacious 0.5m³ stainless steel construction with a toughened glass observation window for safe monitoring. It includes an ASTM D5025 standard burner with adjustable angles (45°, 90°), rotor flowmeter, precision pressure regulator, digital timer, dual sample holders, and flame measuring scale. Operating on 220V 50Hz power, this machine evaluates flame spread, burning time, melt dripping, and flammability ratings of plastic samples, making it essential for fire safety inspection of polymer materials.

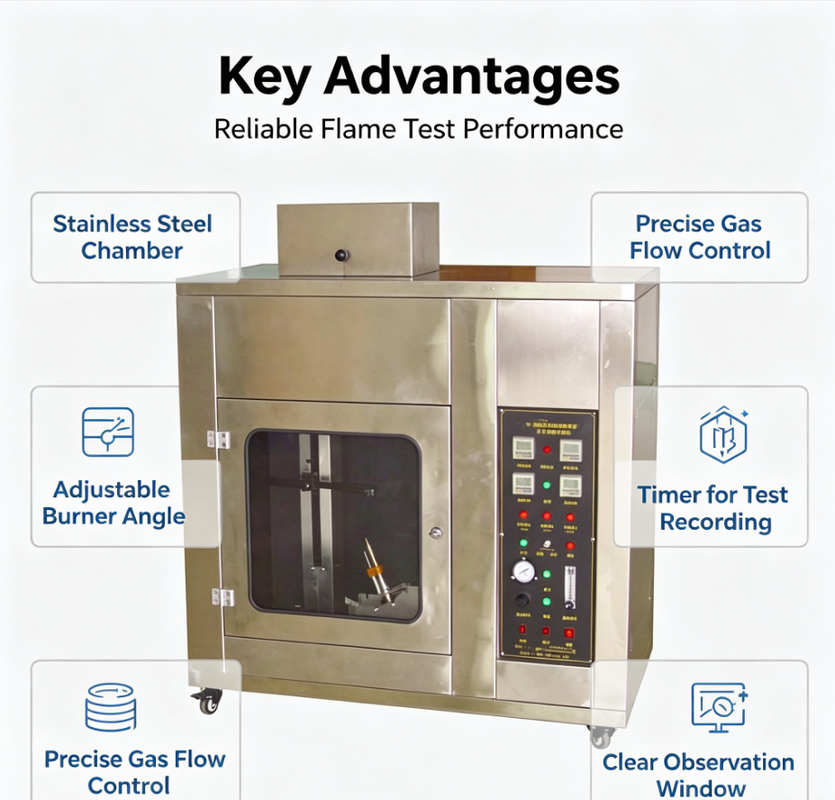

Key Advantages
  • Compliance with UL94 & ASTM D635 international standards
  • All stainless steel chamber construction for rust-proof durability
  • Adjustable standard burner providing stable flame conditions
  • Precise gas flow and pressure control systems
  • Built-in digital timer for automatic time recording
  • Horizontal and vertical dual fixtures included
  • Safe enclosed test cabin with observation window
  • Easy mobility with integrated casters

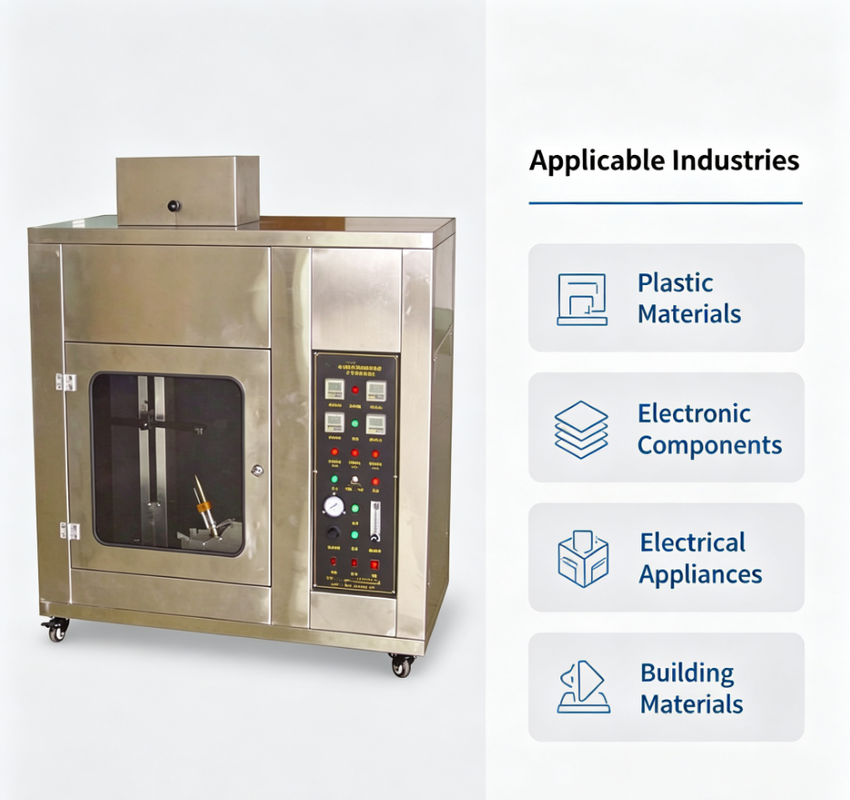

Application Fields
This testing chamber serves plastic raw material manufacturers, electronic and electrical component producers, home appliance factories, automotive parts makers, building material producers, and third-party testing laboratories. It is specifically designed for testing flame retardant plastics, molded plastic parts, and insulation plastic components, supporting incoming quality control, finished product inspection, new material development, and pre-certification testing.
After-sales Service
1-year machine warranty
Lifetime after-sales technical support
Remote operation training and online fault diagnosis
Comprehensive operation manual and video guidance
Spare parts availability after warranty period
