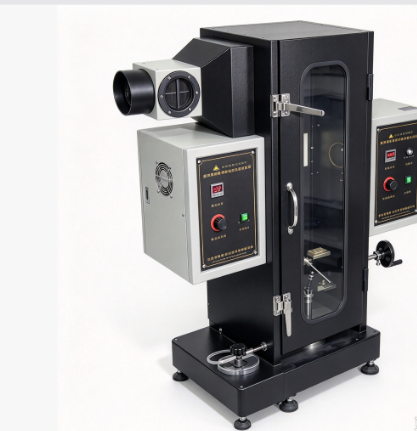

Fire Smoke Density Tester for Plastics and Building Materials | Compliant with ASTM D2843 DIN4102 GB/T 8627 Standard

Fire Smoke Density Tester for Plastics and Building Materials | Compliant with ASTM D2843 DIN4102 GB/T 8627 Standard

Product Brief

Micro-computer Plastic Burning or Decomposition Smoke Density Test Apparatus is professional fire hazard testing lab equipment. Its core function is measuring smoke-producing characteristics of plastics when burning or decomposing under strictly controlled conditions. It can also carry out smoke density tests for other building materials. The tester complies with ASTM D2843, DIN 4102 and GB/T 8627 standards. Based on photometric measurement principle, it captures light attenuation from smoke and calculates smoke density automatically. It is widely adopted for fire safety performance test, material R&D and product certification for plastic and building materials.

Product Advantages

1. Reliable optical measurement system: 15W bulb light source with 6V working voltage. Smoke density measuring range is 0~100%, measurement accuracy ±3%. Receiving lens focal length 60~65mm for stable optical signal collection.
2. Adjustable gas pressure control: Main burner pressure can be adjusted up to 276kpa, auxiliary combustion chamber pressure adjustable at 138kpa. Stable flame environment ensures consistent and repeatable test data.
3. Durable combustion chamber: Made from 1.2mm thick 304 stainless steel plate, combustion box size L300×W300×H790mm. It is high temperature resistant and anti-corrosion for long term repeated testing.
4. Dual control panels for easy operation. Observation window allows users to directly watch sample burning and smoke forming process in real time.
5. Small and lightweight machine: Overall dimension 800500500mm and weight 35kg. Easy to install and move in laboratory.
6. Power supply AC220V±10%, 50Hz, rated power consumption 0.5KW, low energy consumption.
7. Gas requirement: 95% purity propane gas or gas of same purity, gas source to be supplied by customer.

Application Fields

• Plastic raw material and finished plastic product factories
• Construction & interior decoration material manufacturers
• Third-party fire safety testing laboratories
• University laboratories and material research centers
• Rubber, cable and polymer material manufacturers
• Fire resistant material quality inspection and R&D departments

Technical Specifications

1. Gas source: 95% propane gas or higher purity, or gas with same purity (customer supply)
2. Photometric system: 15W bulb light source, working voltage: 6V
3. Smoke density measurement range: 0 ~ 100%
4. Smoke density measurement accuracy: ±3%
5. Receiving lens focal length: 60 ~ 65 mm
6. Main burner work pressure: 276 kpa (adjustable)
7. Auxiliary combustion chamber pressure: 138 kpa (adjustable)
8. Supply voltage: AC220V±10%, 50Hz
9. Using power: 0.5 KW
10. Combustion box dimension: L300W300H790(mm)
11. Equipment overall dimensions: 800 * 500 * 500 mm
12. Combustion box material: 304 steel plate, thickness of 1.2 MM
13. Weight: 35 Kg

After-sales Service

• 1-year warranty for the complete machine (wearing parts not included).
• Lifetime after-sales service and technical support.
• Complete English operation manual and operation guidance provided on shipment.
• Remote online support for machine installation, commissioning, operation and troubleshooting.
• Pre-sales technical consultation to help customers confirm applicable standards and test plans.
