Name: UL 1581 VW 1 FT1 Vertical Horizontal Wire Flame Test Apparatus
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY813
Price: 25000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

UL 1581 VW 1 FT1 Vertical Horizontal Wire Flame Test Apparatus

UL 1581 wire flame test apparatus

VW 1 FT1 flammability tester

vertical horizontal wire flame tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YY813

Request A Quote

UL 1581 VW 1 FT1 Vertical Horizontal Wire Flame Test Apparatus

Product Details

Applicable Standards:

UL 1581 VW 1 FT1 CSA C22 2 No 0 3

Test Modes:

Vertical Flame Test Horizontal Flame Test VW 1 FT1

Control System:

Intelligent PLC With Touch Screen Interface

Burner Specifications:

Burner Conforming To ASTM D5025 Angle 20 90 Degrees

Gas Flow Control:

High Precision Mass Flow Meter And Needle Valve

Chamber Construction:

Stainless Steel With Black Interior Finish

Timing System:

Automatic Digital Timers For Flame Application And After Flame

Gas Source:

Methane

Safety Features:

Emergency Shut Off Protection

Highlight:

UL 1581 wire flame test apparatus

VW 1 FT1 flammability tester

vertical horizontal wire flame tester

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Plywood Box

Delivery Time

15-20 Days

Payment Terms

T/T

Supply Ability

10 sets per month

Horizontal and Vertical Flammability Tester PV 3357 UL Standard Automotive Interior Material Burning Test Equipment

Get Best Price

IEC60695-11-5 Needle Flame Tester HT-5169T-N Lab Flammability Testing Equipment for Electrical Appliance Safety Test

Get Best Price

Plastic Horizontal Burning Rate Test Apparatus ASTM D635 UL94 Plastic Flammability Testing Equipment

Get Best Price

Ul94 Horizontal Vertical Burning Combustion Testing Machine Flame Test Chamber Flammability Tester for Plastic

Get Best Price

+86-13825723571

sales002@yuyangtest.com

86-769-26622869

Contact Now

Product Description

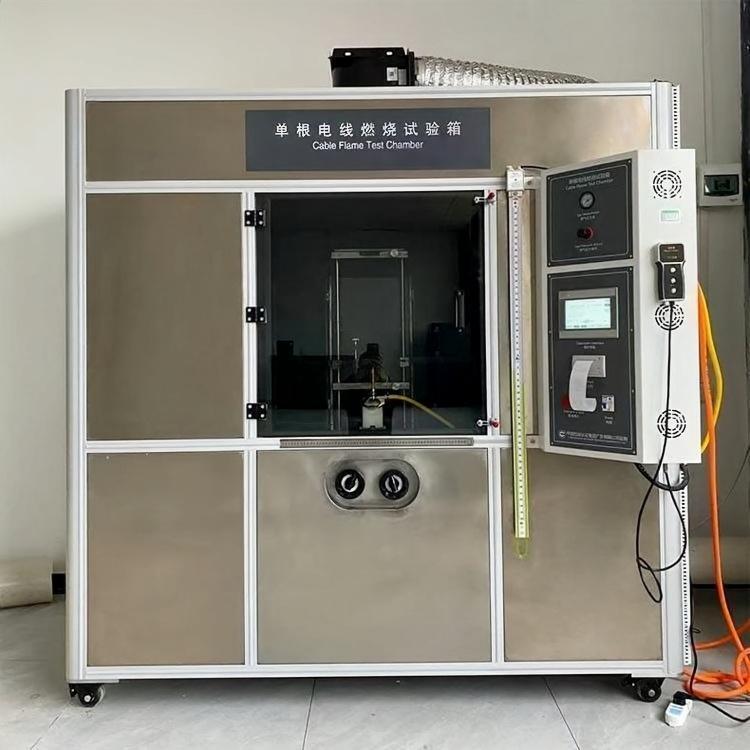

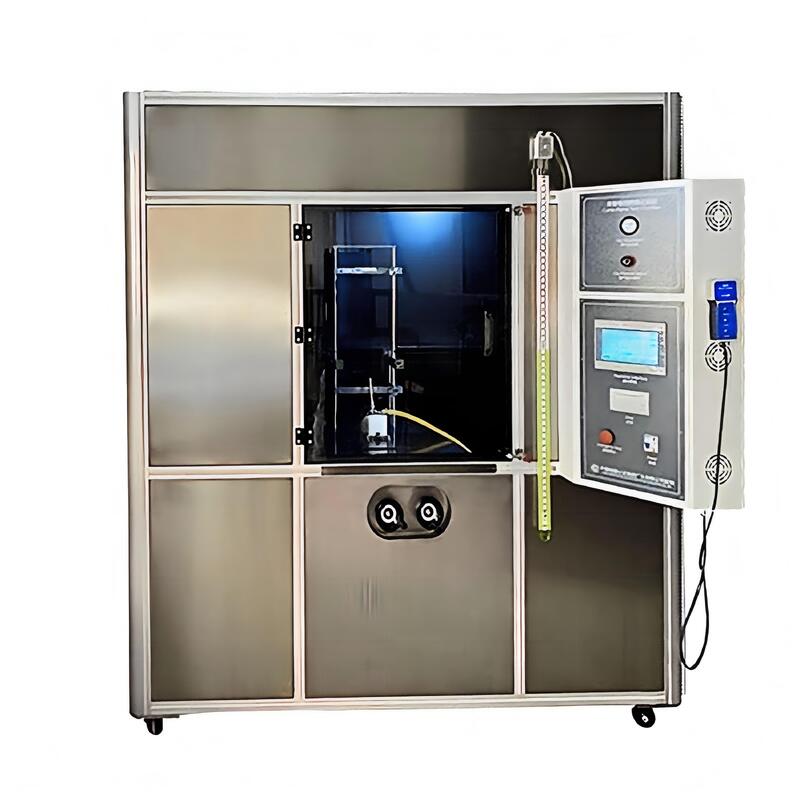

UL 1581 VW-1 / FT1 Vertical & Horizontal Wire Flame Test Apparatus

This vertical and horizontal wire flame test device (VW-1) is engineered in accordance with UL 1581 Section 1080.1–1080.14 and satisfies the criteria of the VW-1 (Vertical-Specimen) Flame Test. It is suitable for testing 1060 products, wire and cable FT1 and vertical burning tests, 1080 VW-1 tests, 1061 tests, 1090 horizontal tests, and 1100 horizontal specimen or FT2 tests. The apparatus evaluates the flame-spreading ability of cable or flexible wire to nearby combustible materials when ignited. All testing is conducted inside a sealed test chamber with a volume of 4.32 m³.

Test Method

Adjust the flame height so that the specimen is positioned at the top of the flame. Burn for 15 seconds, extinguish for 15 seconds, and repeat 5 times. Then inspect the burned condition of the specimen. The combustion, extinguish, and repetition cycles can be set to run automatically.

Compliance Standards

The apparatus strictly conforms to IEC 60332 and UL 1581 Section 1080.1–1080.14, and fully complies with the VW-1 (vertical specimen) flame test combustion requirements. It is applicable to VW-1 testing under UL 1581, UL 13, UL 444, and UL 1655, as well as FT-1 and FT-2 testing under CSA. It is widely used across the wire and cable industry.

Technical Parameters

Test Chamber Construction	Exterior finished with electrostatic baking paint; interior coated with black electrostatic paint for a clean appearance, rust prevention, and corrosion resistance. An exhaust device at the top discharges waste gas outdoors after testing. Two air inlets and a set of pneumatic sealing mechanisms are located on the lower two sides.

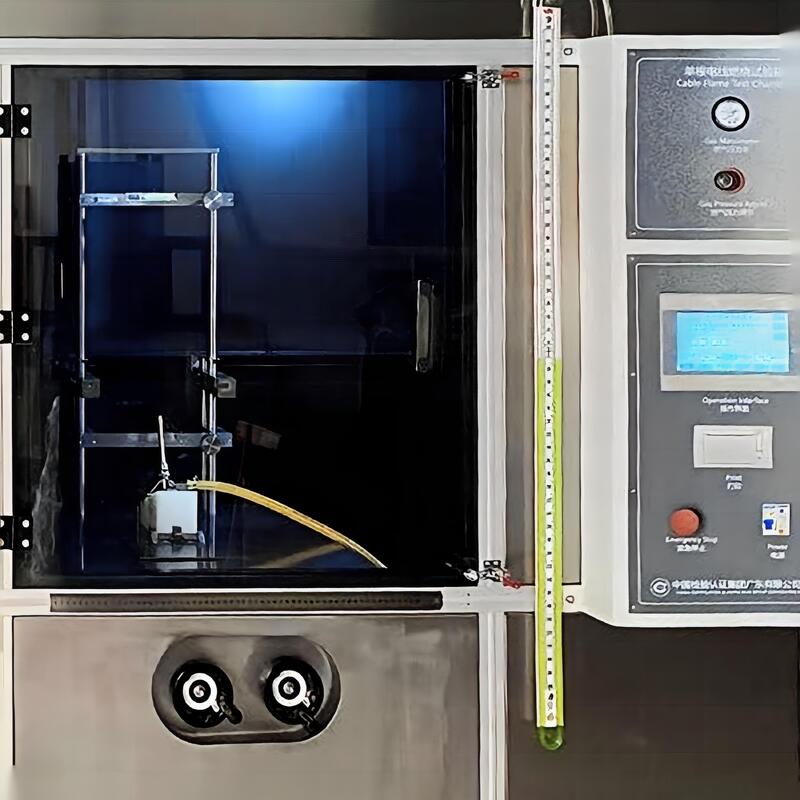

Observation Window	Front-mounted observation window for convenient monitoring of the test process.
Chamber Dimensions	2 m (L) × 1.2 m (W) × 1.8 m (H)
Interior Lighting	Anti-fog and anti-smoke circular lamp.
Control System	7-inch color touch screen with PLC control.
Burning Time Setting	0–999 s
Flame Stop Time Setting	0–999 s
Thermal Sensor	Electrolytic copper with extremely high thermal conductivity.
Thermocouple	Imported φ0.5 K-type thermocouple with stainless steel jacket.
Temperature Controller	Intelligent temperature controller matched to the K-type thermocouple, with readings exceeding 1000°C.
Ignition	High-voltage automatic ignition function.
Combustion Burner	UL 1581 specified burner, meeting ASTM D5025-99 requirements. Standard power: 500 W for vertical burner, 225 W for horizontal burner. Burner orifice diameter: 0.90 ± 0.03 mm; burner nozzle length: 1.60 ± 0.05 mm; height from nozzle to air inlet: 102 mm. Burner angle: 90° for horizontal and 20° for vertical (longitudinal axis remains in a vertical plane, forming a 20° angle with the vertical direction).
Test Bracket	SUS304 stainless steel.
U-Tube Manometer	1 pc (Dwyer, USA).
Rotameter	0.1–1 L/min, adjustable.
