Fire Resistance Valve Hose Pipe Tester | ISO 10497 ISO19921 FTP II Res A753 Fire Test Machine for Firefighting Fittings

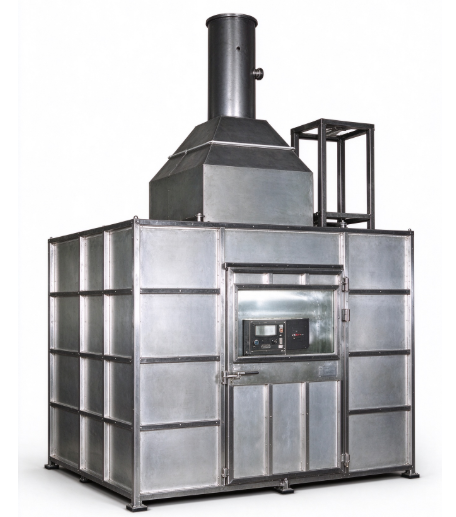

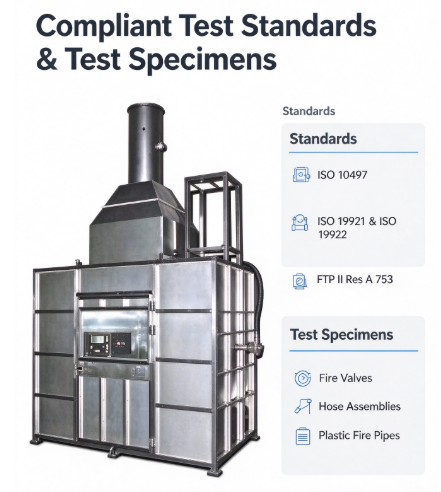

This dedicated fire test rig evaluates the fire resistance and post-fire watertight performance of fire safety components, including fire resistant valves, fire hose assemblies and plastic fire pipes. The test bench fully complies with ISO 10497, ISO 19921, ISO 19922 and FTP II Res A 753 standards, delivering standardized flame exposure and reliable watertightness verification for firefighting fittings.

Test samples are mounted and pressurized to the internal pressure specified by the applicable standard. Purpose-built burners deliver standardized flame exposure to simulate real fire conditions. After the flame attack, the system inspects whether the specimen maintains watertight integrity.

Equipped with a LabVIEW graphical operation system, the machine offers intuitive human–computer interaction and automatically records all test data in real time to guarantee high repeatability of each fire test. Users can process raw data and export customized inspection reports directly from the system.

A smart interchangeable burner design allows users to switch test modes for different standards simply by replacing burners, without modifying the main test chamber. The stainless steel test cabin provides excellent high-temperature and corrosion resistance for long-term heavy use in fire laboratories, while the adjustable burner mounting position adapts to hoses and valves of different nominal diameters.

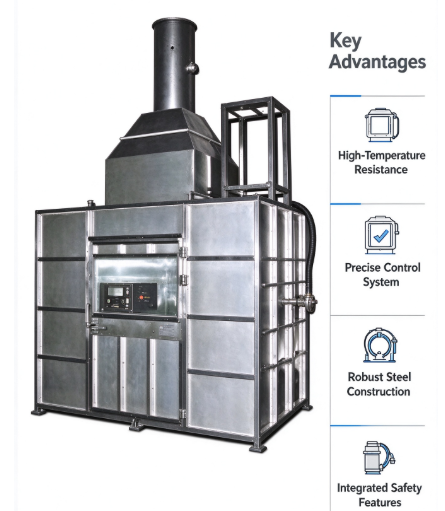

• ✓LabVIEW GUI control system with an easy learning curve for lab operators
• ✓Automatic data acquisition and storage for stable, repeatable test results
• ✓Customizable report templates with one-click data analysis and printing
• ✓Multi-standard compatible design — one machine fulfills 3 categories of fire resistance tests
• ✓Supports FTP II Res A 753 testing covering Level 1 to Level 3
• ✓STS304 stainless steel chamber, resistant to high temperature and corrosion
• ✓Adjustable burner bracket compatible with diversified valve and hose samples

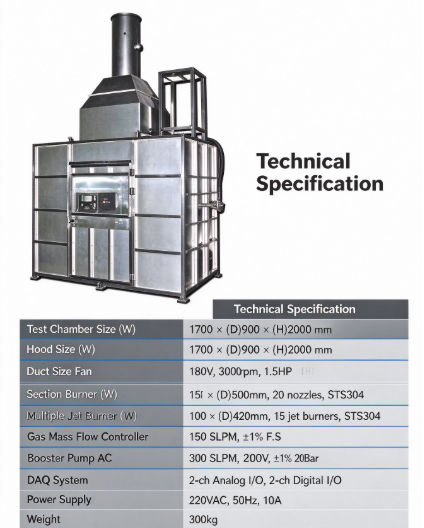

• ✓High-precision propane and air mass flow controllers with ±1% F.S accuracy
• ✓K-type thermocouple group and multi-channel DAQ module for reliable temperature monitoring
• ✓Booster pump supplies pressure up to 20 bar for watertightness verification

The system continuously captures critical temperature indicators throughout the entire fire exposure cycle:

• Third-party fire safety certification laboratories
• National and municipal fire research institutes
• Maritime fire component testing centers
• Independent testing labs for fire protection products

We provide a 12-month full machine warranty. Our engineering team delivers free online remote training for equipment installation, commissioning, calibration and standard operation. Lifelong technical consultation and spare parts supply are available at all times.

We support personalized function modification for special customized test requirements. Our engineers also provide professional consulting services for ISO and FTP fire standard interpretation and test scheme setup.
