Firefighting Fittings Fire Resistance Testing Equipment for Valve Hose Pipe Under Internal Pressure Flame Test

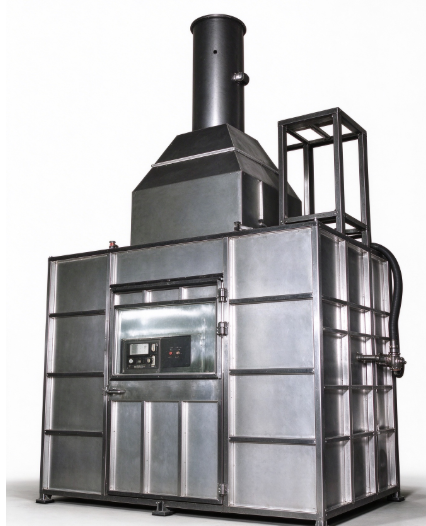

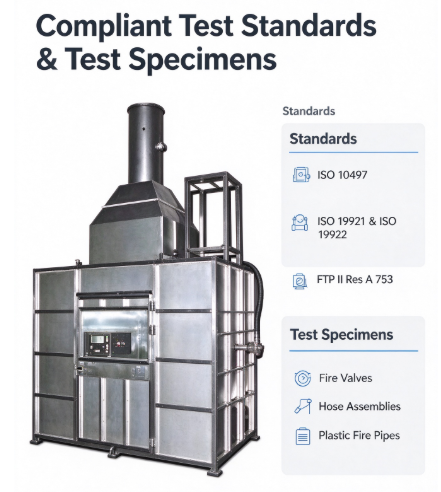

This all-in-one fire resistance test machine is engineered for fire protection fittings, covering fire valves, hose assemblies and plastic fire pipes. It complies with ISO 10497, ISO 19921, ISO 19922 and FTP II Res A753 standards. The system applies a standard flame to pressurized samples and then evaluates watertight performance after fire exposure.

Controlled by a LabVIEW system, the tester supports automatic data recording, temperature monitoring and report printing. By simply changing burners, a single unit can run all three standard test types. The stainless steel chamber is heat and corrosion resistant, and the burner position can be adjusted for different sample sizes. High-precision flow meters and thermocouples ensure stable and reliable test data.

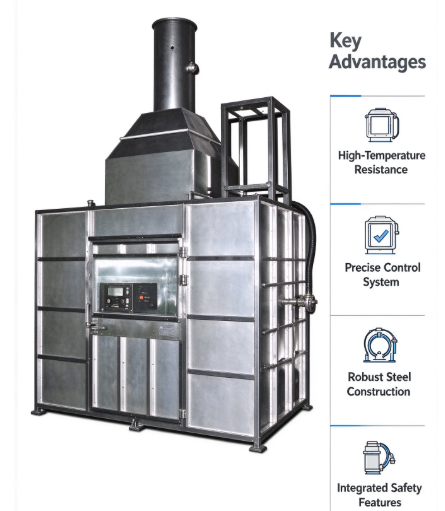

• ✔Multi-standard integrated test solution, lower procurement cost
• ✔LabVIEW control for simple, reliable operation
• ✔Real-time data recording for repeatable test results
• ✔Custom test report export
• ✔Supports FTP II Res A753 Level 1–3 testing
• ✔Heavy-duty stainless steel test chamber
• ✔Adjustable burner to fit various valves and hoses
• ✔±1%FS high-precision gas and air flow controller
• ✔Multi-channel temperature acquisition system
• ✔20 bar booster pump for watertightness testing

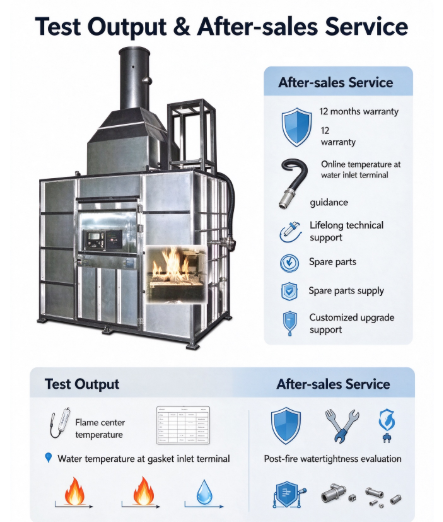

The system monitors flame center temperature, water inlet terminal flame temperature and gasket inlet water temperature, and verifies the post-fire watertight integrity of fire safety components.

• Fire Protection Factories
• Certification Laboratories
• Fire Safety Research Institutions
• Marine Fire Component Test Labs

• ✔12-month warranty
• ✔Free online training
• ✔Lifelong technical support
• ✔Spare parts supply
• ✔Customized function service
• ✔Standard consultation
