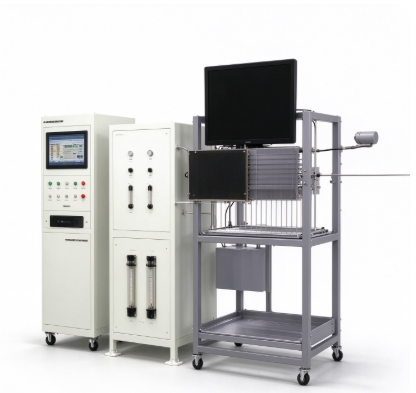

Vertical Flame Spread Test Apparatus Fire Reaction Testing Machine for Building and Transportation Products

The vertical flame spread test apparatus is an advanced fire reaction testing instrument engineered for research and certification of construction and transportation materials. It monitors lateral flame spread across vertical samples, records ignition and extinguishing times at multiple measuring positions, calculates flame spread rate, and acquires comprehensive thermal indicators — including ignition heat, continuous combustion heat, critical heat flux and total heat release.

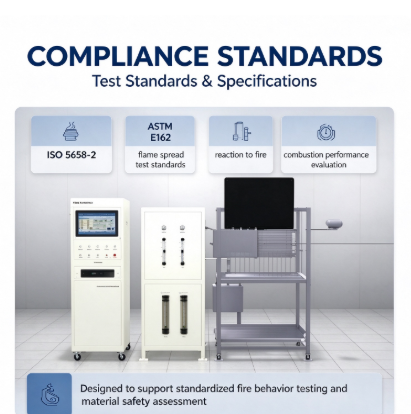

Integrated with visual recording, an anti-backflow safety interlock and an intelligent data acquisition system, the instrument supports standardized testing in accordance with ISO 5658-2 and ASTM E1321, making it suitable for both routine certification testing and academic fire research.

• Fully explosion-proof control system with multi-level safety interlock ensures stable and secure long-duration continuous testing.
• Standardized cylindrical pilot burner delivers consistent automatic flame impingement for excellent test repeatability.
• Double-layer grid and enlarged viewing lens enable real-time visual observation of flame propagation characteristics.
• Radiant panel temperature closed-loop control with real-time heat source plate monitoring and automatic gas cut-off interlock against flame reflux.
• High-capacity flow controller enables accurate methane content measurement during gas critical heat flux tests.
• High-definition camera and data acquisition system automatically save full-process test videos, flame spread length images and thermal data for full traceability.
• 19° analysis frame supports synchronous measurement of flame spread rate, critical heat flux and heat release rate.
• Built-in IMO & ISO software module provides automatic data calculation and formatted report export, greatly reducing manual operation error.

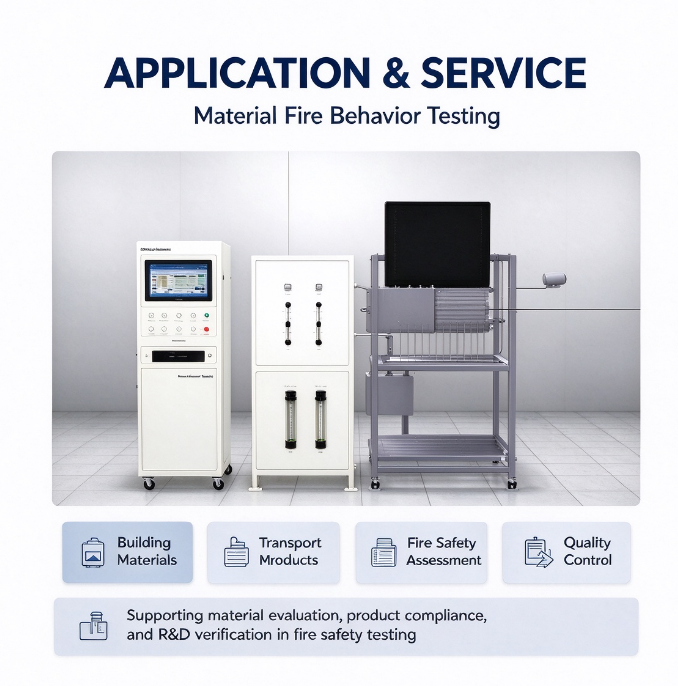

The apparatus is suitable for university fire research laboratories, national fire research institutes, independent third-party testing and certification organizations, new material R&D enterprises, and manufacturers of high-speed rail, automobile and marine interior materials. It is used for flame spread performance research and fire safety compliance testing of vertical building and transportation materials.
