Flammability Tester for Floor Coverings | ISO 6925 BS4790 Carpet Ignitability Test Equipment

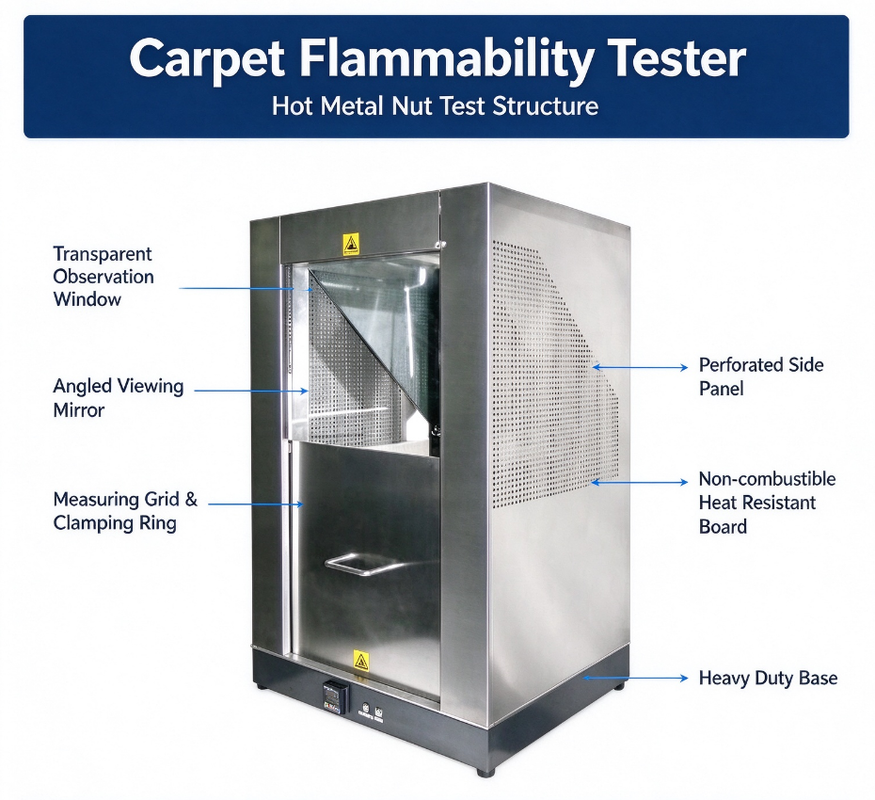

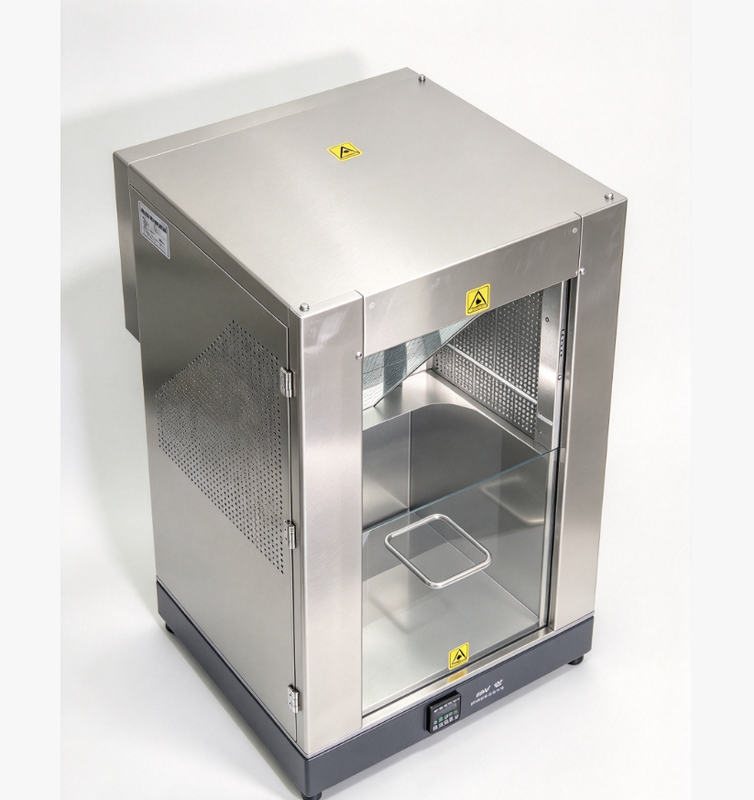

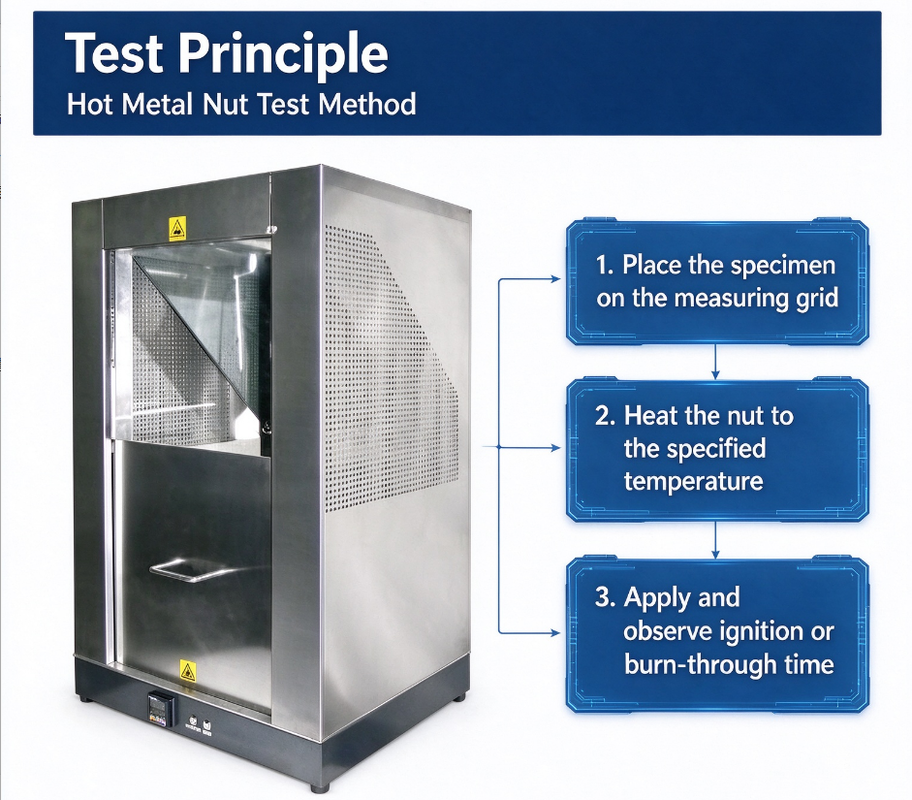

This flammability tester is engineered to evaluate the response of floor coverings to a small ignition source, supporting two standard test regimes: the methenamine tablet ignition test (ISO 6925, BS 6307) and the hot metal nut ignition test (BS 4790). The test enclosure is built from non-combustible, heat-resistant board, and a counterweighted sliding access panel provides safe entry to the test area. An inclined mirror mounted at the top interior of the chamber enables direct visual observation of specimen combustion without disturbing the test environment. The chamber measures 380 × 380 × 380 mm internally and is fitted with a measuring grid and clamping ring for accurate specimen fixation.

• Two standard test methods integrated into a single unit, reducing laboratory equipment investment.
• Independent enclosed test chamber delivers a stable thermal environment for reliable test data.
• Optical observation design avoids disturbance to the flame during visual inspection.
• Standard-matched jigs and measuring scale guarantee test consistency.
• Robust non-combustible inner structure suitable for repeated high-temperature ignition testing.
• Stainless steel outer casing offers excellent chemical and heat resistance.

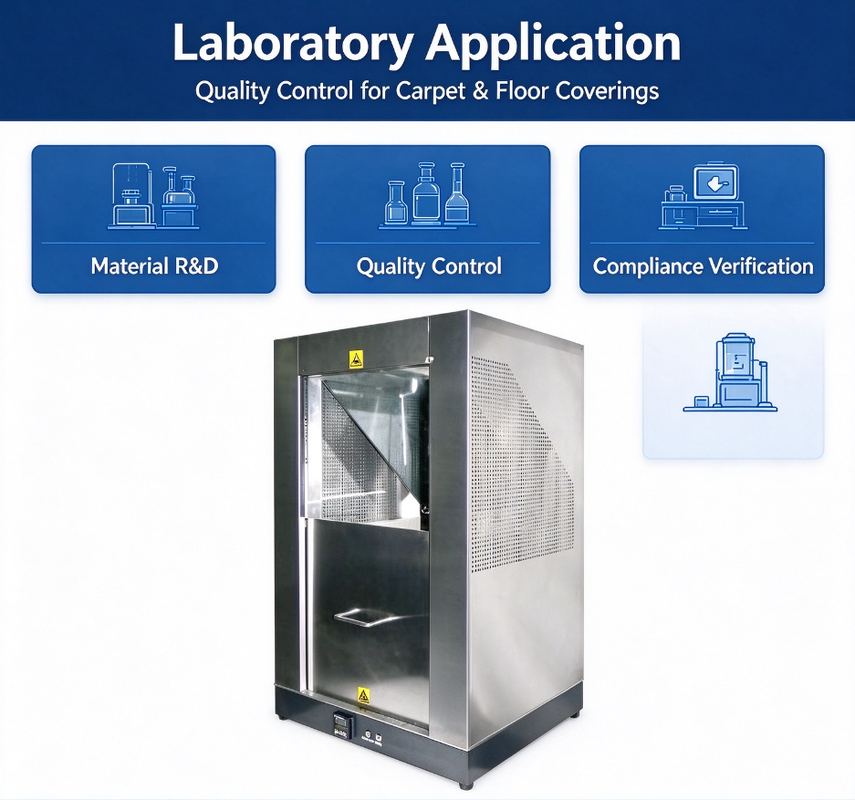

Designed for academic material research laboratories, third-party accredited fire testing laboratories, building material research institutes, and textile fire safety research centers. Suitable for scientific research, fire characteristic studies of polymer flooring and textile carpet materials, standard verification, and comparative testing.

• 12-month warranty for the main unit.
• Technical datasheet and standard operation SOP provided in English.
• Technical communication support for test method interpretation.
• Consumables and replacement accessories available at any time.
• Remote assistance for data recording and result evaluation.
