Hot Plate & Heating Tube Type Thermal Insulation Max Service Temperature Test Equipment with PLC Computer Control

Hot Plate & Heating Tube Type Thermal Insulation Max Service Temperature Test Equipment with PLC Computer Control

Hot Plate Thermal Insulation Tester

Heating Tube Thermal Test Equipment

PLC Computer Control Flammability Tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF022

Contact Us
Request A Quote
Hot Plate & Heating Tube Type Thermal Insulation Max Service Temperature Test Equipment with PLC Computer Control Hot Plate & Heating Tube Type Thermal Insulation Max Service Temperature Test Equipment with PLC Computer Control Hot Plate & Heating Tube Type Thermal Insulation Max Service Temperature Test Equipment with PLC Computer Control Hot Plate & Heating Tube Type Thermal Insulation Max Service Temperature Test Equipment with PLC Computer Control
Product Details
Temperature Measurement System::
He Diameter Of The Thermocouple Wire Is 5.0mm, The Range Of Measurement Temperature: 0-1250 ℃; Using PLC + Module Acquisition Temperature.
Control Part::
PLC Module, Computer Control Real-time Display Hot Surface Temperature Curve, Output Test Report.
Heating Rate::
5 ℃ / Min Or 3 ℃ / Min Can Be Set
Temperature Acquisition::
Collected Once Every 2min, Together With Curve Shows.
Thermocouple Response Time::
<0.5s.
Temperature Error:
± 0.5 ℃.
Timing Error:
1s / H
Computer:
1 Set (at Least Meet With These Following Requirements: CPU: INTEL I5-III On Behalf Of The Above; Memory: 4G Or More; Hard Disk: 500G Or More; With The Serial Port: Control Equipment Operation; Display: 20 Inches Or More LED Liquid Crystal Display, 1600 *
Equipped With Flat Feet And Feeler:
Measure Warpage.
Equipped With:
Two Sample Cans.
Highlight:

Hot Plate Thermal Insulation Tester

,

Heating Tube Thermal Test Equipment

,

PLC Computer Control Flammability Tester

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiation
Payment Terms
T/T
RELATED PRODUCTS
Good price High Precision Thermal Insulation Blanket Pipe Shell Maximum Service Temperature Tester online

High Precision Thermal Insulation Blanket Pipe Shell Maximum Service Temperature Tester

Get Best Price
Good price Hot Plate & Heating Tube Type Thermal Insulation Max Service Temperature Test Equipment with PLC Computer Control online

Hot Plate & Heating Tube Type Thermal Insulation Max Service Temperature Test Equipment with PLC Computer Control

Get Best Price
Good price Maximum Service Temperature Testing Machine for Loose Insulation, Blanket, Block, Plate & Prefabricated Insulating Tube Shell online

Maximum Service Temperature Testing Machine for Loose Insulation, Blanket, Block, Plate & Prefabricated Insulating Tube Shell

Get Best Price
Good price Thermal Insulation Materials Maximum Service Temperature Test Apparatus | ISO 8142 ASTM C411 Insulation Blanket Pipe Shell High Temperature Tester online

Thermal Insulation Materials Maximum Service Temperature Test Apparatus | ISO 8142 ASTM C411 Insulation Blanket Pipe Shell High Temperature Tester

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Product Overview

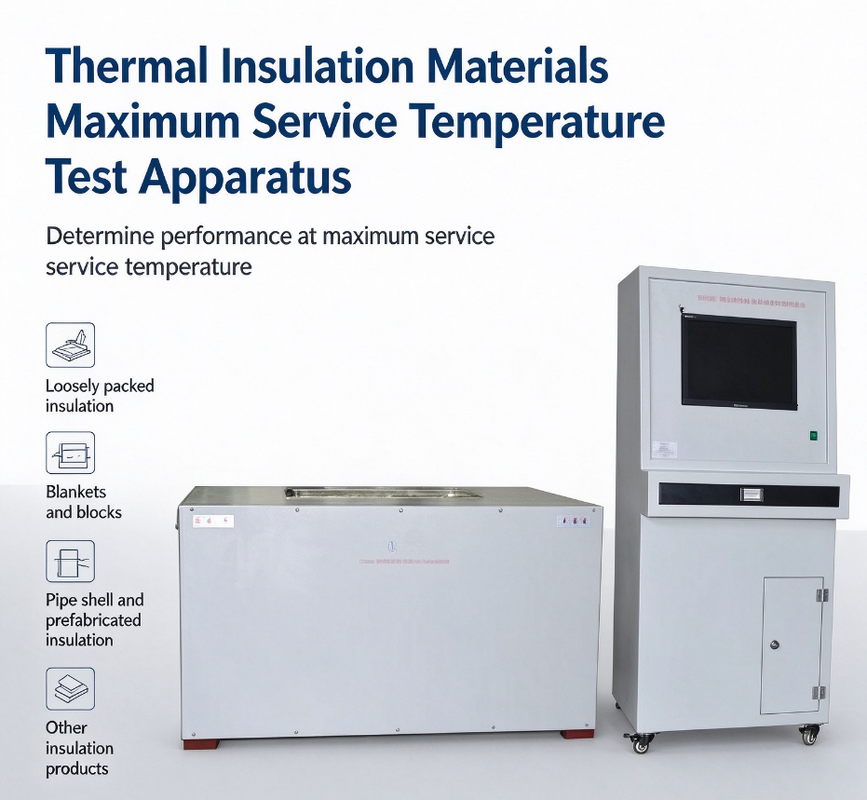

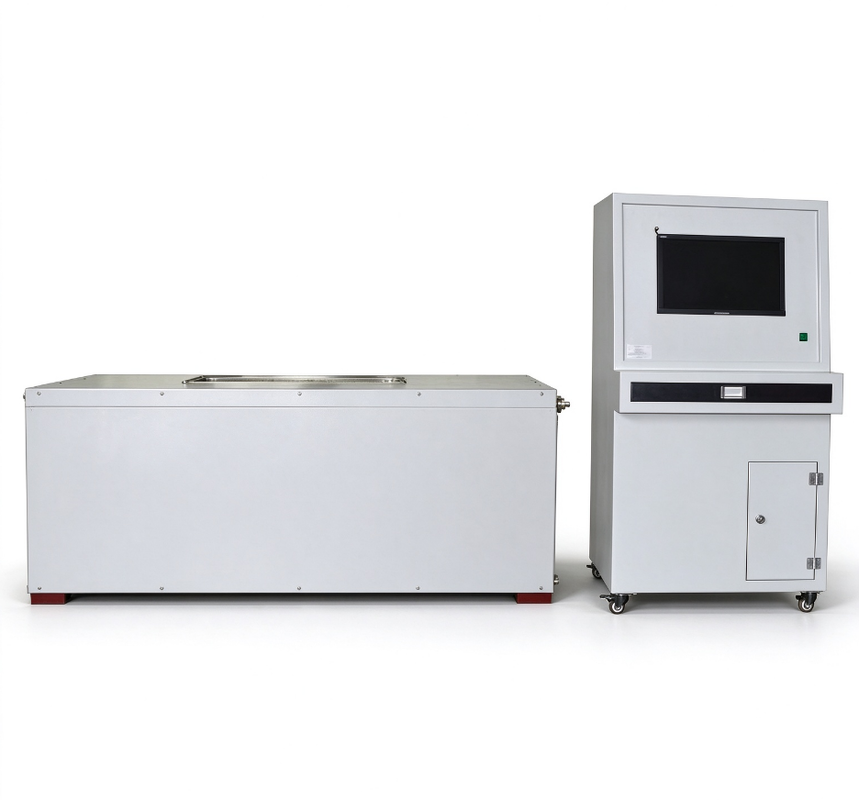

Hot plate and heating tube type thermal insulation maximum service temperature test equipment with PLC computer control

This Thermal Insulation Materials Maximum Service Temperature Test Apparatus is engineered strictly in accordance with ISO 8142:1990 Annex A, GB/T17430-1998, ASTM C411-82, and ASTM C447-85. It verifies the performance stability of insulation materials when exposed to their maximum service temperature. The apparatus supports loose packed insulation, insulation blankets, blocks, plates, and prefabricated insulating tube shells. It is widely adopted by inspection bodies as standard test equipment for thermal insulation material qualification testing. The integrated hot plate and heating tube test station completes both specimen test types without additional equipment, while all temperature acquisition, control, and data storage processes are automatically handled by the computer system.

Key Advantages
  • 1.Fully meets international standard test requirements; test data is suitable for certification and inspection reports.
  • 2.Strict temperature uniformity control: heating surface temperature tolerance follows the standard rule (the smaller of +5% or +15℃).
  • 3.High-accuracy temperature measurement system: temperature error ±0.5℃, timing error ≤1s per hour.
  • 4.Standard sample supporting tools included for warpage inspection and loose material containment.
  • 5.Separate heating protection structure eliminates end-effect interference during pipe shell testing.
  • 6.Independent data recording system ensures original test curves and data cannot be arbitrarily modified, meeting laboratory quality management system requirements.
  • 7.Stable SUS304 heating assembly suitable for long-term continuous standard testing.
Application Fields

This maximum service temperature test equipment is suitable for third-party certification and testing laboratories, national and local quality supervision institutes, construction material inspection stations, insulation material factory quality control departments, engineering supervision units, and fire insulation material certification testing.

After-Sales Service
  • Standard delivery includes a calibration guide and standard operating procedure (SOP).
  • Warranty period: 12 months.
  • Remote technical support for test standard consultation.
  • Calibration guidance service to help maintain equipment validity.
  • Custom report templates tailored to your laboratory document system.
  • Overseas technical support available via video call.
