YYP-015 Water Absorption Tester Cobb Absorption Tester with 100±0.2 cm² Test Area and 200±0.5mm Pressure Roller Length for 100±5ml Water Consumption Testing

YYP-015 Water Absorption Tester Cobb Absorption Tester with 100±0.2 cm² Test Area and 200±0.5mm Pressure Roller Length for 100±5ml Water Consumption Testing

100±0.2 cm² Test Area Water Absorption Tester

200±0.5mm Pressure Roller Cobb Absorption Tester

100±5ml Water Consumption Water Absorption Tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYP-015

Contact Us
Request A Quote
YYP-015 Water Absorption Tester Cobb Absorption Tester with 100±0.2 cm² Test Area and 200±0.5mm Pressure Roller Length for 100±5ml Water Consumption Testing YYP-015 Water Absorption Tester Cobb Absorption Tester with 100±0.2 cm² Test Area and 200±0.5mm Pressure Roller Length for 100±5ml Water Consumption Testing YYP-015 Water Absorption Tester Cobb Absorption Tester with 100±0.2 cm² Test Area and 200±0.5mm Pressure Roller Length for 100±5ml Water Consumption Testing YYP-015 Water Absorption Tester Cobb Absorption Tester with 100±0.2 cm² Test Area and 200±0.5mm Pressure Roller Length for 100±5ml Water Consumption Testing
Product Details
Model:
YYP-015
Test Area::
100±0.2
Test Water Consumption::
(100±5)ml
Pressure Roller Length::
(200±0.5)mm
Size ::
458*317*395mm
Weight::
37kg
Highlight:

100±0.2 cm² Test Area Water Absorption Tester

,

200±0.5mm Pressure Roller Cobb Absorption Tester

,

100±5ml Water Consumption Water Absorption Tester

Payment & Shipping Terms
Minimum Order Quantity
1
Price
1294
Packaging Details
Standard Wooden Case
Delivery Time
10 days
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Package Material Water Absorption Testing Equipment YYP-015 online

Package Material Water Absorption Testing Equipment YYP-015

Get Best Price
Good price Lab Water Absorption Tester for Paper and Cardboard online

Lab Water Absorption Tester for Paper and Cardboard

Get Best Price
Good price Printed Material Ink Friction Tester YYP-014, Paperboard Rub Fastness Tester with LED Display online

Printed Material Ink Friction Tester YYP-014, Paperboard Rub Fastness Tester with LED Display

Get Best Price
Good price Paperboard Ink Rub Tester YYP-014, Label and Decorative Coating Layer Abrasion Resistance Testing Machine online

Paperboard Ink Rub Tester YYP-014, Label and Decorative Coating Layer Abrasion Resistance Testing Machine

Get Best Price
Contact Us
8613825729462
sales03@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Product Overview

The YYP-015 Paper and Cardboard Water Absorption Testing Equipment is designed for determining the water absorption rate of packaging materials. It provides the essential parameters and design requirements specified in GB/T 1540-2002 Determination of Water Absorption of Paper and Cardboard (Cobb Method), a standard applicable to measuring the surface water absorption of various papers and cardboards. Note that this method is not intended for the precise evaluation of the writing performance of paper or board.

Working Principle

The instrument measures the surface water absorption capacity of paper and cardboard, expressed as the Cobb value (C): the quantity of water absorbed per unit area of paper or cardboard under a specified pressure and temperature within a defined time, measured in g/m². The calculation formula is as follows:

C = (G2 − G1) × 100
  • C — Cobb water absorption value
  • G2 — Sample mass after water absorption
  • G1 — Sample mass before water absorption

This water absorption tester is a conventional instrument for surface water absorption testing of paper and cardboard. It is also referred to as a paper surface water absorption weight tester, and because it adopts the Cobb test method, it is commonly known as a Cobb absorption tester.

Technical Parameters
Parameter Specification
Metal cylinder cross-sectional area 100 ± 0.2 cm² (internal diameter 112.8 ± 0.2 mm); cylinder height 50 mm; contact surface of the cylindrical torus and sample is smooth
Absorbent paper Basis weight 200–250 g/m²; absorption rate 75 mm/10 min. When single-layer basis weight is below 200–250 g/m², multiple layers may be stacked to meet the requirement
Smooth metal flat roller Length 200 ± 0.5 mm; mass 10 ± 0.5 kg
Test water consumption 100 ml ± 5 ml
Dimensions 480 × 400 × 420 mm
Weight 28 kg
Applicable Standards
  • ISO 535
  • GB/T 1540
Product Image

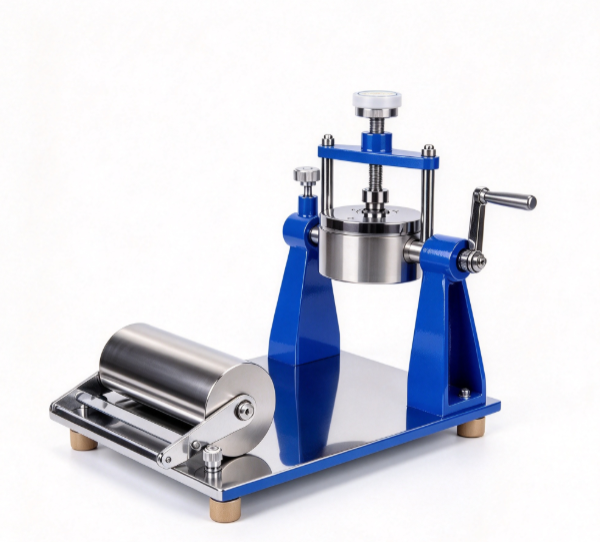

YYP-015 paper and cardboard water absorption testing equipment with metal cylinder and roller assembly

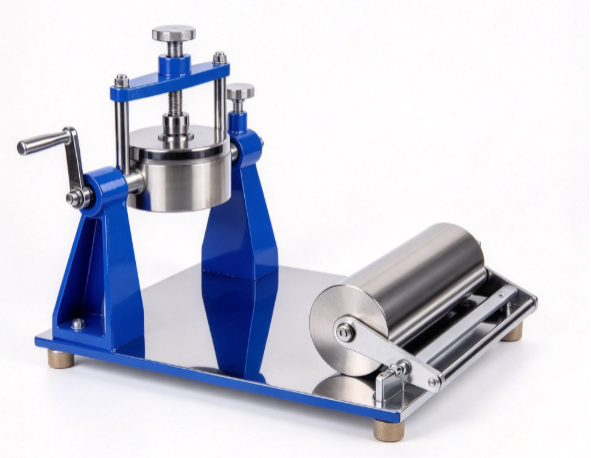

Close-up view of the YYP-015 Cobb water absorption tester cylinder and clamping mechanism
