Name: YYP-016 Food Paper Packaging Dust Inspection Instrument for Paper Dust and Fiber Impurity Test
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYP-015
Price: 1294 USD
Availability: InStock

Home > Products > Package Testing Equipment >

YYP-016 Food Paper Packaging Dust Inspection Instrument for Paper Dust and Fiber Impurity Test

Food Paper Dust Inspection Instrument

Paper Fiber Impurity Test Equipment

Package Testing Dust Analyzer

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYP-015

Request A Quote

YYP-016 Food Paper Packaging Dust Inspection Instrument for Paper Dust and Fiber Impurity Test

Product Details

Model:

YYP-016

Light Source:

16Wfluorescent Lamp

Irradiation Degrees:

60°

Working Platform:

Efficient Area 0.0625 M², Rotating 360°

Standard Dust Image:

0.05~5.0(mm²)

Dimention:

750mmx350mmx500mm

Weight:

12.5Kg

Highlight:

Food Paper Dust Inspection Instrument

Paper Fiber Impurity Test Equipment

Package Testing Dust Analyzer

Payment & Shipping Terms

Minimum Order Quantity

Price

1294

Packaging Details

Standard Wooden Case

Delivery Time

10 days

Supply Ability

15 sets per month

Package Material Water Absorption Testing Equipment YYP-015

Get Best Price

Lab Water Absorption Tester for Paper and Cardboard

Get Best Price

Printed Material Ink Friction Tester YYP-014, Paperboard Rub Fastness Tester with LED Display

Get Best Price

Paperboard Ink Rub Tester YYP-014, Label and Decorative Coating Layer Abrasion Resistance Testing Machine

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

Product Overview

The YYP-016 Paper Dust Tester is a dedicated inspection instrument for evaluating dust and impurity levels in paper and paperboard. It is specifically engineered for quality control of food packaging materials — including food parchment, translucent paper, food wrap paper, and food board — in line with QS authentication requirements for paper packaging.

Working Principle

The instrument consists of a sturdy base, a rotary table, and a 20W fluorescent inspection lamp. The specimen is placed on its plastic board and illuminated by the 20W lamp. Under this illumination, fiber bundles and other impurities on the specimen surface become clearly distinguishable from the surrounding material. The observed results are then compared against a standard dust reference chart to complete the assessment.

Key Applications

Dust and impurity testing of paper and cardboard
Food parchment inspection
Translucent paper evaluation
Food wrap paper quality control
Food board testing
Compliance support for QS authentication of paper packaging

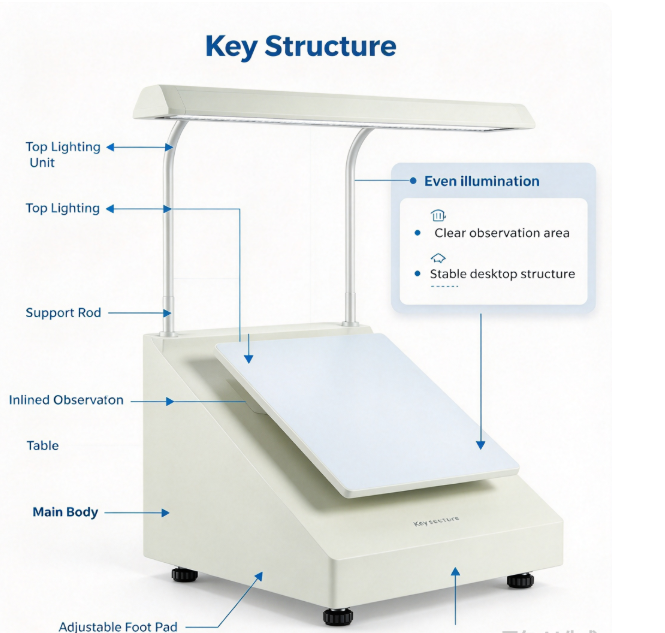

Equipment Composition

Instrument Base	Stable base for secure specimen positioning during inspection
Specimen Table	Rotary specimen table for convenient multi-angle observation
Inspection Lamp	20W fluorescent inspection lamp for clear impurity illumination
Specimen Board	Plastic specimen placement board
Reference Chart	Standard dust comparison chart for accurate classification

Product Images

Note: Specimen observation should be performed under the 20W fluorescent lamp, with results compared against the supplied standard dust picture for accurate classification.
