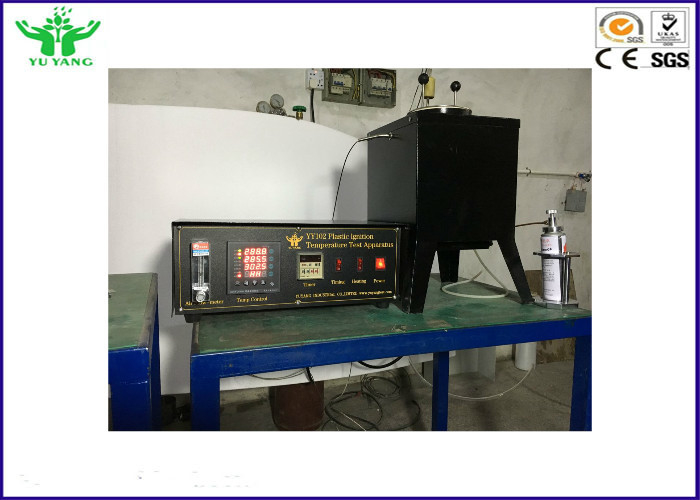

Laboratory Fire Testing Equipment ISO 871 Plastic Ignition Temperature Tester

Laboratory Fire Testing Equipment ISO 871 Plastic Ignition Temperature Tester

  • Laboratory Fire Testing Equipment ISO 871 Plastic Ignition Temperature Tester
  • Laboratory Fire Testing Equipment ISO 871 Plastic Ignition Temperature Tester
  • Laboratory Fire Testing Equipment ISO 871 Plastic Ignition Temperature Tester
Laboratory Fire Testing Equipment ISO 871 Plastic Ignition Temperature Tester
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ASTM D 1929,GB/T 4610,GB/T 9343, ISO 871
Model Number: YY404
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood box
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 15 sets per quarter
Contact Now
Detailed Product Description
Material: Stainless Steel Weight: 20KG
Timer Accuracy: 0.1s Flame Height: 10 ~ 20mm
Product Name: Fire Testing Equipment Usage: Plastic Ignition Temperature Tester
High Light:

smoke density test apparatus

,

fire test chamber





Laboratory Fire Testing Equipment ISO 871 Plastic Ignition Temperature Tester



Description:



Decompose and release the combustible gas from plastic material under regulated testing conditions,ignited by outer flame and burned a certain time,to measure the minimum temperature of the material.Application comparison within material through the testing results.





Standard:



ASTM D 1929,GB/T 4610,GB/T 9343, ISO 871





Specification:



Furnace tube inner diameter 100 ± 5mm, length 240 ± 20mm, not less than 750 ℃ temperature ceramic tube;

Inner tube diameter 75mm ± 2mm, length 240mm ± 20mm, temperature not lower than 750 ℃;

Stainless steel container Dimensions: diameter 9mm, height 48mm;

1. Butane lighter inside diameter of 0.8 ± 0.1mm nozzle, the flame height 10 ~ 20mm (adjustable);

2. Temperature of copper furnace can be constant between 150~450 ℃ ;

3. Equipped with built-in fan to provide air source, and precise control of the flow meter is equipped with imported gas flow;

4. Insulating layer is made larger than 60mm thick mineral wool insulation composed of external stainless steel package;

5. Three import thermocouple temperature instrument detects the furnace temperature and the sample temperature;

6. The sample container is made of stainless steel;

7. Timer Accuracy 0.1s;

8. Automatic temperature program;

9. Ambient temperature: room temperature ~ 40 ℃;

10. Humidity: ≤75%;

11. Voltage: AC 220 V ± 10V 50HZ; use of power: 600W;

12. Temperature control accuracy: ± 2 ℃, can be adjusted between 150 ℃ ~ 450 ℃;

13. Display accuracy: ± 0.5 ℃;

14. Dimensions: test furnace (0.4 × 0.4 × 0.5) m;

15. Weight: 20 Kg.



Laboratory Fire Testing Equipment ISO 871 Plastic Ignition Temperature Tester 0

ASTM D1929-2016.pdf

GBT 4610-2008.pdf
